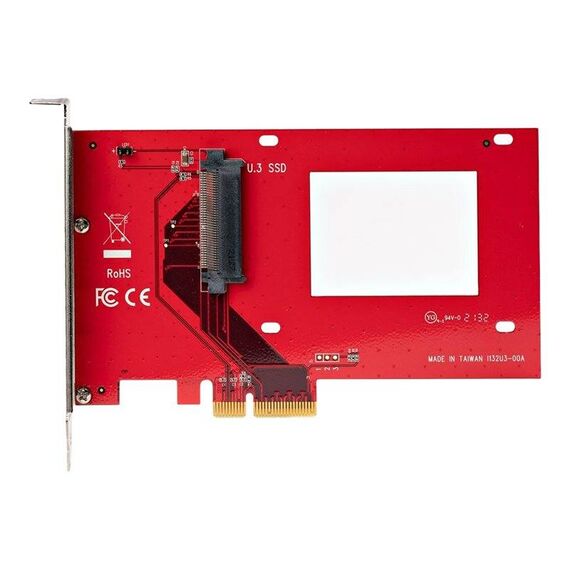

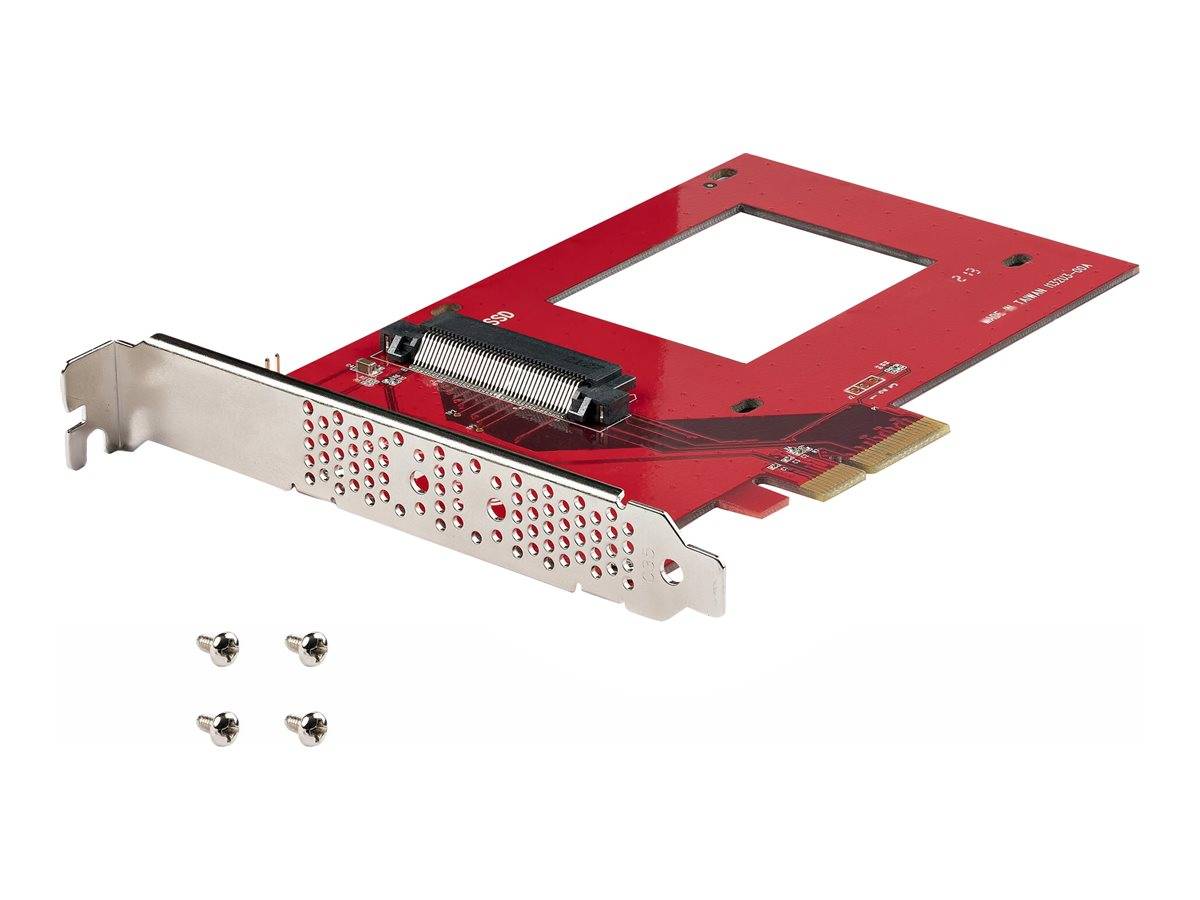

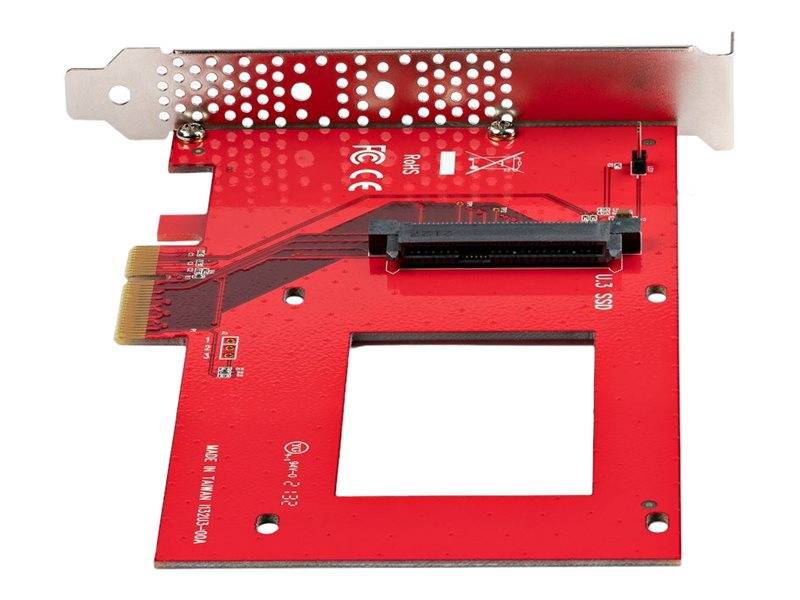

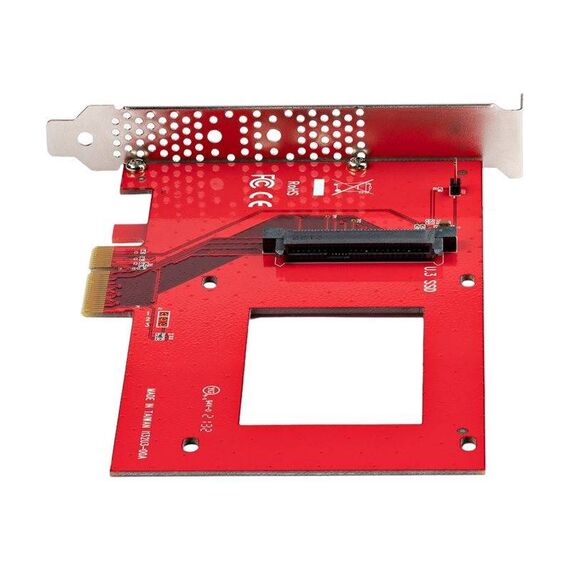

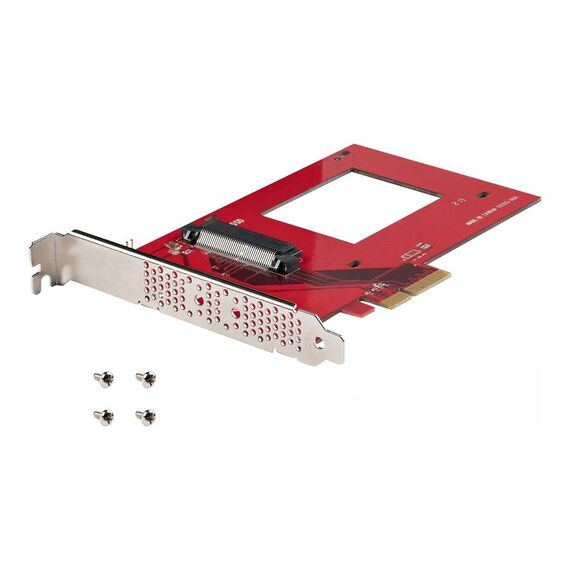

StarTech.com PCIe Adapter Card / PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs | PEX4SFF8639U3
Please sign in so that we can notify you about a reply
Product Features
- Add U.3 capabilities to a desktop or server
Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. - Universal compatibility
The adapter card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 adapter requires no additional drivers or software. - Optimal airflow and reliable performance
The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.
Special Features
- Add high performance U.3 storage
- Universal compatibility
- Prevent overheating
- Hassle-free setup
- The IT Pro's choice
Product Specification
| Device Type | Interface adapter - plug-in card |
| Hard Drive Form Factor Compatibility | 2.5" |
| Hard Drive Maximum Height | 15 mm |
| Host Bus | PCIe 4.0 x4 |
| Product Material | UL94-V0 |
| Colour | Red |
| Storage Controller | Storage Controller |
| Interface | U.3 NVMe |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x U.3 NVMe - U.3 (SFF-TA-1001) |
| Connections | 1 x PCIe 3.0 ¦ 1 x U.3 NVMe |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 x screws, full-profile bracket |
| Features | LED indicator |
| Mounting Kit | Included |
| MTBF | 21,693,912 hours |
| Compliant Standards | RoHS, WEEE |
| Environmental Standards | Environmental Standards |
| TAA Compliant | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.5 cm |
| Depth | 15.4 cm |
| Height | 9 cm |
| Weight | 62 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21.5 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 130 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 20 - 80% |
Features - StarTech.com - PEX4SFF8639U3
More Details
Product Code
03:217203
EAN Code
0065030899000
Manufacturer
StarTech.com
