Product Features
- Height adjustable TV wall mount
Spring-assisted height adjustable range 12.6 in (32 cm). Articulating wall mount TV bracket supports TVs up to 55 in, max weight 66 lb (30 kg). Single-stud design made from powder-coated diecast aluminum for maximum durability. - One-touch motion
Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90° swivel, +8/-15° tilt, and +/-3° rotation; Toolless adjustment with built-in cable management. - Range of motion
Low profile VESA TV wall mount with jointed arm assembly supports +/-90° swivel and folds to just 2.2 in (5.8 cm) from the wall, max arm extension 23.4 in (59.5 cm). Lateral range of 3.9 ft (1.19 m) ideal for corner mounting maximizing space. - Durable construction

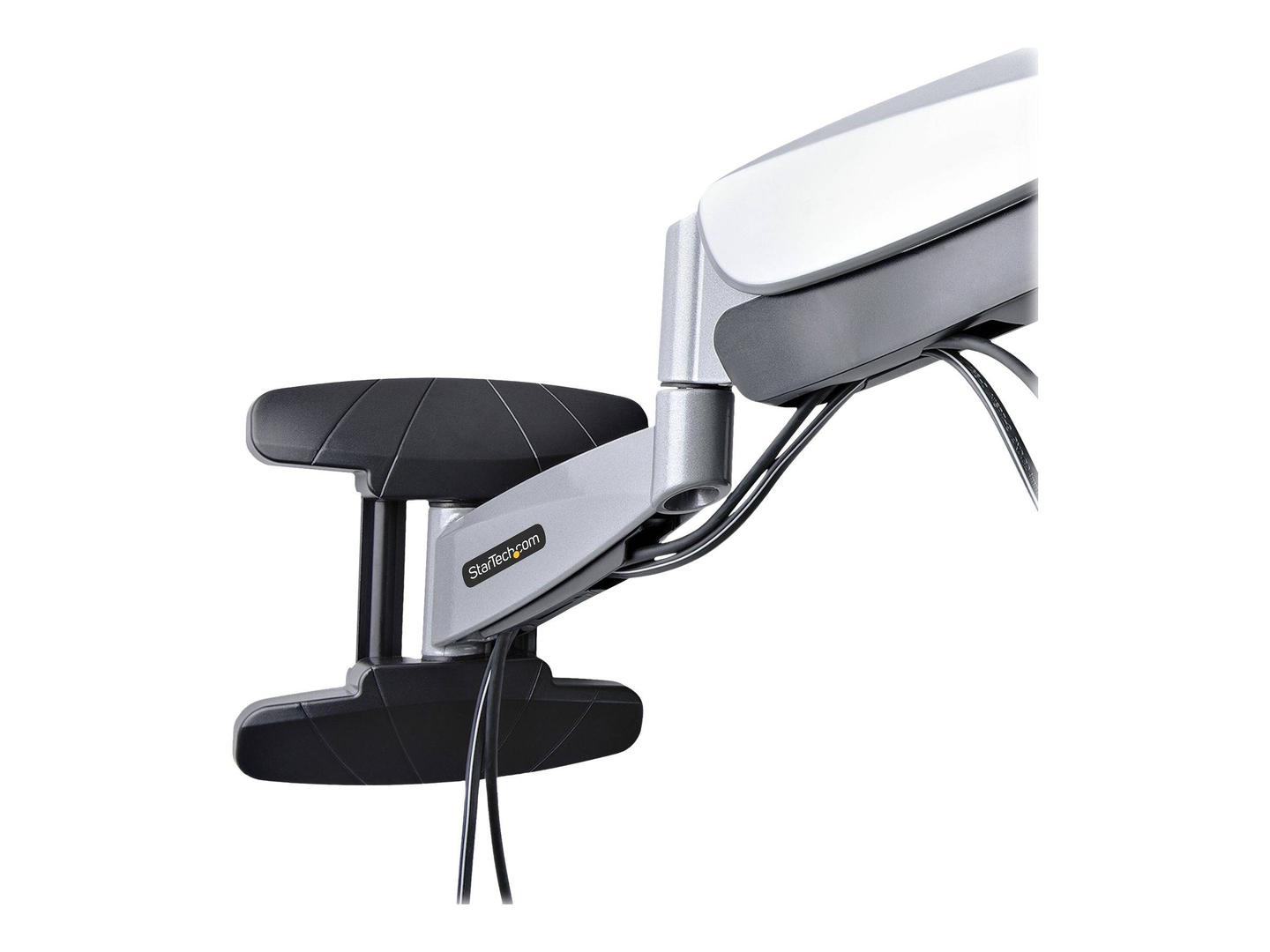

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.
Special Features
- Height adjustable TV wall mount
- One-touch motion
- Range of motion
- Durable construction
Product Specification
| Width | 45 cm |
| Depth | 59.5 cm |
| Height | 45 cm |
| Weight | 6 kg |
| Material | Aluminium, steel |
| Colour | Black, silver |
| Package Content | 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, hex key (4mm), spirit level, 8 x spacers (long), 8 x spacers (short), 4 x M8x50 screws, wrench, hex key (6mm), 2 decorative covers, 8 x VESA extension plate screws, 4 display washers (large), 4 display washers (small), 2 x VESA extension plates (left), 2 x VESA extension plates (right), 5 wall mounting screws, 5 wall mounting washers |
| AV Furniture | AV Furniture |
| Type | Mounting kit |
| Recommended Use | Flat panel |
| Placing / Mounting | Wall-mountable |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 200 x 100 mm, 300 x 300 mm |
| Recommended Display Size | 23"-55" |
| Tilt | -15° to 8° |
| Rotation | -3° to 3° |
| Swivel | -90° to 90° |
| Adjustments | Tilt, swivel, rotation |
| Max Load Weight | 30 kg |
| Dimensions & Weight Details | Dimensions & Weight Details |
| Shipping Dimensions (WxDxH) / Weight | 58.5 cm x 44 cm x 9.5 cm / 6.1 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - StarTech.com - FHA-TV-WALL-MOUNT
Monitor mount capacity
Single monitor mount
More Details
Product Code
CG09884
EAN Code
0065030895149
Manufacturer
StarTech.com
