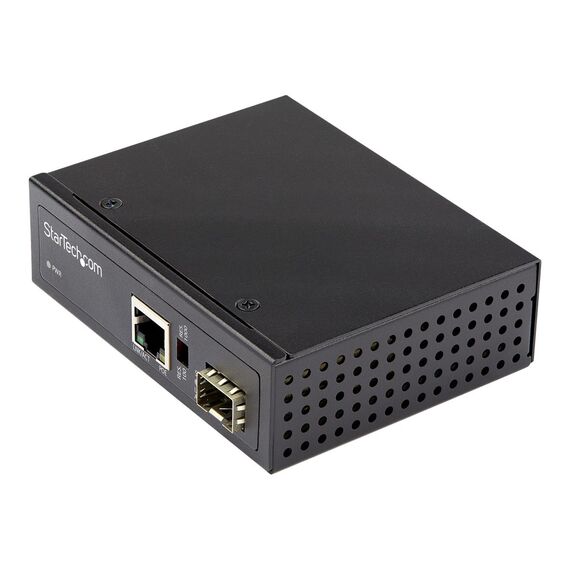

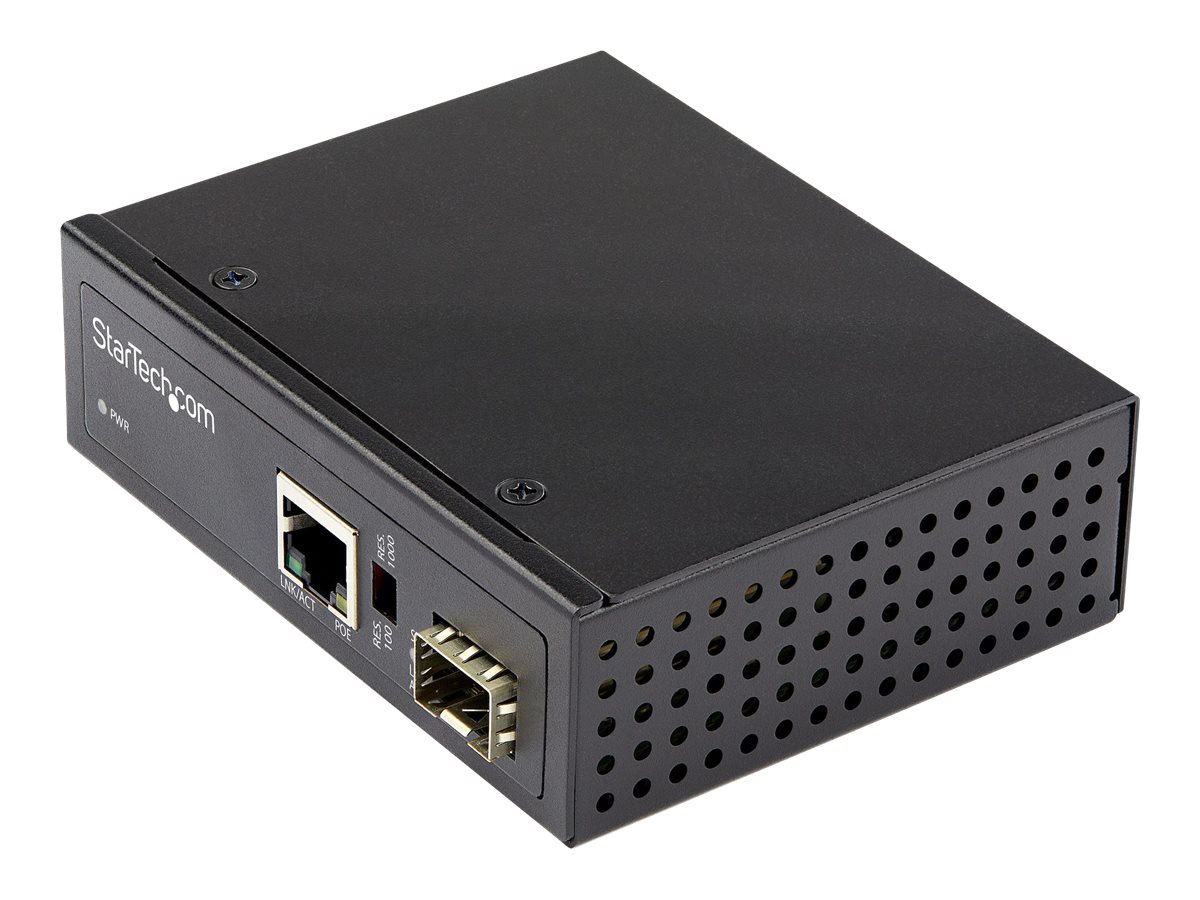

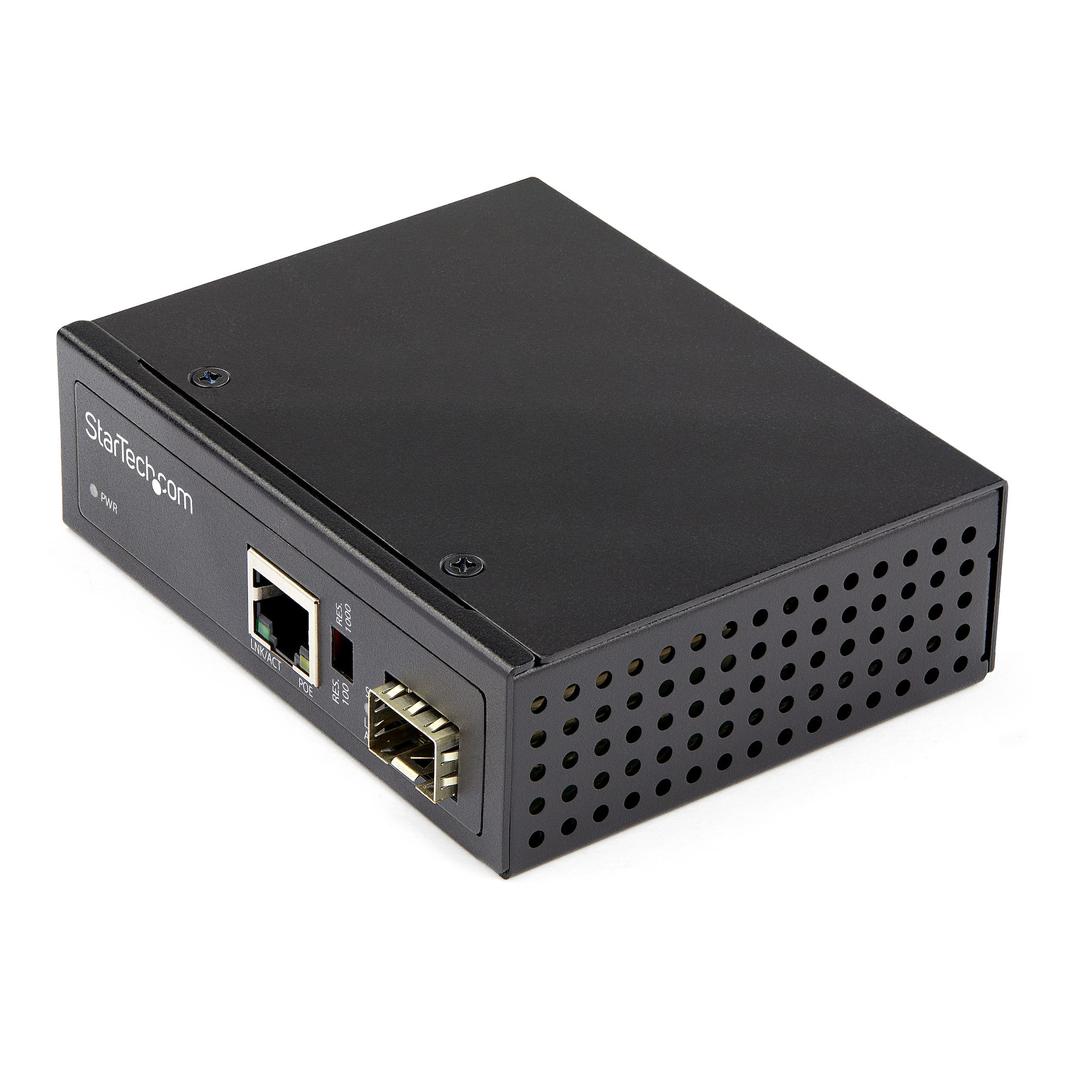

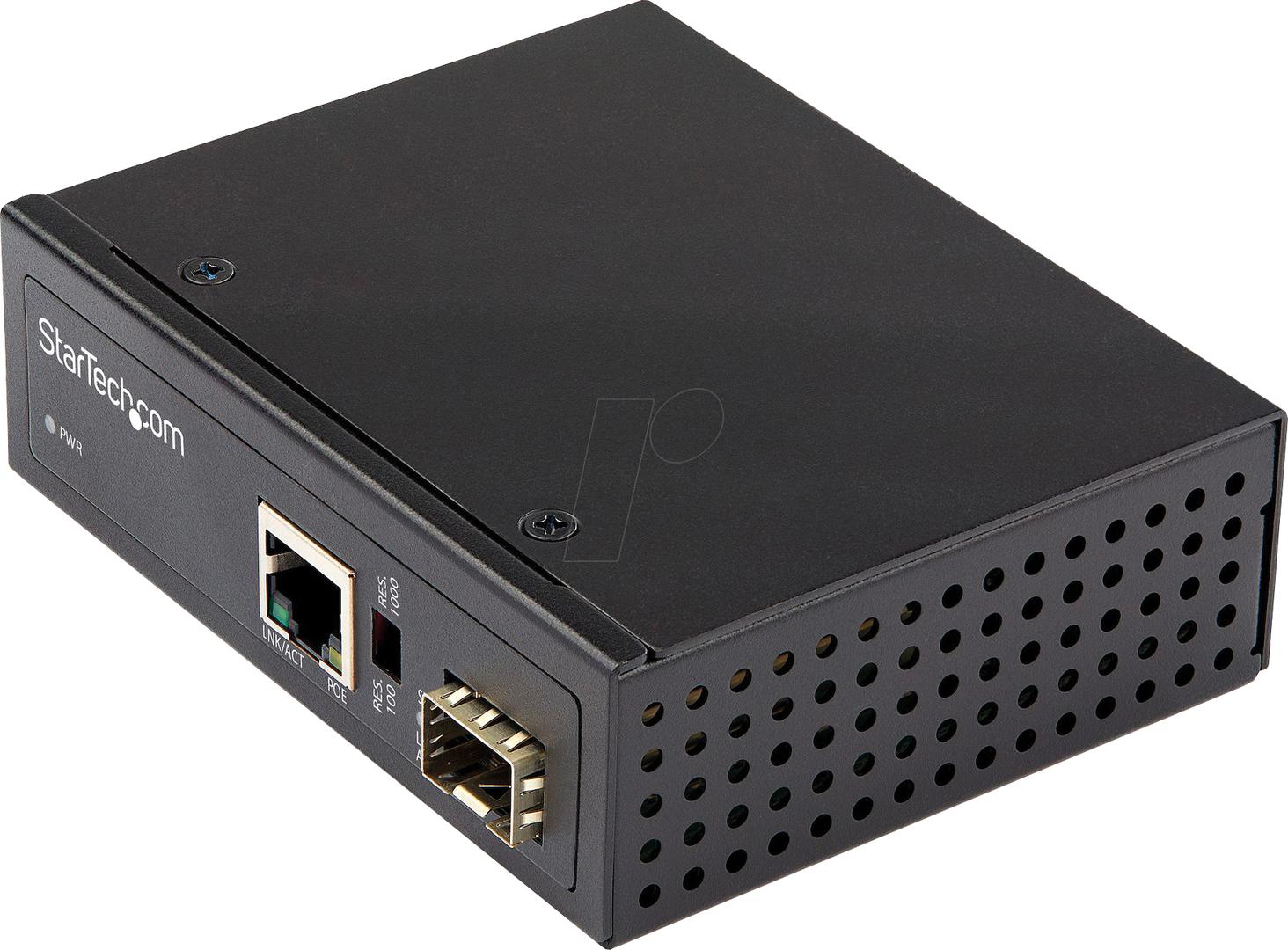

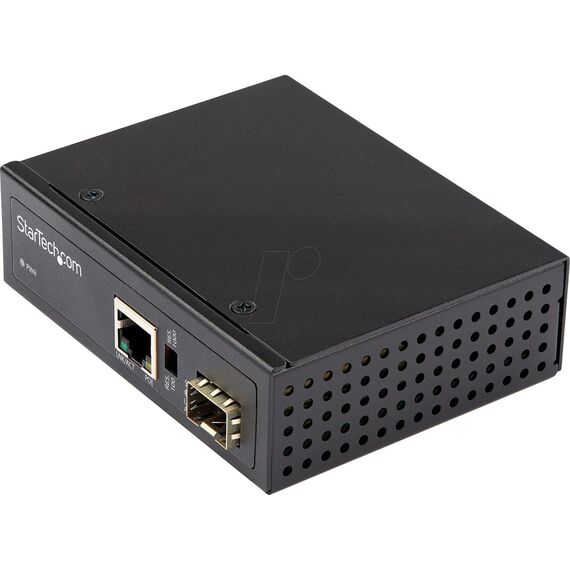

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W, SFP to RJ45, Singlemode/Multimode Fiber to Copper Gigabit Ethernet, Compact, IP-30/ -40 to +75C, PoE+ Media Converter | IMC1GSFP60W
Please sign in so that we can notify you about a reply
Product Features
- Designed for harsh environments
This media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. - Open SFP slot to leverage your current infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. - Dual power inputs

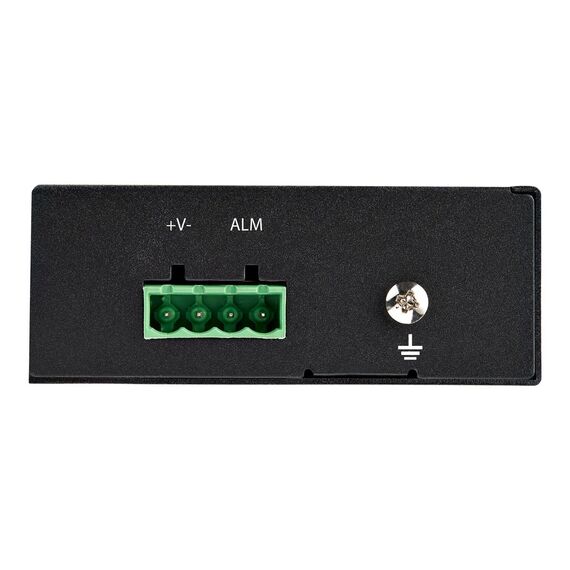

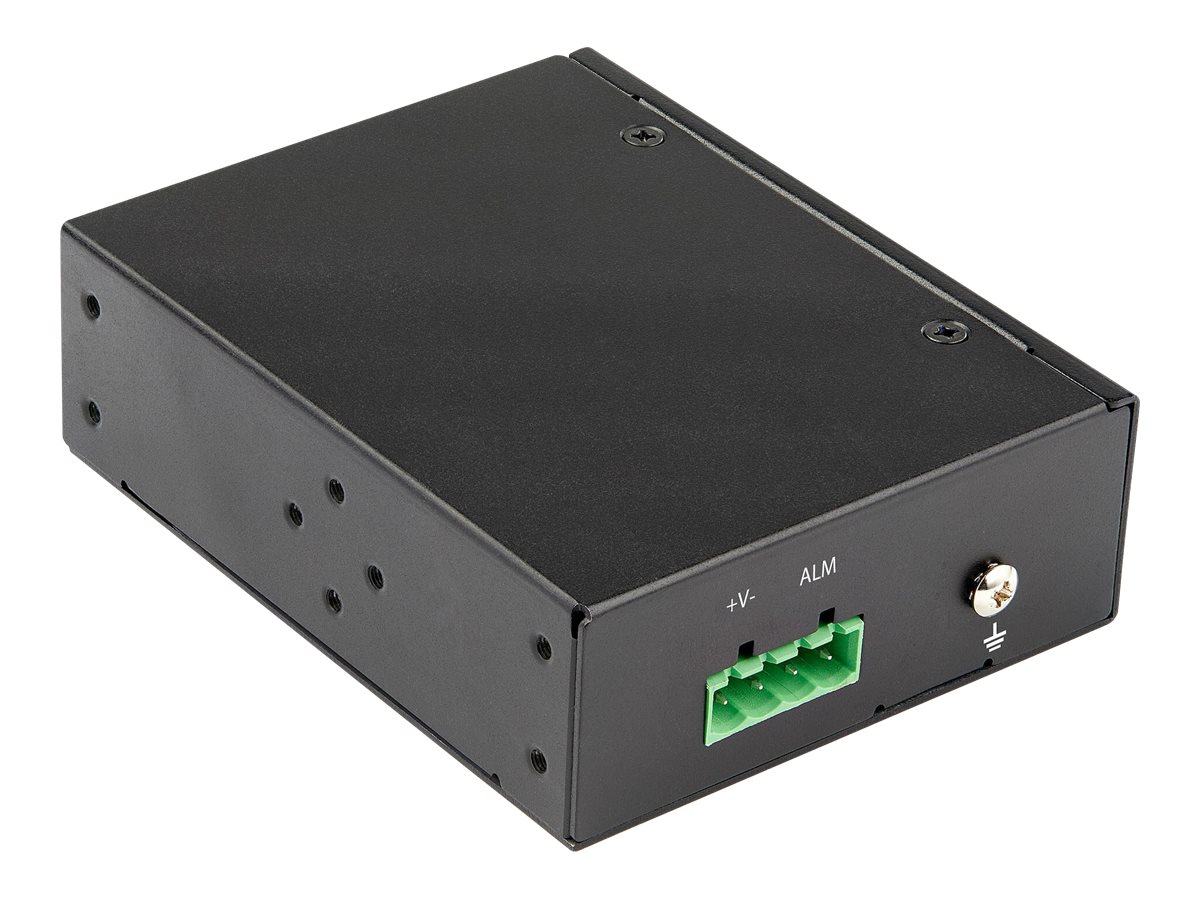

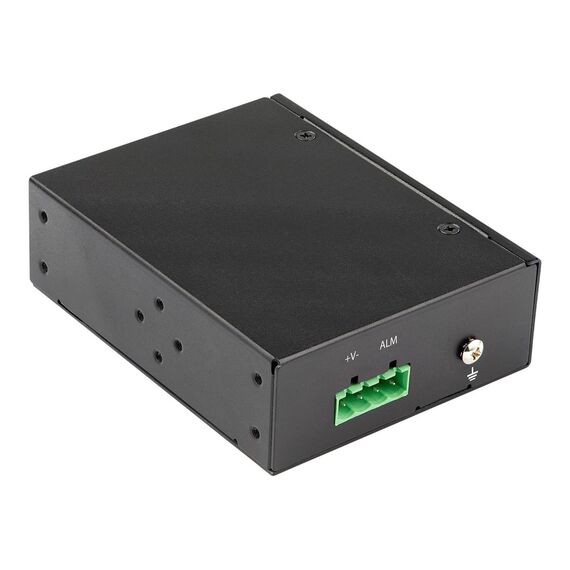

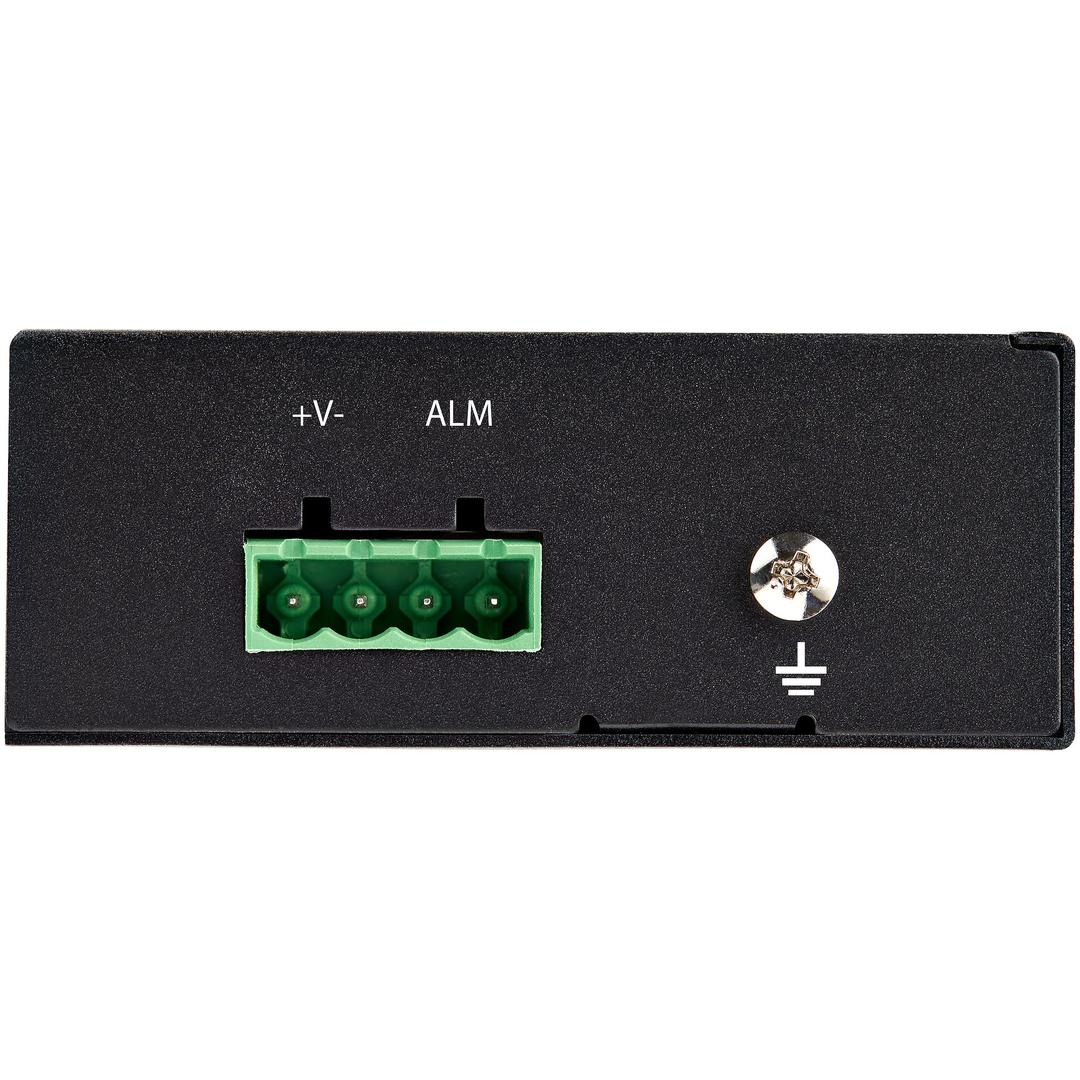

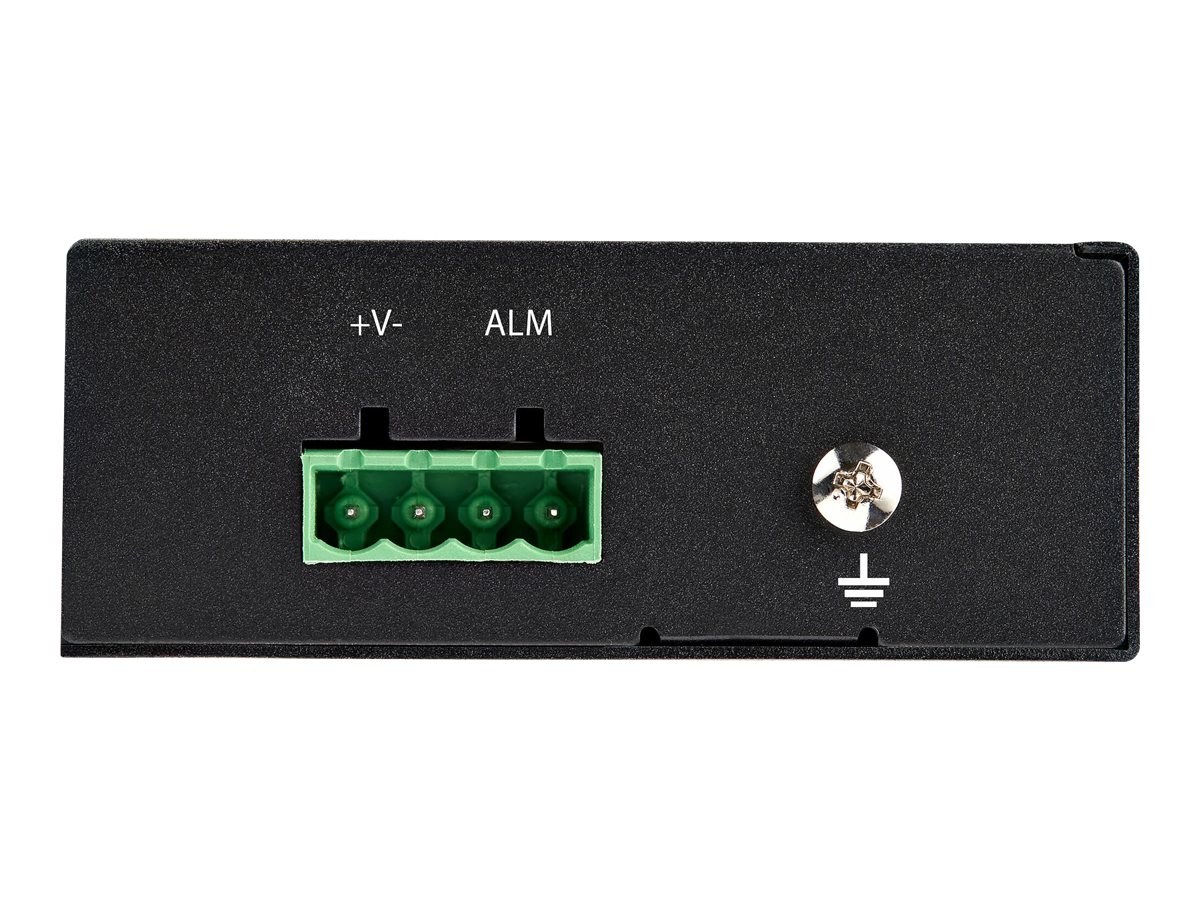

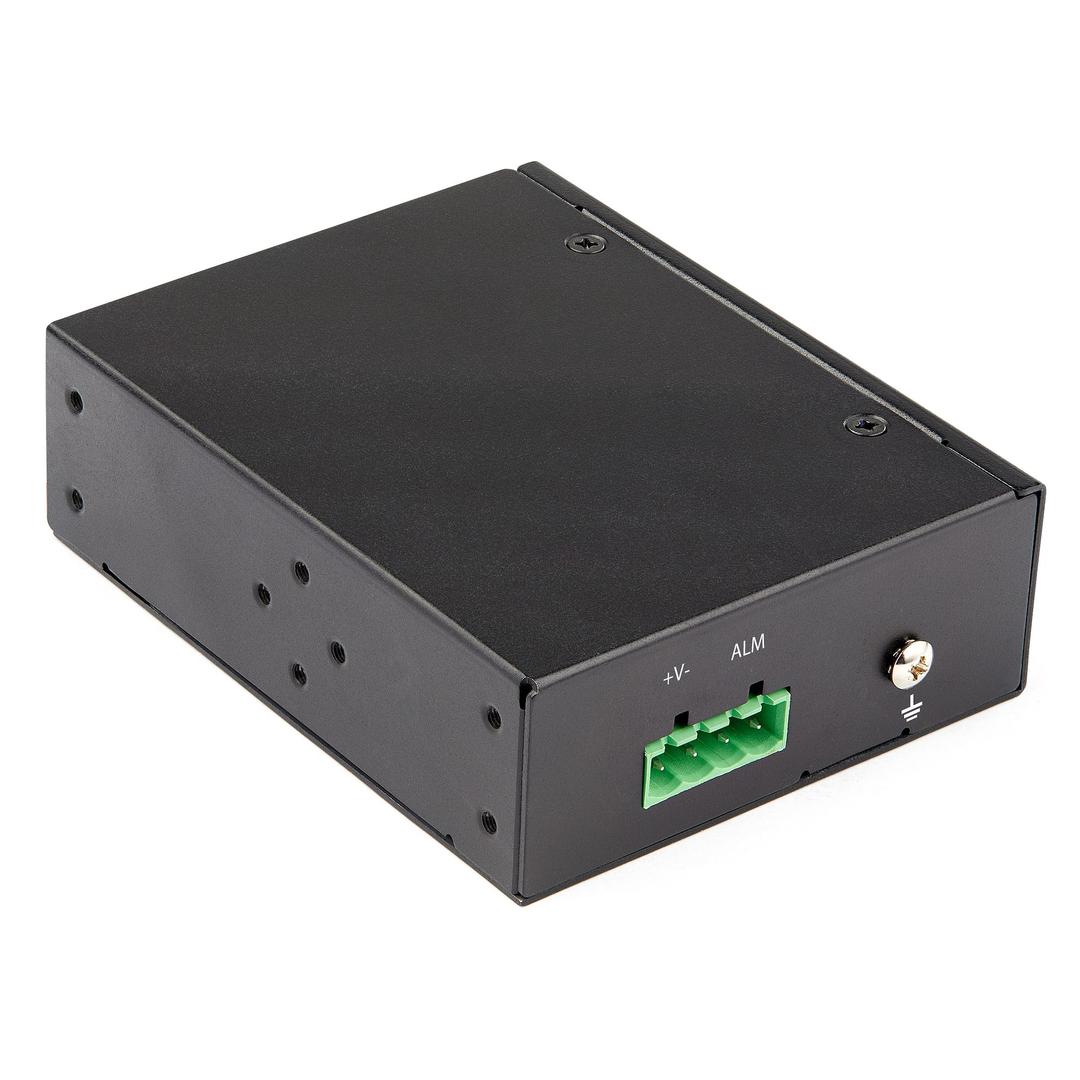

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply.
Special Fetures
- Designed for harsh environments
- Open SFP slot to leverage your current infrastructure
- Dual power inputs
Product Specification
| Device Type | Fibre media converter |
| Form Factor | DIN rail mountable |
| Colour | Black |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 10 km |
| Status Indicators | Port status, active, PoE, link |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, 512KB packet buffer, 2KV Surge protection, 16 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x |
| Expansion / Connectivity | |

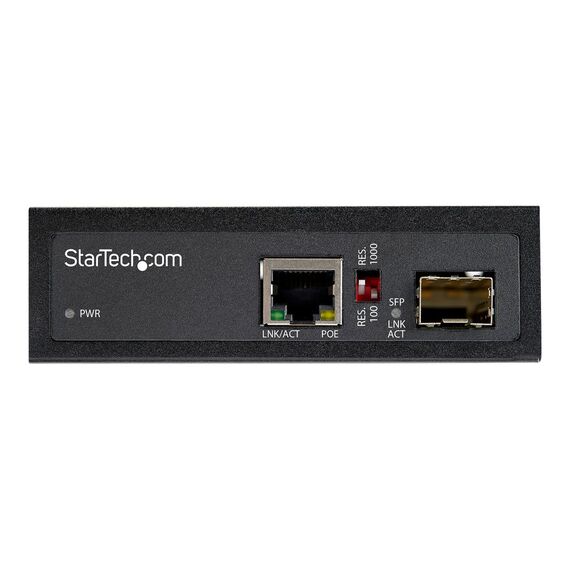

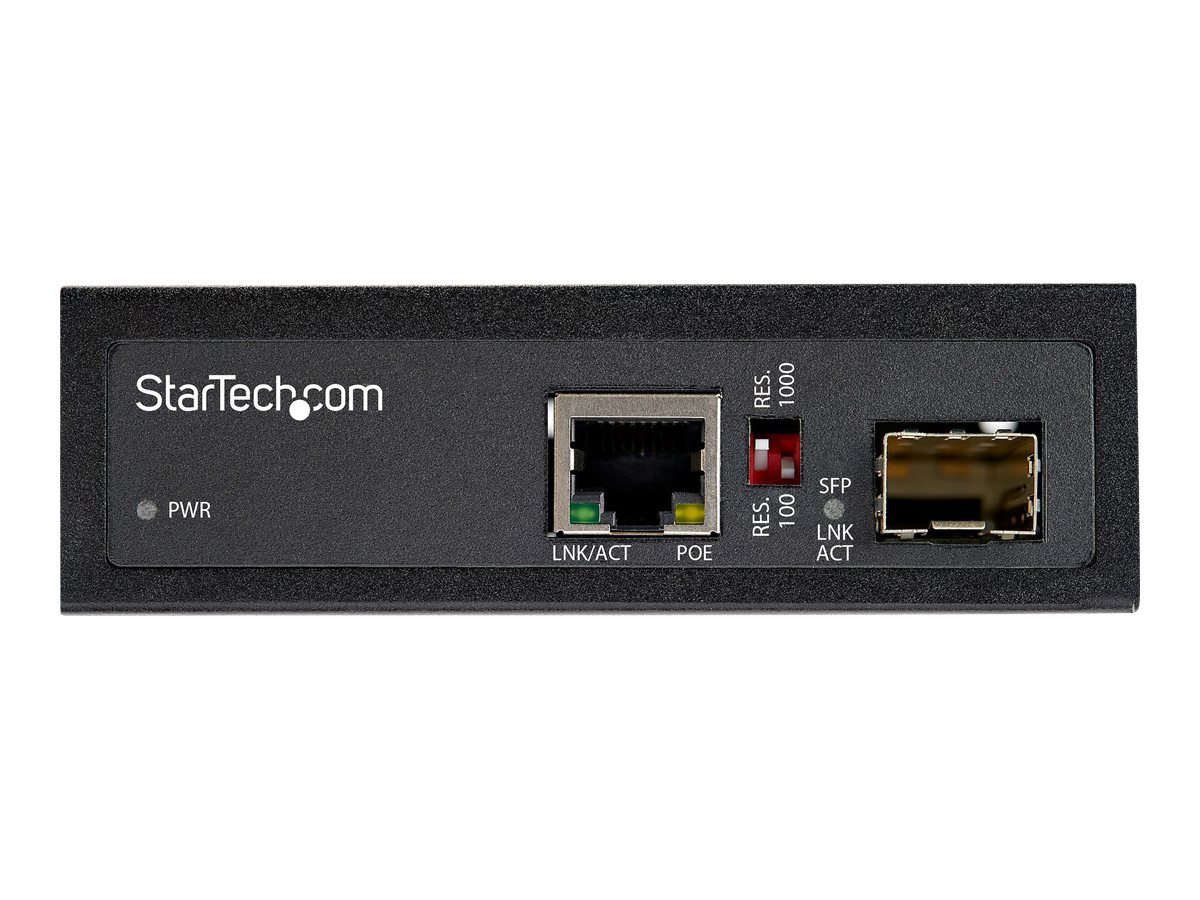

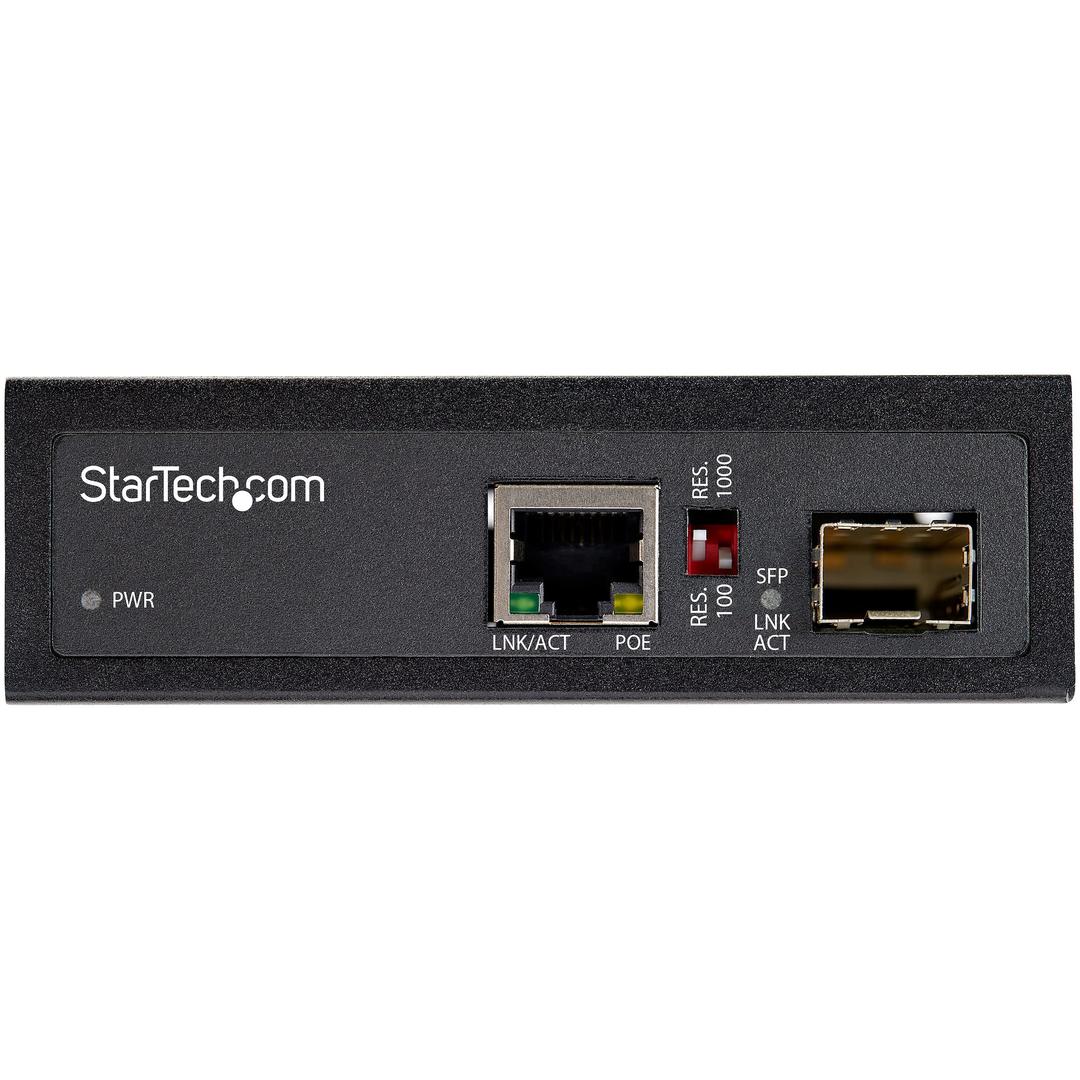

| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female - 60 W ¦ 1 x Ethernet 1000Base-SX - SFP female |
| Miscellaneous | |

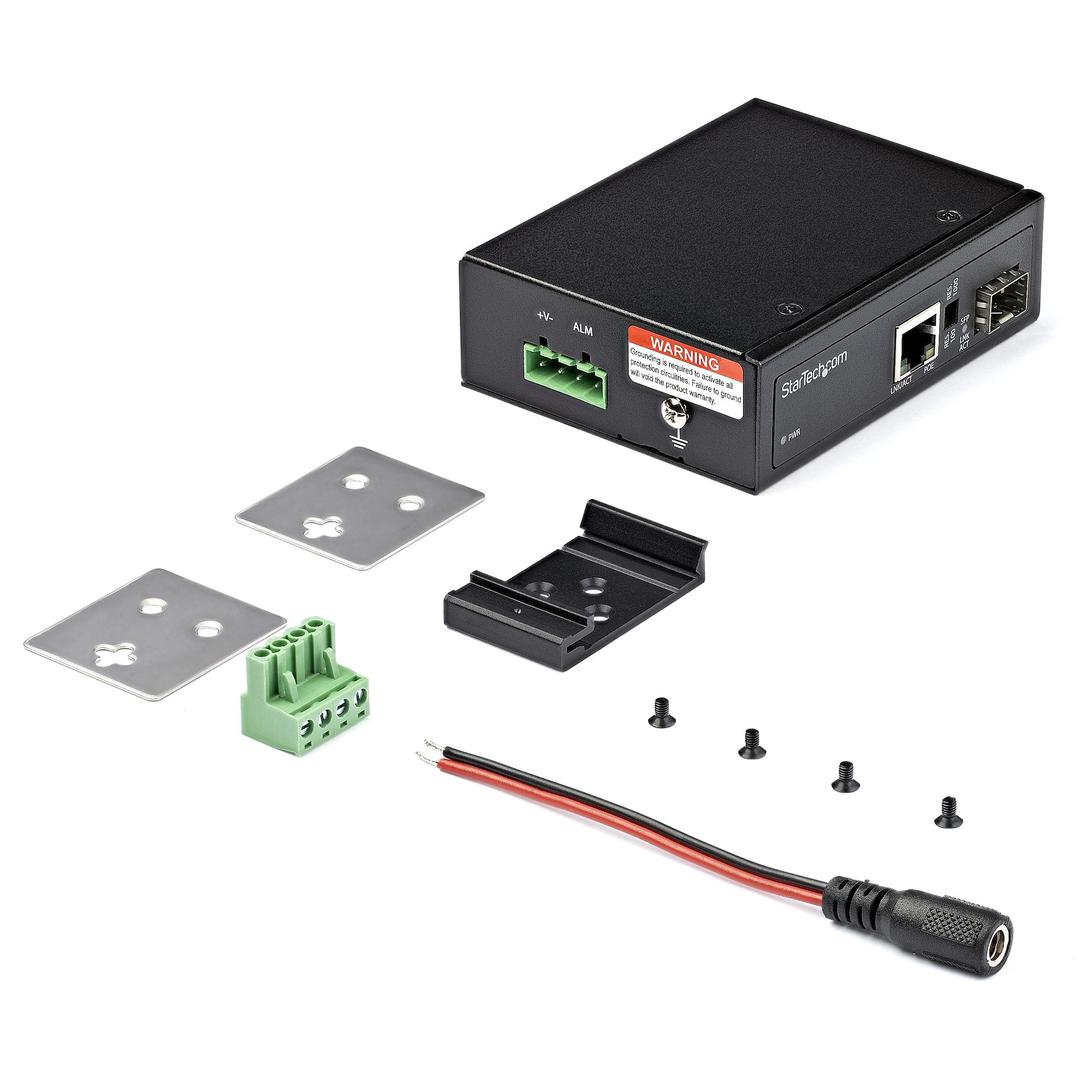

| Included Accessories | Power terminal block |
| Mounting Kit | Included |
| MTBF | 561556 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Width | 8.15 cm |
| Depth | 10.4 cm |
| Height | 3.2 cm |
| Weight | 153 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.1 cm |
| Shipping Depth | 16.2 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 400 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - StarTech.com - IMC1GSFP60W
More Details
Product Code
V935109
EAN Code
0065030889636
Manufacturer
StarTech.com
