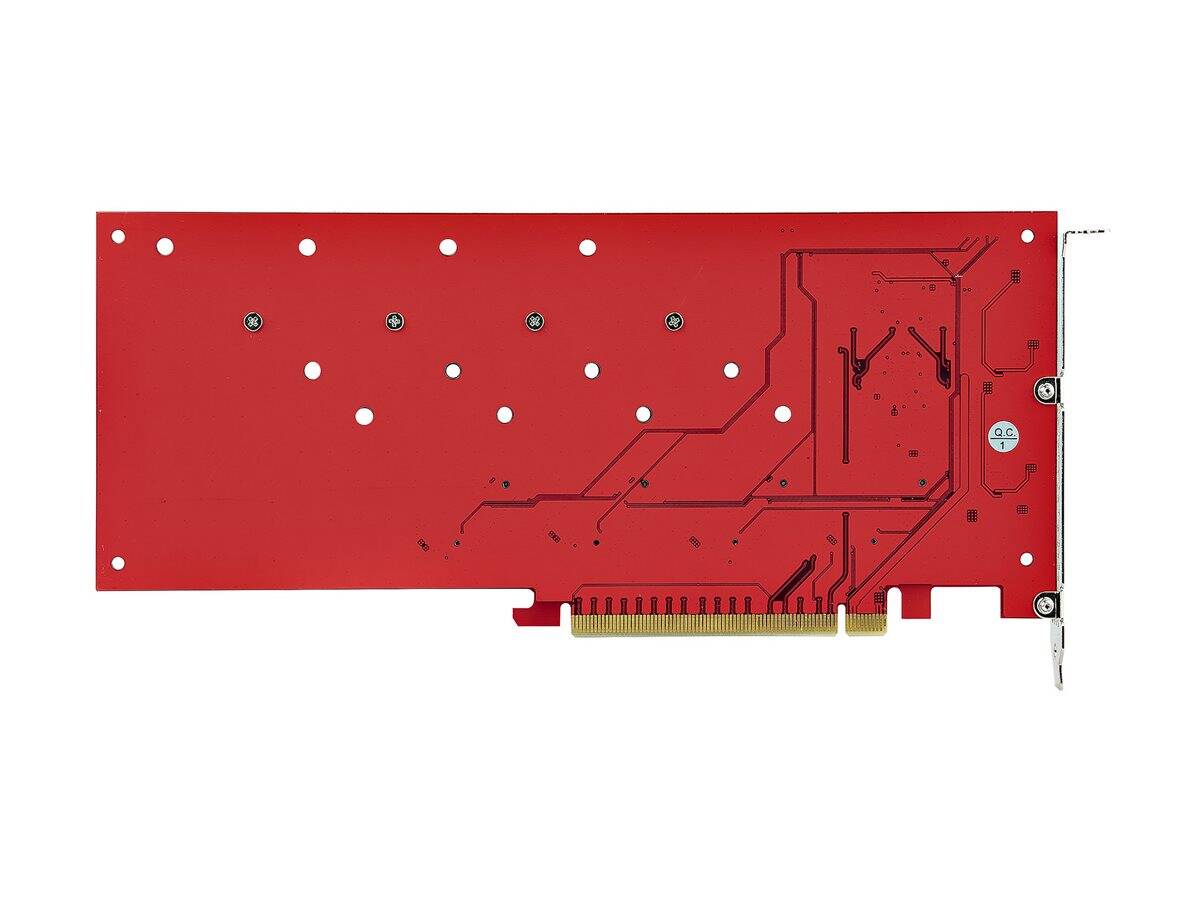

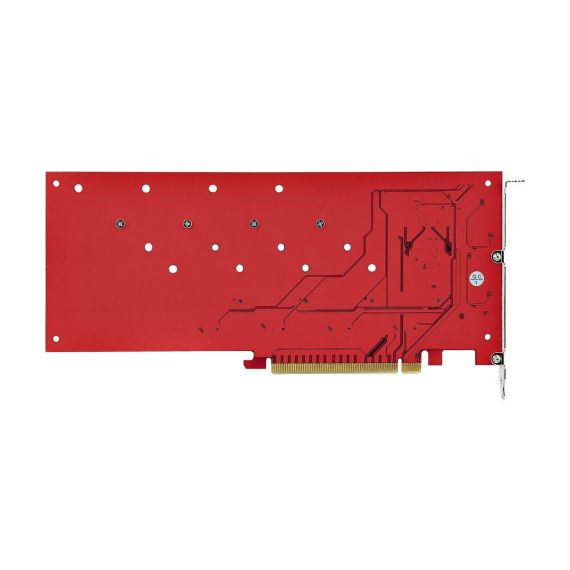

StarTech.com Quad M.2 PCIe Adapter Card, x16 Quad NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required - PC/Linux Compatible (QUAD-M2-PCIE-CARD-B) - Interface adapter - M.2 - Exp
Please sign in so that we can notify you about a reply
Product Features
- Boost system performance

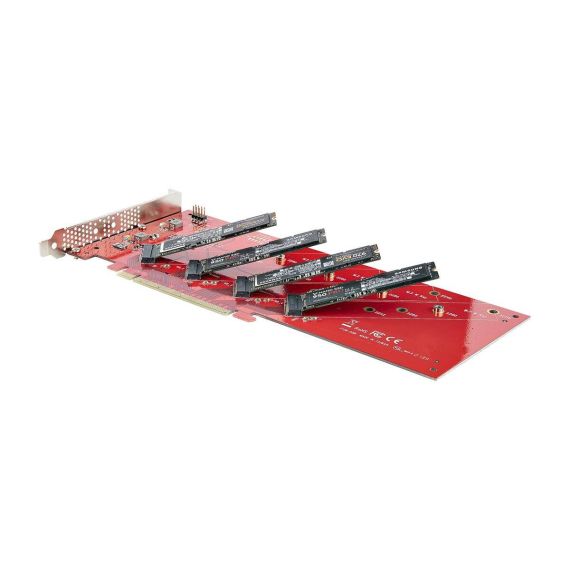

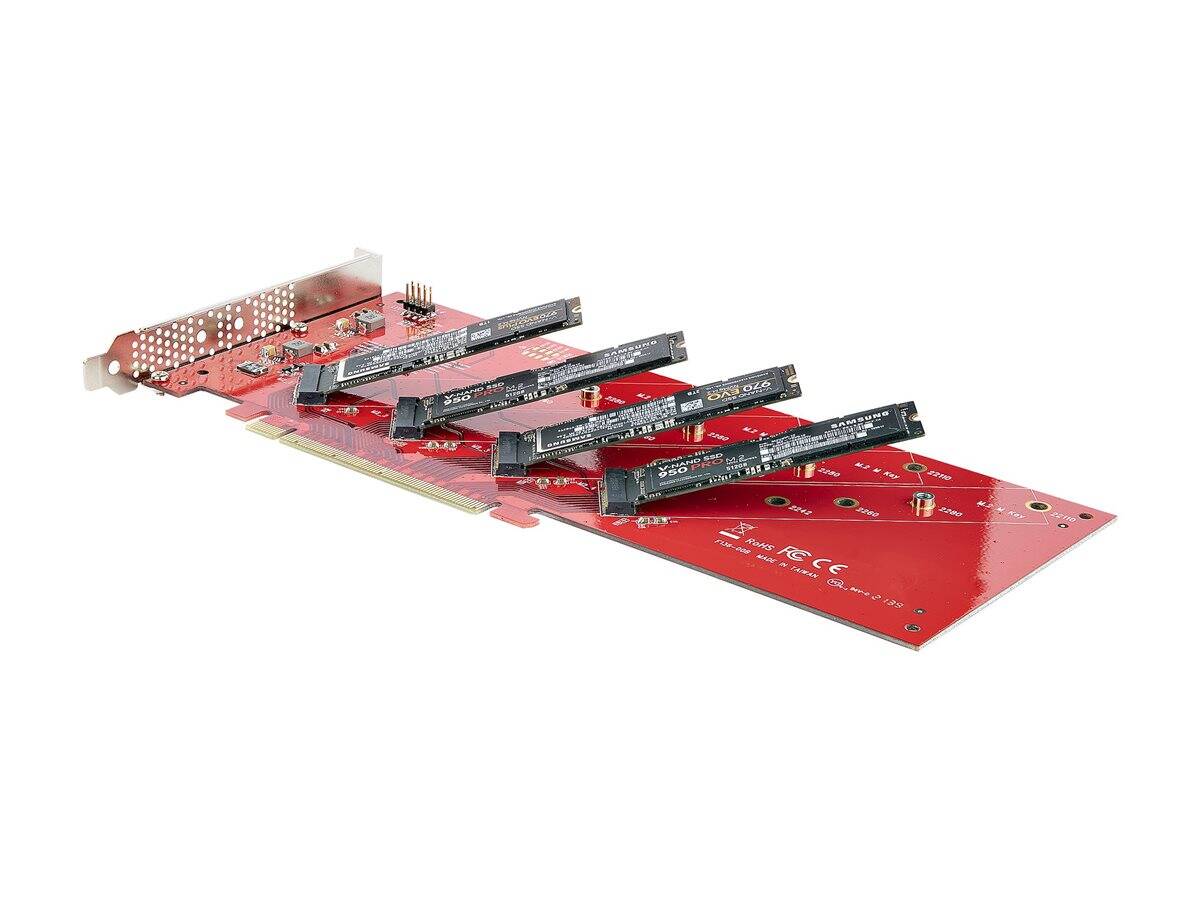

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds of up to 7.8GBps per drive. - Access four PCIe M.2 SSDs simultaneously
The absence of on-board chips leads to broad system compatibility. This card requires PCIe forking, which means it easily integrates into any system with an available x16 PCIe slot that supports PCIe forking. - Broad compatibility

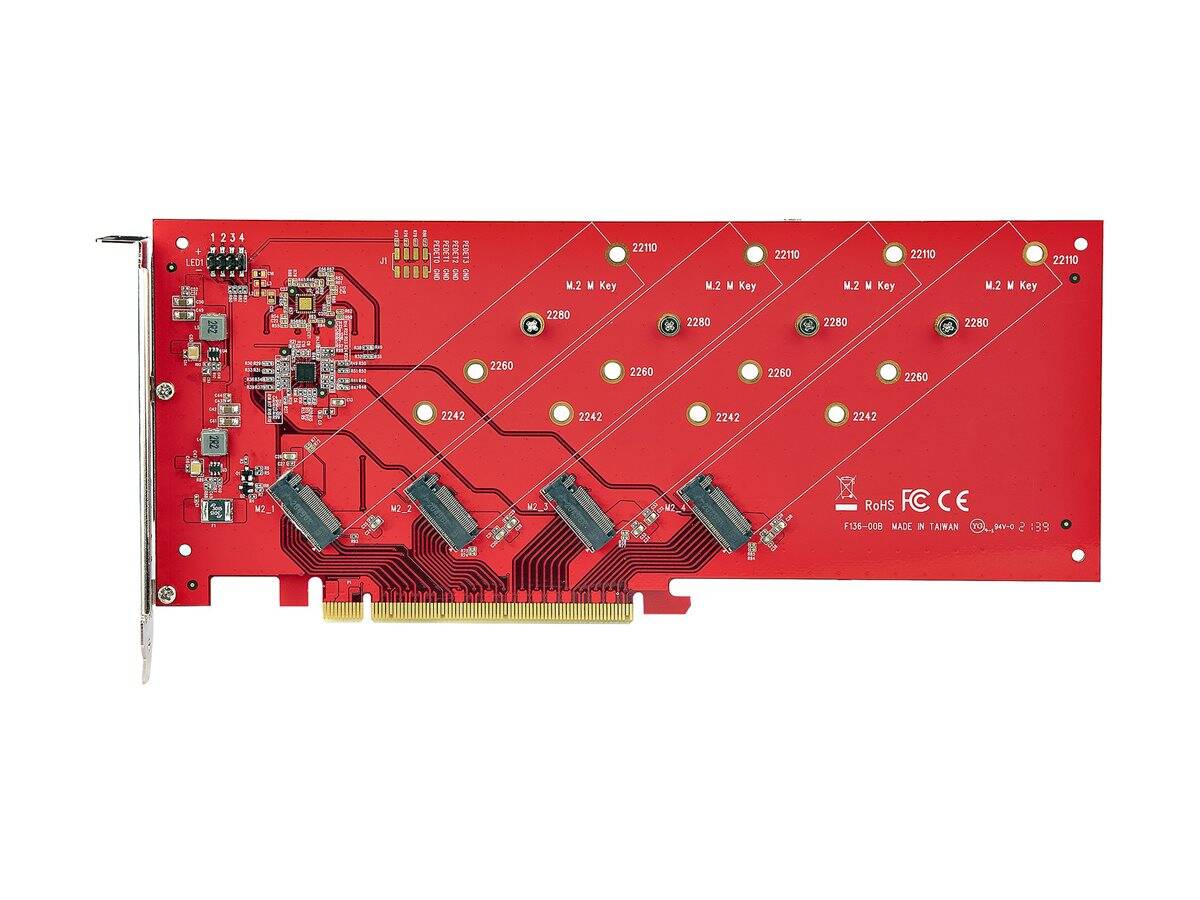

The PCIe M.2 NGFF PCIe adapter (M Key or B+M Key) supports PCIe NVMe and PCIe AHCI M.2 SSDs, including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 adapter card does not require any software or drivers, which means it works with most operating systems if the computer/motherboard supports forking. - Ventilated brackets

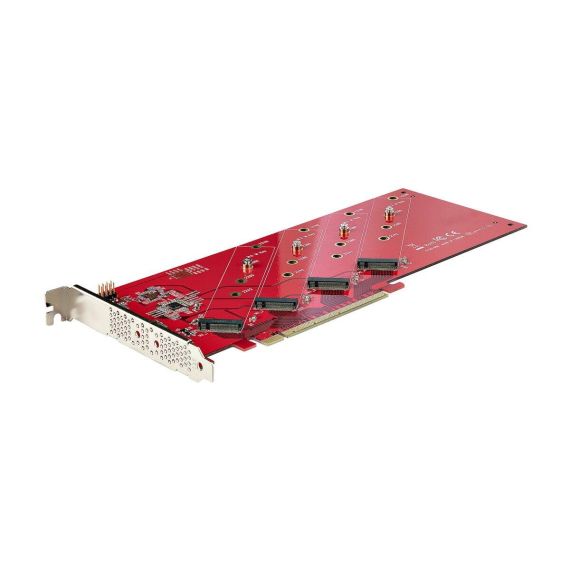

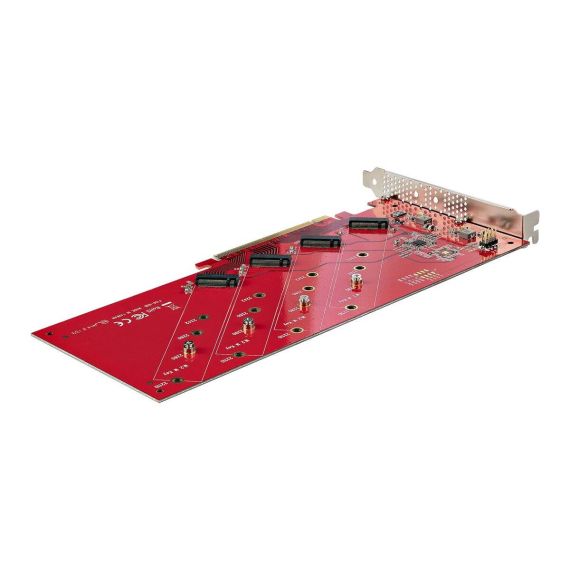

The preinstalled full-profile ventilated bracket increases airflow to improve heat dissipation helping to maintain optimal and reliable operating temperatures.
Special Fetures
- Boosts system performance
- Access four M.2 PCIe SSDs simultaneously
- Broad compatibility
- Ventilated brackets
Product Specification
| Device Type | Interface adapter - plug-in card - low profile |
| Hard Drive Form Factor Compatibility | M.2 |
| Supported Form Factor | Expansion Slot to 4 x M.2 |
| Host Bus | PCIe 4.0 x16/x8 |
| Colour | Red |
| Storage Controller | |
| Interface | M.2 Card |
| Data Transfer Rate | 7.8 GBps |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 4 |
| RAID Level | RAID 0, RAID 1, JBOD |
| Expansion / Connectivity | |
| Bays | 4 x internal - M.2 2242/2260/2280/22110 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Features | Supports AHCI mode, PCIe bifurcation, LED indicator |
| Mounting Kit | Included |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 2.3 cm |
| Depth | 29 cm |
| Height | 12.8 cm |
| Weight | 128 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 29 cm |
| Shipping Depth | 17.5 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 236 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 15 - 90% |
