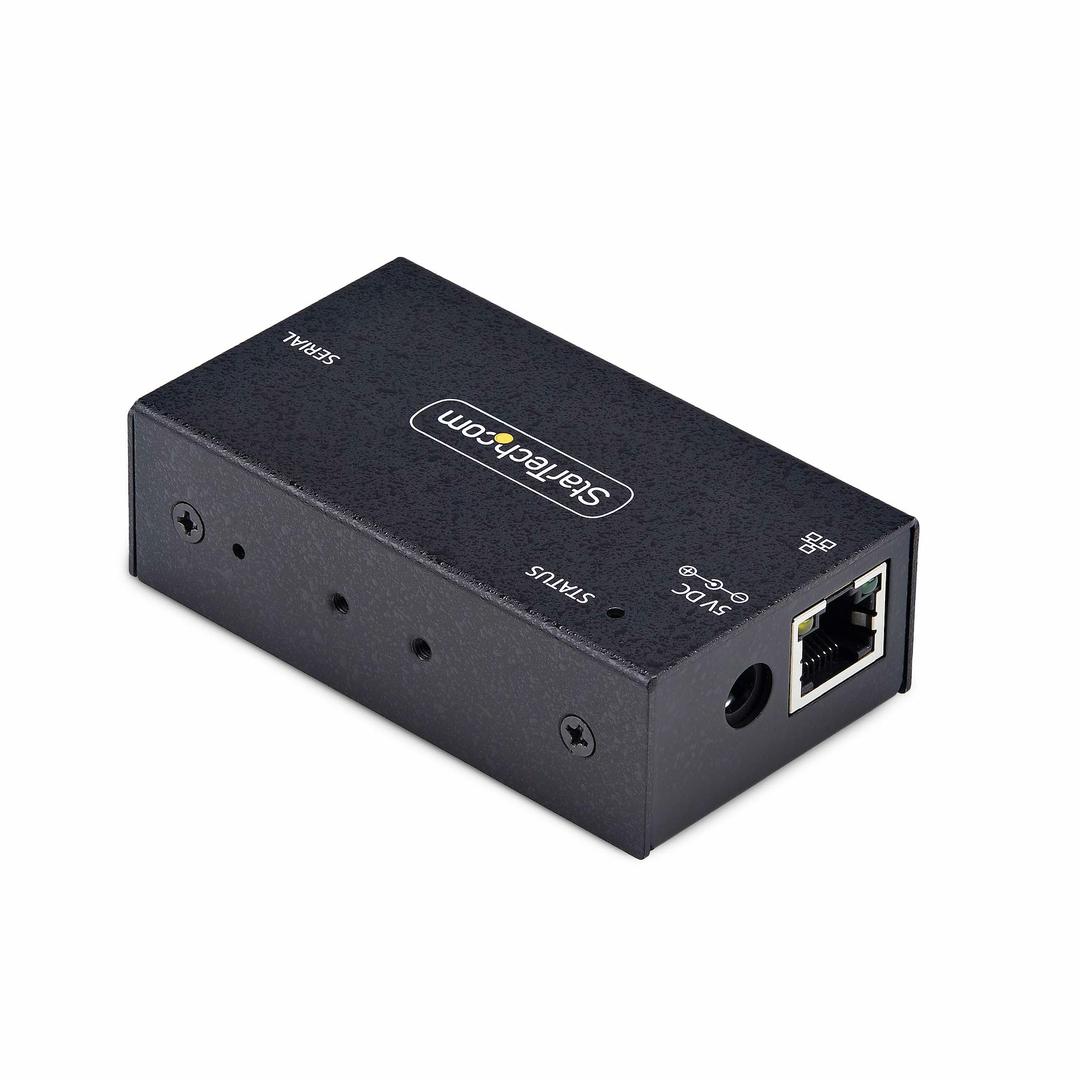

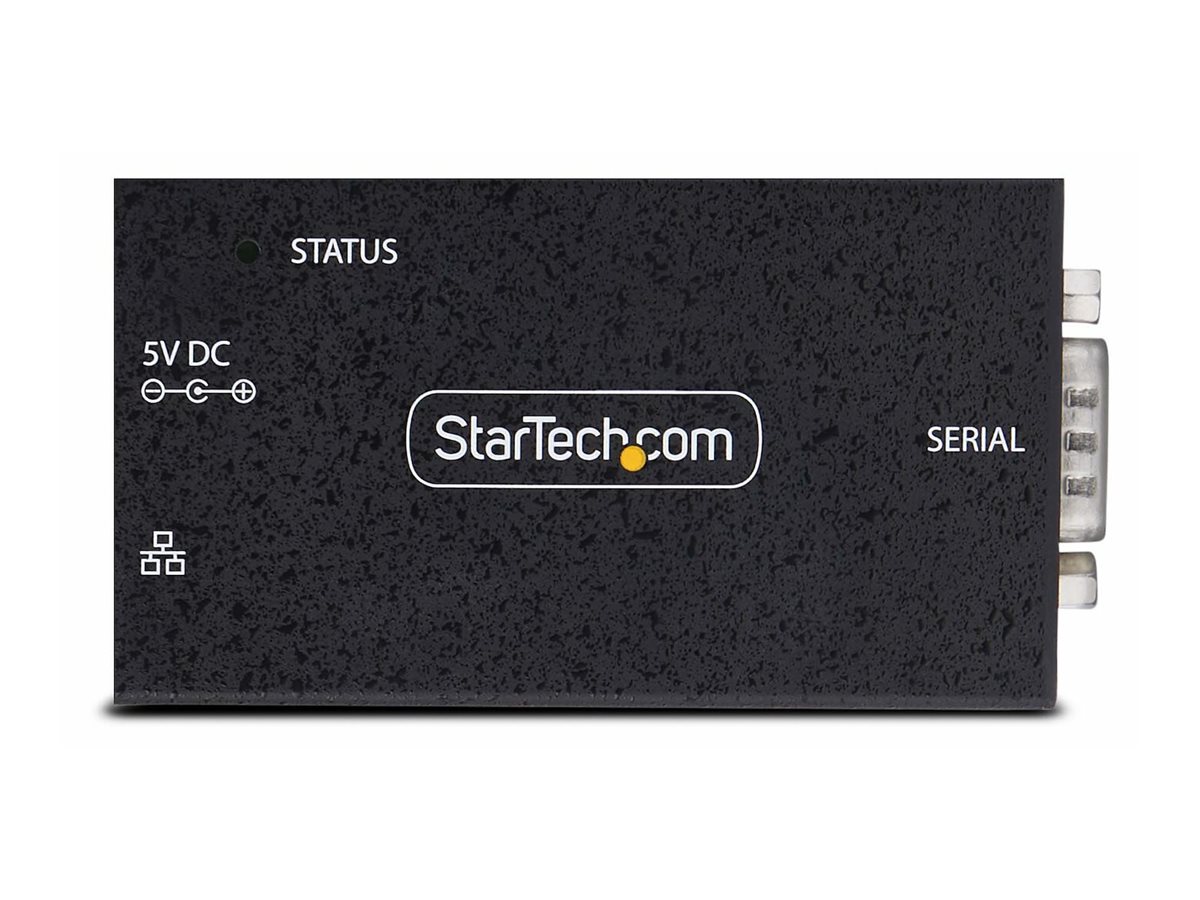

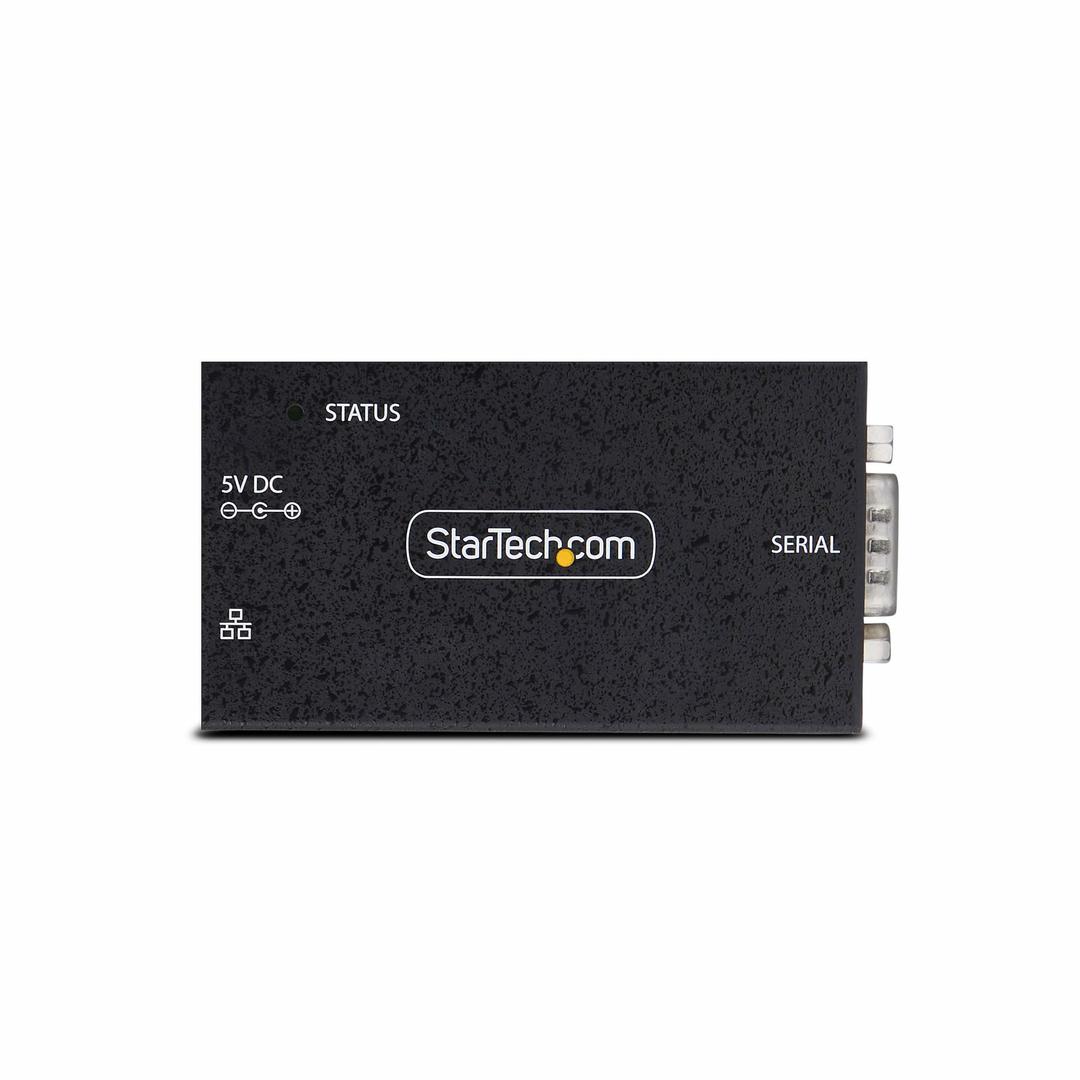

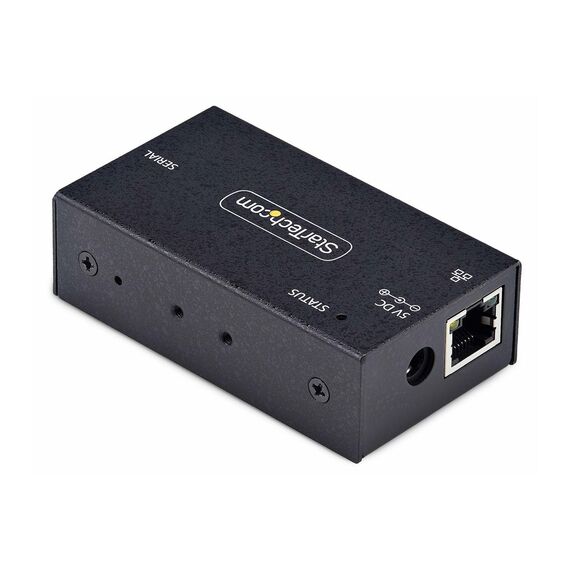

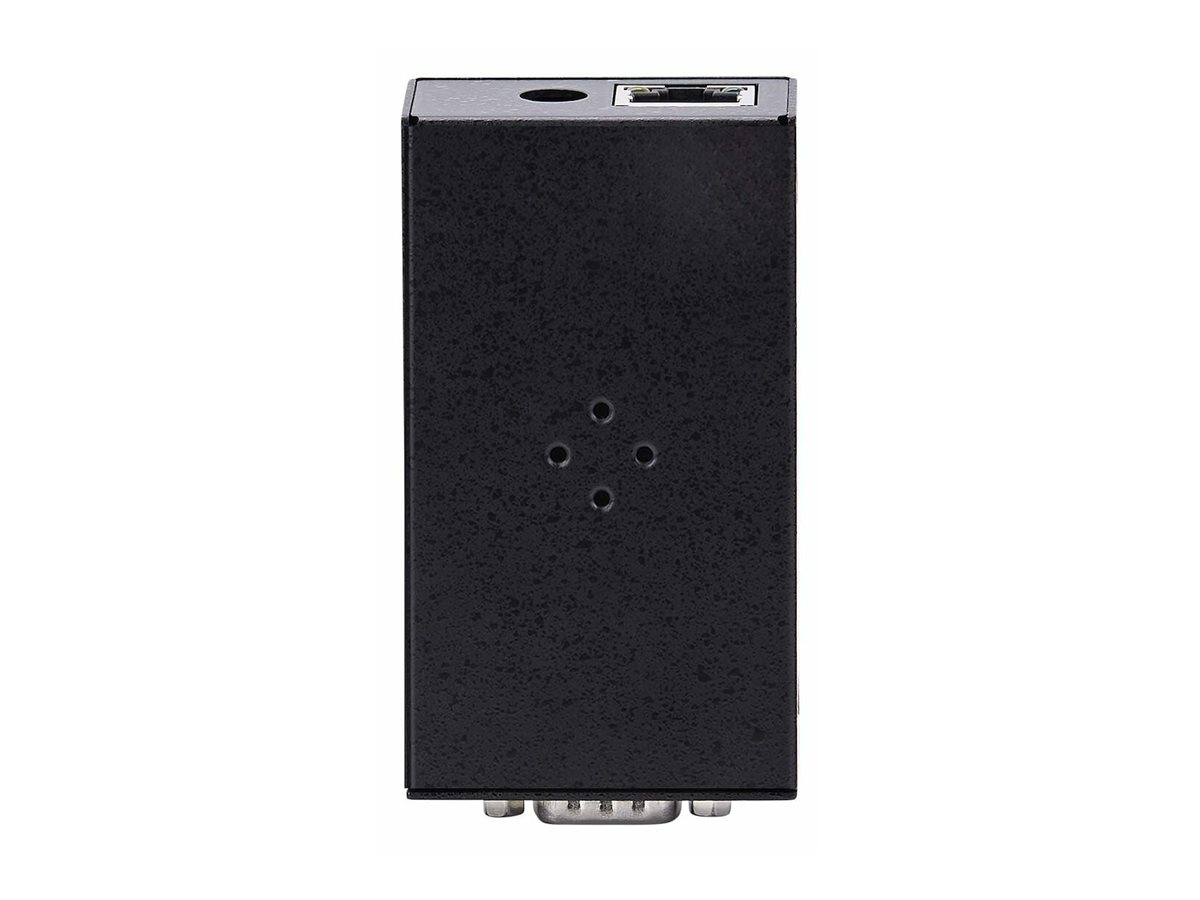

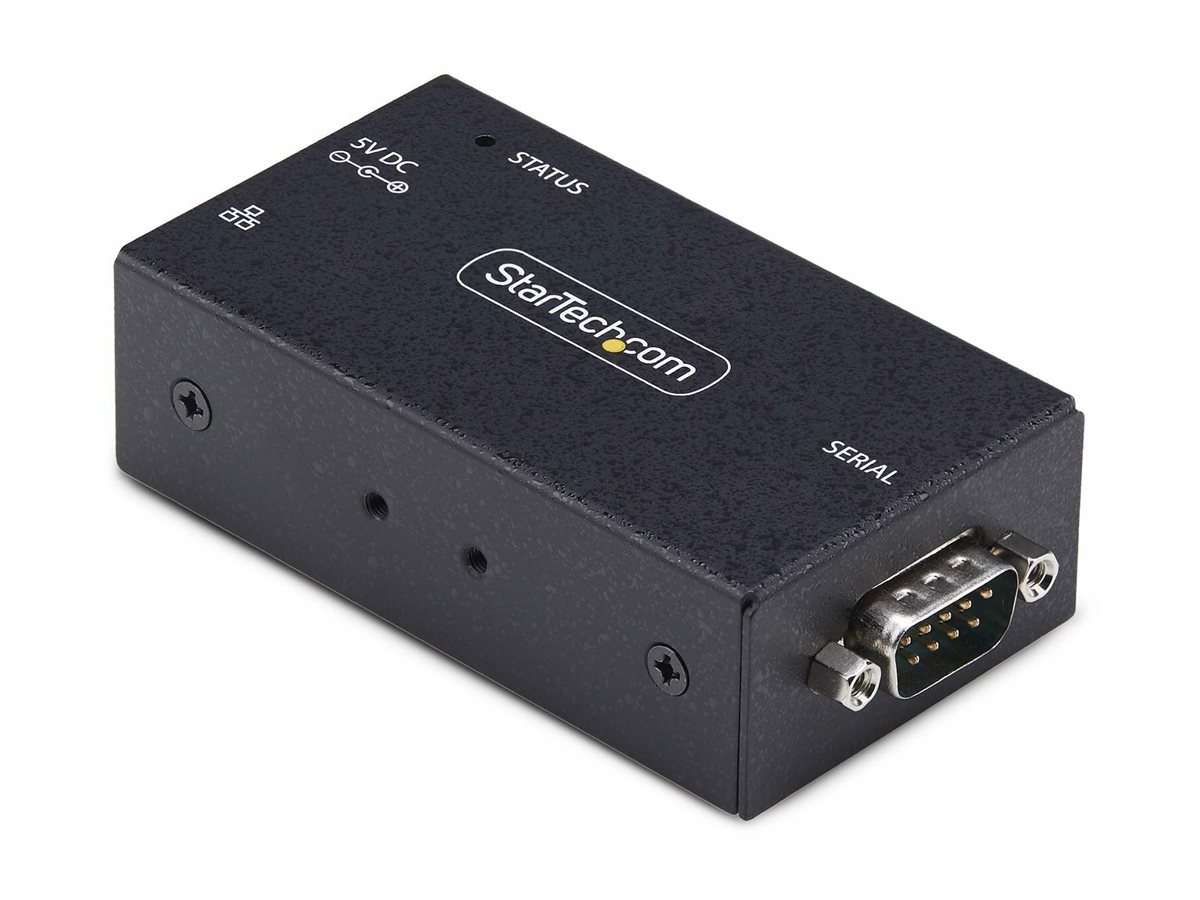

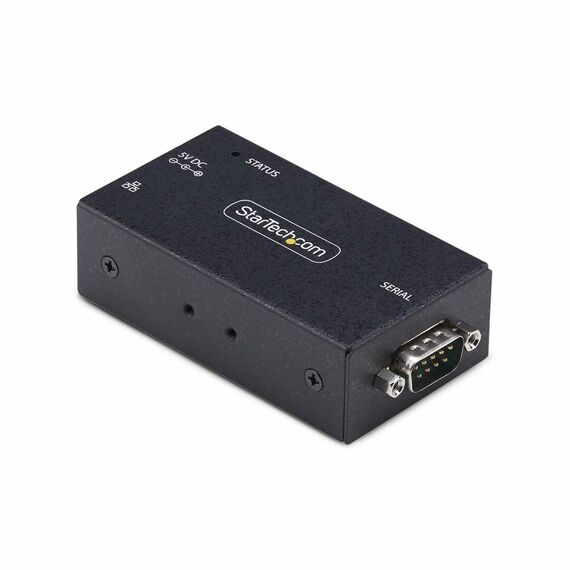

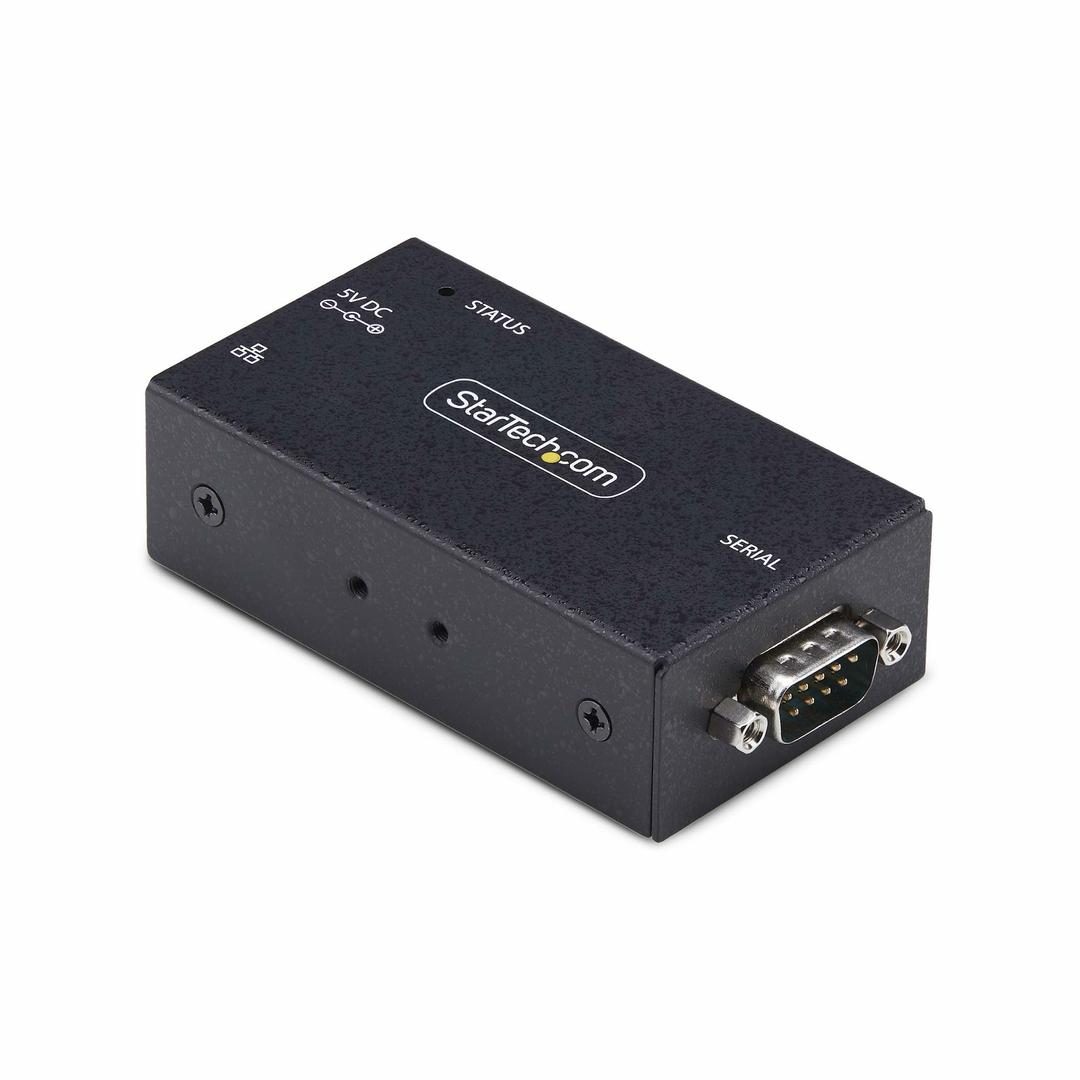

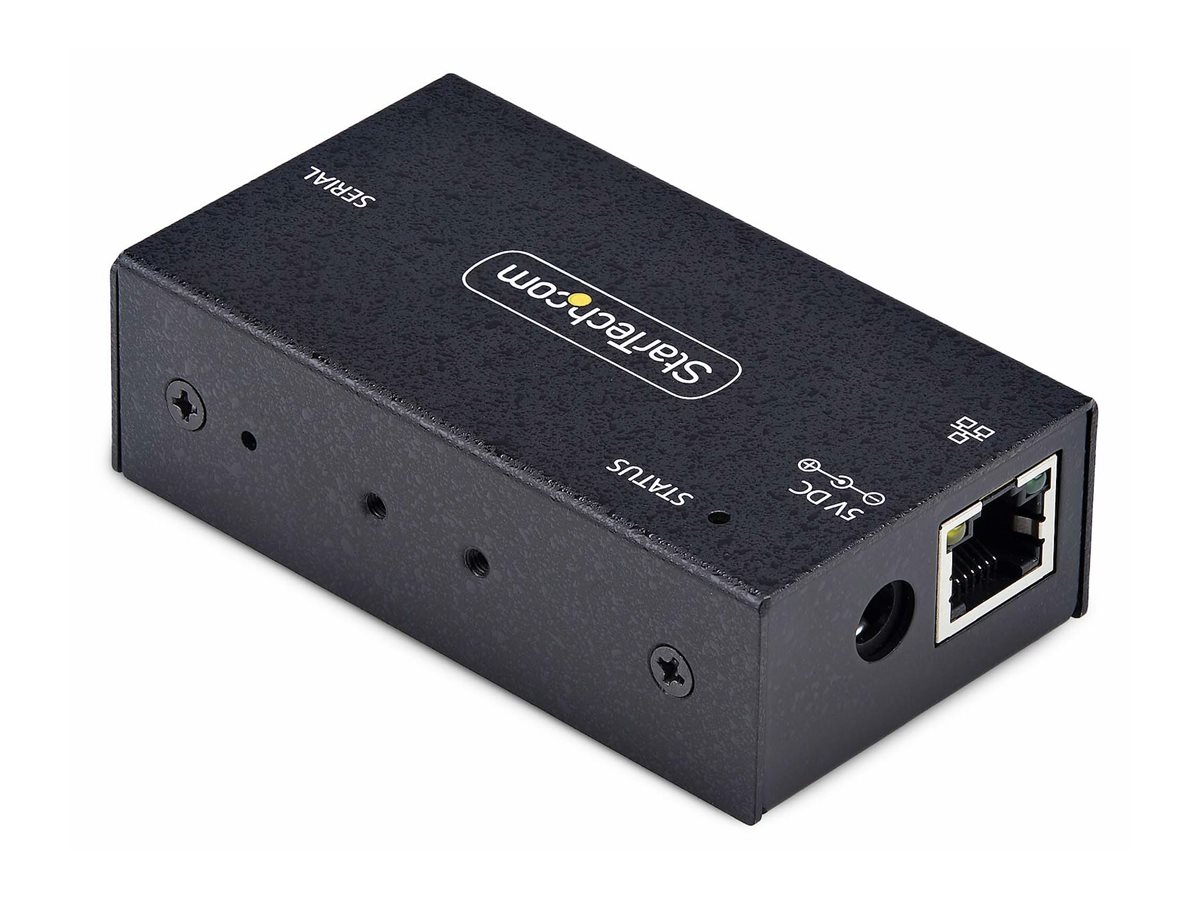

StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant | I13-SERIAL-ETHERNET
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity

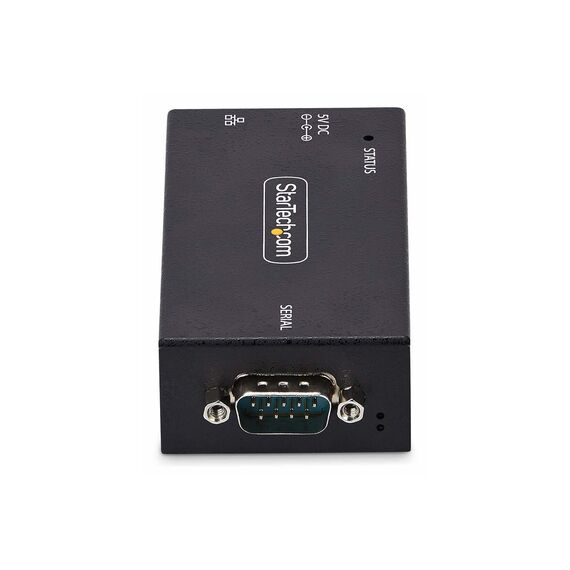

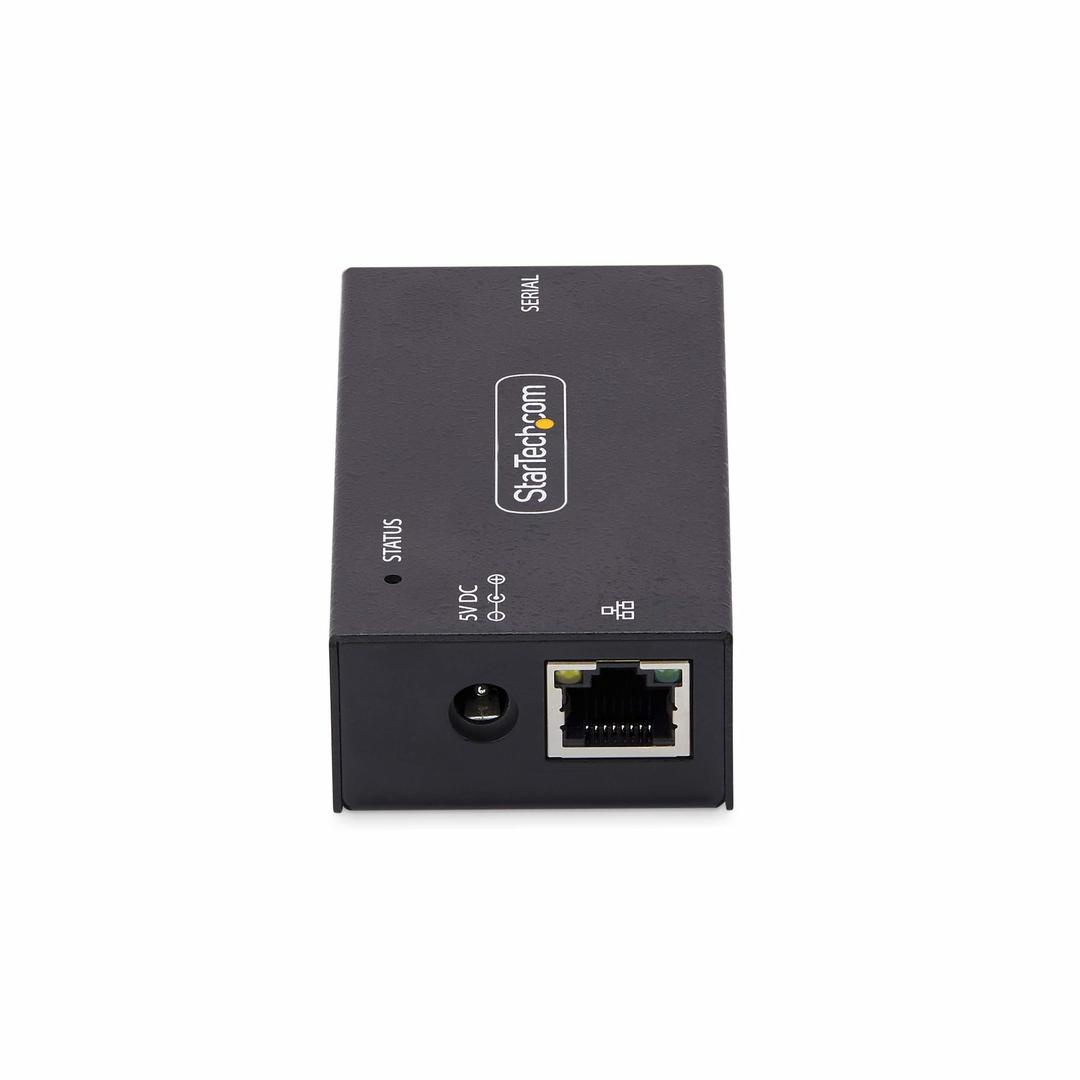

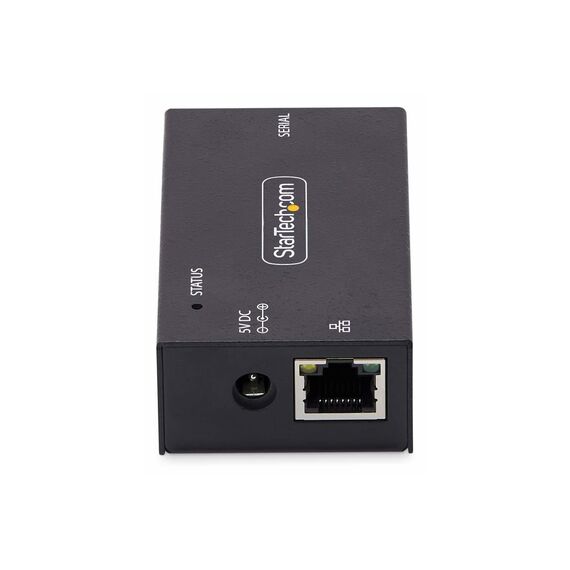

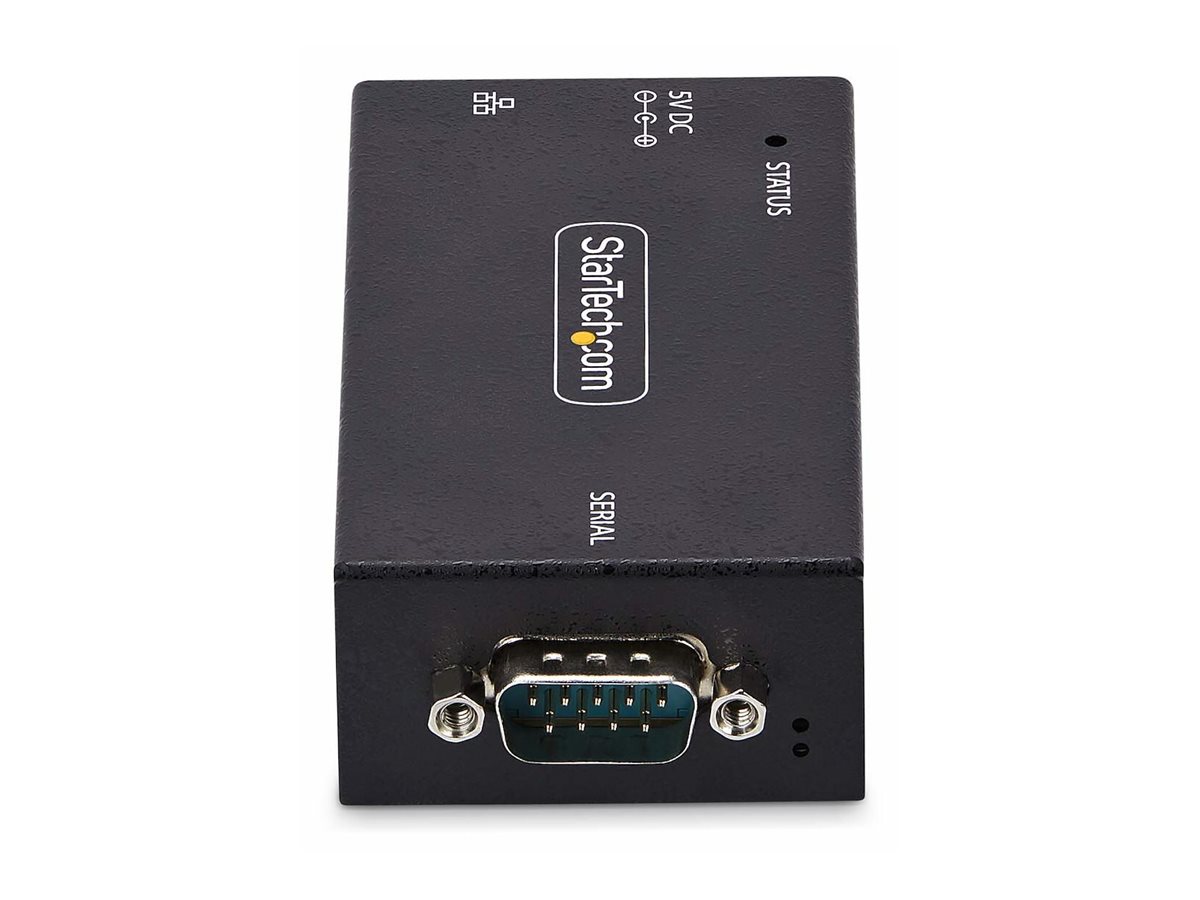

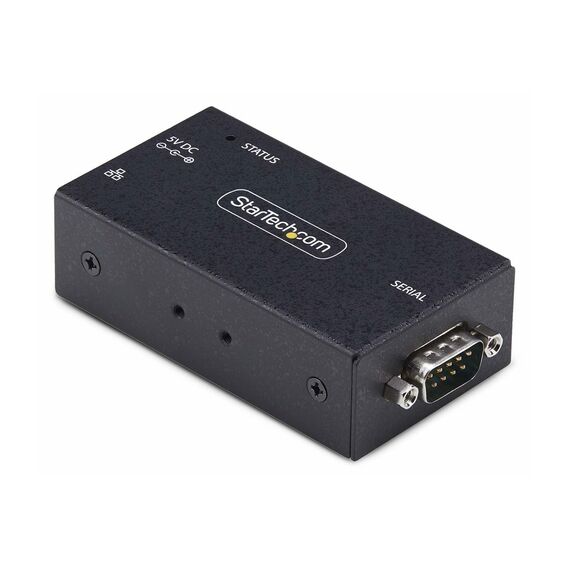

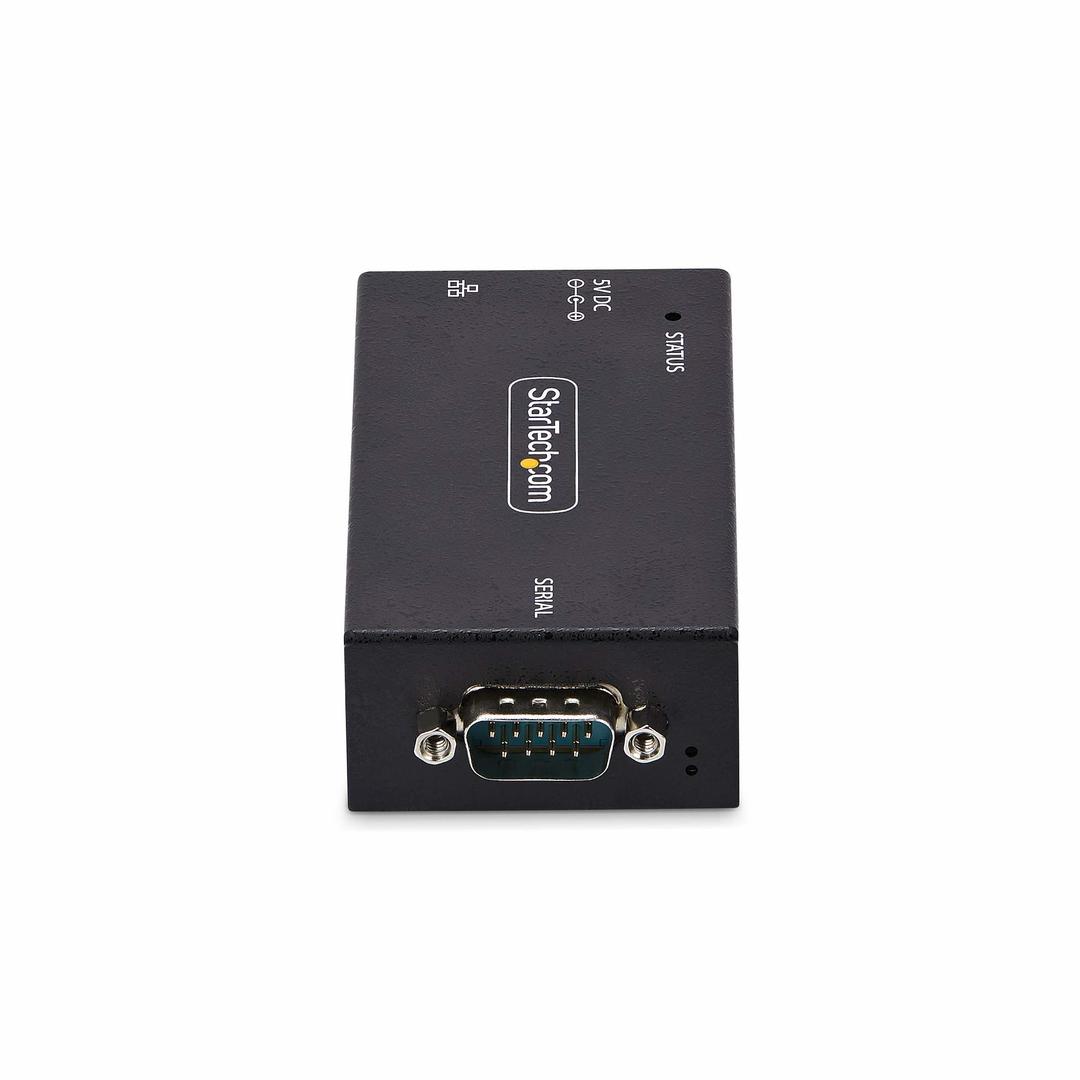

This Serial to Ethernet Adapter bridges the gap between RS232 and Ethernet networks, offering a DB-9 connector for RS-232 interface and an RJ-45 for 100Base-TX network connection. It's designed to provide reliable, seamless connectivity in various operating environments, with a humidity range operating from 5 - 95% RH and temperature tolerances from 0°C to 60°C. - Enhanced protection
Equipped with 15 KV Electrostatic Discharge Protection and 8 KV Contact Electrostatic Discharge Protection, this adapter ensures your network's integrity is maintained against electrical surges, providing peace of mind and reducing the risk of damage to connected devices. - Advanced networking features

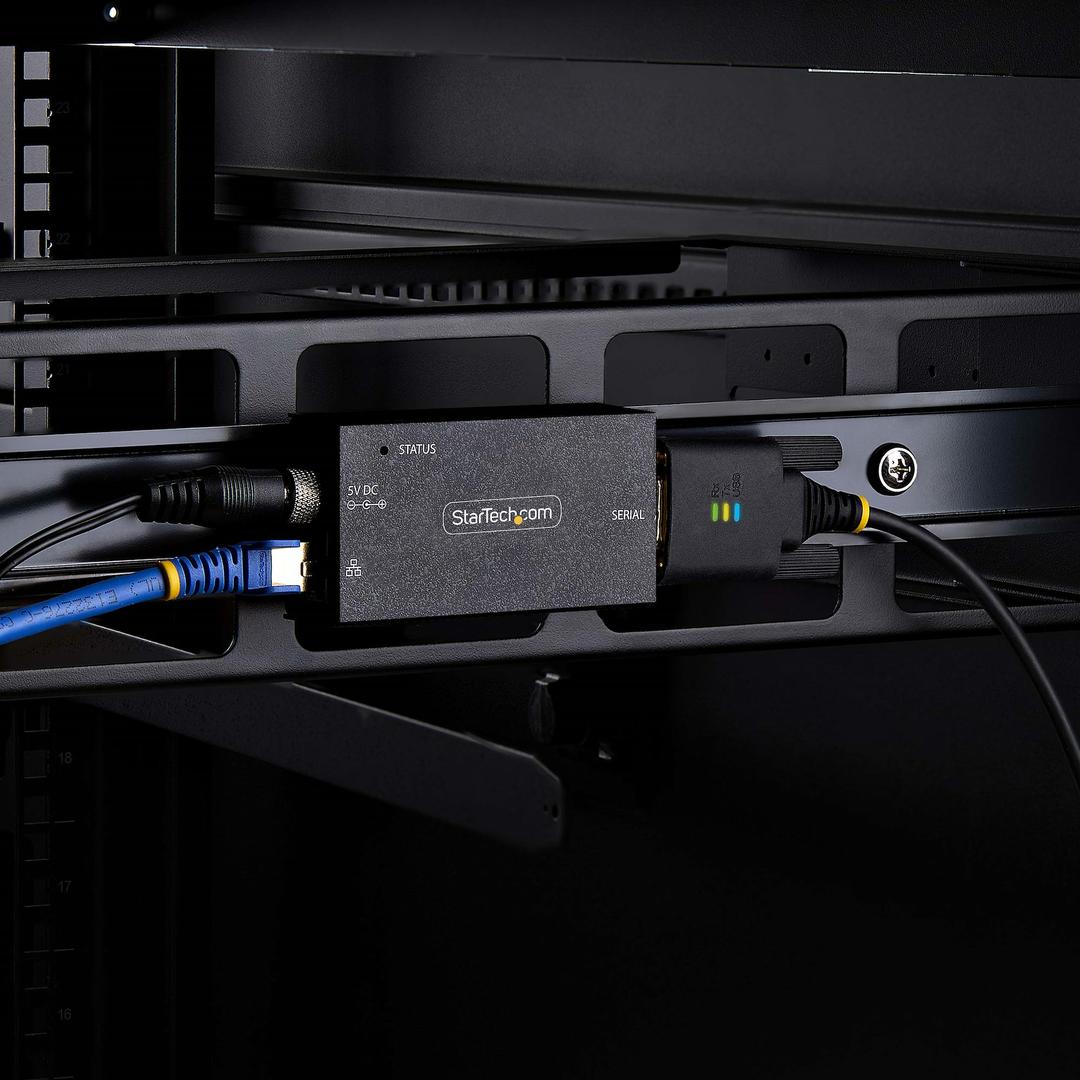

Featuring adjustable parity, auto-negotiation, and full duplex capability, this device server supports efficient network communication and management. Its capabilities include flow control, manageable settings, and metal housing for durability, making it suitable for wall or DIN rail mounting. - Comprehensive standards compliance
Adhering to EIA/TIA-232, IEEE 802.3i, and IEEE 802.3u standards, this adapter ensures compatibility with a wide range of network devices and systems. Its TAA compliance also makes it suitable for use in government and military applications. - Efficient data handling
With a data transfer rate of up to 921.6 Kbps and support for Ethernet, Fast Ethernet, and RS-232 data link protocols, this adapter facilitates quick and reliable data transmission. It also supports TCP, Telnet, and UDP network/transport protocols for versatile network integration and remote management capabilities.
Special Fetures
- Seamless integration of RS232 and Ethernet networks
- Operational in a wide range of humidity and temperature
- 15 KV and 8 KV Electrostatic Discharge Protection
- Supports advanced network management features
- Complies with EIA/TIA-232, IEEE 802.3 standards
Product Specification
| Device Type | Device server |
| Width | 8.2 cm |
| Depth | 4.6 cm |
| Height | 2.5 cm |
| Weight | 155 g |
| Enclosure Colour | Black |
| Networking | |

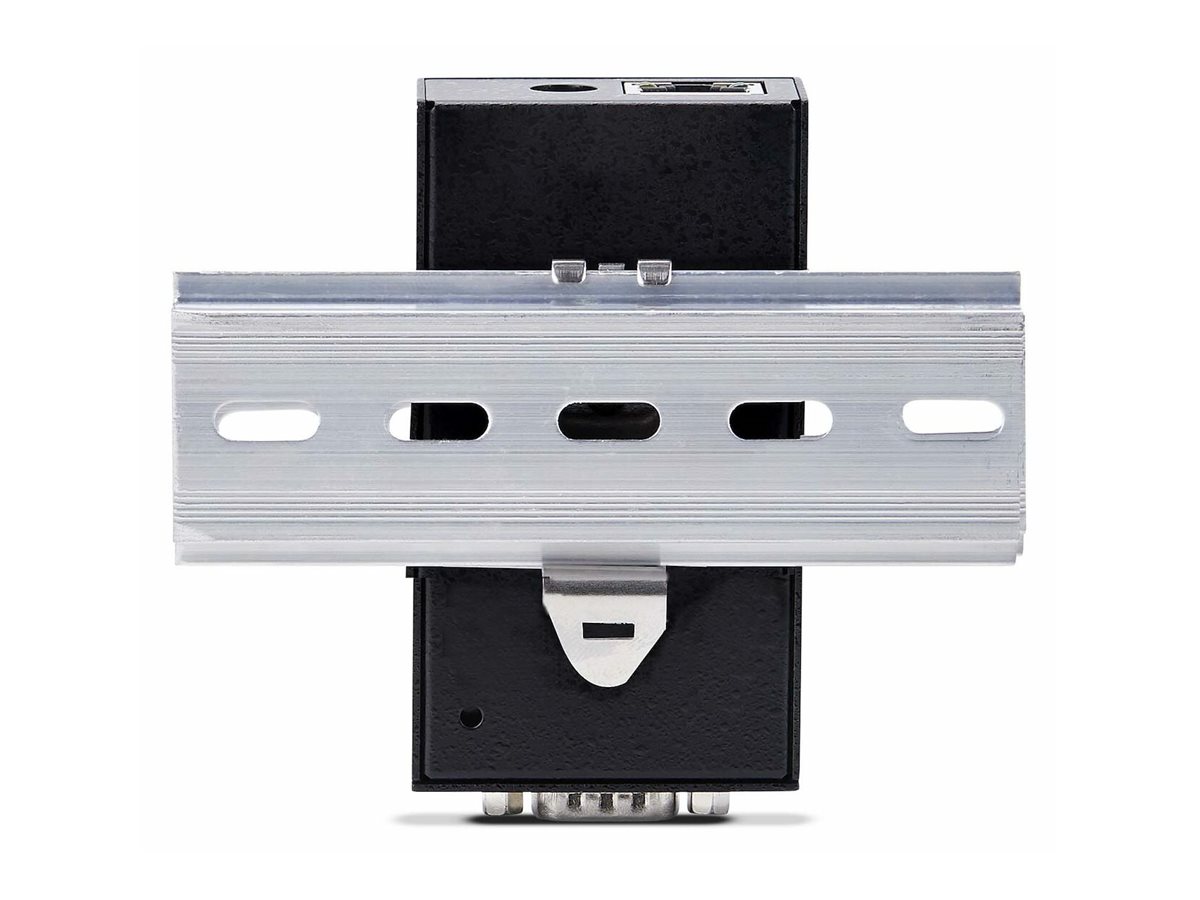

| Form Factor | Wall / DIN rail mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | Telnet, UDP, TCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | Telnet, UDP |

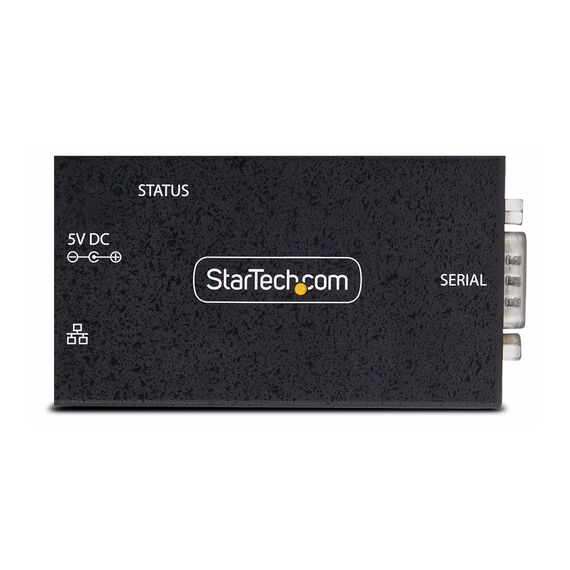

| Status Indicators | Power, transmit, receive, link/activity |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), manageable, 15 KV Electrostatic Discharge Protection, metal housing, 8 KV Contact Electrostatic Discharge Protection, adjustable parity |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i |
| Expansion / Connectivity | |

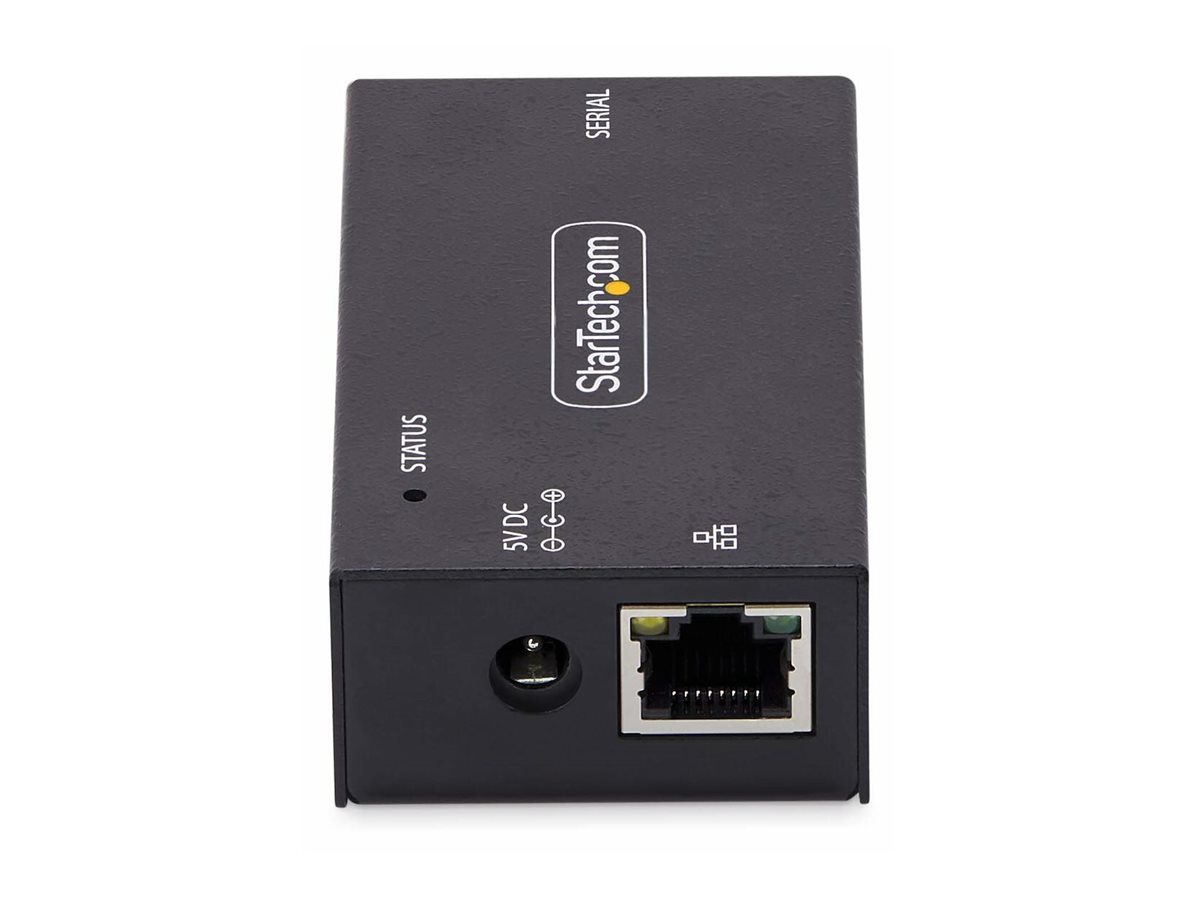

| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
| Miscellaneous | |

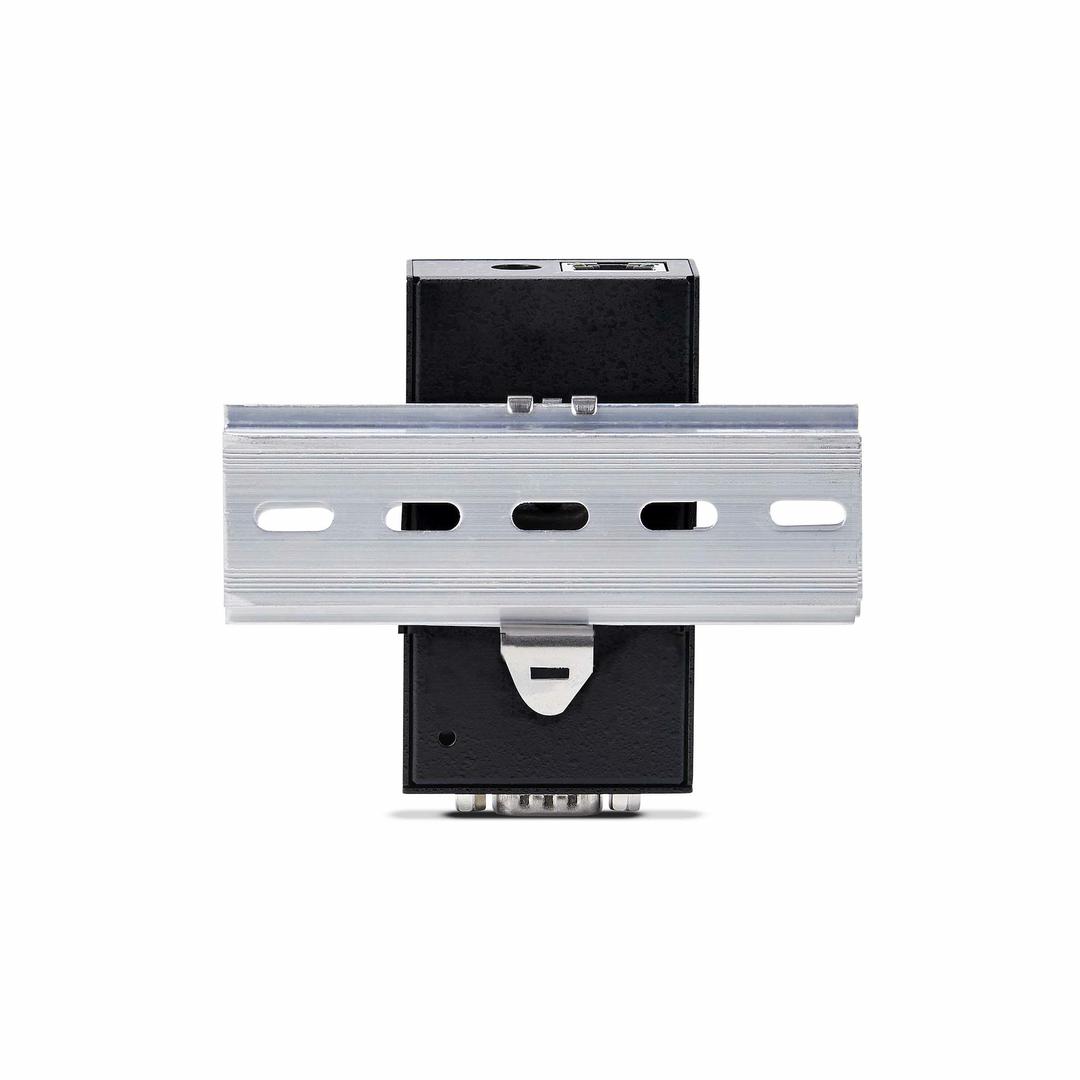

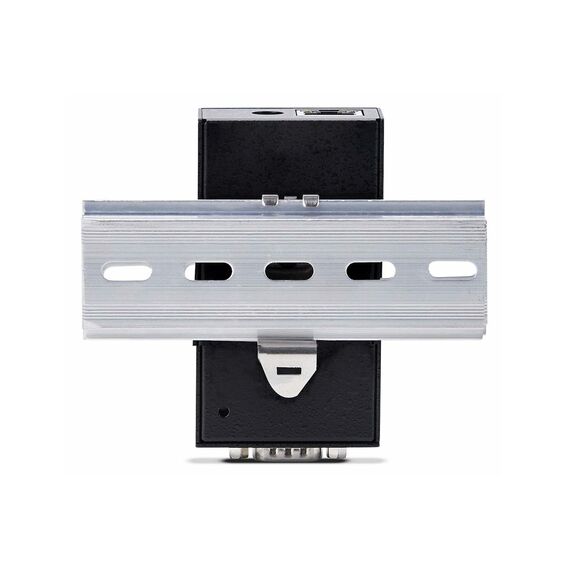

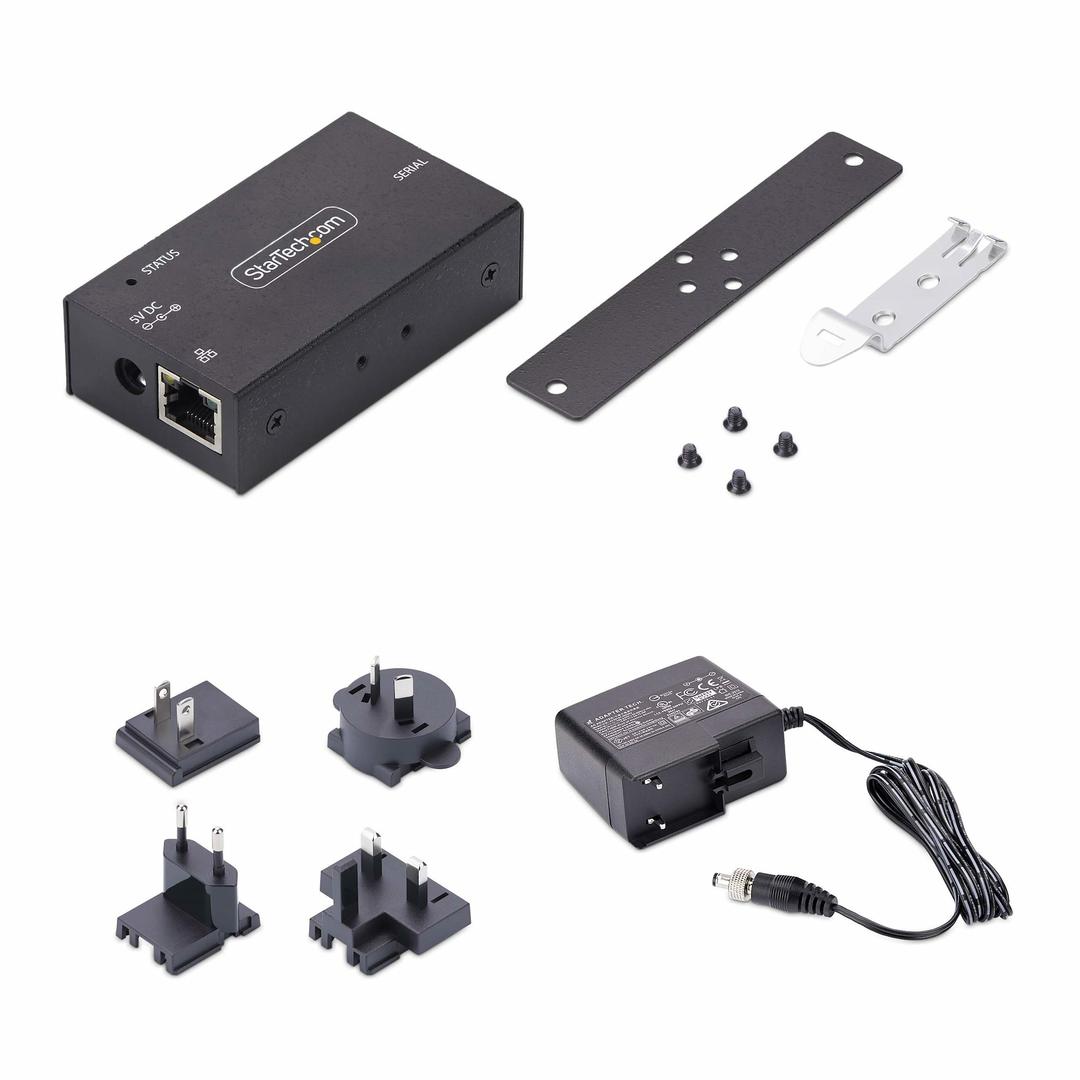

| Included Accessories | DIN-rail mounting kit, wall mounting kit |
| Compliant Standards | EIA/TIA-232 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24.2 cm |
| Shipping Depth | 16.6 cm |
| Shipping Height | 5.5 cm |
| Shipping Weight | 500 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
