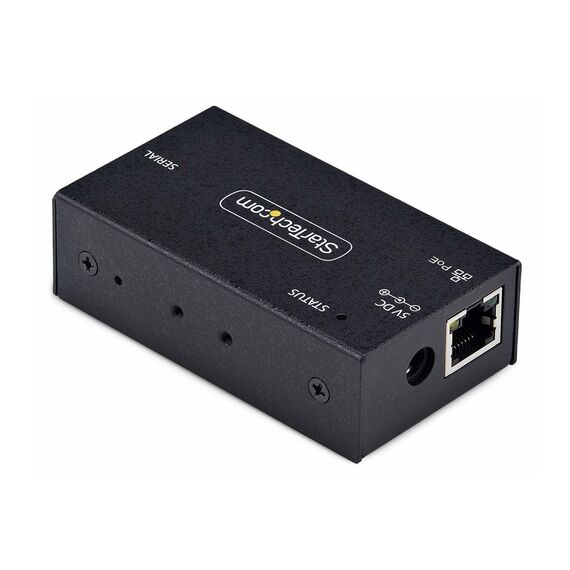

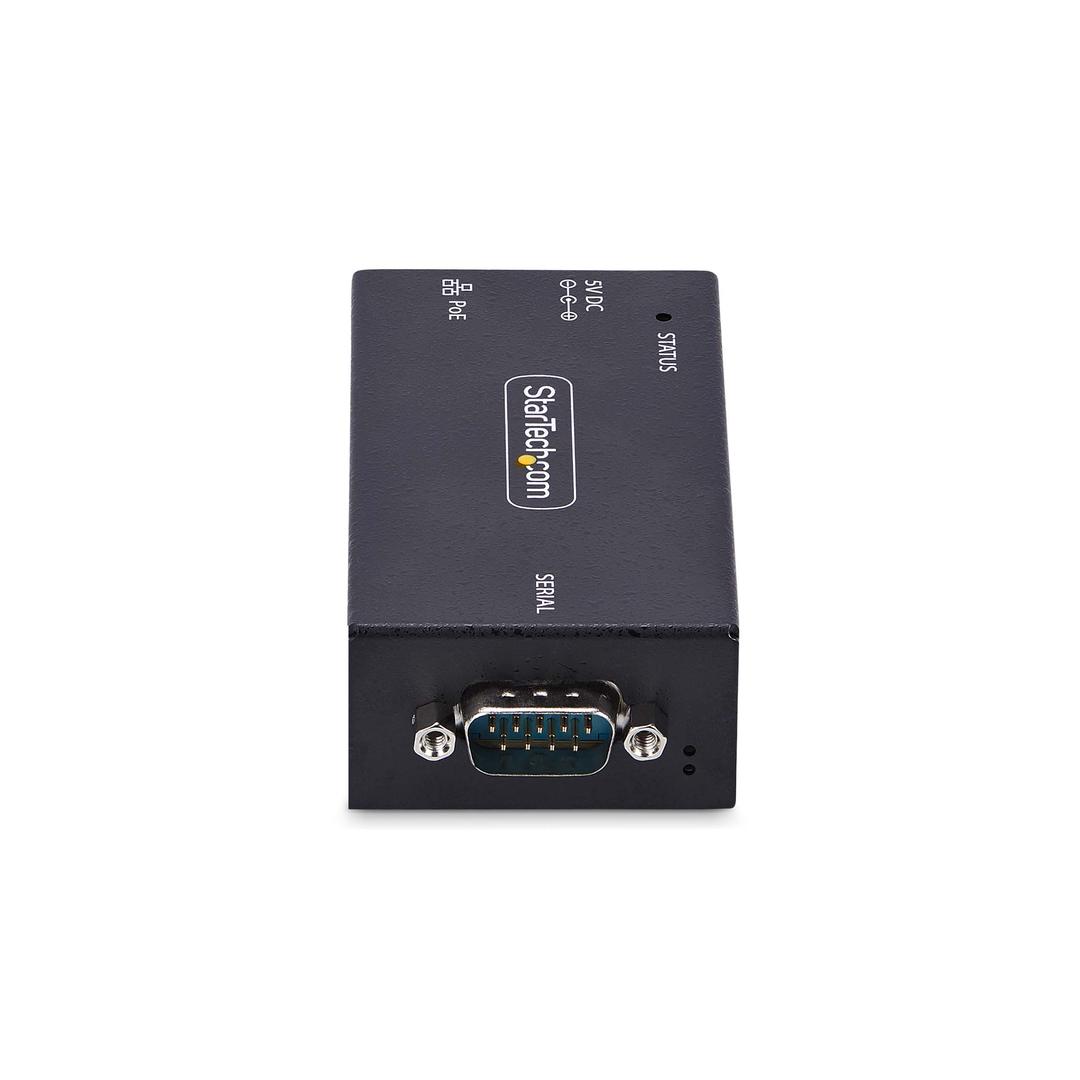

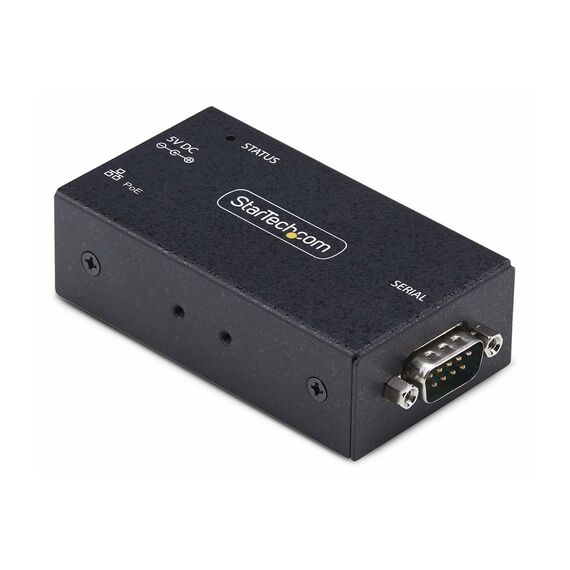

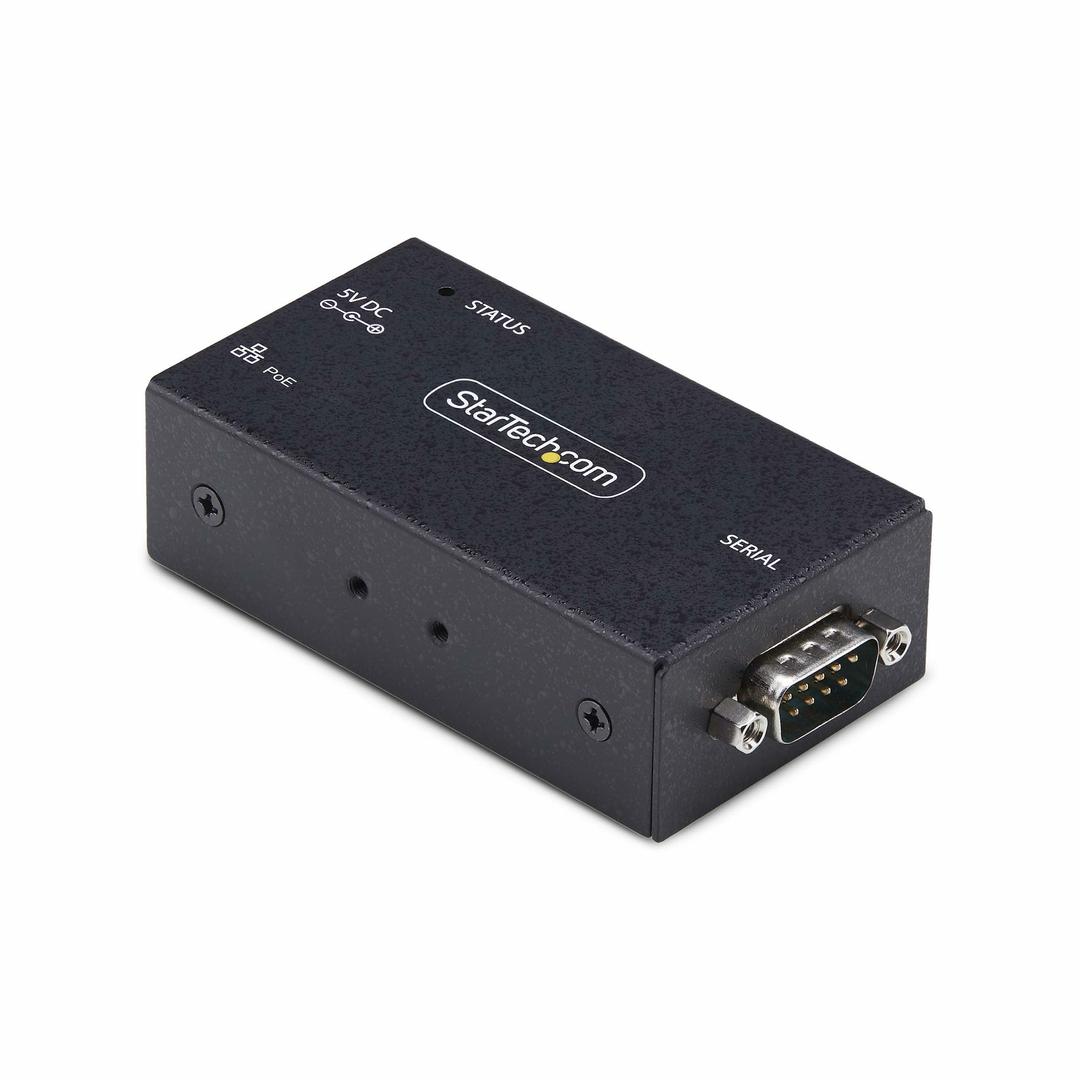

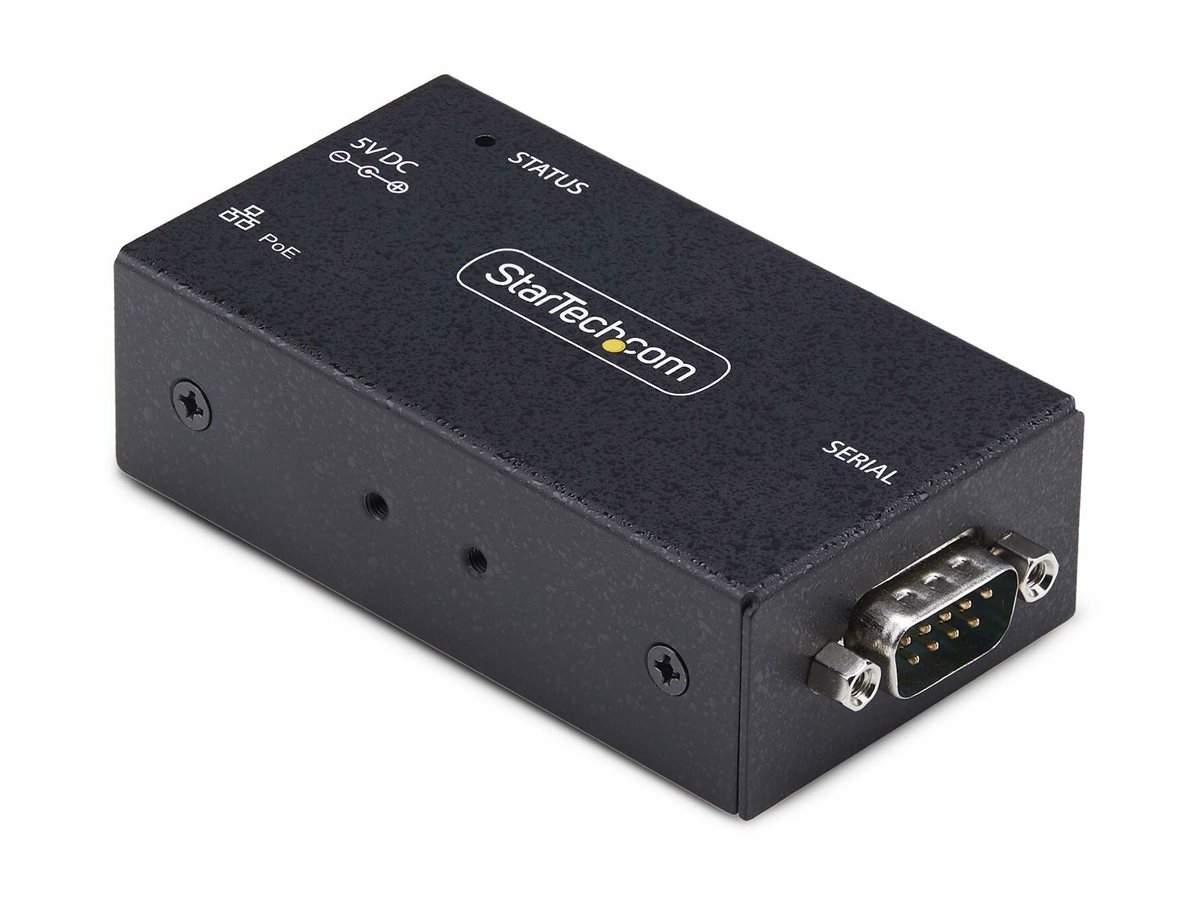

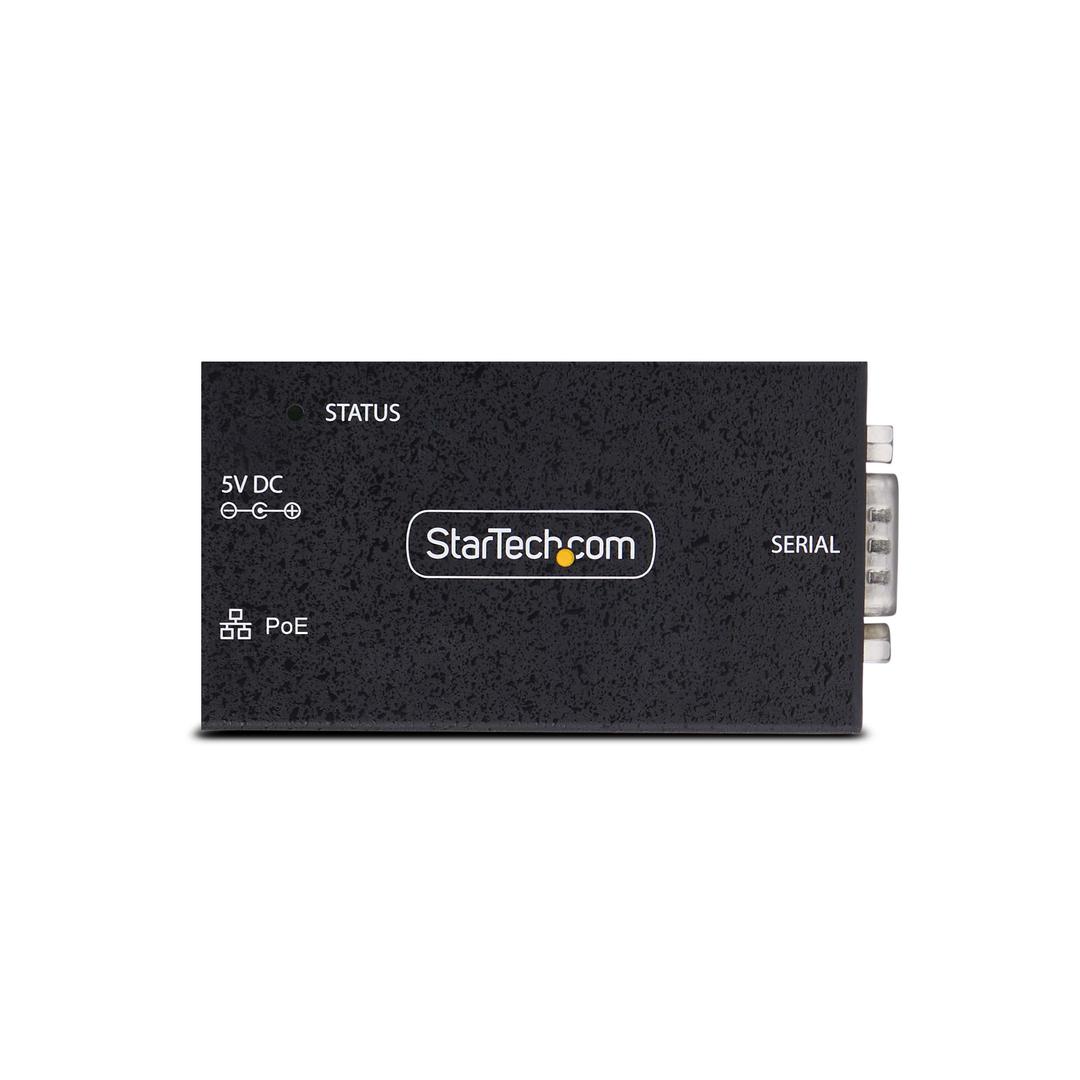

StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - PoE - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant | I13P-SERIAL-ETHERNET
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity
Equipped with both RS-232 and 100Base-TX (PoE) interfaces, this Serial to Ethernet Adapter ensures versatile connectivity options for a wide range of devices, making it an ideal solution for diverse operational environments. - Enhanced durability
The metal housing and electrostatic discharge protection up to 15 kV provide a durable solution that can withstand harsh industrial environments, ensuring reliable performance and longevity. - Efficient power management
With Power over Ethernet (PoE) capability, this adapter simplifies installation by eliminating the need for a separate power supply, offering a streamlined setup and reducing clutter. - Advanced network features
Features such as auto-negotiation, full duplex capability, and static IP routing support efficient network communication and management, enhancing the adapter's performance in complex network infrastructures. - Secure remote management
Support for Telnet and UDP remote management protocols allows for secure and convenient configuration and monitoring of the adapter, facilitating efficient management of networked devices.
Special Fetures
- RS-232 and 100Base-TX (PoE) interfaces for flexible connectivity
- Metal housing with up to 15 kV electrostatic discharge protection
- Power over Ethernet (PoE) for simplified installation and reduced clutter
- Supports auto-negotiation, full duplex capability, and static IP routing for efficient network efficiency
- Remote management via Telnet and UDP for secure, convenient configuration
Product Specification
| Device Type | Device server |
| Width | 8.2 cm |
| Depth | 4.6 cm |
| Height | 2.5 cm |
| Weight | 155 g |
| Enclosure Colour | Black |
| Networking | |

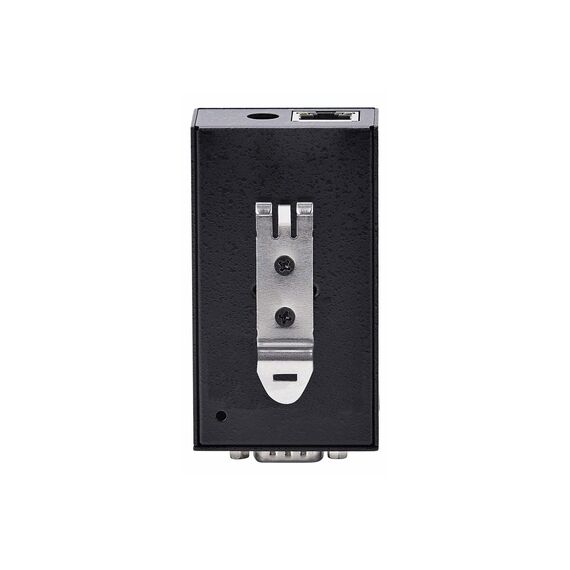

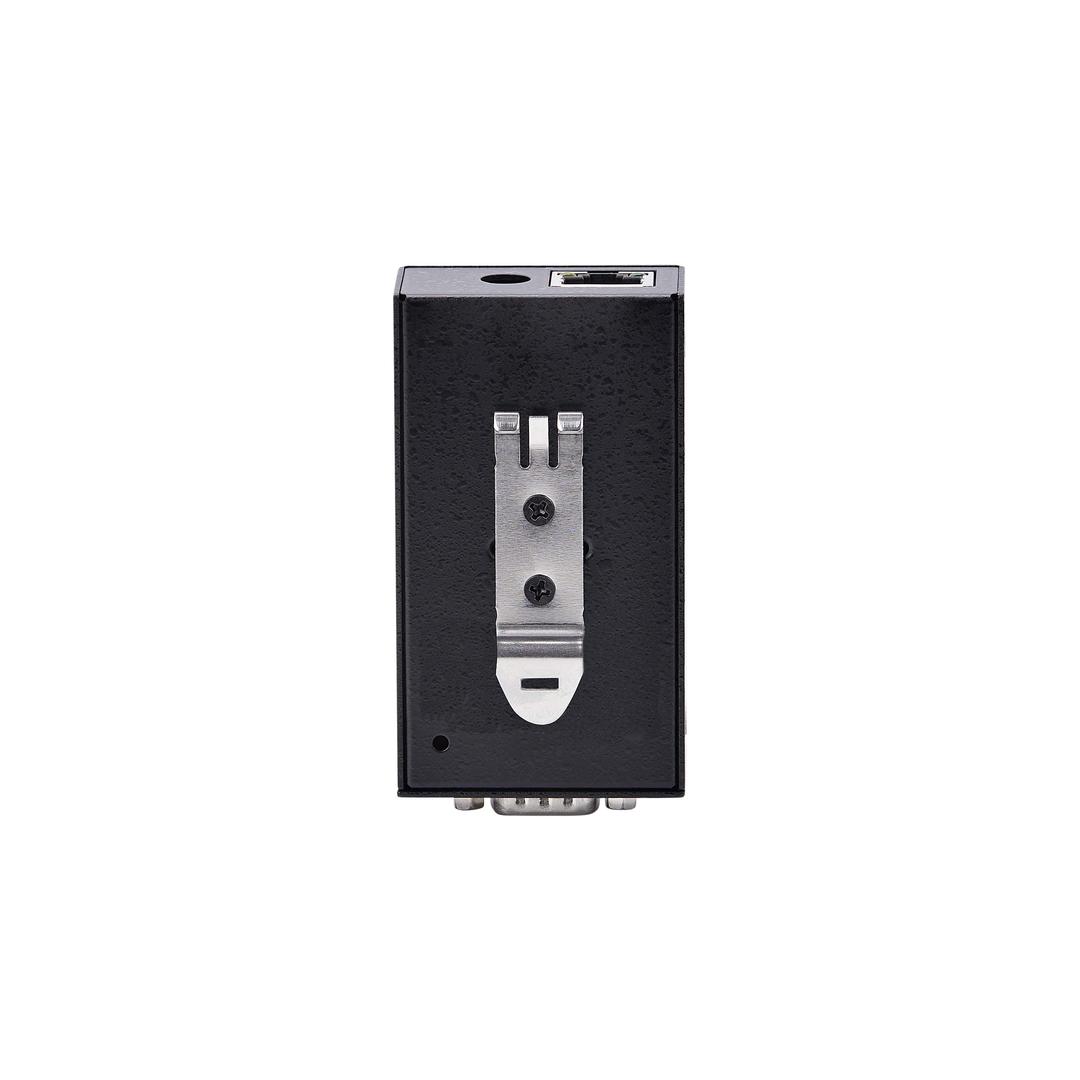

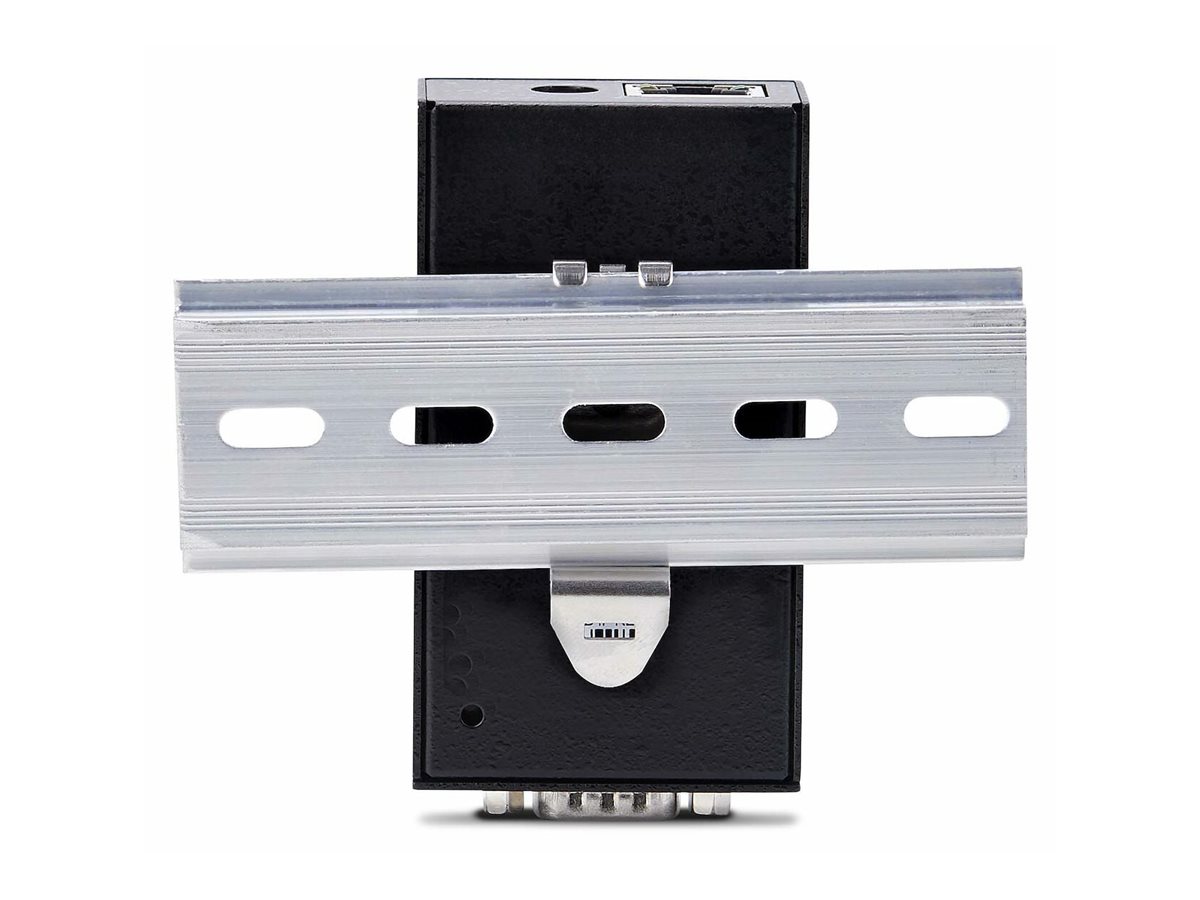

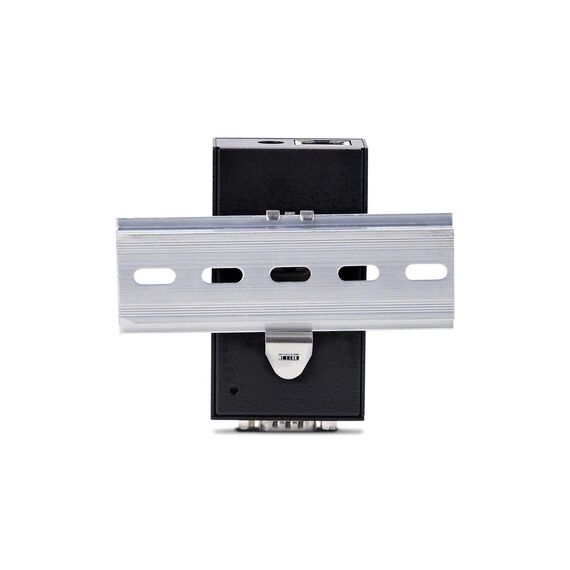

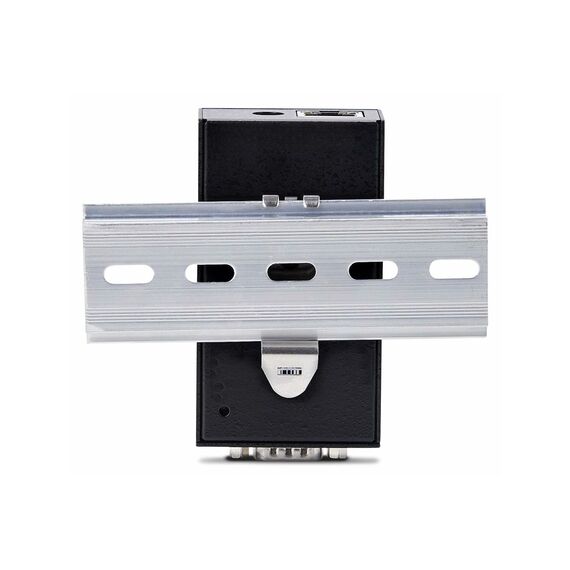

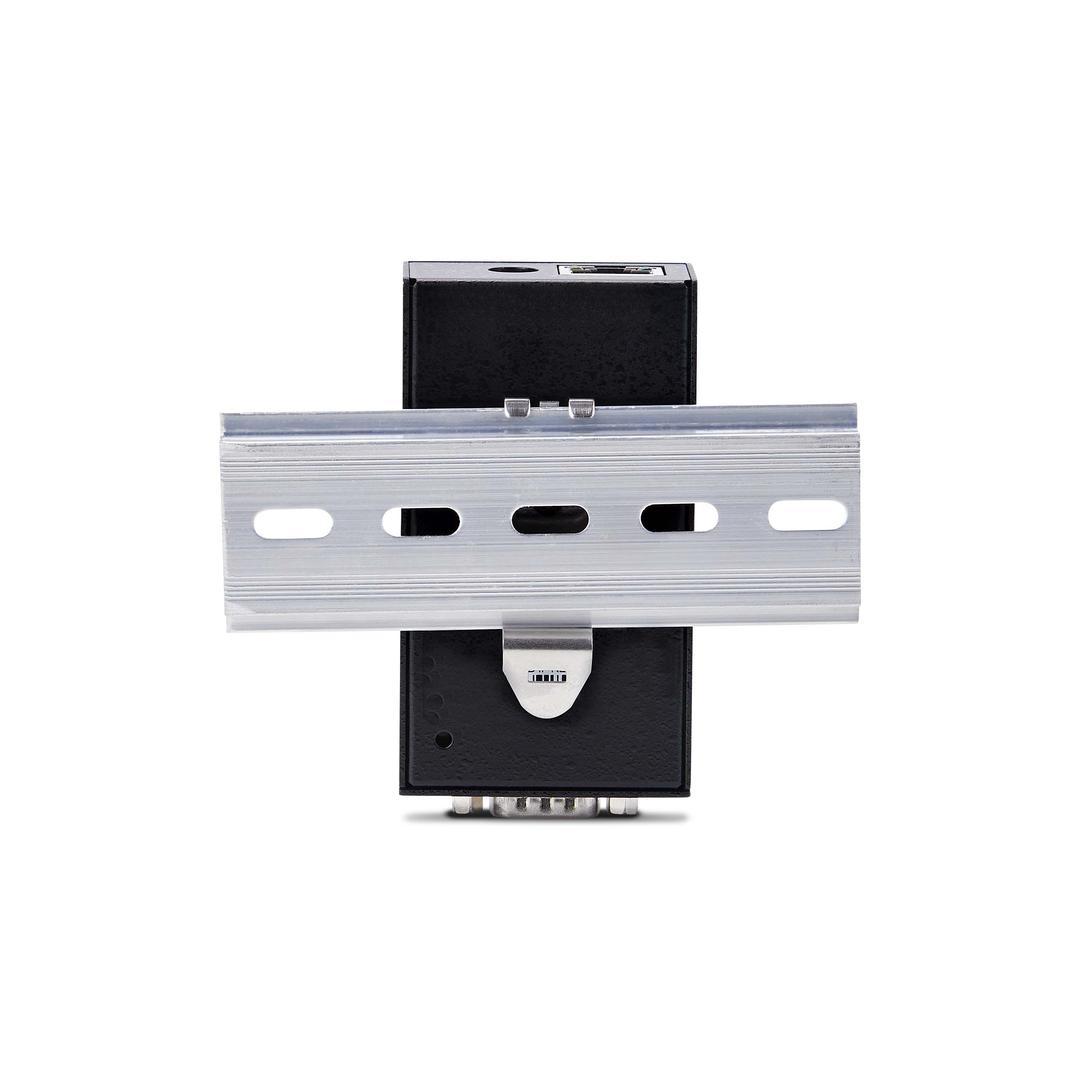

| Form Factor | Wall / DIN rail mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | Telnet, UDP, TCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | Telnet, UDP |
| Status Indicators | Power, transmit, receive, PoE, link/activity |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), manageable, 15 KV Electrostatic Discharge Protection, metal housing, 8 KV Contact Electrostatic Discharge Protection, adjustable parity |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3af |
| Expansion / Connectivity | |

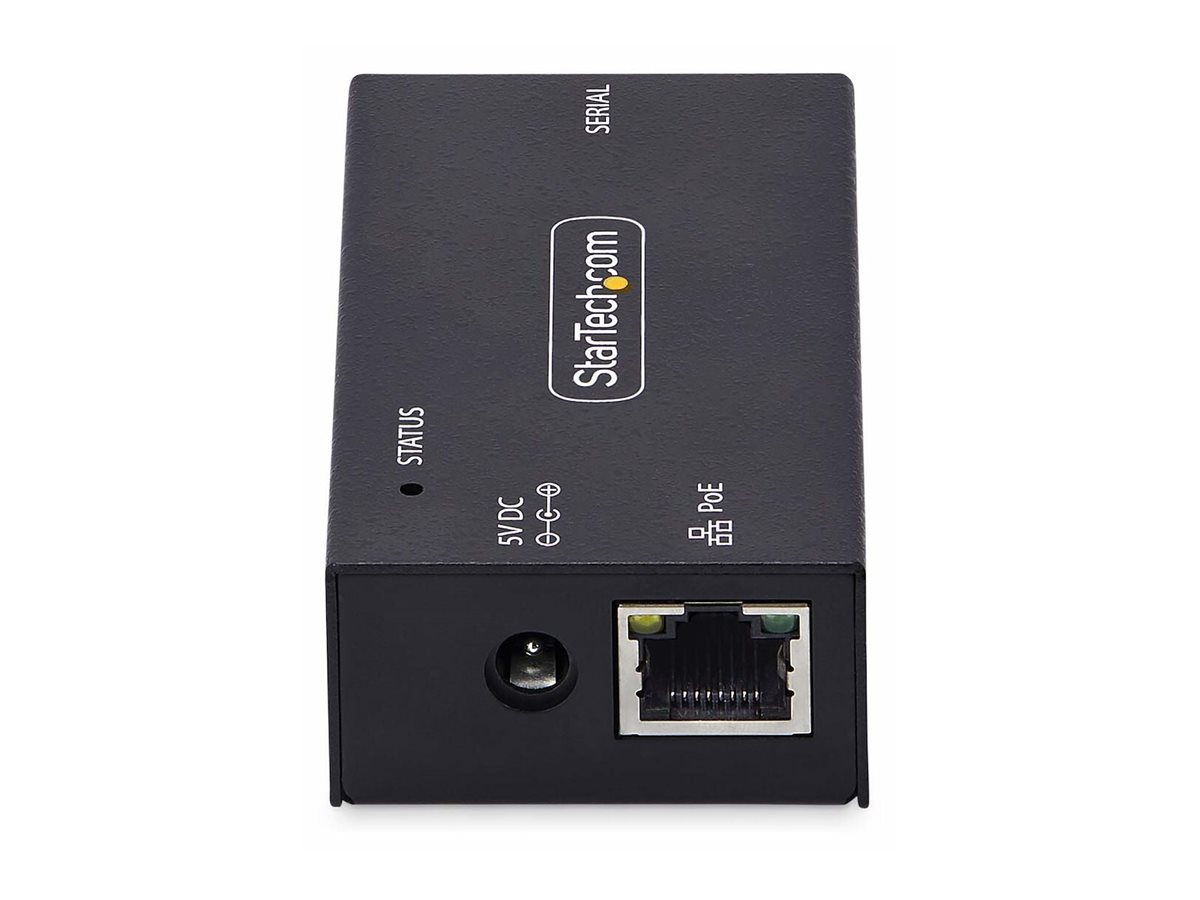

| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x 100Base-TX (PoE) - RJ-45 - 15.4 W |
| Miscellaneous | |

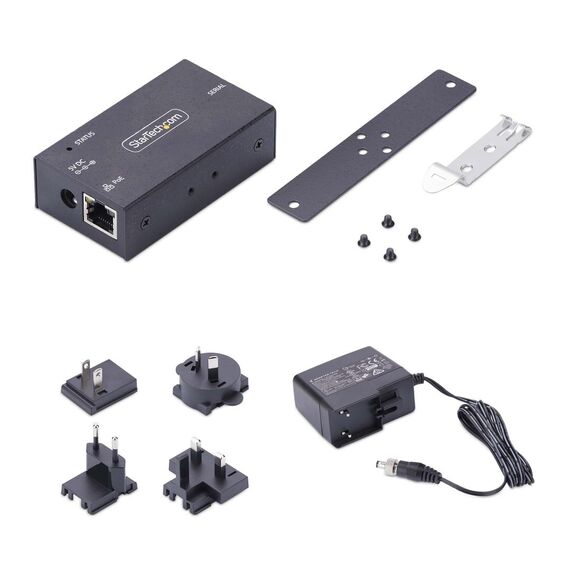

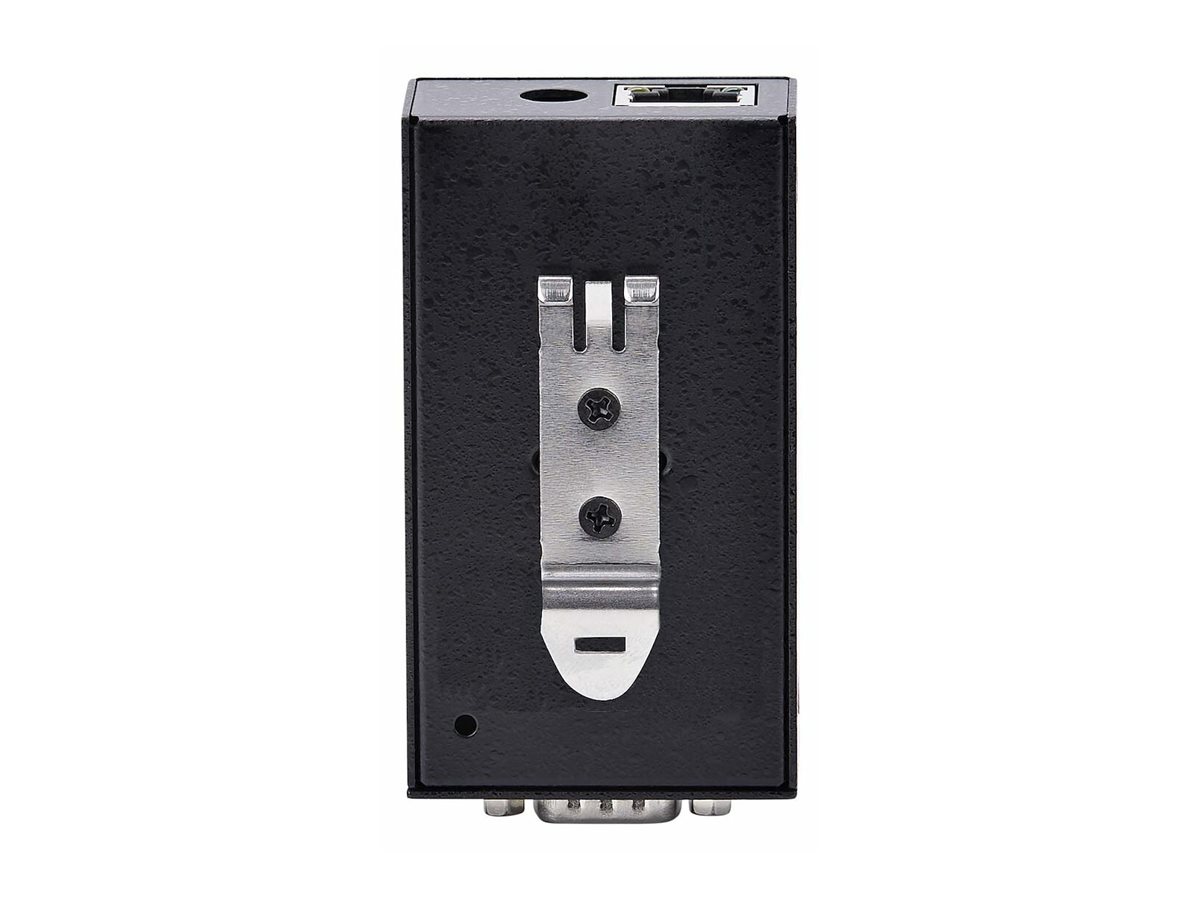

| Included Accessories | DIN-rail mounting kit, wall mounting kit |
| Compliant Standards | EIA/TIA-232 |
| TAA Compliant | Yes |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.7 cm |
| Shipping Depth | 14.4 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 1.2 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
