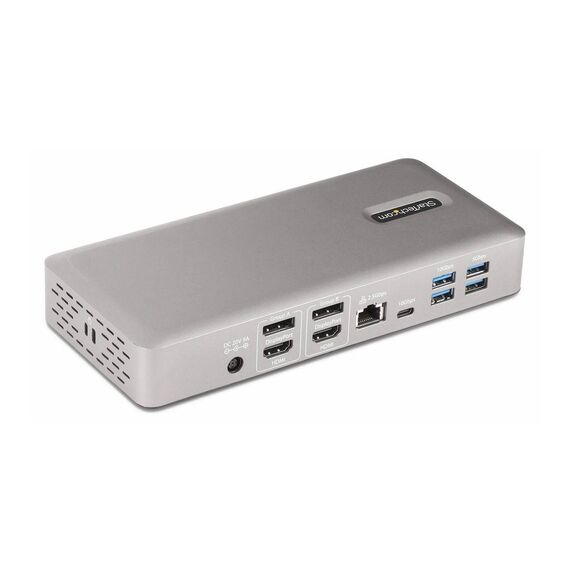

StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Power Delivery, for Windows/MacBook | 132UE-TB4USB4DOCK
132UE-TB4USB4DOCK
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Product Type | Docking station |
| Width | 21 cm |
| Depth | 9.6 cm |
| Height | 3.4 cm |
| Weight | 200 g |
| Enclosure Colour | Space grey |
| Video | Video |

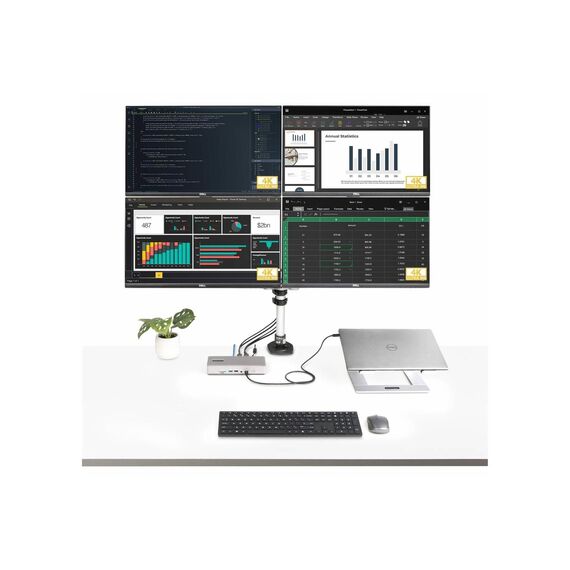

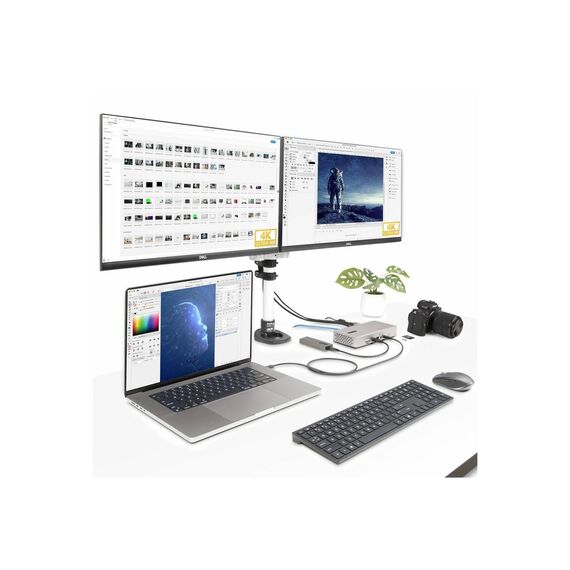

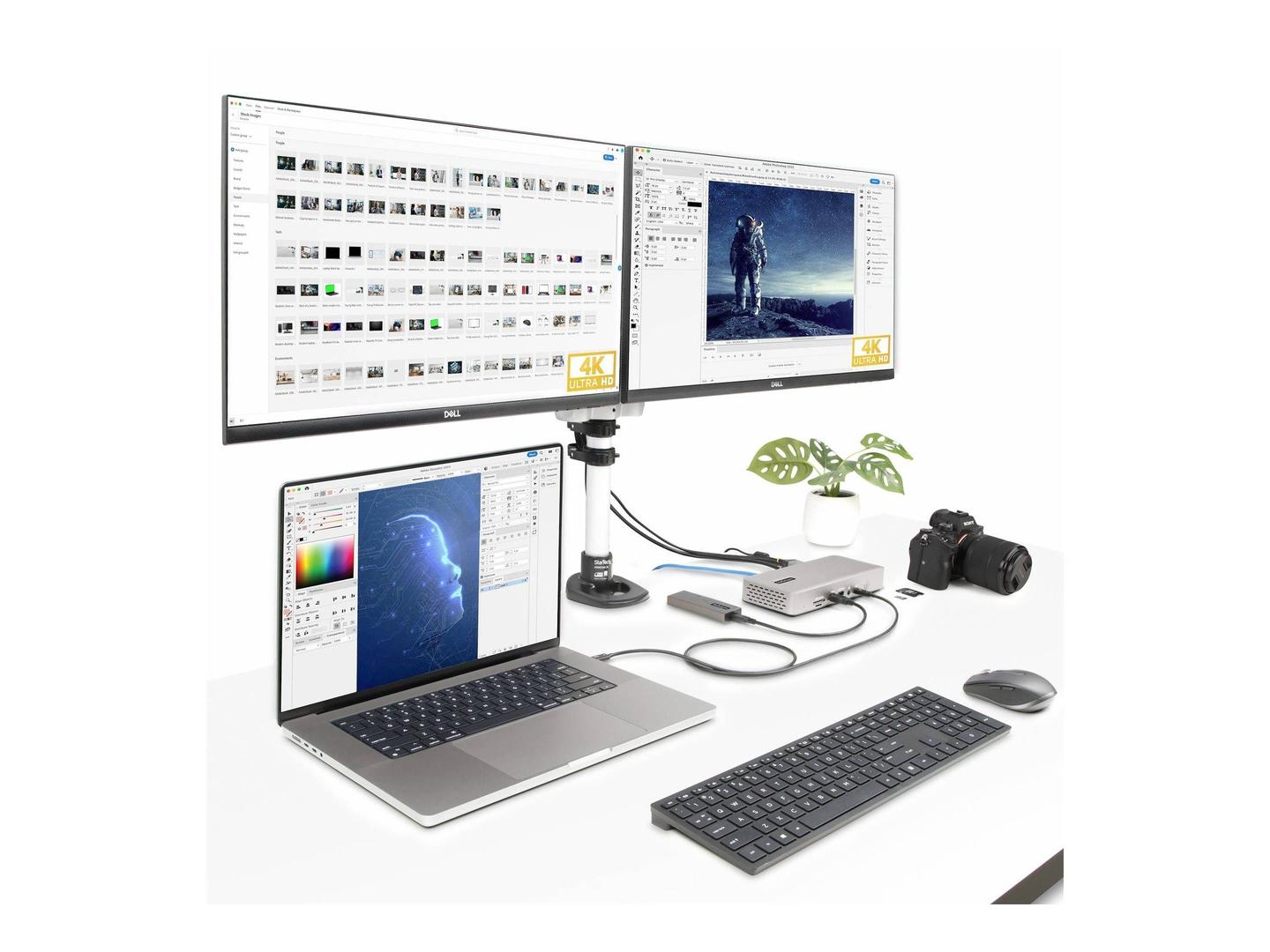

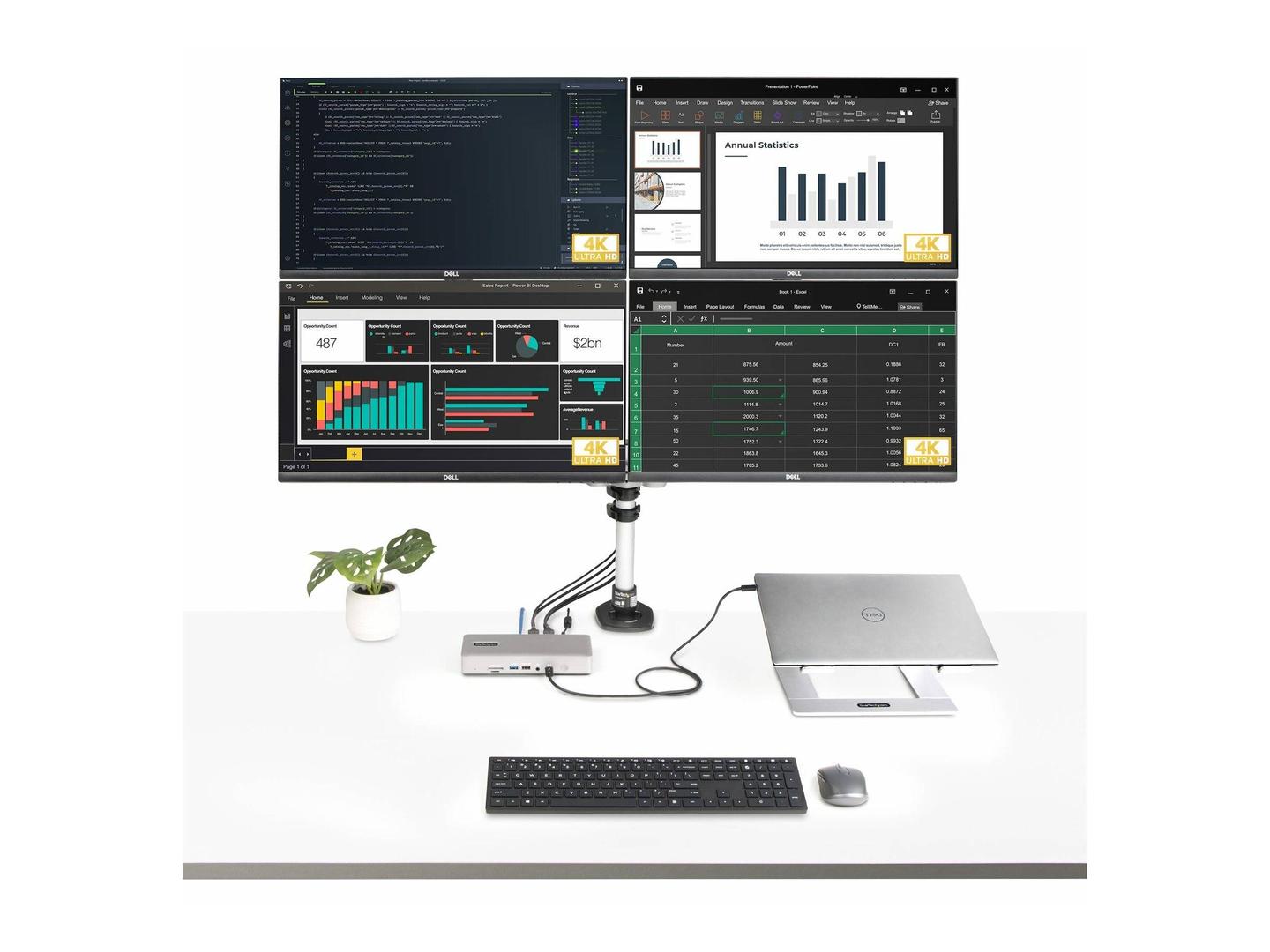

| Max Resolution Details | 7680 x 4320 - 60 Hz (Single Display) ¦ 3810 x 2160 - 60 Hz (Dual Display) ¦ 3810 x 2160 - 60 Hz (Triple Display) ¦ 3810 x 2160 - 60 Hz (Quad Display) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD / MMC Memory Card ¦ 1 (total) / 1 (free) x microSD |

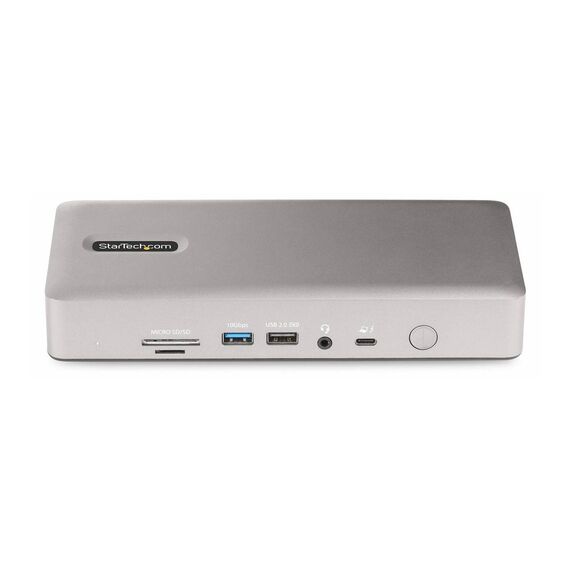

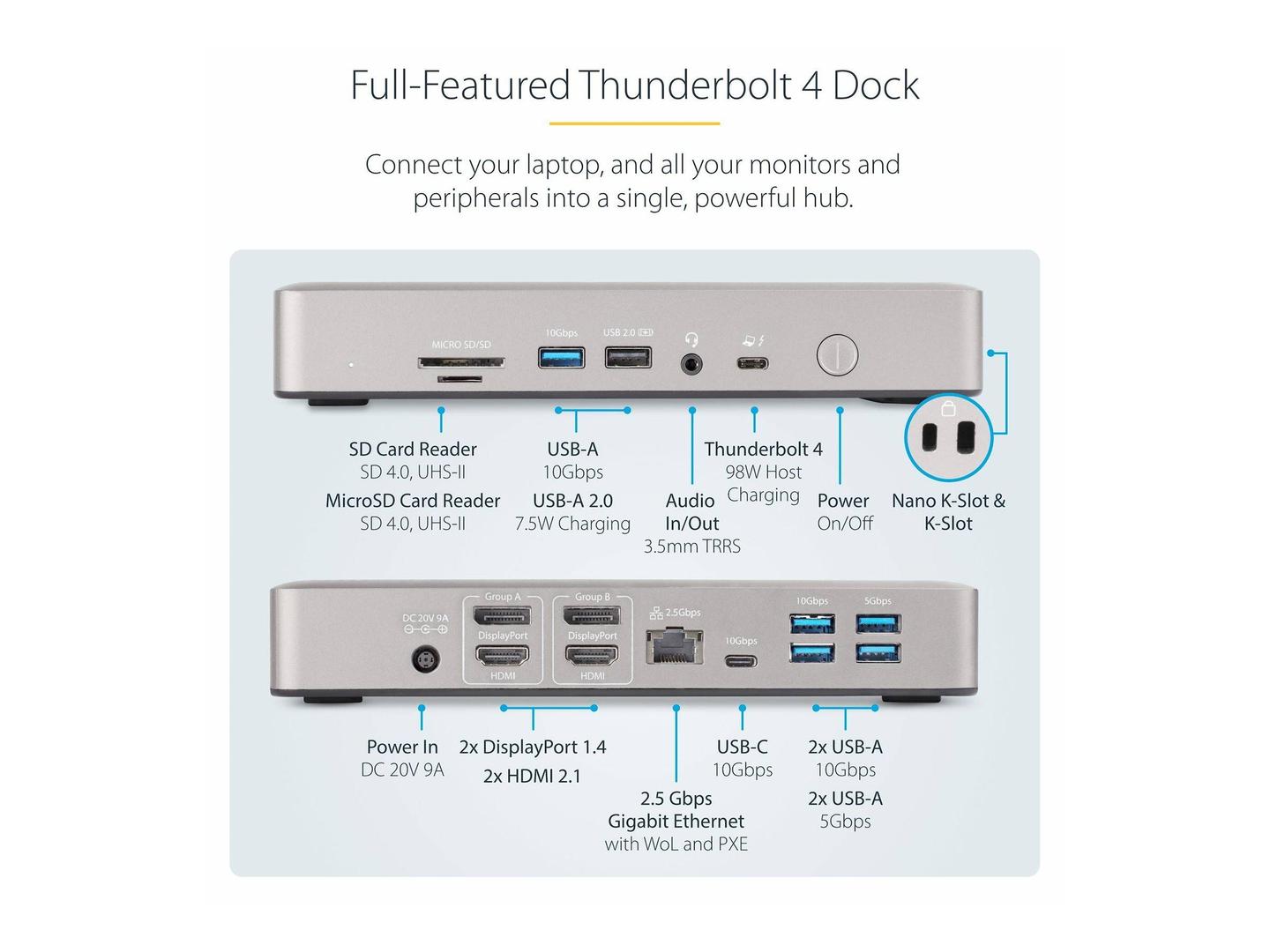

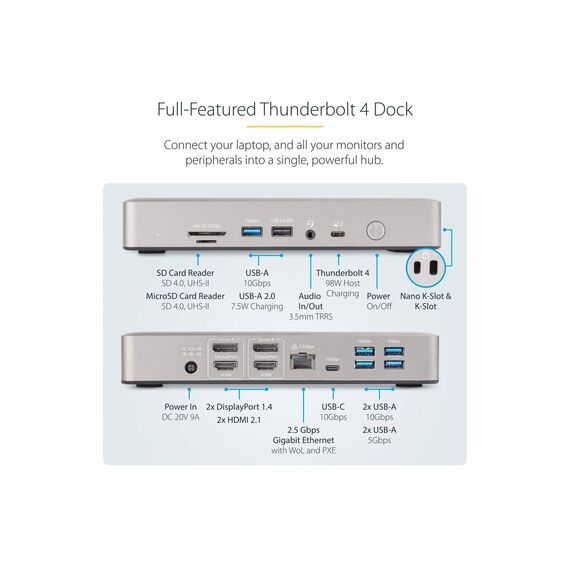

| Interfaces | 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-A 2.0 - 4 pin USB Type A ¦ 2 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Input Device | SD card reader, microSD card reader, MMC card reader |
| Cables Included | 1 x Thunderbolt 4 cable - external - 1 m |

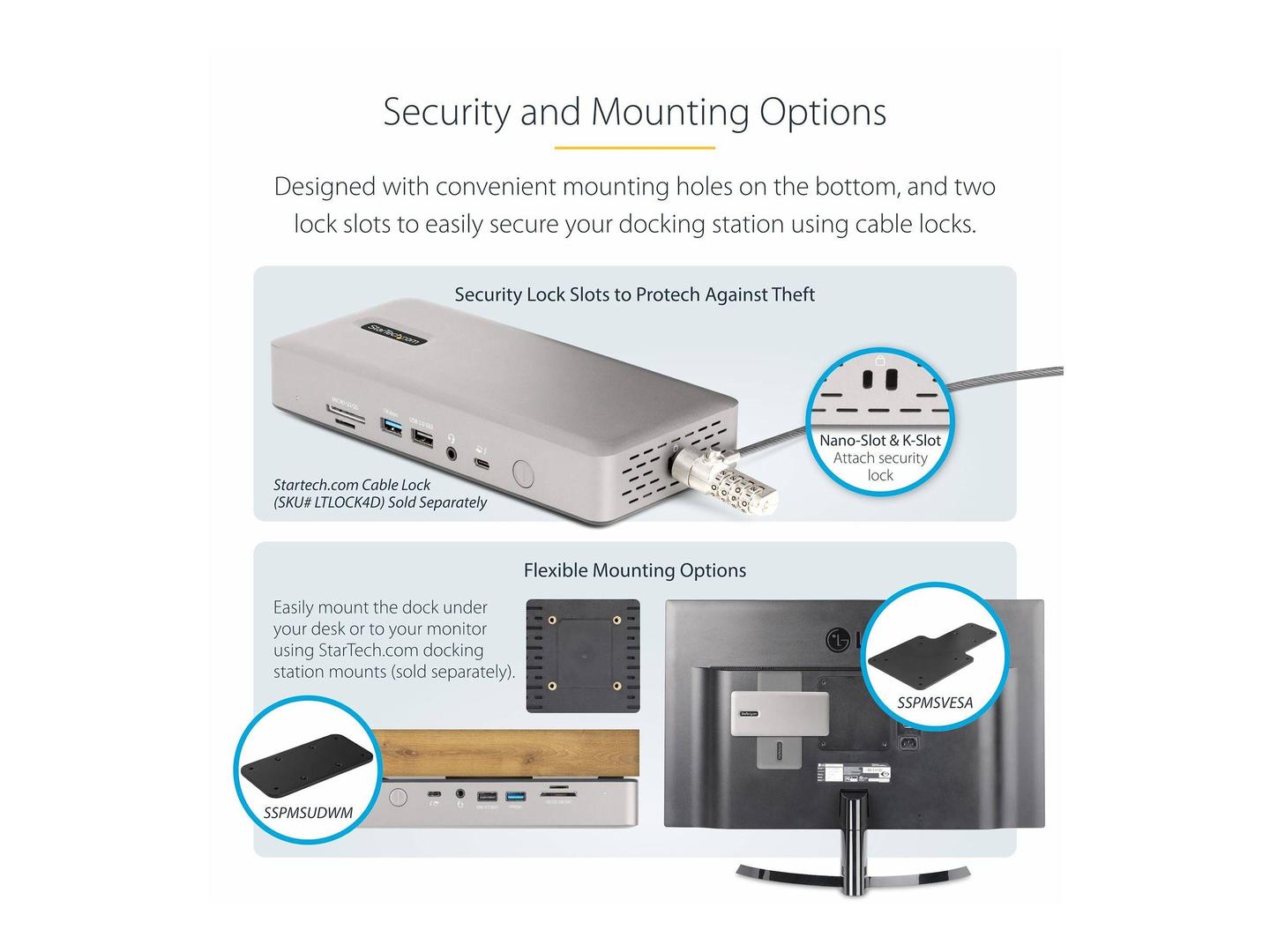

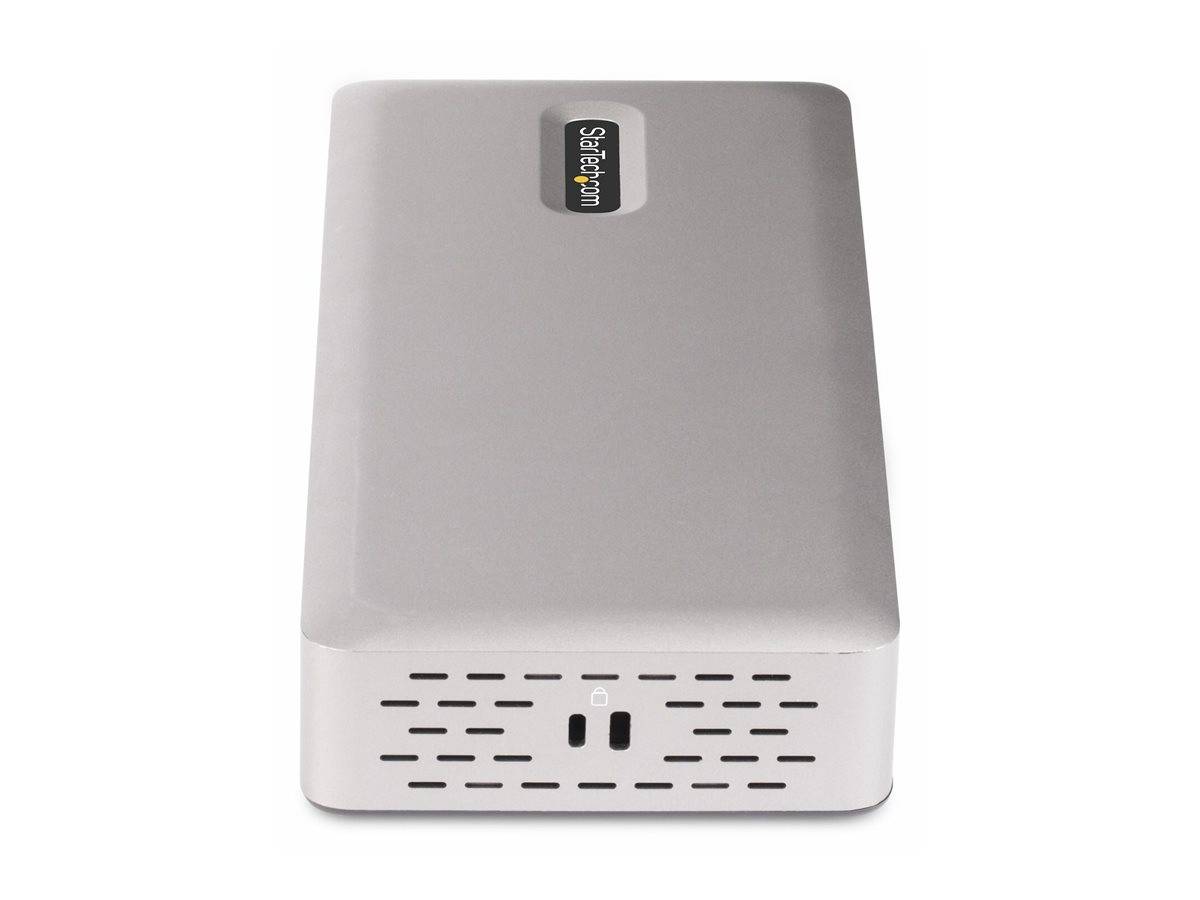

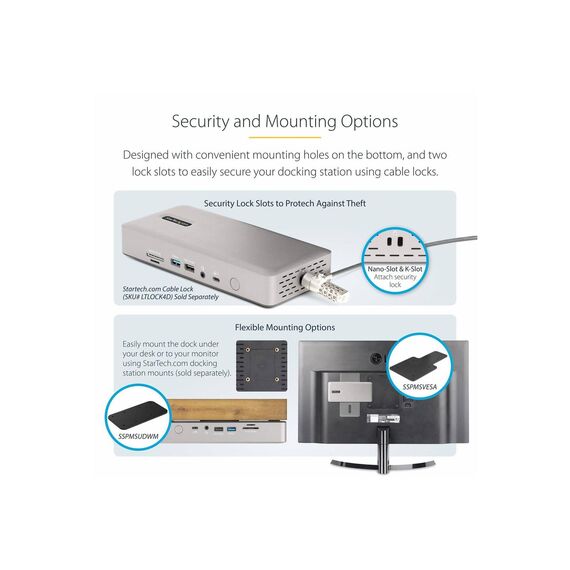

| Features | LED indicator, UASP transfer protocol, Preboot Execution Environment (PXE) support, full duplex support, kensington security slot, up to 40Gbps data transfer, 98W power delivery |
| Compliant Standards | RoHS, DisplayPort 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0, Thunderbolt 4 |
| Power | Power |
| Power Device | Power adapter |
| Voltage Required | AC 110-240 V |
| Power Provided | 180 Watt |
| Voltage Provided | DC 20 V |
| System Requirements | System Requirements |
| OS Required | Windows 10, Apple macOS Big Sur 11.0, Windows 11, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0, Apple macOS Sonoma 14.0 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 23.5 cm |
| Shipping Depth | 23 cm |
| Shipping Height | 9 cm |
| Shipping Weight | 1.4 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
