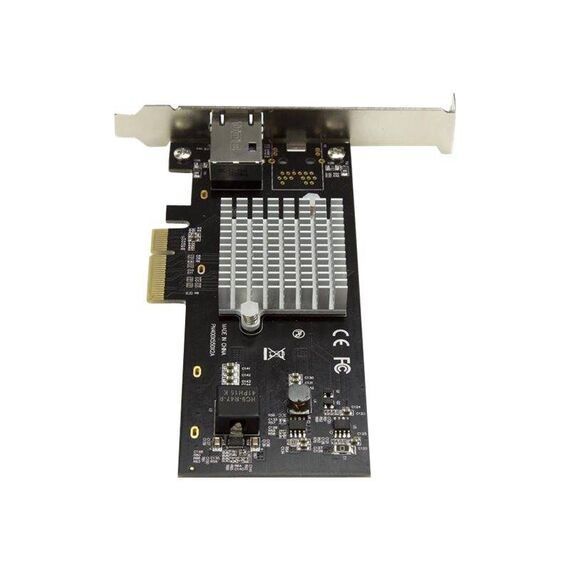

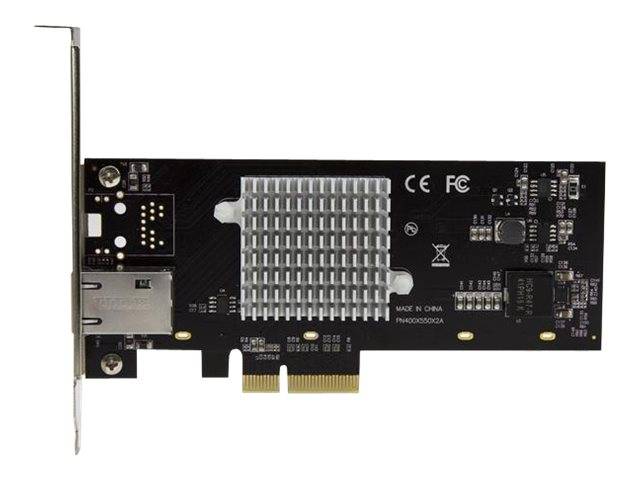

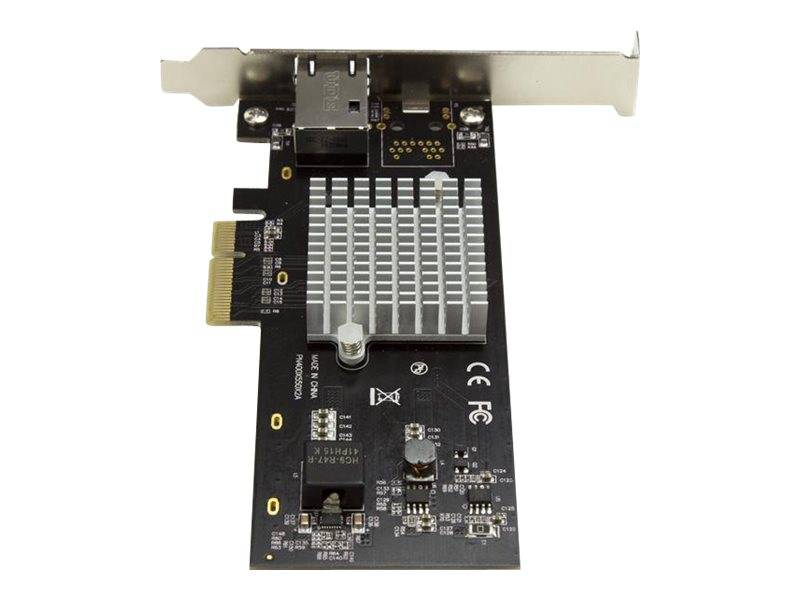

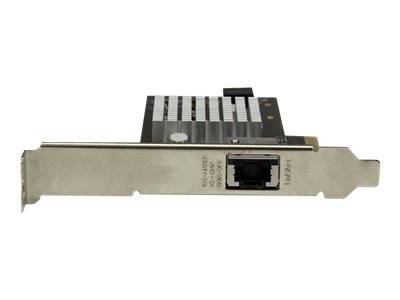

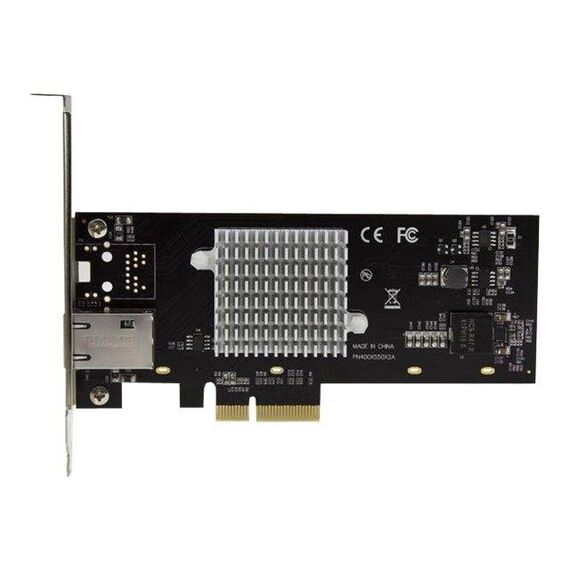

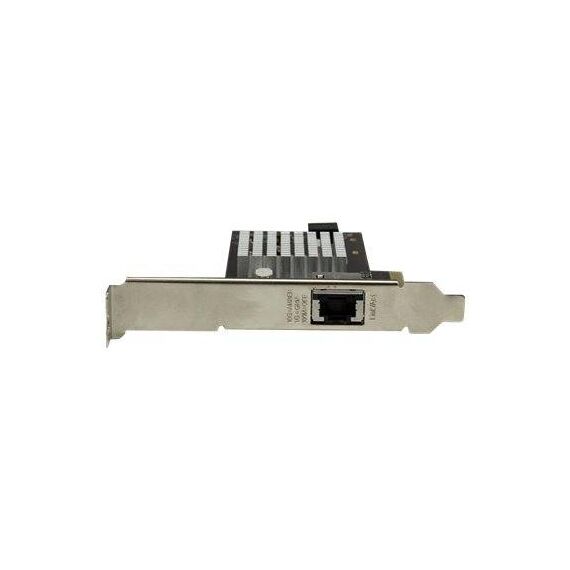

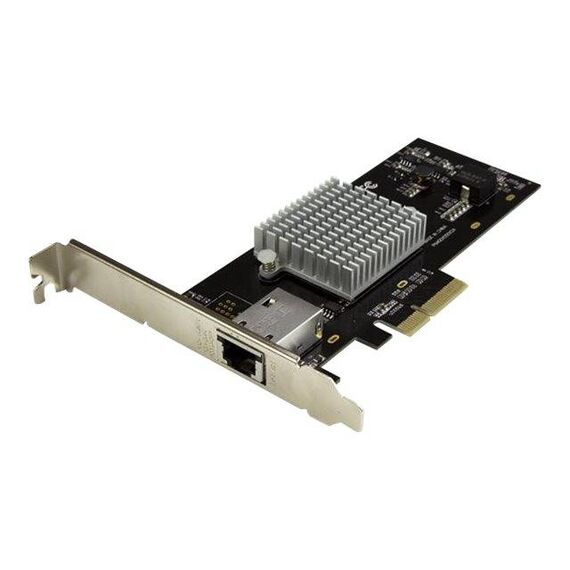

StarTech.com 1 Port 10G PCIe Network Card / 10GBase-T / NBASE-T / RJ45 Port / Intel X550 Chipset / Ethernet Card / Network Adapter / Intel NIC Card (ST10000SPEXI) / Network adapter / PCIe 2.0 low profile / 10Gb Ethernet x 1 / black / for P | ST10000SPEXI
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 |
| Networking | Networking |
| Ports | 10Gb Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Performance | Bandwidth (full duplex): 20 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Features | Flow control, full duplex mode, Jumbo Frames support, PXE support, tagged VLAN |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an |
| Processor / Memory | Processor / Memory |
| Processor | Intel X550-AT |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Colour | Black |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2008 R2 (64-bits), VMware ESXi 5.1, VMware ESXi 5.5, Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), VMware ESXi 6.0, Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.85 cm |
| Depth | 15.25 cm |
| Height | 12.1 cm |
| Weight | 101.8 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16 |
Features - StarTech.com - ST10000SPEXI
More Details
Product Code
V933818
EAN Code
0065030866156
Manufacturer
StarTech.com
