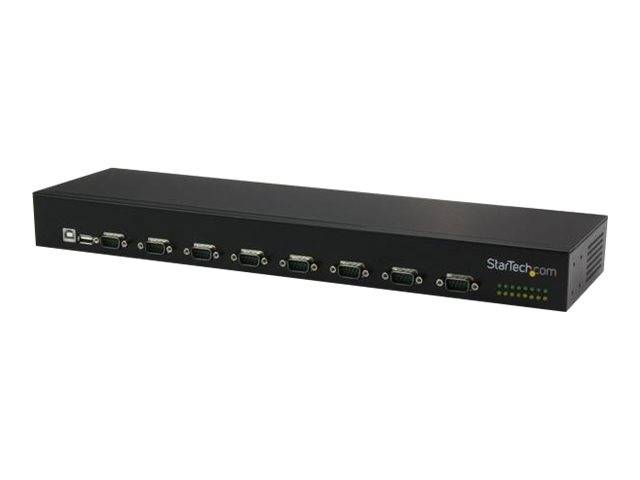

StarTech.com 8 Port USB to Serial Adapter Hub / USB to RS232 Daisy Chain / Serial adapter / USB 2.0 / RS-232 x 8 / black | ICUSB23208FD
StarTech.com 8 Port USB to Serial Adapter Hub / USB to RS232 Daisy Chain / Serial adapter / USB 2.0 / RS-232 x 8 / black | ICUSB23208FD
Description Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution. This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. |
Product Specification
Device Type | Serial adapter |
Form Factor | External |
Interface (Bus) Type | USB 2.0 |
Ports | RS-232 x 8 |
Connectivity Technology | Wired |
Data Link Protocol | RS-232 |
Status Indicators | Status |
Interfaces | 8 x RS-232 - 9 pin D-Sub (DB-9) (male) ¦ 1 x USB - 4 pin USB Type B |

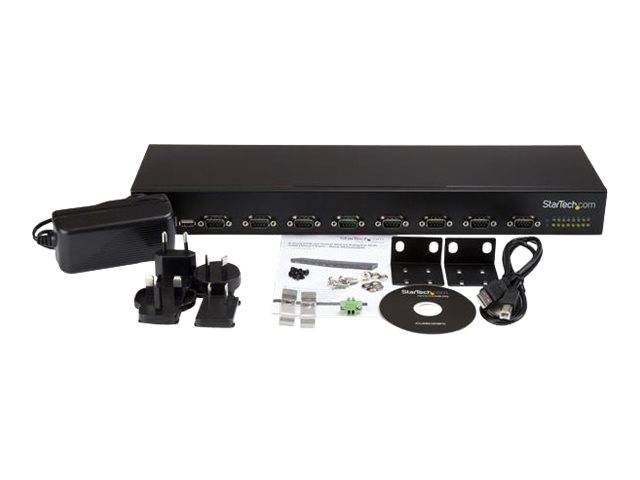

Included Accessories | 2 rack mount brackets, 4 x nuts, rack mounting screws, DIN rail mounting screws, 2 DIN rail mounting brackets, 4 washers, terminal block plug, power adapter |
Cables Included | 1 x USB cable ( external ) - 90 cm |
Compliant Standards | FCC, RoHS |
Colour | Black |
Voltage Required | AC 120/230 V |
Power Consumption Operational | 36 Watt |
Software Included | Drivers & Utilities |
OS Required | Linux, Microsoft Windows Server 2012, Apple MacOS X 10.9, Apple MacOS X 10.10, Microsoft Windows 7 / 8 / 10, Apple MacOS X 10.11 |
Width | 12 cm |
Depth | 43 cm |
Height | 4.5 cm |
Weight | 1.4 kg |
Service & Support | Limited warranty - 2 years |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 85 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
