StarTech.com Composite and S-Video to HDMI Converter with Audio / Video converter / composite video, S-Video / black | VID2HDCON
StarTech.com Composite and S-Video to HDMI Converter with Audio / Video converter / composite video, S-Video / black | VID2HDCON
|
Description Convert a Composite or S-Video Signal and the Accompanying Audio to HDMIÐ. The VID2HDCON Composite and S-Video to HDMIÐ Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television. Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display. The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable. Special Features
|
Product Specification
| Device Type | Video converter |
| Max Resolution | 1600 x 1200 at 60 Hz |

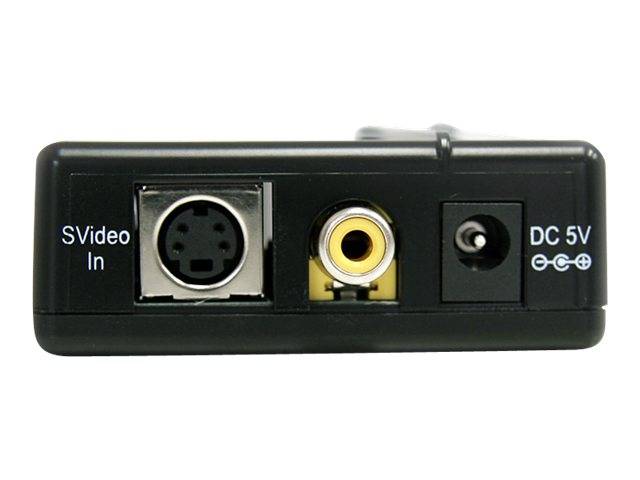

| Interfaces | 1 x composite video input - RCA - female ¦ 1 x S-video input - 4 PIN mini-DIN - female ¦ 1 x audio line-in - mini-phone stereo 3.5 mm - female ¦ 1 x HDMI output - 19 pin HDMI Type A - female |
| Features | LED indicator |
| Analogue Video Format | NTSC, PAL |
| Voltage Required | AC 120/230 V / DC 5 V |
| Power Consumption Operational | 2.5 Watt |

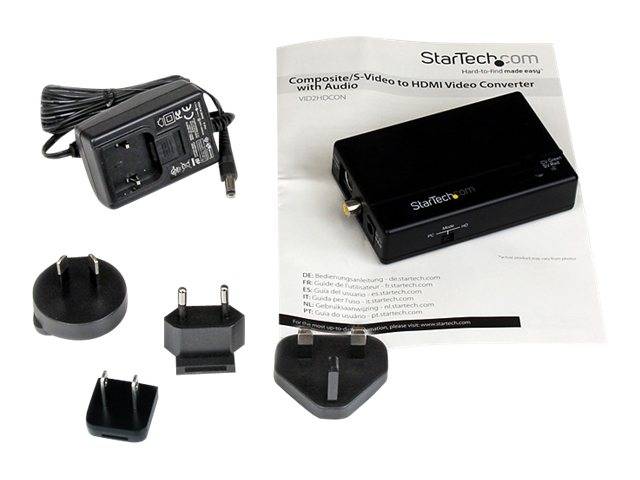

| Cables Included | 1 x power adapter |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Width | 16.3 cm |
| Depth | 16.5 cm |
| Height | 3.4 cm |
| Weight | 100 g |
| Enclosure Colour | Black |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% |
