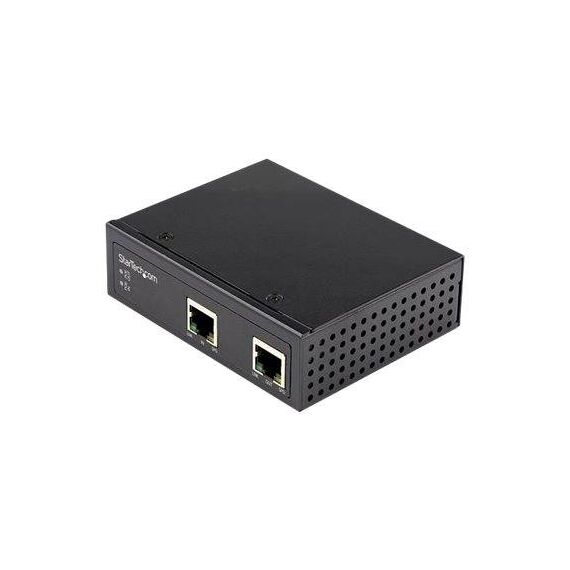

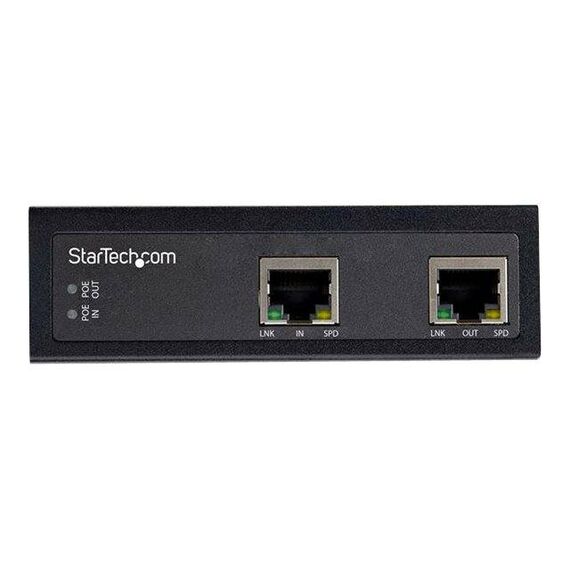

StarTech.com Industrial Single Port Gigabit PoE Extender, 60W 802.3bt PoE /PoE+/ PoE++, 100m/330ft, / up to 100 m | POEEXT1G60W
Please sign in so that we can notify you about a reply
StarTech.com Industrial Single Port Gigabit PoE Extender, 60W 802.3bt PoE /PoE+/ PoE++, 100m/330ft, Power Over Ethernet Network Range Extender, IP-30 Housing, -40C to +75C, PD PoE Extender / 60W PoE++ Extender (POEEXT1G60W) / Network/power extender / GigE / 10Base-T, 100Base-TX, 1000Base-T / 1 ports / up to 100 m | POEEXT1G60W
Product Specification
| Device Type | Network/power extender |
| Colour | Black |
| Ports Qty | 1 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 100 m |
| Status Indicators | PoE, link/activity |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, rugged, Back Pressure Support, 2KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), aluminium housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female |

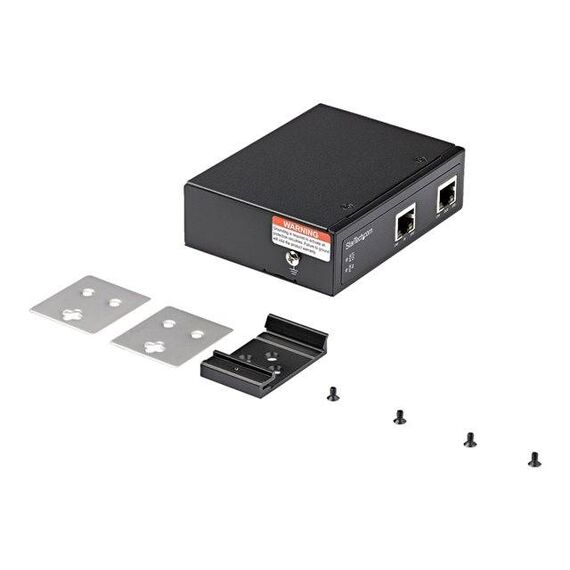

| Mounting Kit | Included |
| MTBF | 551, 848 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, WEEE, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Power Over Ethernet (PoE) | PoE+ |
| Power Consumption Operational | 2.7 Watt |
| Width | 8.15 cm |
| Depth | 10.4 cm |
| Height | 3.2 cm |
| Weight | 148 g |
| Shipping Width | 21.1 cm |
| Shipping Depth | 16.2 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 400 g |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - StarTech.com - POEEXT1G60W
More Details
Product Code
V935110
EAN Code
0065030889650
Manufacturer
StarTech.com
