StarTech.com Dell EMC SFP-1G-BX40-U SFP Module - Upstream / SFP (mini-GBIC) transceiver module (equivalent to: Dell EMC SFP-1G-BX40-U) / GigE / 1000Base-BX40-U / LC single-mode / up to 40 km / 1310 (TX) / 1490 (RX) nm | SFP1GBX40UES
Description

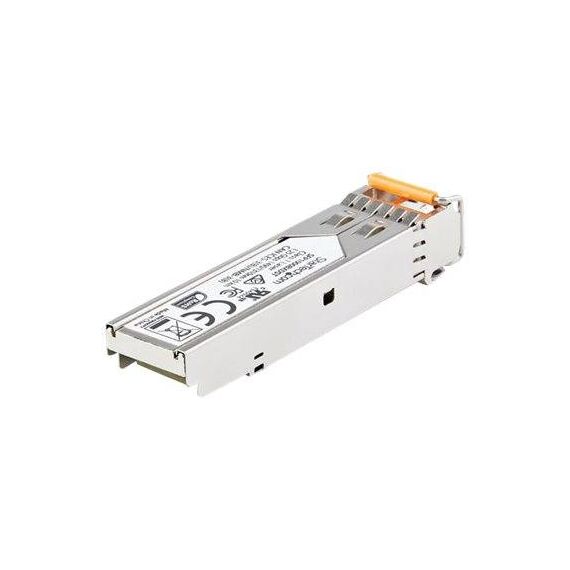

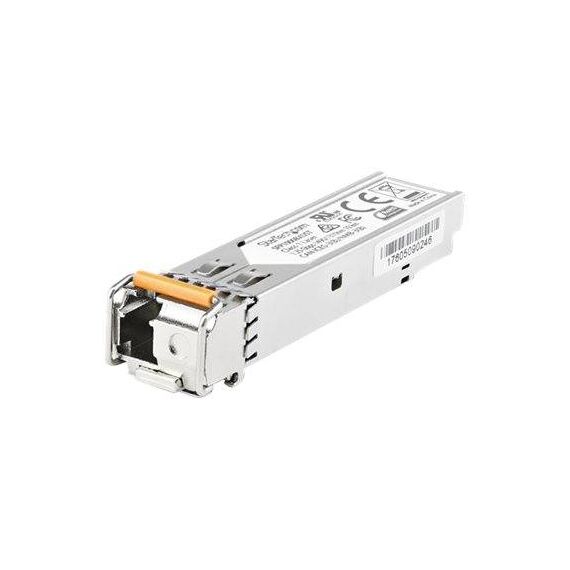

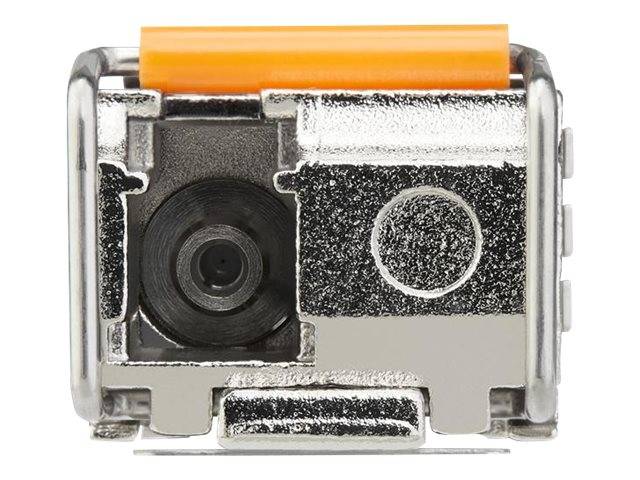

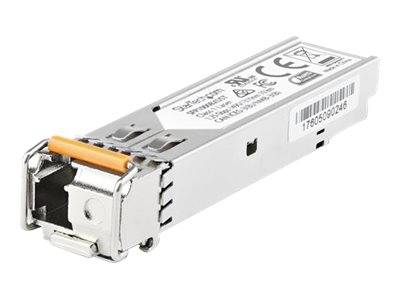

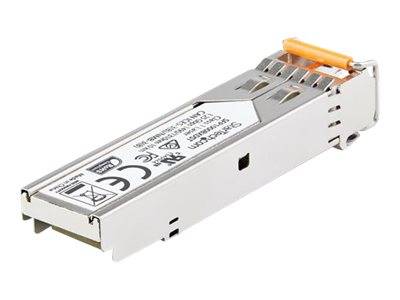

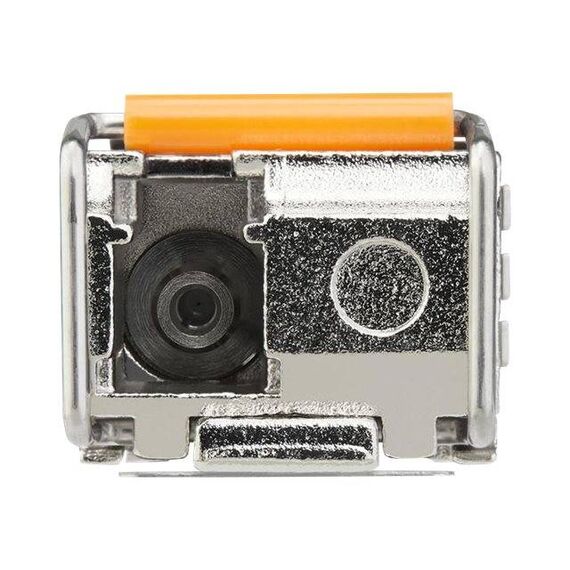

The SFP1GBX40UES is a Dell EMC SFP-1G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX40DES. They are designed, programmed and tested to work with 1000Base-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-BX40-U |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 (TX) / 1490 (RX) nm |
| Max Transfer Distance | 40 km |
| Features | Full duplex mode, Digital Diagnostics Monitoring (DDM) |
| Interfaces | 1 x Ethernet 1000Base-BX40-U - LC single-mode female |
| MTBF | 3,713,222 hours |
| Compliant Standards | FCC, RoHS, REACH, MSA |
| OEM Manufacturer Equivalent Part Number | Dell EMC SFP-1G-BX40-U |
| Power Consumption Operational | 1.6 Watt |
| Width | 5.84 cm |
| Depth | 1.39 cm |
| Height | 1.26 cm |
| Weight | 30 g |
| Shipping Width | 9 cm |
| Shipping Depth | 11.5 cm |
| Shipping Height | 3.1 cm |
| Shipping Weight | 50 g |
| Service & Support | Limited warranty - lifetime |
Features - StarTech.com - SFP1GBX40UES
More Details
Product Code
V934665
EAN Code
0065030883276
Manufacturer
StarTech.com
