StarTech.com USB C Multiport Adapter / USB Type-C 10Gbps Mini Dock 4K 60Hz HDMI/DisplayPort/1080p VGA / 75W PD Passthrough, / Docking station / GigE | DKT31CHDVCM
StarTech.com USB C Multiport Adapter / USB Type-C 10Gbps Mini Dock 4K 60Hz HDMI/DisplayPort/1080p VGA / 75W PD Passthrough, USB Hub & GbE (DKT31CHDVCM) / Docking station / USB-C 3.1 Gen 2 / VGA, HDMI, DP / GigE | DKT31CHDVCM
Description

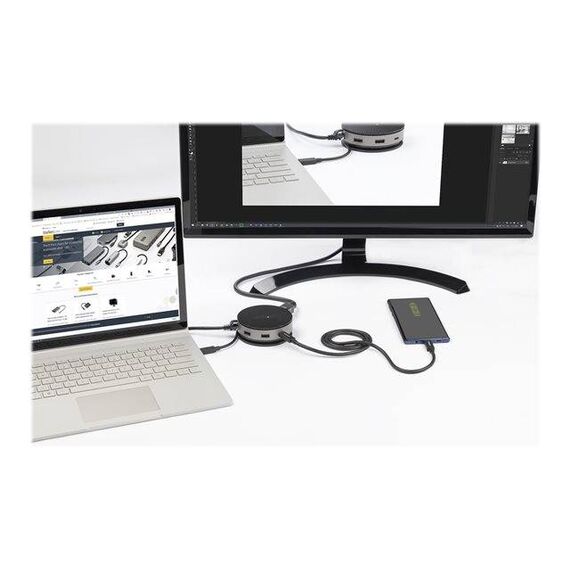

This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility,  turns your USB-C or Thunderbolt 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections.
StarTech.com USB C Multiport Adapter / USB Type-C 10Gbps Mini Dock 4K 60Hz HDMI | DKT31CHDVCM
Special Features

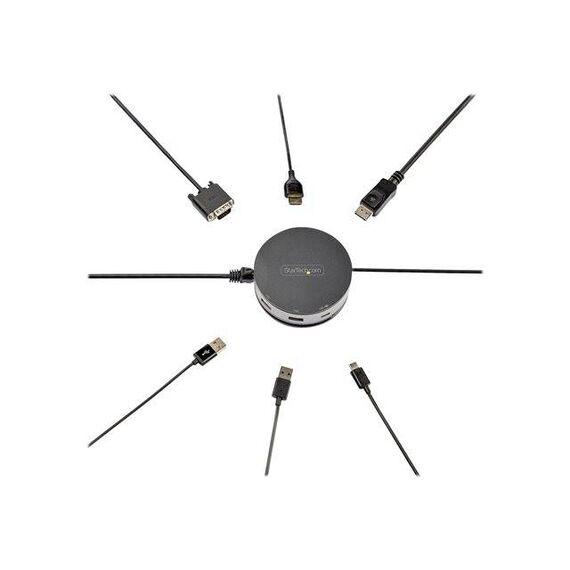

- 7-in-1 mini dock: compact USB-C mobile adapter (USB 3.2/3.1 Gen 2 10Gbps) with a single display up to 4K 60 Hz DisplayPort/HDMI or 1080p VGA video ports, USB Hub (2x USB-A, 1x USB-C) & Gigabit Ethernet
- Flexible video output: drive 4K 60 Hz video with a DisplayPort 1.4 host (DP/HDMI 2.0 HDR) or 4K 30 Hz with DP 1.2 host, or 1080p VGA display outputs, adding flexibility for mixed monitor type deployments
- Extra long cable: 10" (25.4 cm) attached cable for extended reach to reduce port strain on 2-in-1's like iPad Pro & Surface Pro 7; USB C multiport adapter with wraparound cable for office, travel & home
Product features

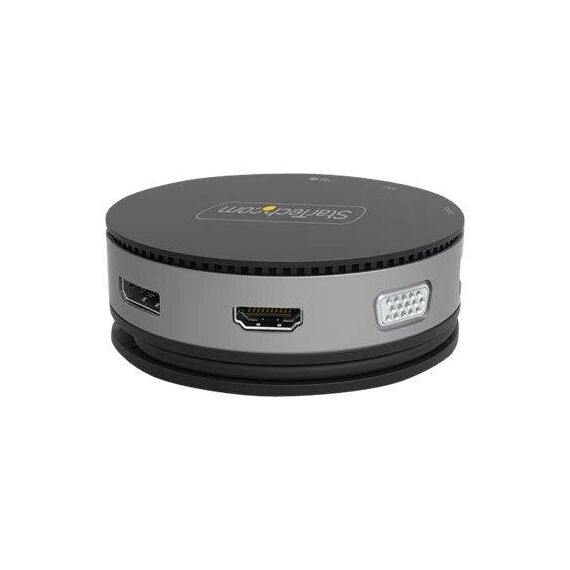

- Three video output options
This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three  single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor. - Designed for portability & ease of use

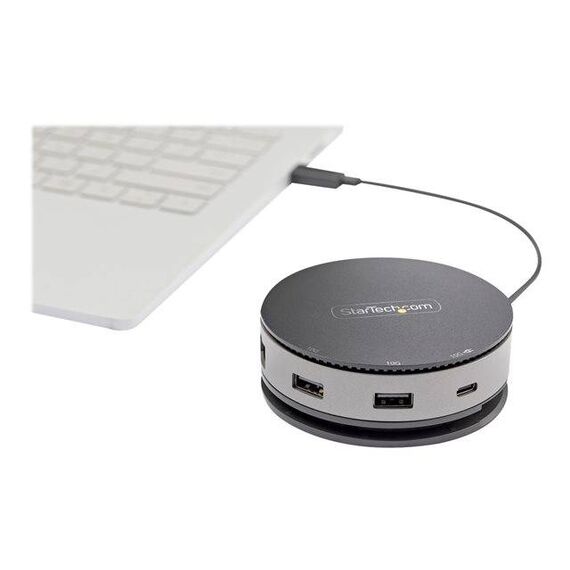

The USB-C travel dock features a compact circular design and an attached extended length 24 cm (10 in. ) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15 W for docking station & rest for charging). Installation is fast and simple, with native support in most operating systems, and at only 7 ounces and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable. - Essential port configuration

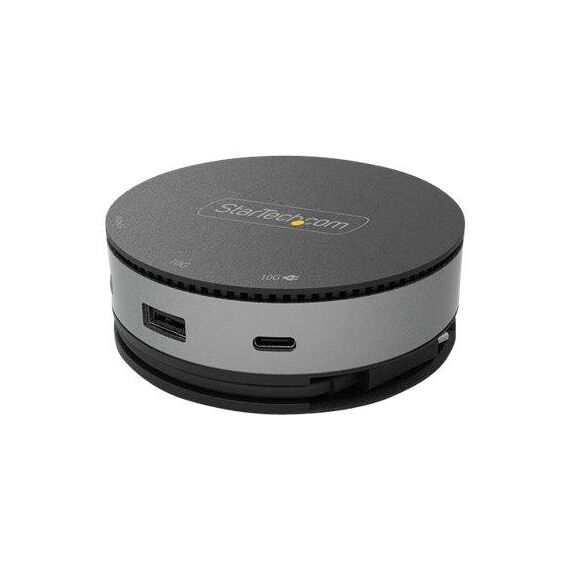

In addition to the video outputs, the portable USB-C dock gives you two 10 Gbps USB-A ports and one 10 Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.
Product Specification
Product Type | Docking station |
Width | 9 cm |
Depth | 9 cm |
Height | 3.2 cm |
Weight | 277 g |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Interfaces | 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x network - 1000Base-T - RJ-45 ¦ 1 x USB-C 3.1 Gen 2 - 10 pin USB-C ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort |
Features | USB pass-through connector, bus powered, fast charging, HDR support |
Compliant Standards | FCC, RoHS, WEEE, REACH, RCM |
OS Required | Windows 8.1 / 10, Apple iPadOS, Apple macOS 10.12 - 10.15, Android 9.0 (Pie) or later, Google Chrome OS 69.x |
Service & Support | Limited warranty - 3 years |
Shipping Width | 14.1 cm |
Shipping Depth | 13.2 cm |
Shipping Height | 3.65 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
