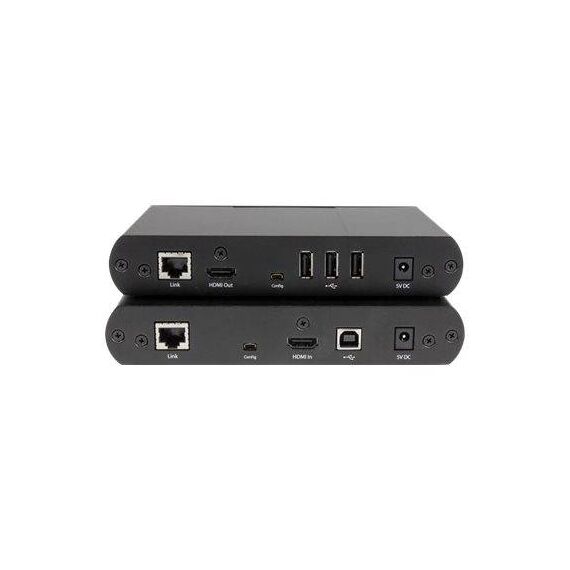

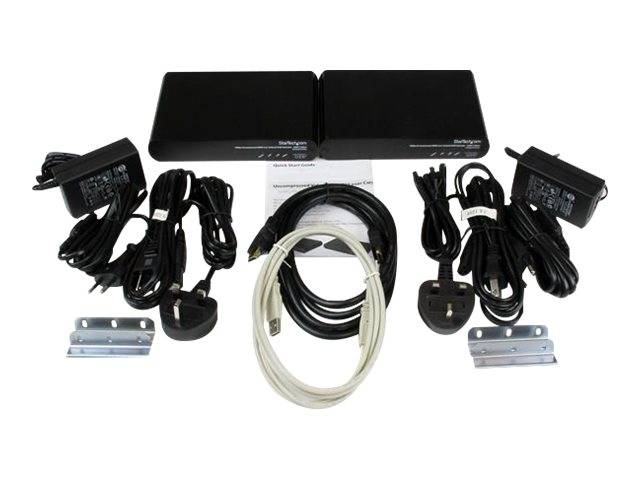

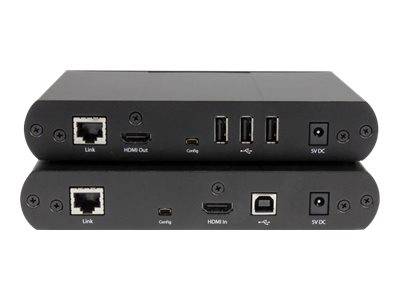

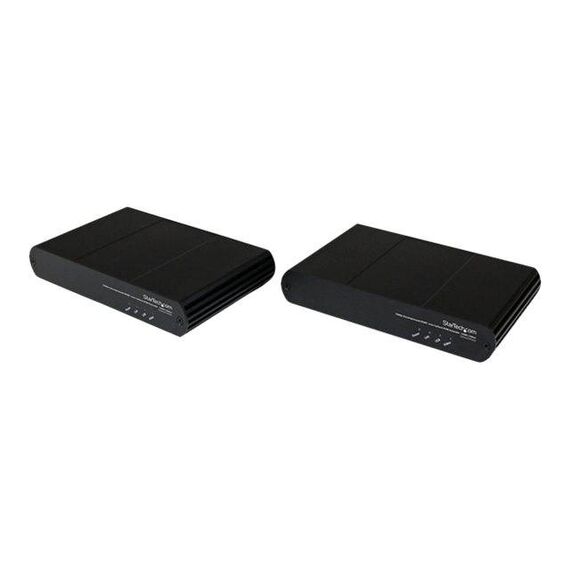

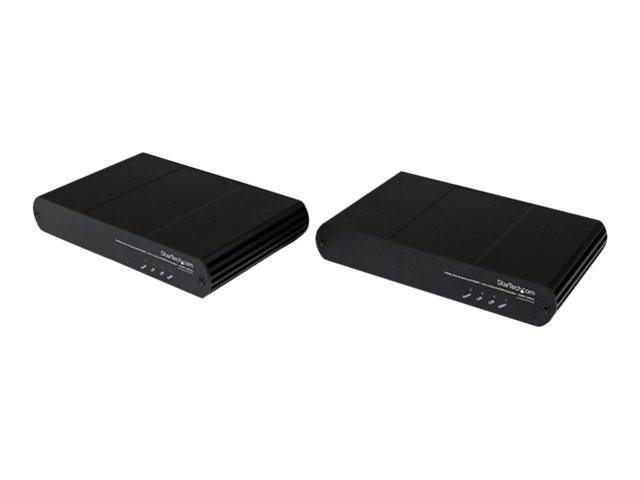

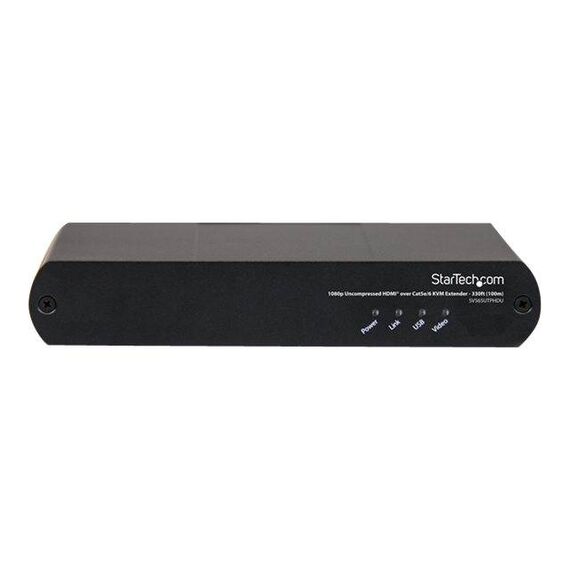

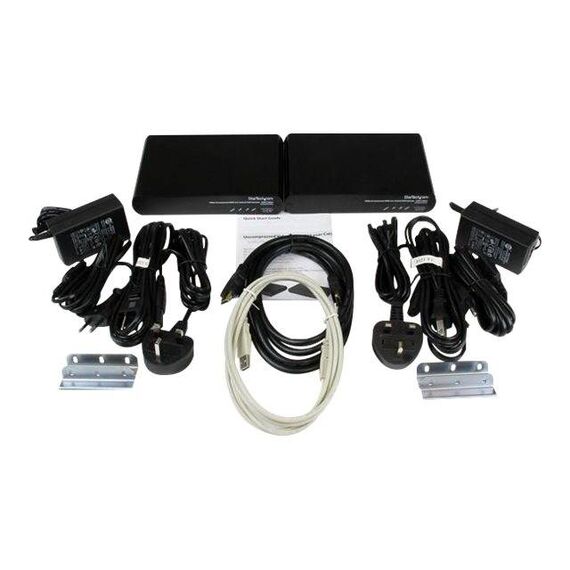

StarTech 100m USB HDMI over CAT5e - CAT6 KVM Extender / 1080p Uncompressed HD Video | SV565UTPHDU
StarTech.com 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender / 1080p Uncompressed HD Video / IT Grade KVM Console Extender for PC (SV565UTPHDU) / KVM / USB extender / up to 100 m / for P/N: SVA5M4NEUA | SV565UTPHDU
Description
Operate a PC from up to 100m away, with uncompressed 1080p HDMI video and USB keyboard / mouse. The SV565UTPHDU USB HDMI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Product Specification
| Device Type | KVM / USB extender |
| Form Factor | External |
| Colour | Black |
| Connectivity Technology | Wired |
| Max Resolution | 1080p |
| Max Transfer Distance | 100 m |
| Interfaces | 1 x HDMI female ¦ 1 x USB - Type B male ¦ 1 x USB 2.0 - Type A female ¦ 1 x HDMI female ¦ 2 x USB keyboard / USB mouse - Type A |
| Compliant Standards | FCC, RoHS |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Width | 17.8 cm |
| Depth | 11.2 cm |
| Height | 3 cm |
| Weight | 1.5 kg |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Designed For | P/N: SVA5M4NEUA |
