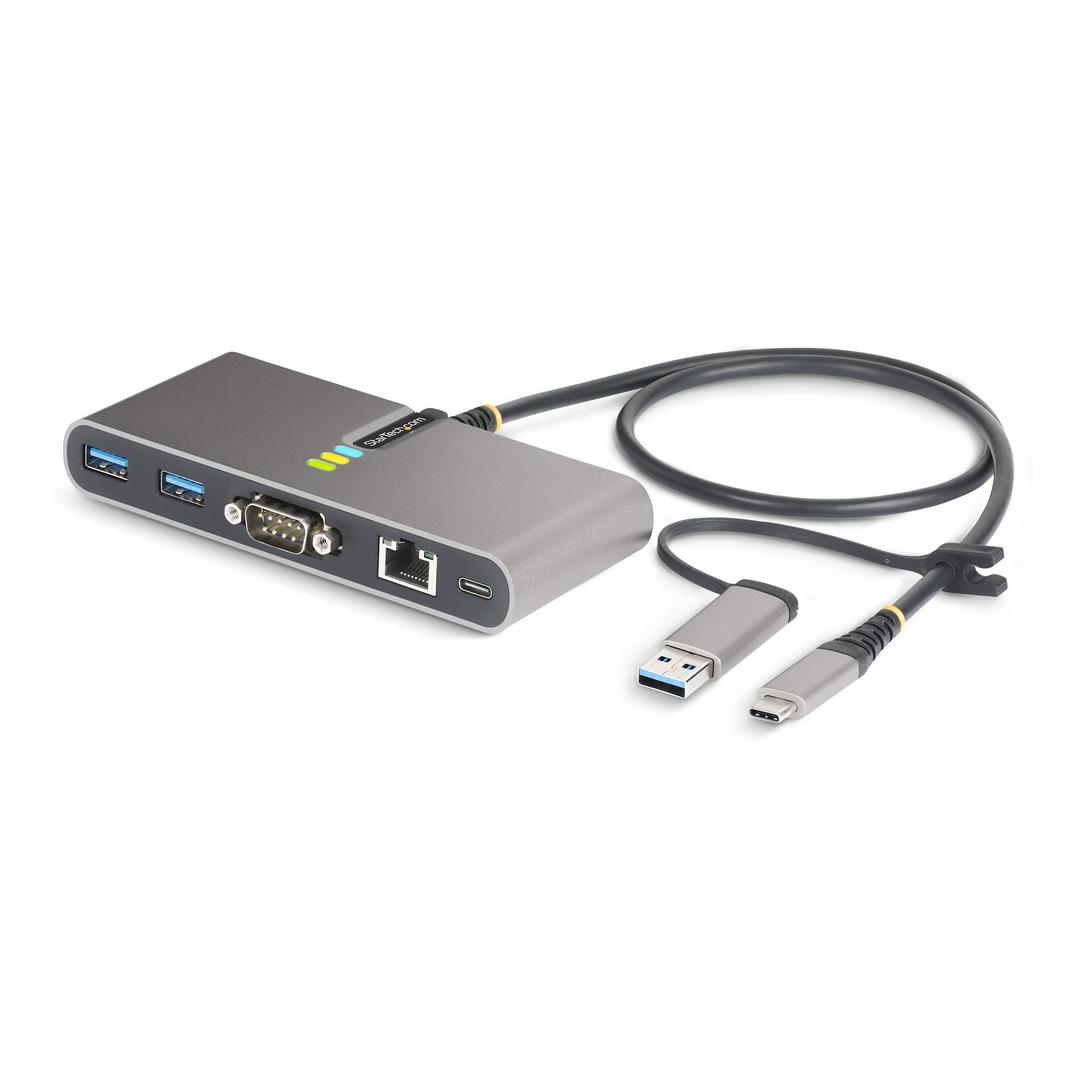

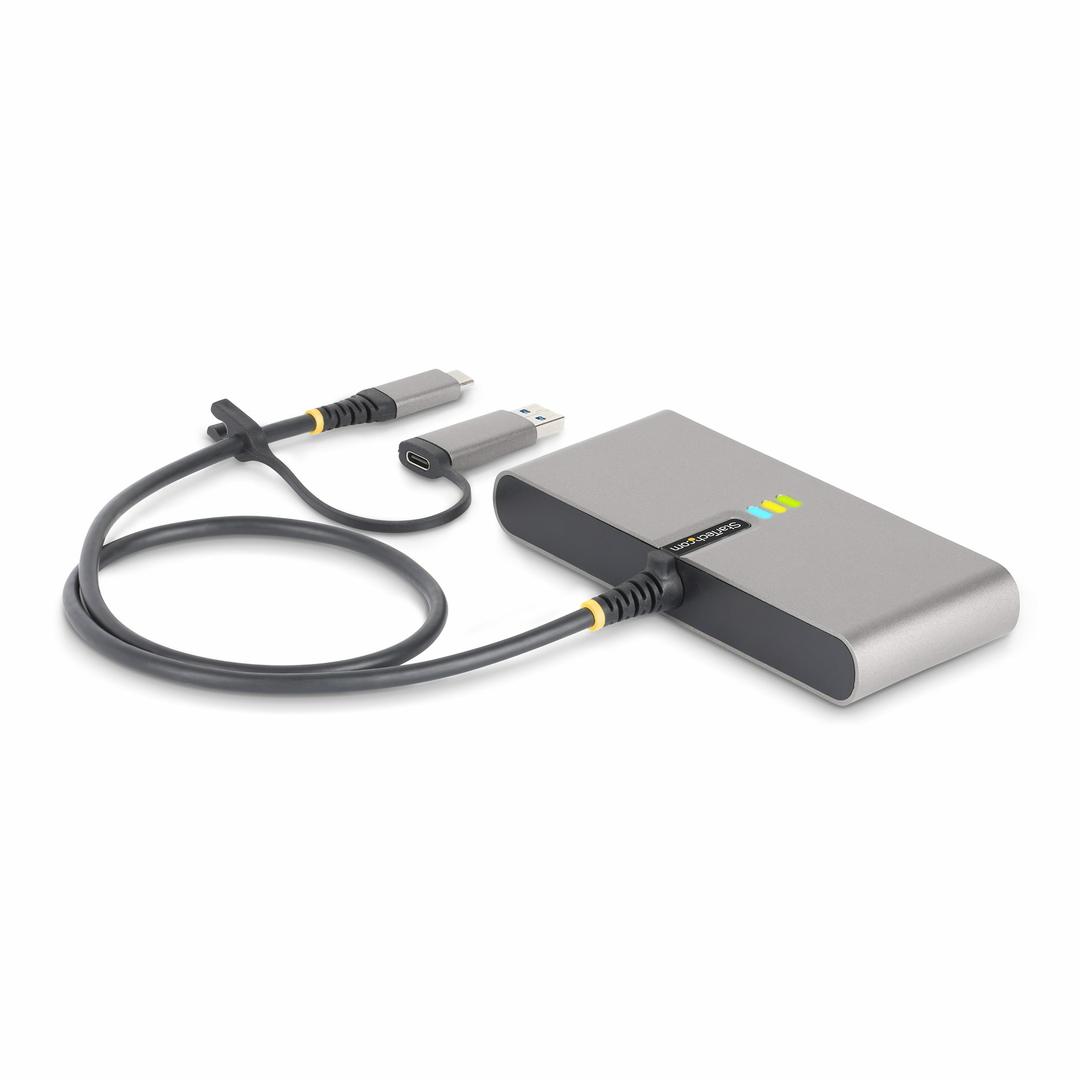

StarTech.com 2-Port USB-C/USB-A Hub with GbE and RS232 Serial, 2x USB-A - Hub - 2 x USB 3.2 Gen 1 - desktop | 5G2A1SGBB-USB-C-HUB
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Hub - 2 ports |
| Enclosure Type | Desktop |
| Subtype | USB |
| Ports | 2 x USB 3.2 Gen 1 |
| Performance | Data transfer rate: up to 5 Gbps ¦ Baud rate: 115.2 Kbps |
| Jumbo Frame Support | 9KB |
| Features | Flow control, WOL, full duplex mode, PXE support, priority encoding, UASP, OCP support, 256-byte FIFO, EEE, VLAN Tagging, Auto MDIX, USB Power Delivery 3.0, FRS, bus powered |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Processor | X ASIX / VIA / FTDI VL817-Q7 / VL103-Q4 / AX88179A / FT232RL |
| Status Indicators | Port status |
| Expansion / Connectivity | |

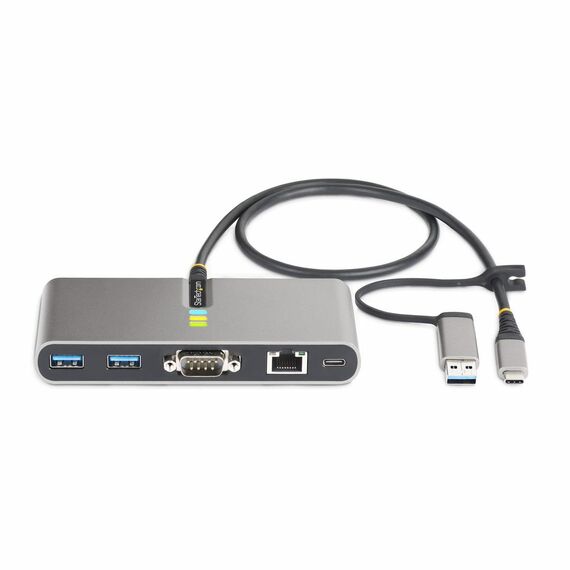

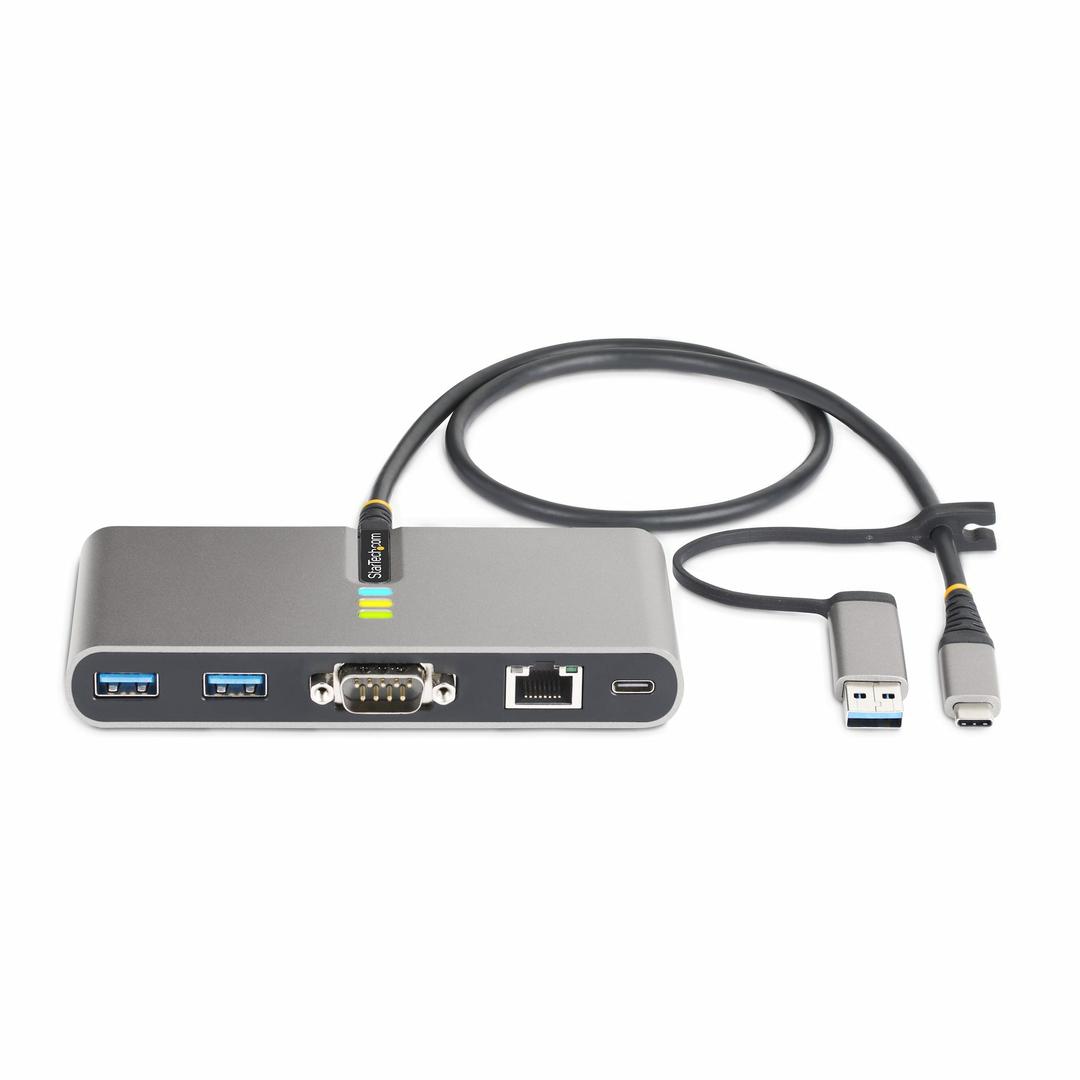

| Interfaces | 2 x USB 3.2 Gen 1 Type A ¦ 1 x serial (RS-232) DB-9 COM retention support ¦ 1 x 10/100/1000Base-T RJ-45 ¦ 1 x USB-C (power delivery) 100 Watt |
| Miscellaneous | |
| Colour | Space grey |

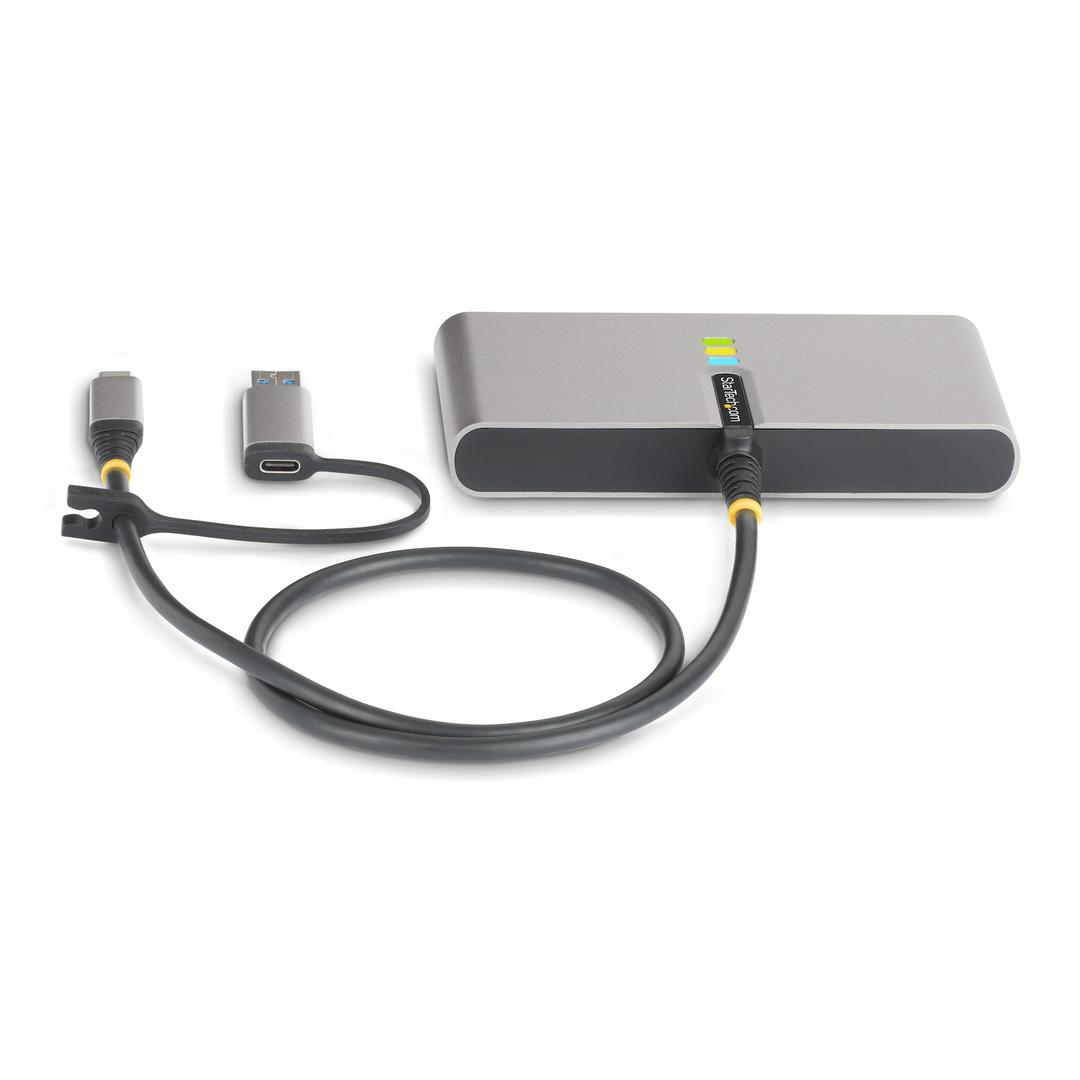

| Cables Included | 1 x USB-C cable with USB-C to USB-A dongle - 60 cm |
| Compliant Standards | RoHS, WEEE, RCM |
| Software / System Requirements | |
| Software Included | Connectivity Tools |
| OS Required | Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE .NET 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE .NET 6.0, Microsoft Windows CE .NET 5.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple macOS Big Sur 11.0, Microsoft Windows Server 2022, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple macOS Sonoma 14.0, Apple macOS 10.15 - 10.6 |
| Dimensions & Weight | |
| Width | 12.8 cm |
| Depth | 5.5 cm |
| Height | 1.9 cm |
| Weight | 105 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.3 cm |
| Shipping Depth | 14.5 cm |
| Shipping Height | 3.4 cm |
| Shipping Weight | 171 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% RH |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - StarTech.com - 5G2A1SGBB-USB-C-HUB
More Details
Product Code
CK74263
EAN Code
0065030899284
Manufacturer
StarTech.com
