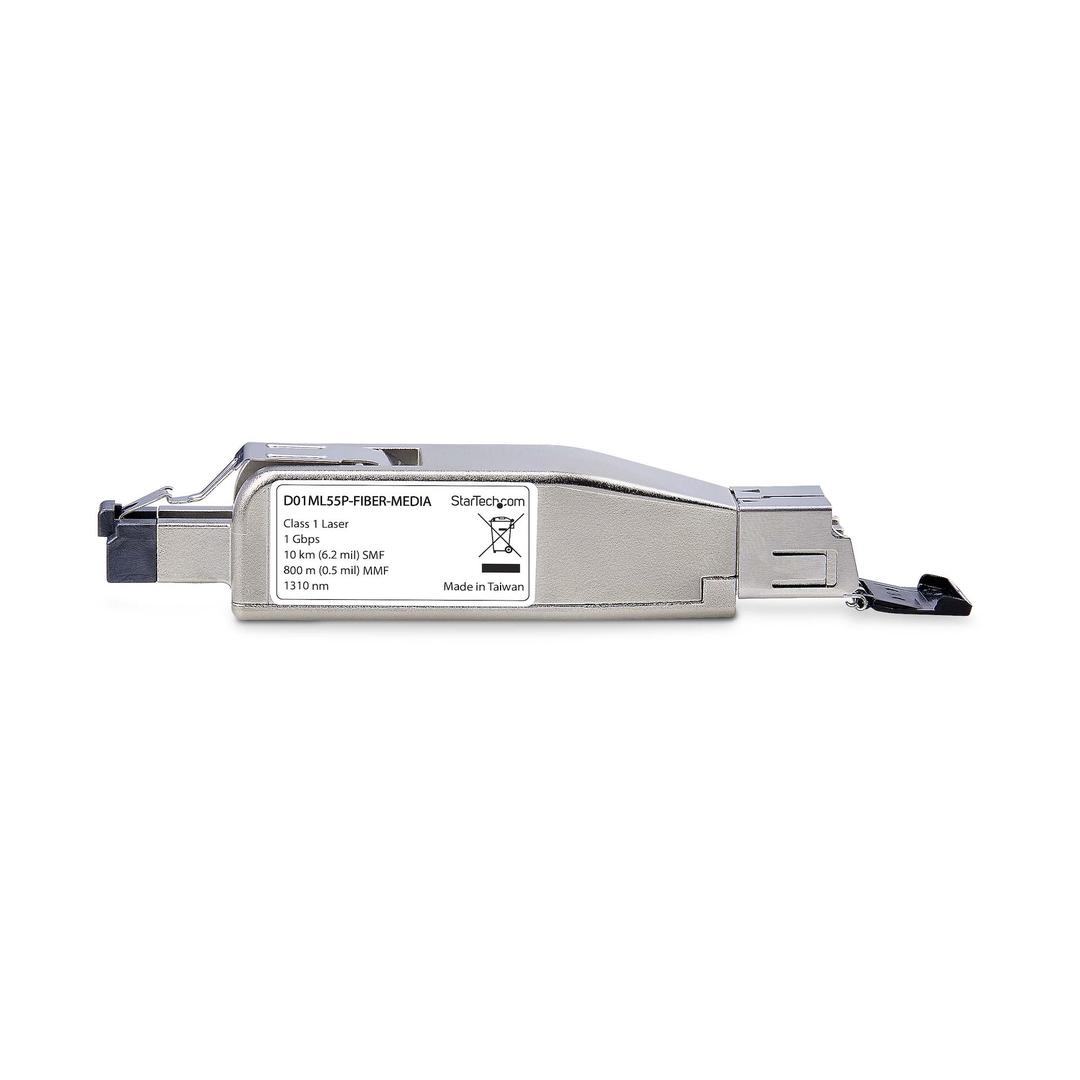

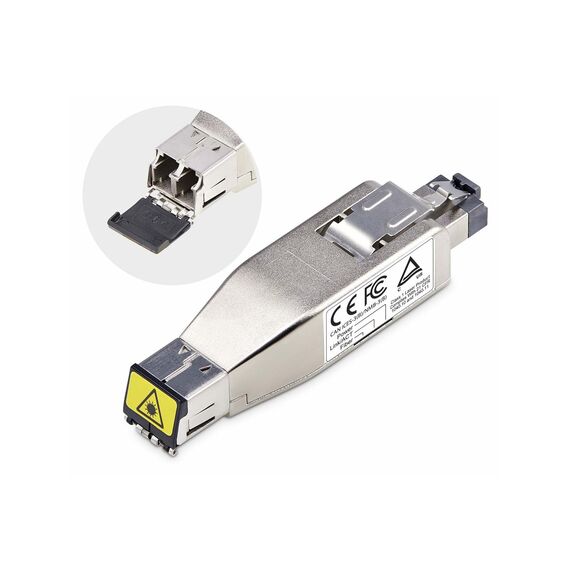

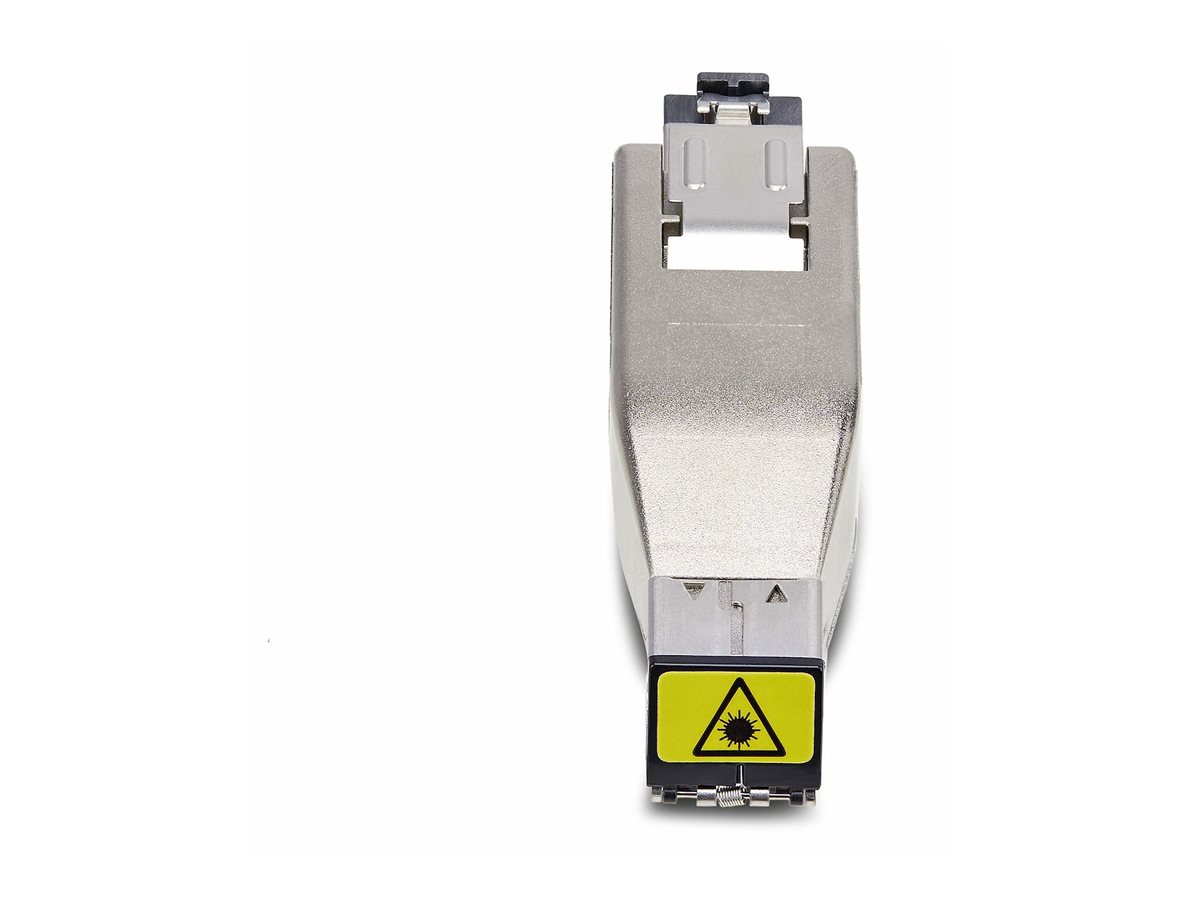

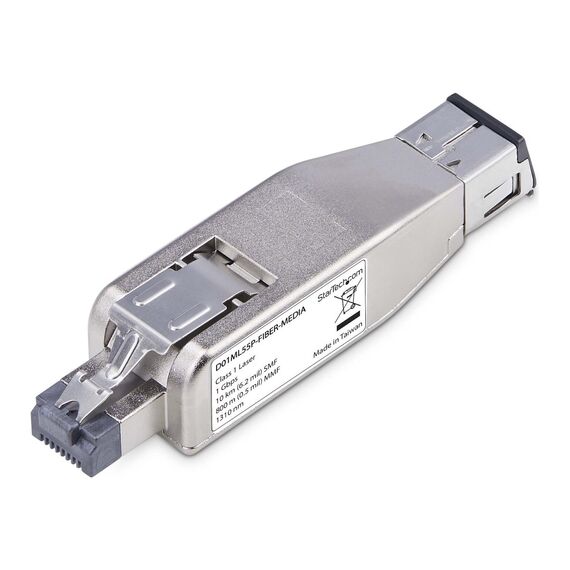

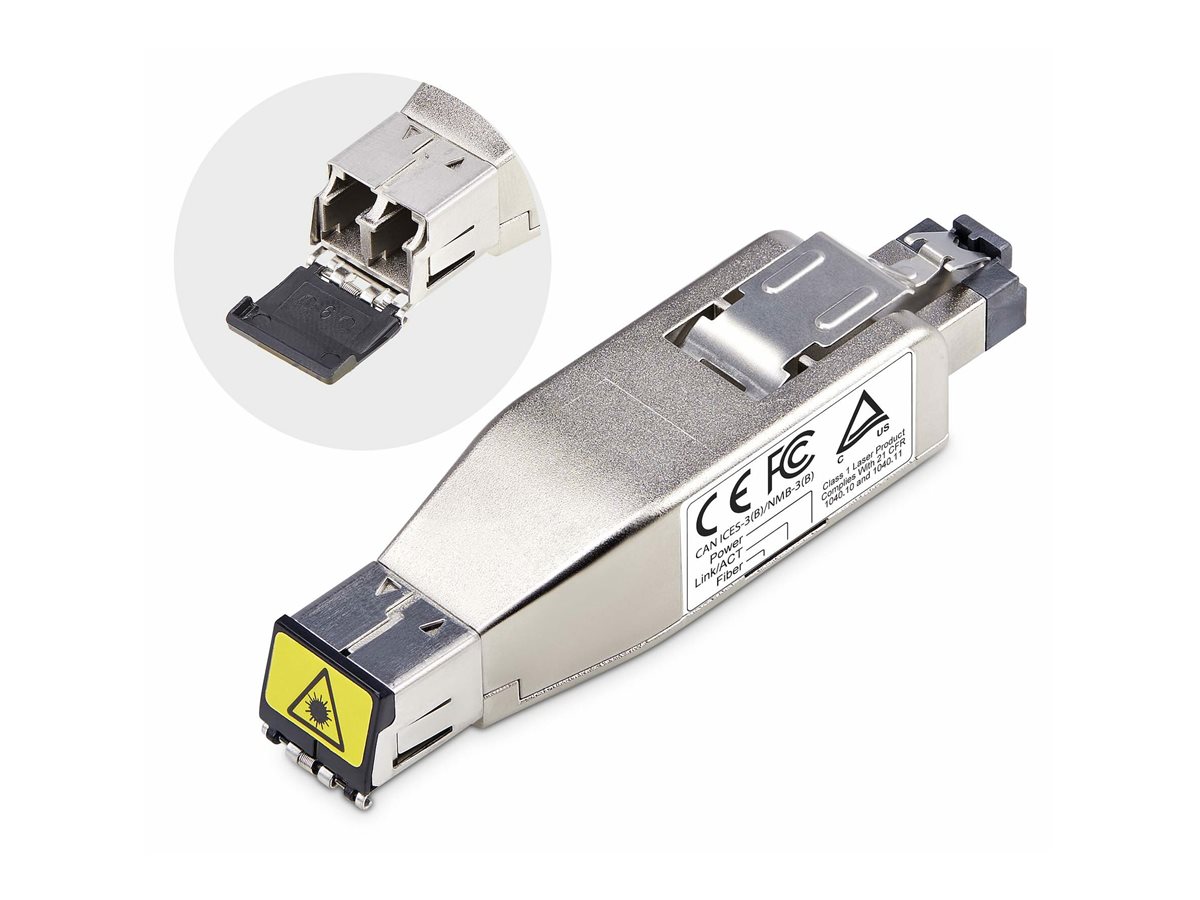

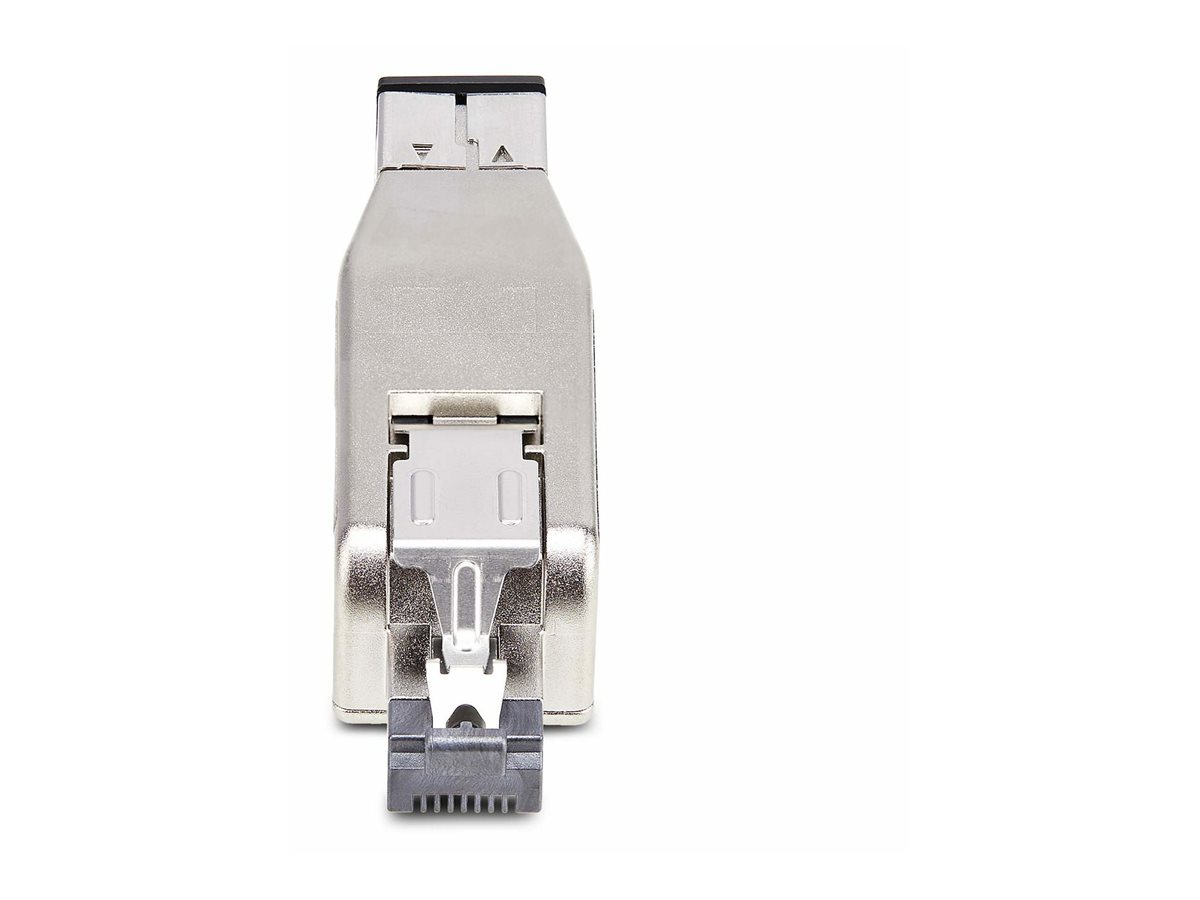

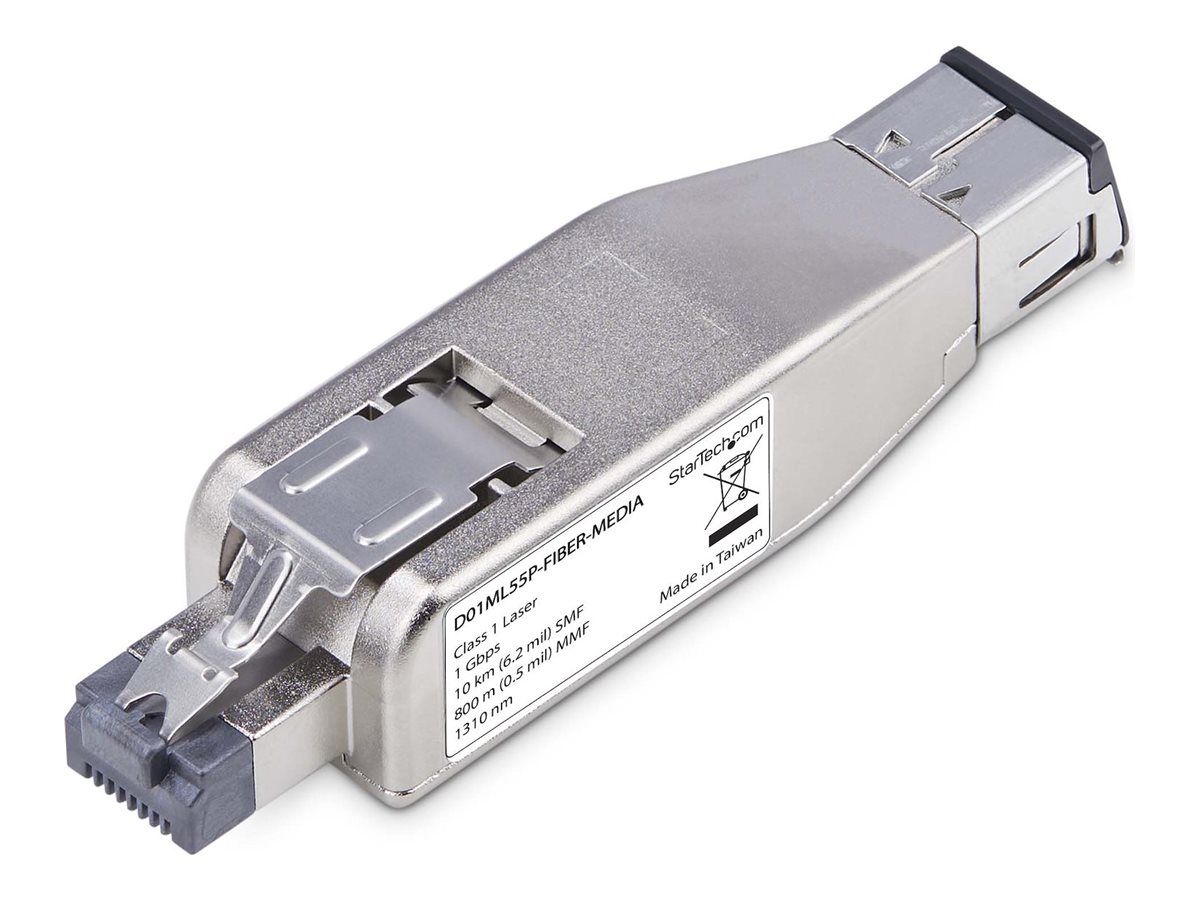

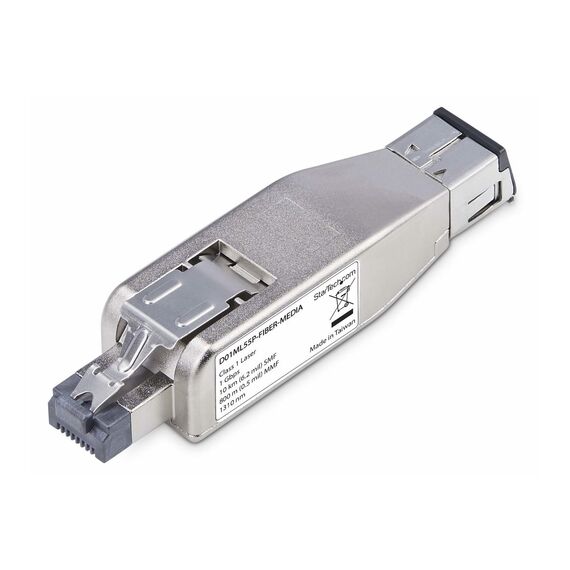

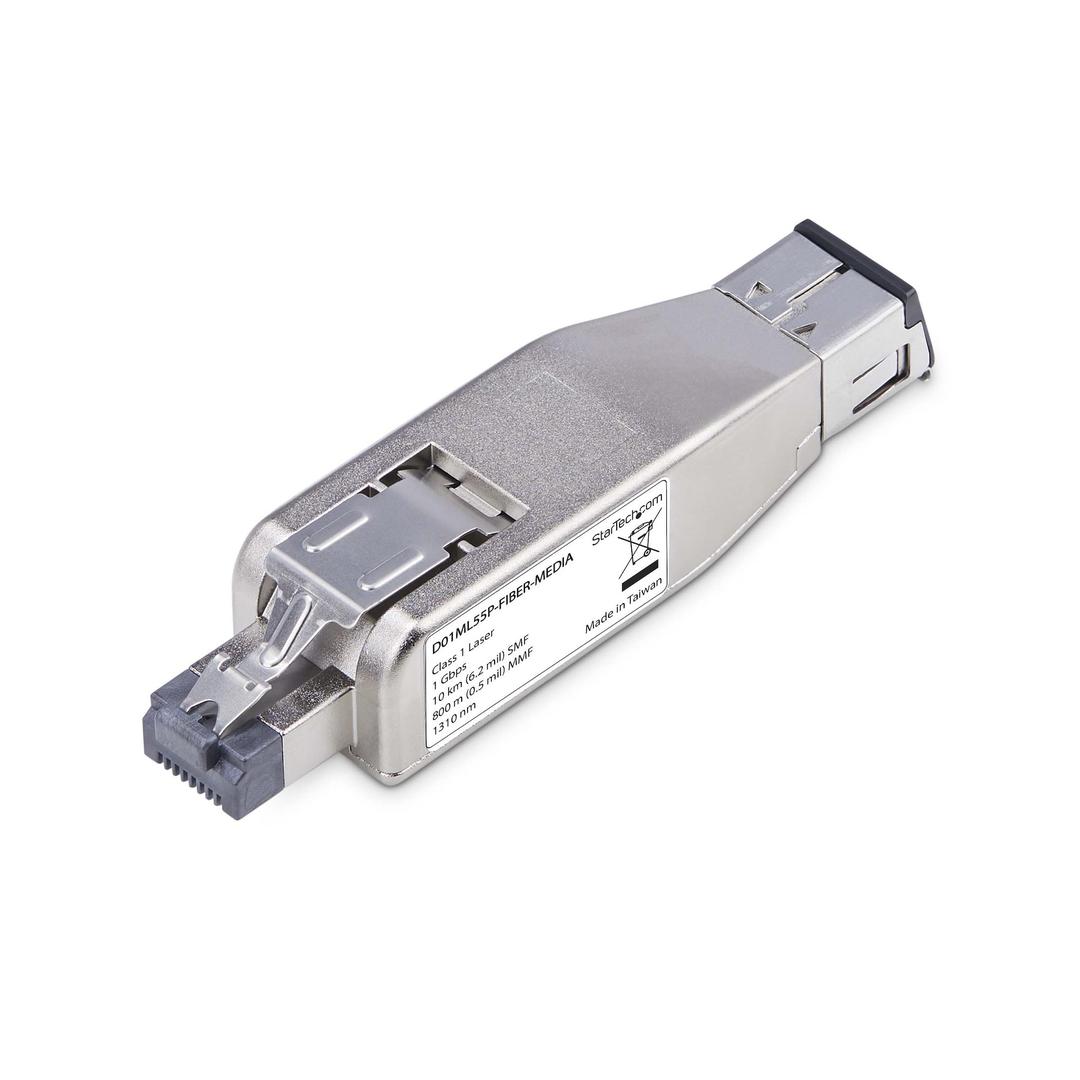

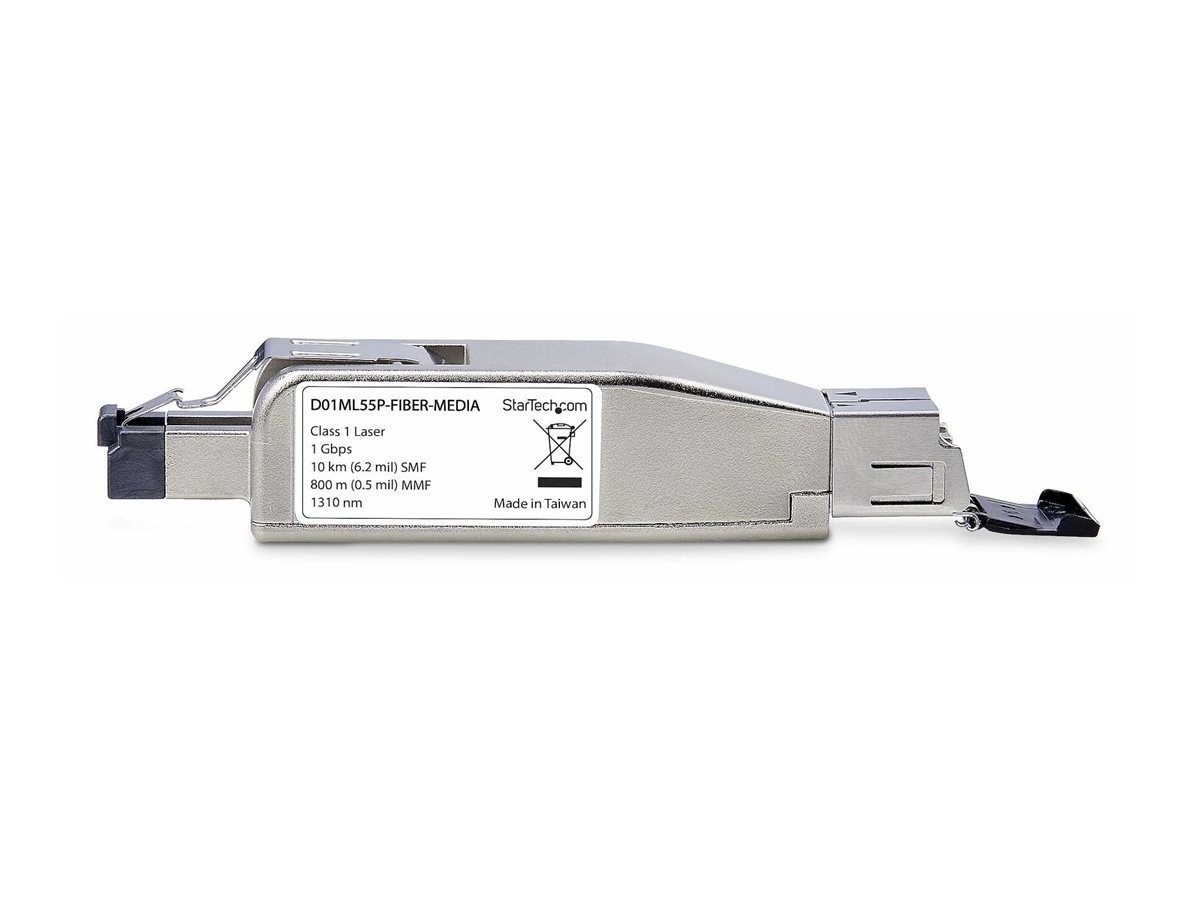

StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter, Micro Mini | D01ML55P-FIBER-MEDIA
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity
This Gigabit Fiber to RJ45 Ethernet Media Converter bridges the gap between fiber and copper networks, offering seamless integration with RJ-45 and LC single-mode/multi-mode connectors. It's designed to support a wide range of networking environments, ensuring reliable connectivity across different media types. - Enhanced durability
Constructed with a metal housing and equipped with over-temperature, over-current, and over-voltage protection, this media converter is built to withstand harsh conditions. Its 2 KV surge protection and EMI protection further ensure uninterrupted service and longevity. - Efficient operation
Features like Link Fault Pass-Through (LFPT) support, auto-negotiation, and auto-uplink enhance the device's operational efficiency. The inclusion of a Marvell 88E1512 chipset supports high-performance data transmission, making it a suitable solution for demanding network tasks. - Power over Ethernet

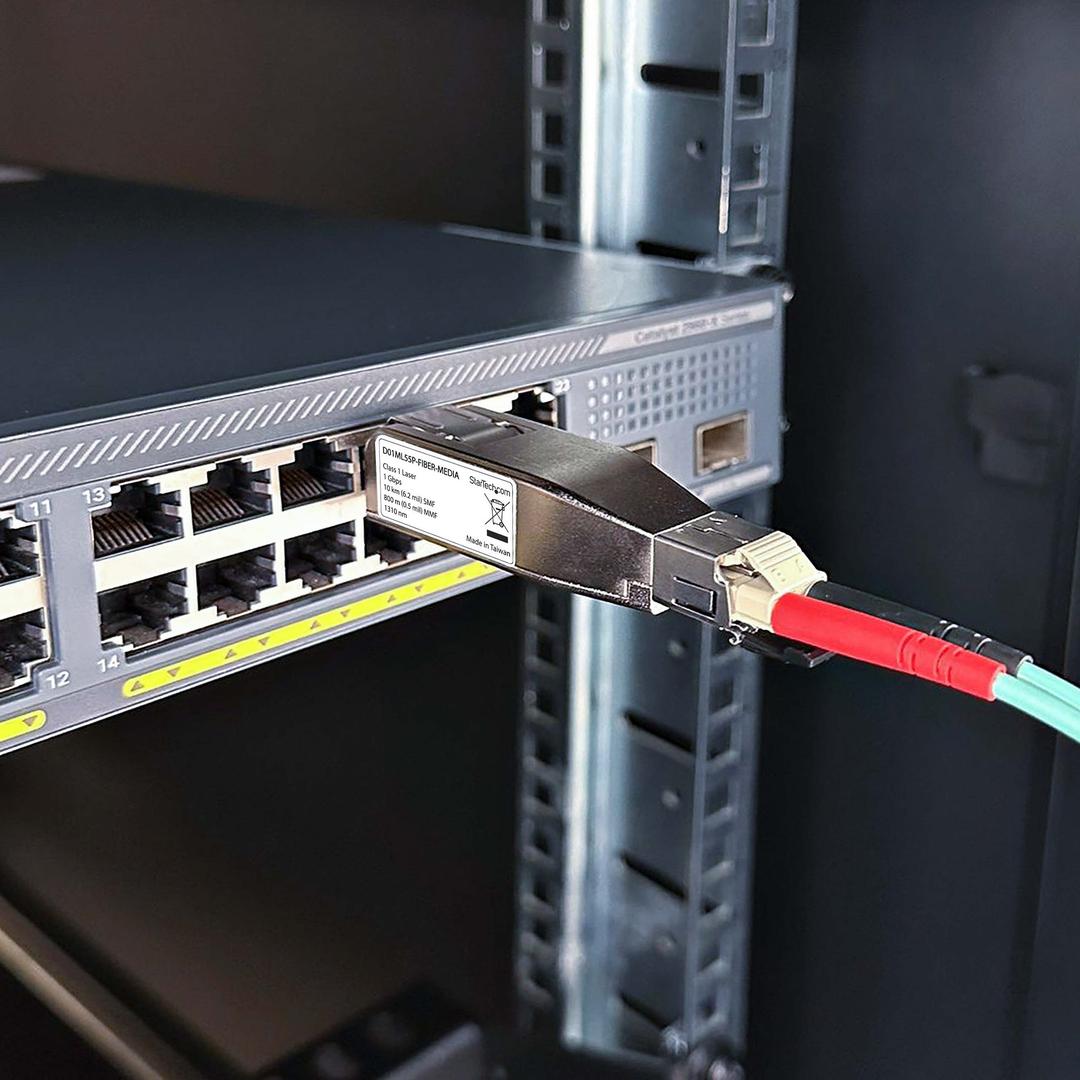

The ability to be powered via PoE simplifies deployment by eliminating the need for a separate power source. This feature, combined with its compact form factor, makes the converter an excellent choice for locations where space and power outlets are limited. - Comprehensive compliance
Adhering to multiple standards including IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3z, and being TAA-compliant, this media converter meets rigorous regulatory requirements. Its compliance with Laser Class 1 and IP20 standards also ensures safe and reliable operation.
Special Fetures

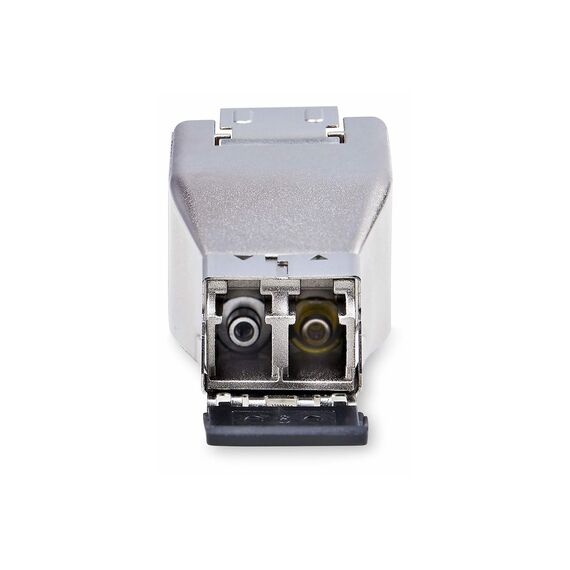

- Seamless integration with RJ-45 and LC single-mode/multi-mode connectors
- Metal housing with comprehensive protection features for enhanced durability
- Supports 1 Gbps data transfer rate with a max transfer distance of 10 km
- PoE capability allows for flexible installation options
- Compliant with key standards including IEEE 802.3ab and IEEE 802.3z
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Colour | Silver |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, 1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Status Indicators | Power, link/activity, fibre |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), over-current protection, over-voltage protection, latching, metal housing, 2KV Surge protection, PoE powered, over temperature protection, unmanaged, EMI protection, Link Fault Pass-Through (LFPT) support, Marvell 88E1512 chipset |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, USB 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 male <br /> 1 x Ethernet 1000Base-LX - LC single-mode / LC multi-mode female x 2 <br /> 1 x USB - Type A |
| Miscellaneous | |
| Compliant Standards | Plug and Play, Laser Class 1, WEEE, IP20 |
| TAA Compliant | Yes |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Voltage Required | DC 30 - 57 V |
| Dimensions & Weight | |
| Width | 8.2 cm |
| Depth | 2 cm |
| Height | 1.7 cm |
| Weight | 42 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 cm |
| Shipping Depth | 8 cm |
| Shipping Height | 3.2 cm |
| Shipping Weight | 75 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 85% RH |
| Compatibility Information | |
| Designed For | P/N: 50FIBLCLC10, 50FIBLCLC15, N6PATCH6BL, N6PATCH6BL10PK |
Features - StarTech.com - D01ML55P-FIBER-MEDIA
More Details
Product Code
CL46192
EAN Code
0065030909822
Manufacturer
StarTech.com
