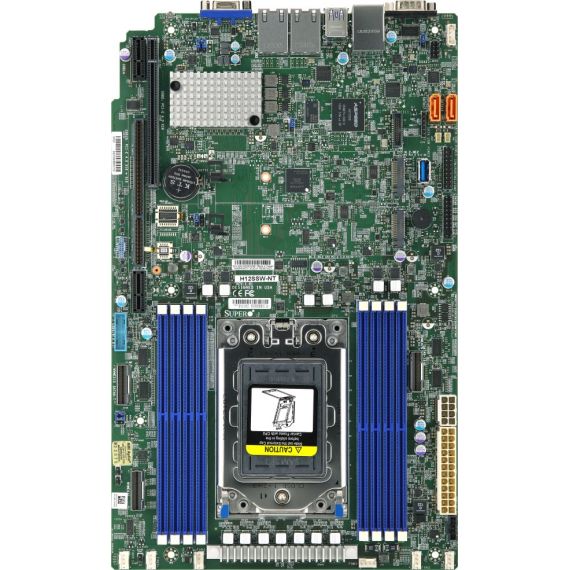

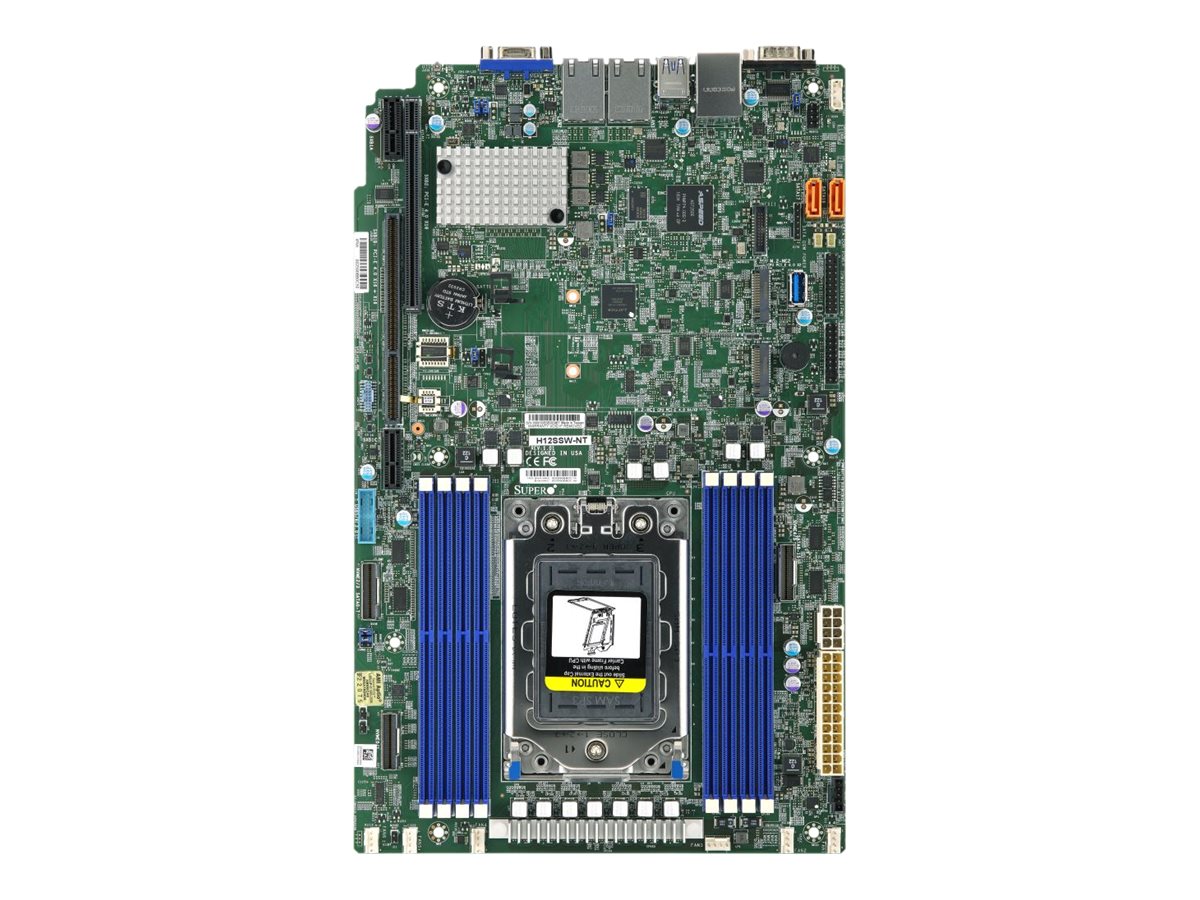

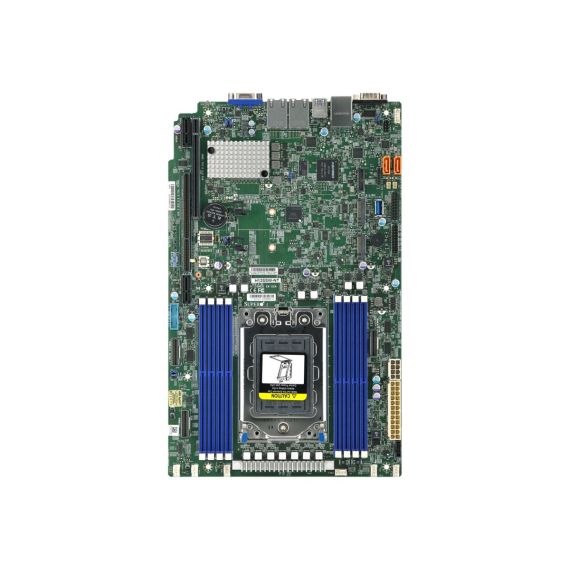

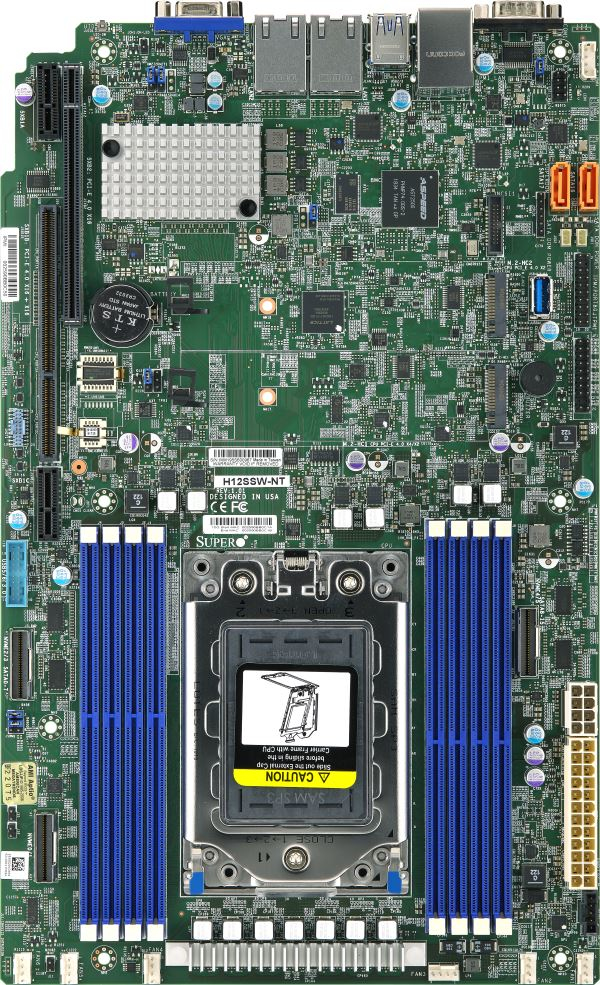

SUPERMICRO H12SSW-NT - Motherboard - Socket SP3 - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics | MBD-H12SSW-NT-B
MBD-H12SSW-NT-B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Up to 7 USB 3.0 ports
- 6x 4-pin PWM fans & speed control
Product Specification
| Product Type | Motherboard |
| Processor Socket | Socket SP3 |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 7002 series |
| Supported RAM | |
| Max Size | 2 TB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered |
| Features | 8-channel memory architecture |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Broadcom BCM57416 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x32 (left riser slot) ¦ 1 x PCIe 4.0 x16 (right riser slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 2 x NVMe port ¦ SATA-600 / PCIe 3.0 -connectors: 4 x SlimSAS |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.0 ¦ 1 x serial ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 1 x USB 3.0 - Type A |
| Features | |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), DMI 2.3 support, IPMI 2.0 support, ACPI 5.1 support, SMBIOS 3.1.1 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, chassis fan tachometer, system voltage, CPU core voltage |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 20.7 cm |
| Depth | 33.1 cm |
| Package Type | Bulk |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
