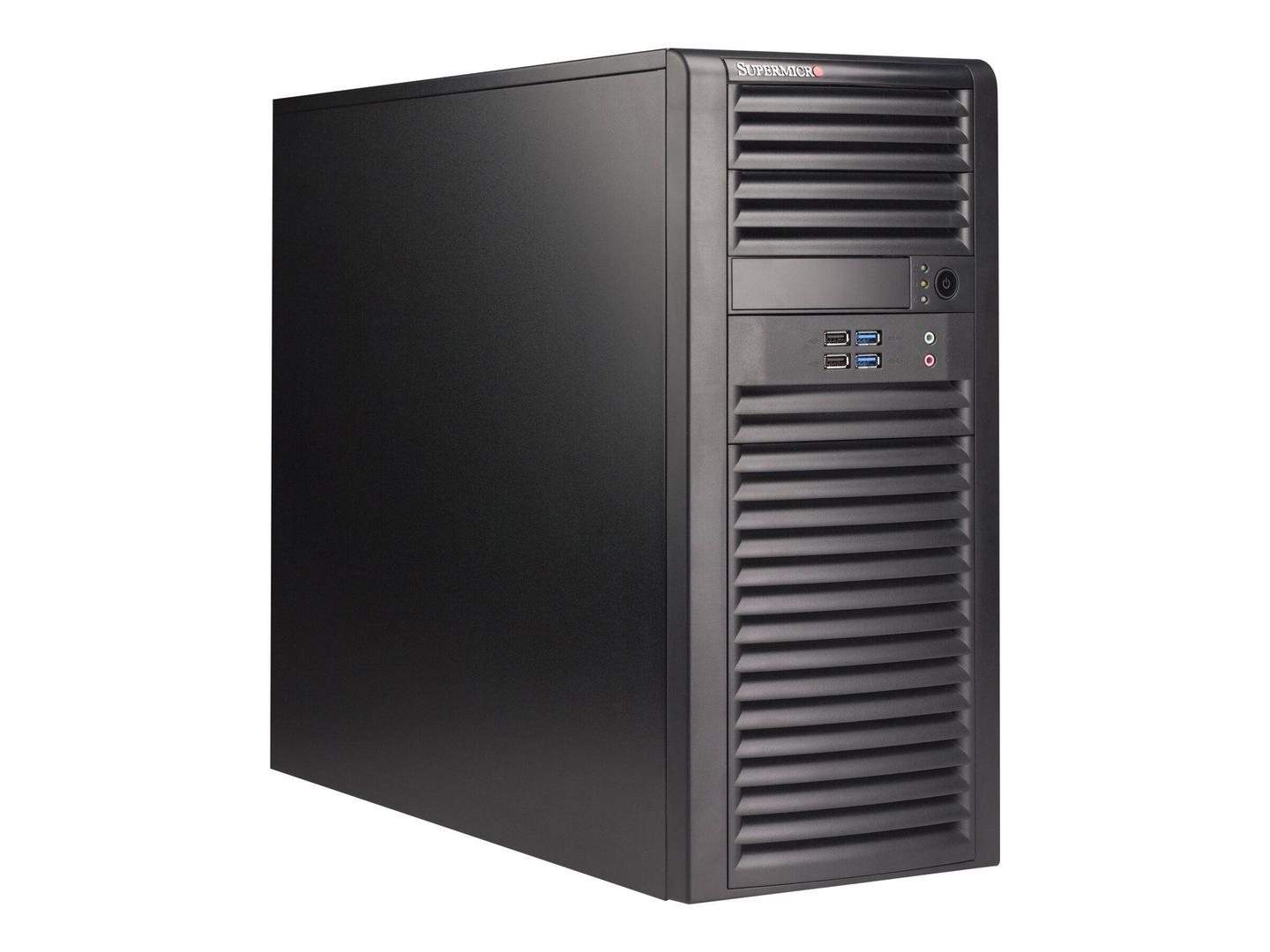

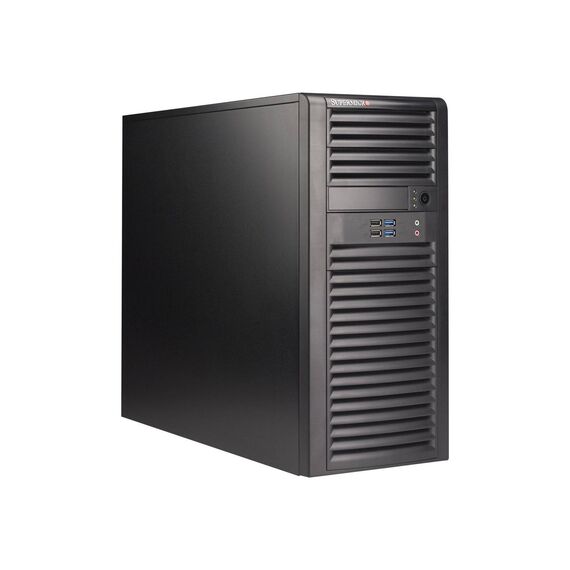

Supermicro SC732 D4-668B - Mid tower - extended ATX 668 Watt - black - USB/Audio | CSE-732D4-668B
Please sign in so that we can notify you about a reply
Special Fetures
- 90° rotatable HDD cage design
- 7 x full-height, full-length PCI expansion slots
- High efficiency power supply
- Cost effective desktop, embedded workstation chassis
Product Specification
| Form Factor | Mid tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 2 |
| Built-in Devices | Led panel |
| Colour | Black |
| Cooling System | Rear: 120 mm fan x 1 / exhaust / 1850 rpm / Pulse-width modulation (PWM) support ¦ Front: 120 mm fan mount x 1 |
| System Cabinet Features | Rotational drive cage |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" ¦ 5 (total) / 5 (free) x internal - 3.5" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x USB 3.0 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, TUV, BSMI, cUL, CB, CCC, CE/EMC |
| Power | |
| Power Device | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 668 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 19.3 cm |
| Depth | 52.5 cm |
| Height | 42.4 cm |
| Weight | 12.7 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 54.3 cm |
| Shipping Depth | 64.2 cm |
| Shipping Height | 30.4 cm |
| Shipping Weight | 13.61 kg |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - CSE-732D4-668B
More Details
Product Code
07:120510
EAN Code
0672042432073
Manufacturer
SUPERMICRO
