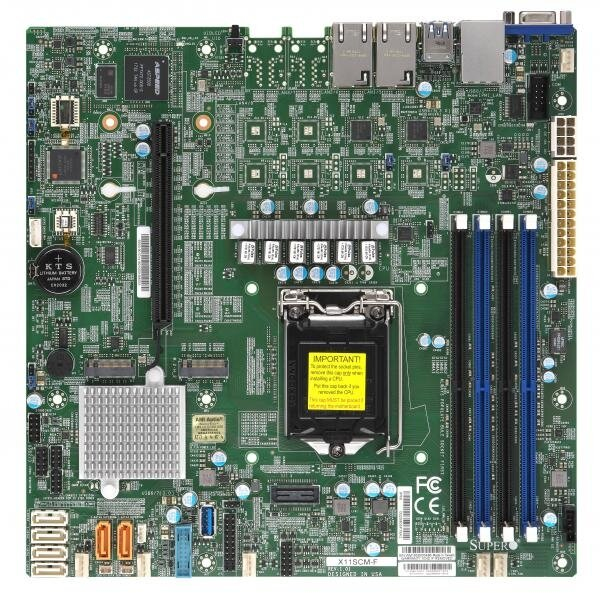

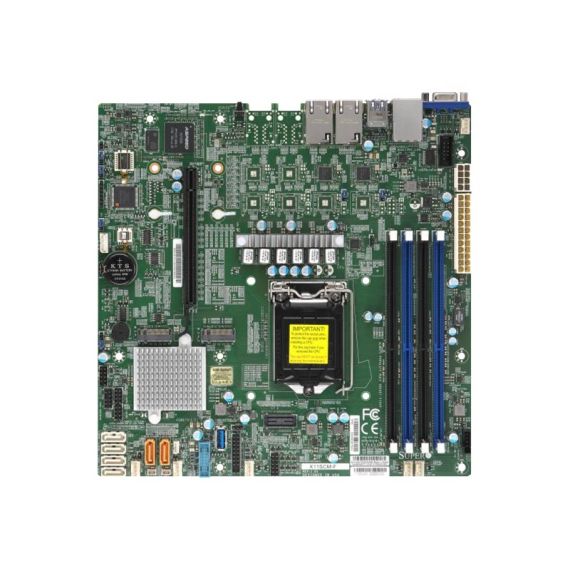

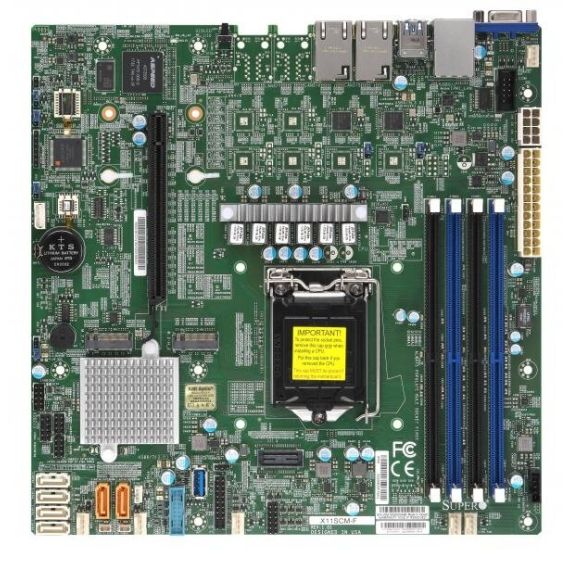

SUPERMICRO X11SCM-F - Motherboard - micro ATX - LGA1151 Socket - C246 Chipset - USB 3.1 Gen 1 - 2 x Gigabit LAN - onboard graphics | MBD-X11SCM-F-O
Please sign in so that we can notify you about a reply
Special Fetures
- Technologically advanced design
- High-quality components
- High performance
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E (Maximum TDP 95 Watt) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin (1.2 V) <br /> 1 x PCIe 3.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> SATA-600 / PCIe 3.0 -connectors: 1 x M.2 <br /> PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) <br /> 2 x USB 3.1 Gen 1 <br /> 2 x USB 2.0 <br /> 1 x VGA |
| Internal Interfaces | 1 x serial - header <br /> 2 x USB 2.0 - header <br /> 1 x USB 3.1 Gen 1 - Type A <br /> 2 x USB 3.1 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features | UEFI BIOS, SMBIOS 2.7 support, IPMI 2.0 support, ACPI 6.0 support |
| Hardware Monitoring | Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | RTC (real-time clock) wake up |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 6 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Width | 24.38 cm |
| Depth | 24.38 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year <br /> Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X11SCM-F-O
CPU Socket
- Socket 1151
More Details
Product Code
04:326349
EAN Code
0672042327621
Manufacturer
SUPERMICRO
