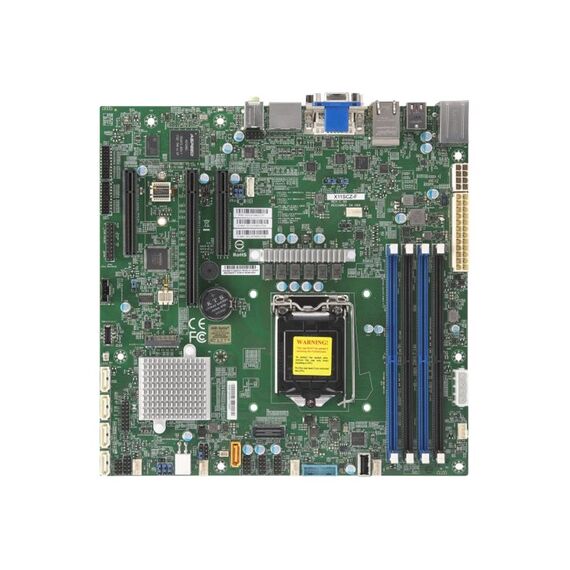

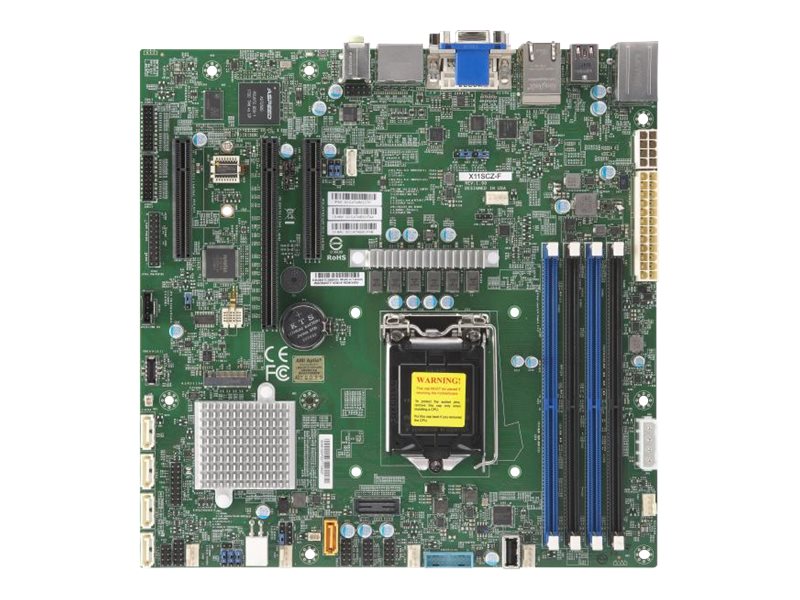

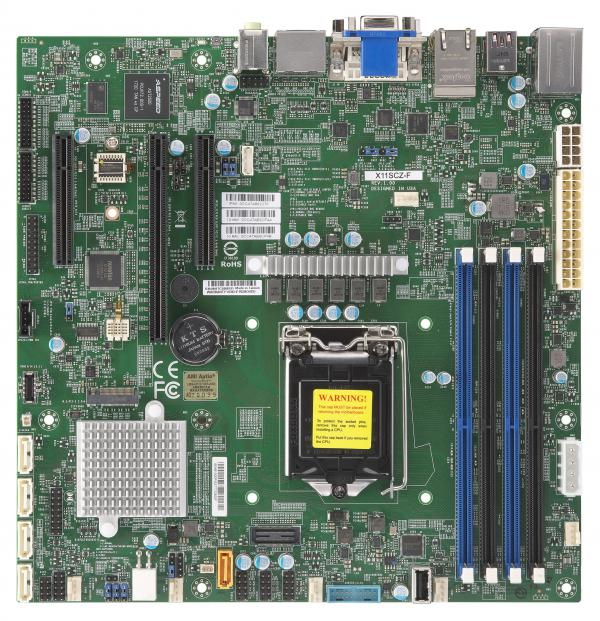

SUPERMICRO X11SCZ-F - Motherboard - micro ATX - LGA1151 Socket - C246 Chipset - USB 3.0, USB 3.1, USB-C - 2 x Gigabit LAN - onboard graphics - HD Audio | MBD-X11SCZ-F-B
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E (Maximum TDP 95 Watt) |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Graphics | |
| Graphics Controller | ASPEED AST2500 / Intel HD Graphics (CPU required) |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Intel I210-AT / I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x8 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.1 ¦ 2 x DisplayPort ¦ 1 x DVI-I ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C ¦ 1 x VGA |
| Internal Interfaces | 4 x serial - header ¦ 6 x USB 2.0 - header ¦ 1 x USB 2.0 - Type A ¦ 2 x USB 3.1 - header ¦ 2 x USB 3.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, DC-in power connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI support, UEFI BIOS, IPMI 2.0 support |
| Hardware Monitoring | Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Width | 24.38 cm |
| Depth | 24.38 cm |
| Package Type | Bulk |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X11SCZ-F-B
CPU Socket
- Socket 1151
More Details
Product Code
04:416380
EAN Code
0672042331109
Manufacturer
SUPERMICRO
