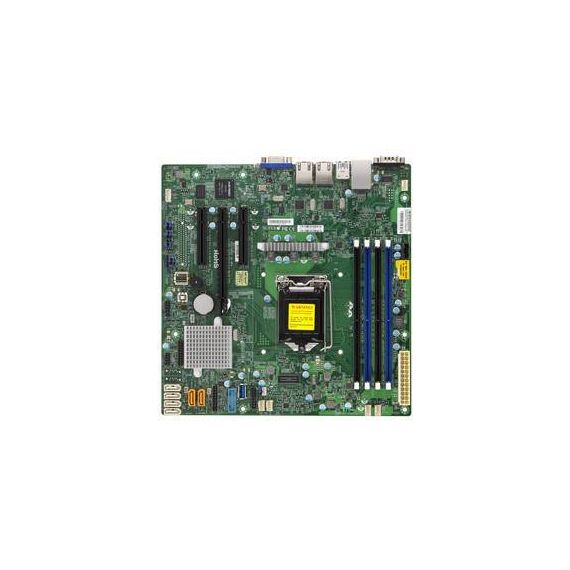

SUPERMICRO X11SSL-F / Motherboard / micro ATX / LGA1151 Socket / C232 / USB 3.0 / 2 x Gigabit LAN / onboard graphics | MBD-X11SSL-F-O
Description
The Super X11SSL(-F) motherboard supports an Intel Xeon E3-1200 v5, 6th-Gen Core i3, Pentium, or Celeron processor in an LGA 1151 (H4) socket. With support of the Intel C232 chipset, DDR4 memory, SATA 3.0, Intel Node Manager, and Trusted Platform Module (TPM), this motherboard is optimized for cost-effective, entry-level server platforms.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C232 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series (Maximum TDP 80 Watt) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Graphics Controller | ASPEED AST2400 |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x8 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 1 x USB 3.0 - Type A ¦ 4 x USB 2.0 - header |
| BIOS Type | AMI |
| BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| Software Included | SuperDoctor 5 |
| Compliant Standards | Plug and Play, RoHS |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Package Type | Retail |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X11SSL-F-O
More Details
Product Code
07:501402
EAN Code
0672042200917
Manufacturer
SUPERMICRO
