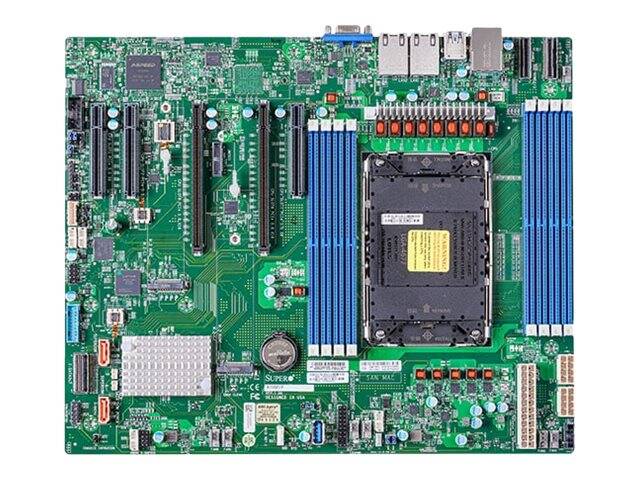

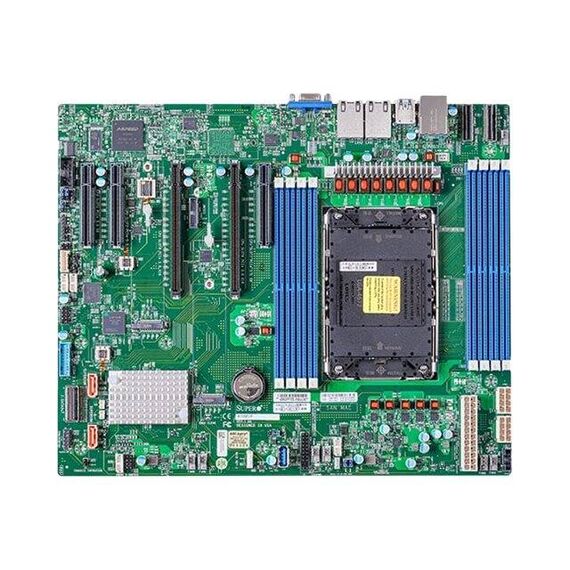

SUPERMICRO X13SEI-F - Motherboard - ATX - LGA4677 Socket-E - Intel C741 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics | MBD-X13SEI-F-B
Please sign in so that we can notify you about a reply
Special Fetures
- 4th Gen Intel Xeon scalable processors, single socket LGA-4677 (socket E), CPU TDP supports up to 350 W TDP
- Intel C741 chipset
- Up to 2 TB 3DS ECC RDIMM, DDR5-4800 MT/s (1DPC) in 8 DIMM slots
- 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs
- Dual LAN with 1GbE with Intel I210
- 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)
- Intel C741 controller for 10 SATA3 (6 Gbps) ports
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C741 |
| Processor Socket | LGA4677 Socket-E |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon Scalable (supports 4th Generation Intel Xeon Scalable, supports CPUs with up to 60 cores, Maximum TDP 350 Watt) |
| Supported RAM | |
| Max Size | 2 TB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz, 4800 MHz, 4400 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, 3DS registered |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.1 V) ¦ 2 x PCIe 5.0 x16 ¦ 3 x PCIe 5.0 x8 ¦ 2 x PCIe 5.0 x8 (MCIO) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 1 x SlimSAS - 8 devices ¦ SATA-600 -connectors: 2 ¦ PCIe 5.0 -connectors: 4 x NVMe port (via 2 x MCIO), 2 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x IPMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 |
| Internal Interfaces | 1 x serial - header ¦ 1 x SPI - header ¦ 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x USB 3.2 Gen 1 - Type A |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, SPI BIOS flashing, PnP support, ACPI 6.4 support, SMBIOS 3.5 support, UEFI 2.8 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Chassis intrusion detection, Trusted Platform Module (TPM), Node Manager support |
| Miscellaneous | |
| Included Accessories | IO shield, CPU carrier (MCC), CPU carrier (XCC) |
| Cables Included | 2 x Serial ATA cable |
| Software Included | SuperDoctor 5 |
| Width | 31.24 cm |
| Depth | 25.65 cm |
| Package Type | Bulk |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X13SEI-F-B
More Details
Product Code
04:432630
EAN Code
0672042519286
Manufacturer
SUPERMICRO
