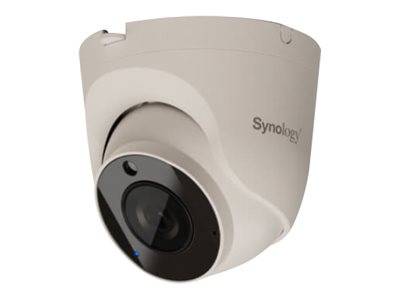

Synology TC500 / Network surveillance camera / pan / tilt / turret / waterproof / colour (Day&Night) / 2880 x 1620 / fixed focal / audio / wired / LAN 10/100 / TAA Compliant | TC500
Product Features
- Capture quality
Highly detailed, wide-angle coverage helps secure large areas, night or day. High resolution of 5MP (2880 x 1620) 16:9 provides clear and detailed videos. 110° wide horizontal viewing angle captures large areas at once and reduces the need for multiple cameras. Large aperture of F1.8 and multi-exposure HDR provide good low-light performance without overexposing lighter areas. High power infrared LED provides clear night vision up to 30 meters. - Video intelligence
Camera-based AI capabilities empower your surveillance with smart analytics. People and Vehicle Detection distinguishes people and vehicles from other moving objects with high accuracy. Intrusion Detection identifies people and vehicles, and issues alerts when a virtual border is crossed from a designated direction. Instant Search allows for quick investigations with the ability to search for people, vehicles, and motion in an area in the past. - Streamlining and integration
Integration with Surveillance Station streamlines deployment and maintenance. Quick and simple single camera or batch installation process through Surveillance Station or the DS cam app speeds up deployment. Camera settings adjustment and maintenance features are available directly in Surveillance Station or DS cam. Continuous firmware updates provide new features and security enhancements, and can be applied in batch, with or without Internet. Failover edge storage increases system reliability by automatically switching to microSD recording in case of network failure. - Security and privacy
From recording to archiving, protect your footage with the integrated safeguards. HTTPS and SRTP support enable encrypted network and video transfer, authentication, and integrity protection. Storage on Synology devices gives users full ownership over recordings. Privacy masks can be irreversibly embedded into footage or applied to live view to cover sensitive areas. View a list of connected devices per camera and maintain security by disconnecting or blocking unrecognized devices.
Special Features
- Crisp video, night and day - 5MP sensor with wide-angle lens, recording at 30 FPS, and high-power IR LED for 30 meters of night vision
- Edge AI detection and search - on-camera AI powers people and vehicle detection, intrusion detection, and Instant Search
- No device license required - camera requires no Surveillance Station Device License or activation
- Failover edge recording - supports failover recording onto microSD, in case of network failure
- Security and compliance - suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance
Product Specification
Device Type | Network surveillance camera |
Audio Support | Yes: built-in microphone |
Form Factor | Turret |
Connectivity Technology | Wired |
Weight | 387 g |
Camera | Camera |
Type | Colour - Day&Night - pan / tilt - waterproof |
Max Digital Video Resolution | 2880 x 1620 |
Exposure Range | 1/30 sec - 1/16000 sec |
Frame Rate (max) | 30 frames per second |
Image Sensor | Image Sensor |
Type | 1/2.7" |
Lens Construction | Lens Construction |
Type | Fixed focal |
Focal Length | 2.8 mm |
Lens Iris | F/1.8 |
Horizontal Field of View (degree) | 110 |
Vertical Field of View (degree) | 56 |
Diagonal Field of View (degree) | 132 |
Interfaces | Interfaces |
Network Interface | Ethernet 10Base-T/100Base-TX |
Expansion / Connectivity | Expansion / Connectivity |
Ports | LAN - RJ-45 |
Supported Memory Cards | SDXC Memory Card, SDHC Memory Card, microSD Card |
Miscellaneous | Miscellaneous |
TAA Compliant | Yes |
Compliant Standards | IP67, IK10 |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 50 °C |
Relative Humidity (operating) | 5 - 95% (non-condensing) |
