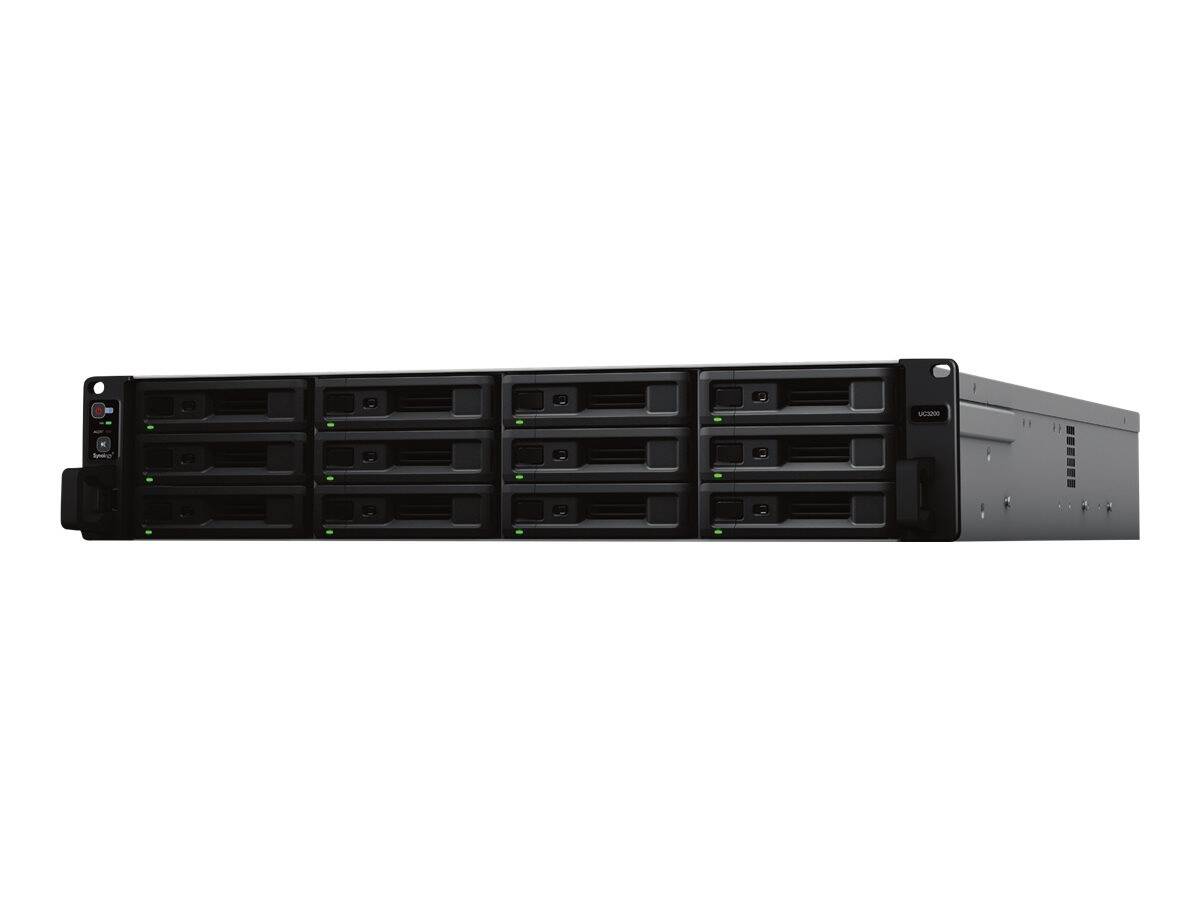

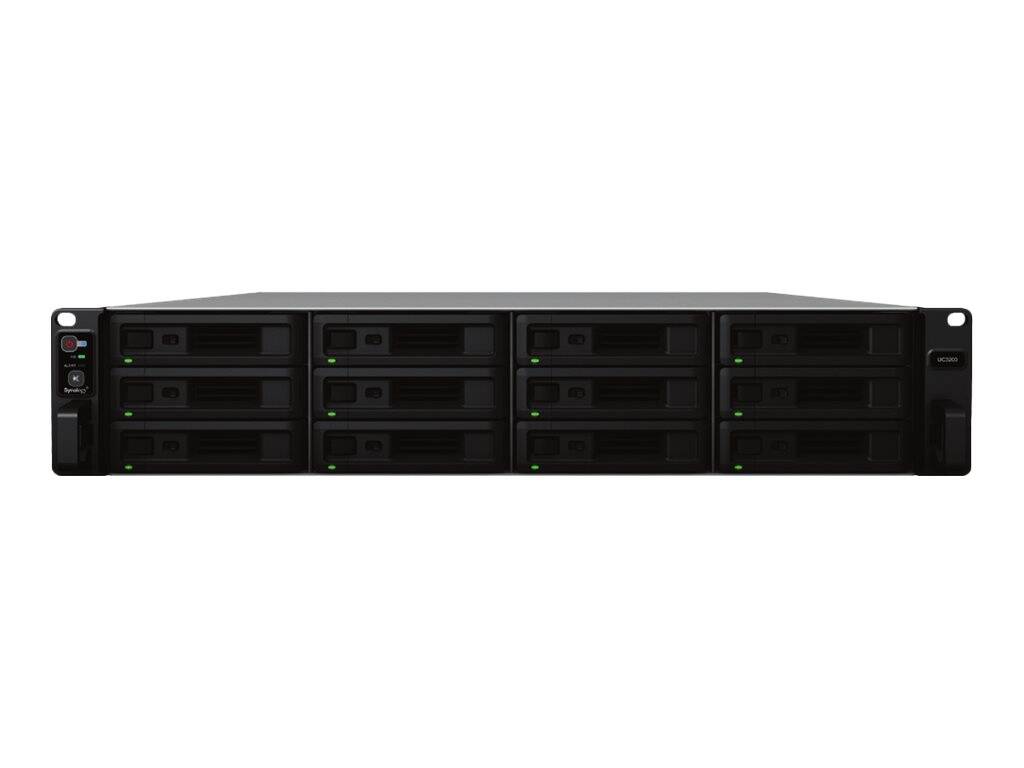

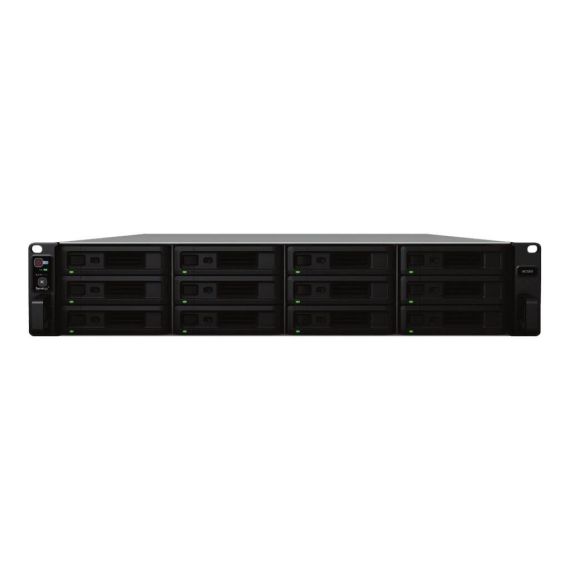

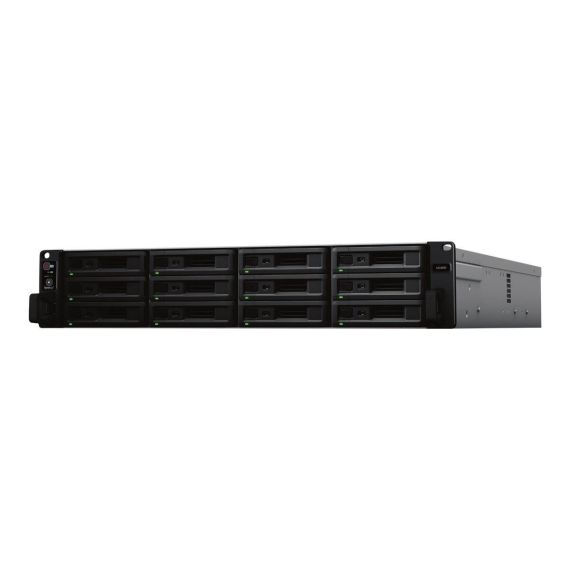

Synology Unified Controller UC3200 - Hard drive array - 12 bays (SAS) - SAS (external) - rack-mountable - 2U | UC3200
Please sign in so that we can notify you about a reply
Product Features
- Powerful and flexible scalability
UC3200 is an affordable yet reliable IP SAN solution for mission-critical environments. It delivers outstanding performance and allows you to start small and grow in the future. - Uncompromising reliability
The active-active controller design maximizes the system uptime for your important applications. The inter-connectivity through high-speed NTB between the two controllers allows one of them to seamlessly take over the service when the other breaks down.
Special Fetures
- High-performance, active-active storage solution to provide non-disruptive iSCSI services
- Resilient cache protection mechanism to prevent data loss
- Instant data protection with built-in snapshot and replication technologies
Product Specification
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS |
| Storage | |
| HDD Array External Interface | SAS |
| Maximum LUNs | 128 |
| Processor | |
| CPU | 2 x Xeon 2.4 GHz |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SAS |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared |
| Expansion Slots | 2 (total) / 2 (free) x PCIe 3.0 x8 |

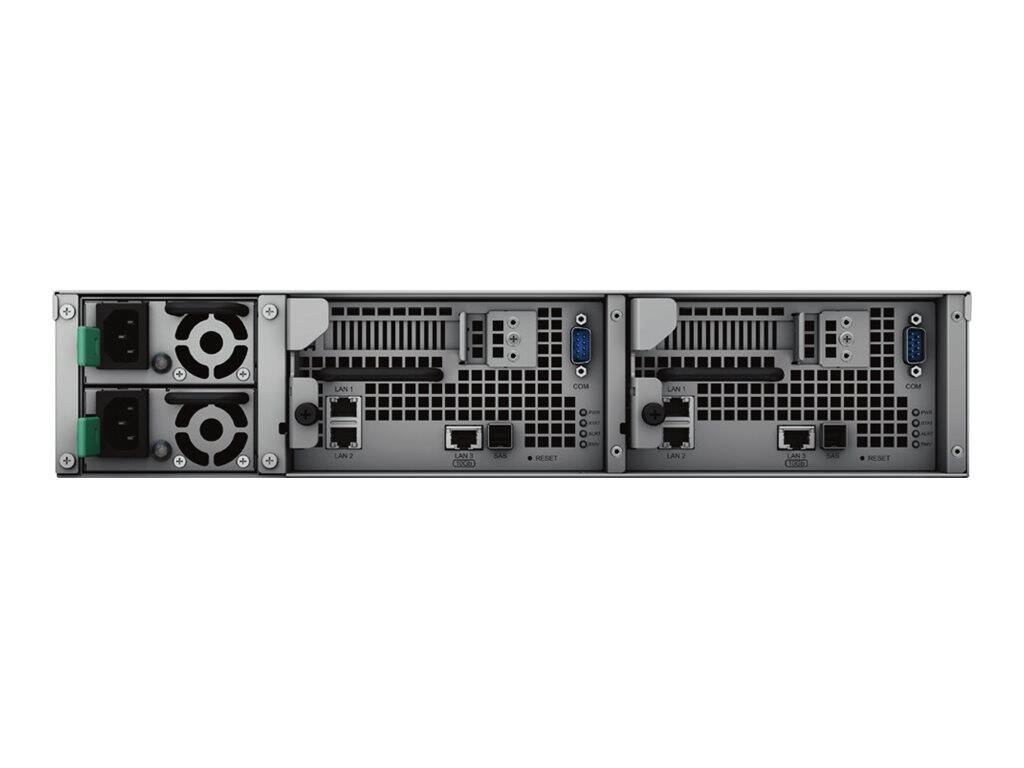

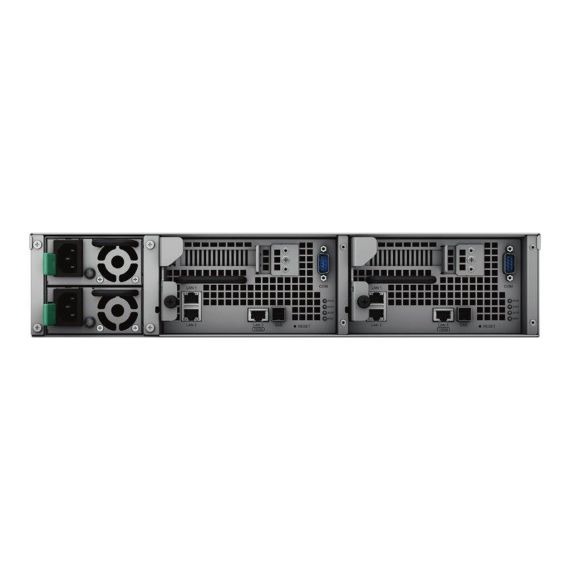

| Interfaces | 2 x SAS <br /> 4 x Ethernet 1000Base-T - RJ-45 <br /> 2 x Ethernet 10Gb - RJ-45 <br /> 2 x serial - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Features | Built-in 4 cooling fans, SNMP support |
| Compliant Standards | RoHS |
| Included Accessories | Accessory pack |
| Power | |
| Power Device | 2 x internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 43.05 cm |
| Depth | 69.2 cm |
| Height | 8.8 cm |
| Weight | 19.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% |
