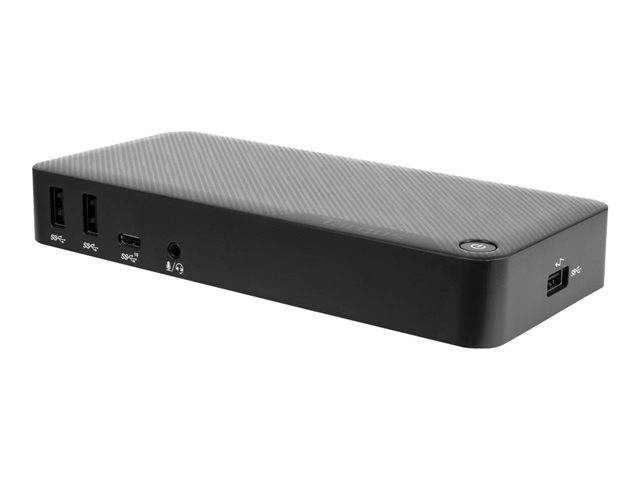

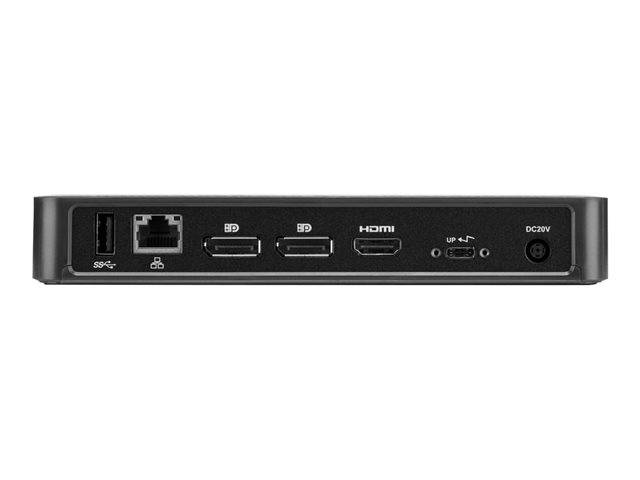

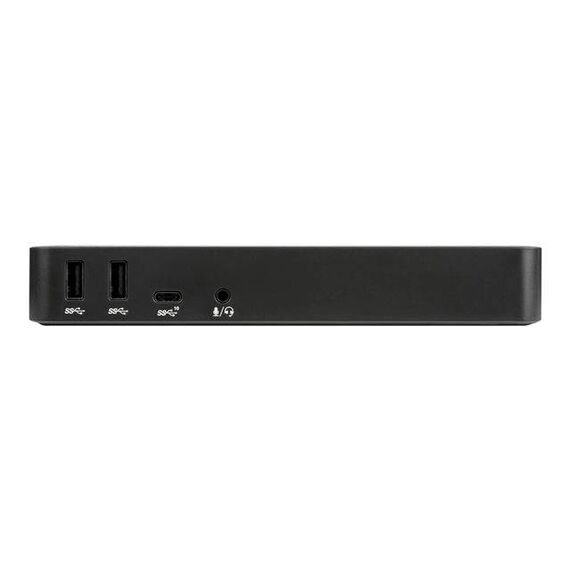

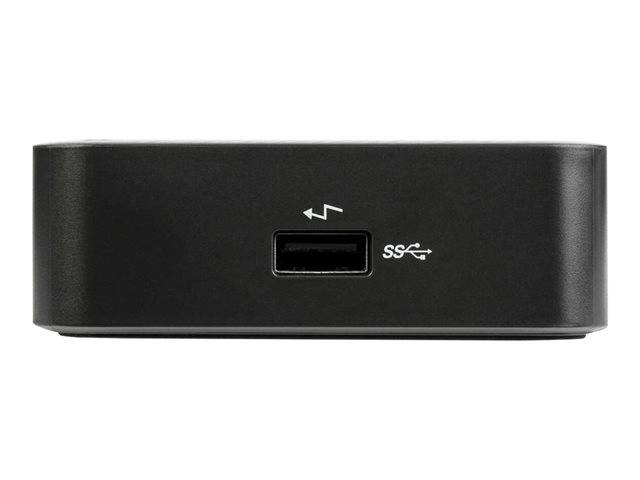

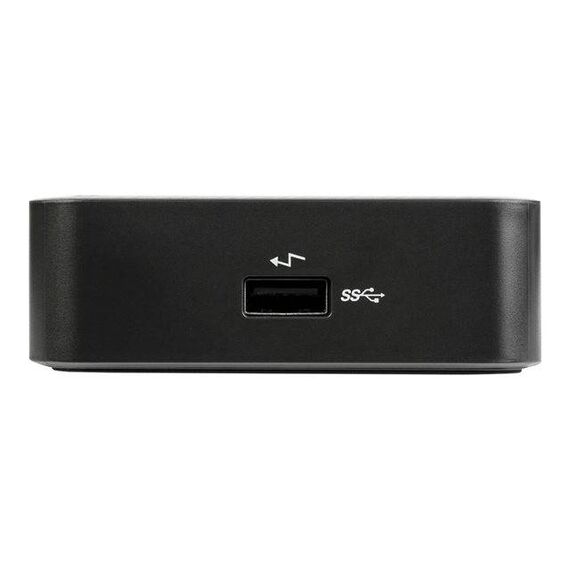

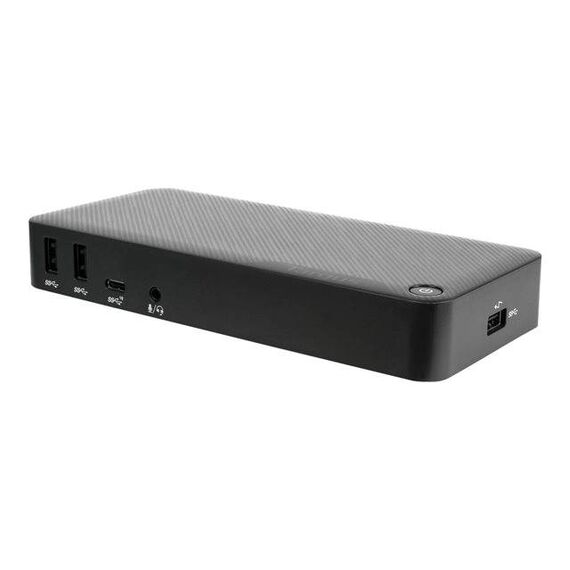

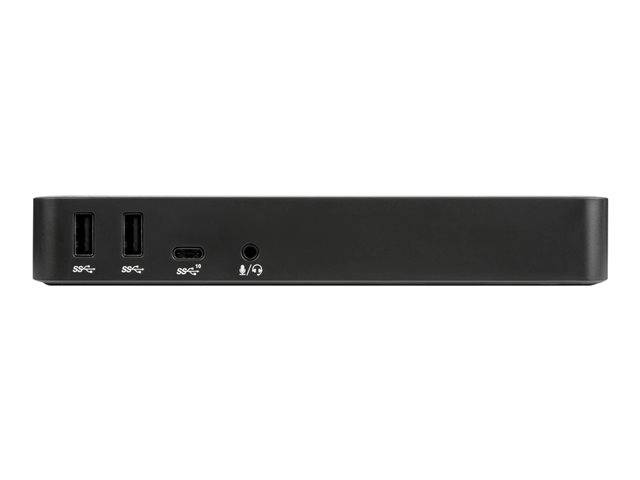

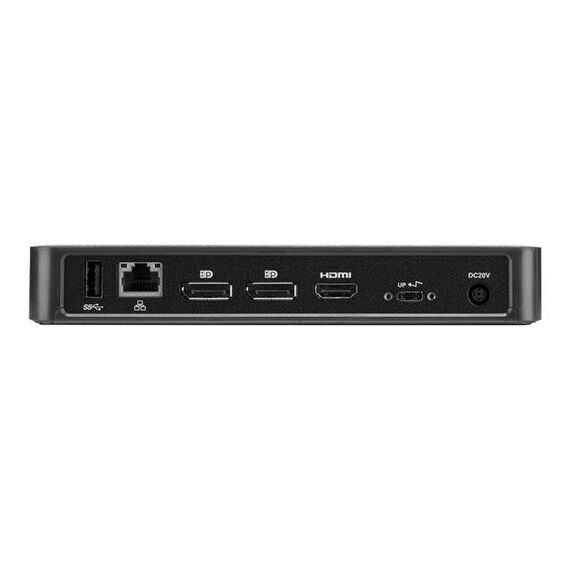

Targus Multi-Function / Docking station / USB-C / HDMI, 2 x DP / GigE / Europe | DOCK430EUZ
Targus Multi-Function / Docking station / USB-C / HDMI, 2 x DP / GigE / Europe | DOCK430EUZ
Description
Create a more powerful, productive workstation with the Targus USB-C DisplayPort Alt. Mode Docking Station with 85 W Power. Sleek and powerful this Alternate Mode packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals.Enjoy crisp, clear native video while supporting a connection with up to three monitors. With two DisplayPort 1.4 ports and one HDMI 2.0 port, you're able to support three monitors (1920 x 1080 p60), two monitors (2560 x 1440 p60) or one monitor (3840 x 2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports.Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Targus Multi-Function / Docking station | DOCK430EUZ
Special Features
- Supports two displayport and one HDMI monitor
- Enhanced power delivery
- Onboard USB 3.0 for advanced peripherals and charging
Product features
- Supports two displayport and one HDMI monitor
Access the latest display technology with two DisplayPort and HDMI ports that creates a rich, high-definition viewing experience. The USB-C DisplayPort Alt. Mode Docking Station with 85 W Power supports full UHD (3840 x 2160 p60) resolution in single display and resolutions of up to 2560 x 1440 p60 in dual video mode - and even 1920 x 1080 p60 with three monitors. - Enhanced power delivery
The USB-C DisplayPort Alt. Mode Docking Station provides up to 85 W of USB Type-C power delivery at all popular voltages including 5, 9, 12, 15 and 20Vdc. DOCK430 will negotiate a Type-C power delivery contract with multiple platforms including PC, MacBook, Chromebook and even popular Android phones. - Onboard USB 3.0 for advanced peripherals and charging
Multiple onboard USB ports make it easy to customise workspaces with the latest keyboards, external drives and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet or other devices powered up and ready to go.
Product Specification
| Product Type | Docking station |
| Width | 18 cm |
| Depth | 8.3 cm |
| Height | 2.8 cm |
| Weight | 1.5 kg |
| Enclosure Colour | Grey |
| Localisation | Europe |
| Max Resolution Details | 3840 x 2160 |
| Data Link Protocol | Gigabit Ethernet |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB 3.2 Gen 1 with Fast Charging - 9 pin USB Type A ¦ 3 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C with Power Delivery (85 W) - 24 pin USB-C |
| Features | Security lock slot (cable lock sold separately), MST (multi-stream transport), DisplayPort Alt Mode, 85W power delivery, triple video |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| OS Required | Ubuntu, Apple MacOS X 10.10, Android 5.0 or later, Apple MacOS X 10.11, Microsoft Windows 7 / 8.1 / 10, Google Chrome OS 51 or later, Apple macOS 10.12 |
| Service & Support | Limited warranty - 3 years |
