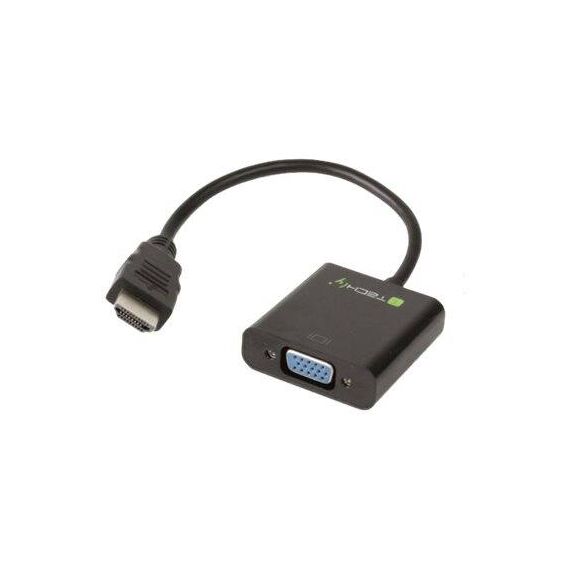

Techly / Video converter / HDMI / VGA / black | IDATA-HDMI-VGA2A
Please sign in so that we can notify you about a reply
Special Features
- HDMI receiver compatible with HDMI specification
- Analog output RGB to VGA triple 9-bit DAC up to 200MHz pixel
- Synchronization signals can be supplied separately or composite
- Support VESA and CEA Standard timing
- Audio encoder which supports 2-channel IIS/S/PDIF audio output
- VGA output is compatible with VESA VSIS V1R2
- MCU integrated to manage the control logic
- Support device winding firmware from flash memory Boot ROM
- Buffer integrated EDID
- Auto power saving and low power consumption in stand-by
- Support YCC to RGB conversion in ITU-R BT.601 color space and 709
- Plug & Play: installs in seconds, without any changes required
- Converts digital HDMI signal into analog VGA video
- Compact design
Product Specification
| Device Type | Video converter |
| Max Resolution | 1920 x 1200 |
| Interfaces | 1 x HDMI input - 19 pin HDMI Type A - male ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) - female ¦ 1 x audio line-out - mini-phone 3.5 mm |
| Miscellaneous | Miscellaneous |
| Power Consumption Operational | 2 Watt |
| Cables Included | 1 x HDMI cable - 20 cm ¦ 1 x audio cable - 1 m |
| Compliant Standards | FCC, RoHS, WEEE |
| Width | 4.3 cm |
| Depth | 4.4 cm |
| Height | 1.4 cm |
| Weight | 72 g |
| Enclosure Colour | Black |
Features - Techly - IDATA-HDMI-VGA2A
Colour
black
More Details
Product Code
04:260048
EAN Code
8057685306493
Manufacturer
Techly
