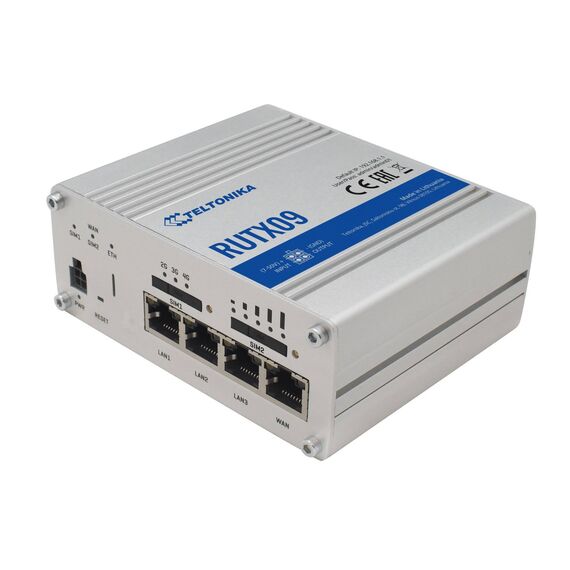

Teltonika RUTX09 / Router / WWAN / 4-port switch / GigE / DIN rail mountable | RUTX09000000
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, SMTP, DHCP |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, HTTP, SSH, TR-069, JSON-RPC, Modbus, MQTT |
| Authentication Method | X.509 certificates, Secure Shell v.2 (SSH2) |
| Features | NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, content filtering, DiffServ support, MAC address filtering, IPv6 support, Firmware Over-the-Air (FOTA), Teltonika Remote Management System (RMS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Power, signal strength, SIM status, mobile network type |
| Communications | Communications |
| Type | Wireless cellular modem |
| Mobile Communication Protocol | LTE |
| Max Transfer Rate | 300 Mbps |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 2 x SMA ¦ Antenna: 1 x GPS connector |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 3 |
| Power | Power |
| Voltage Required | DC 9 - 50 V |
| Power Consumption Operational | 11 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | RutOS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 465 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Teltonika - RUTX09000000
More Details
Product Code
07:246472
EAN Code
4779027312460
Manufacturer
Teltonika
