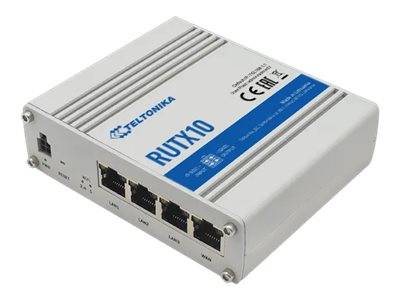

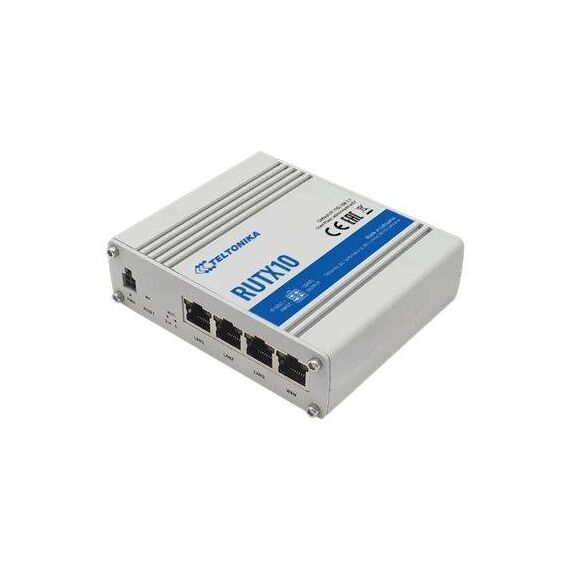

Teltonika RUTX10 / Wireless router / 4-port switch / GigE / Bluetooth 4.0, 802.11a/b/g/n/ac / Dual Band / DIN rail mountable | RUTX10
Please sign in so that we can notify you about a reply
Special Features
- Wave-2 802.11ac Dual Band Wi-Fi with speeds up to 867 Mbps
- Gigabit Ethernet with speeds up to 1000 Mbps
- Teltonika Remote Management System compatible
- Bluetooth LE for short range communication
- Quad core ARM Cortex A7 CPU, 717 MHz
- RutOS - easy to use, secure and feature rich Operating System
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, SMTP, DHCP, DNS, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH, JSON-RPC |
| Encryption Algorithm | TLS, SSL 3.0 |
| Authentication Method | X.509 certificates |
| Features | Firewall protection, NAT support, load balancing, VLAN support, SSH support, static routing, Firmware Over-the-Air (FOTA), MU-MIMO technology, Web Filtering, Teltonika Remote Management System (RMS) |
| Compliant Standards | UPnP |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ Antenna: 3 x RP-SMA |
| Power | Power |
| Voltage Required | DC 9 - 50 V |
| Software / System Requirements | Software / System Requirements |
| OS Provided | RutOS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 9.5 cm |
| Height | 3.2 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Teltonika - RUTX10000000
More Details
Product Code
07:128169
EAN Code
4779027312453
Manufacturer
Teltonika
