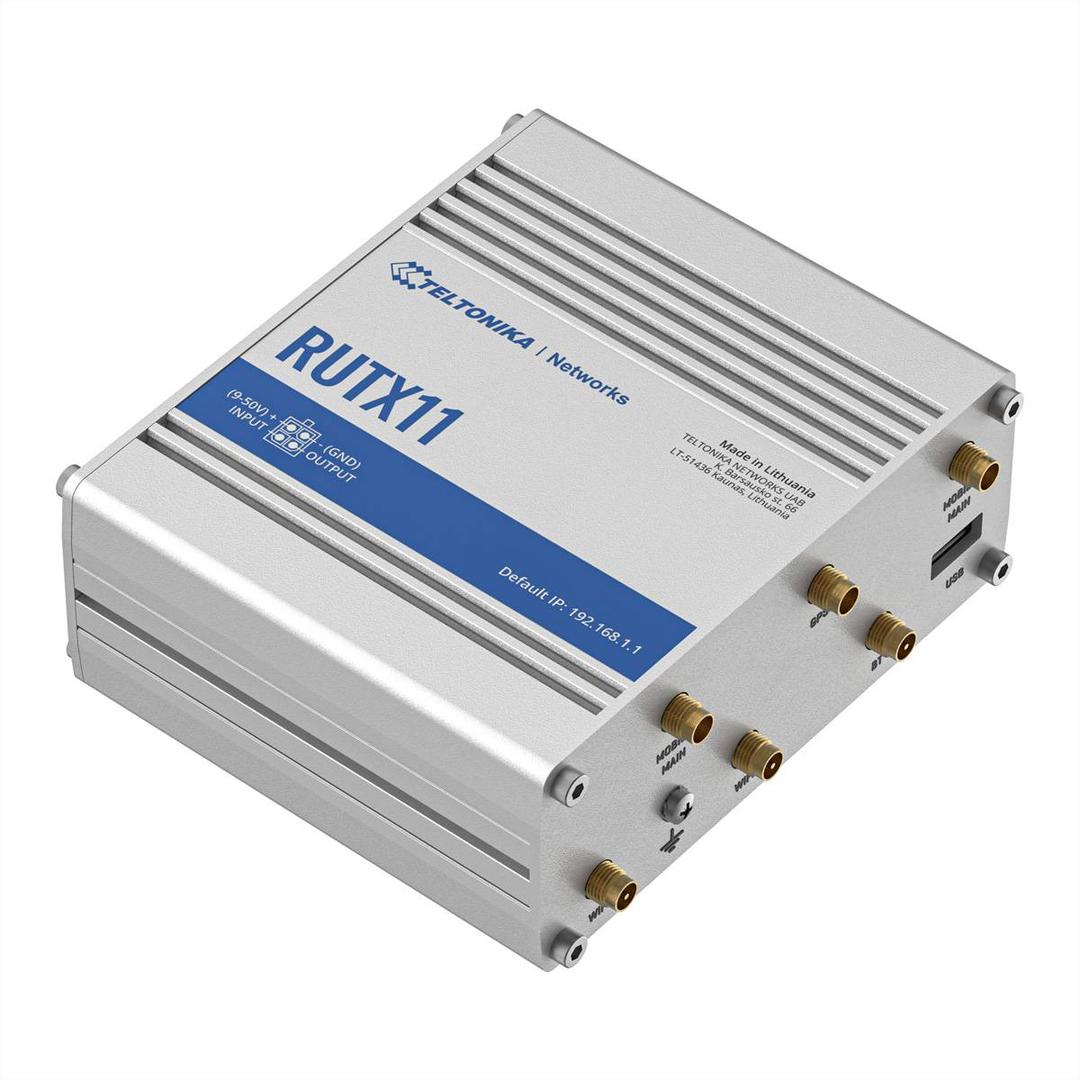

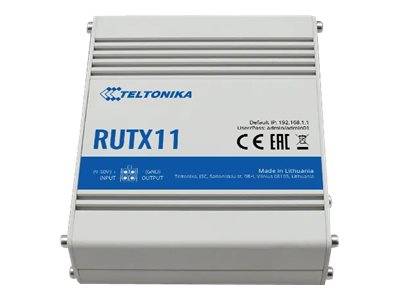

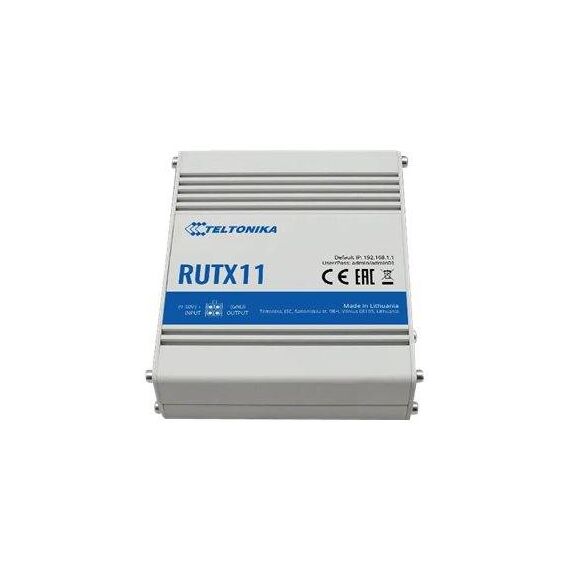

Teltonika RUTX11 / Wireless router / WWAN / 4-port switch / GigE / Wi-Fi 5 / Bluetooth / DIN rail mountable | RUTX11000000
Please sign in so that we can notify you about a reply
Special Features
- LTE Cat 6 with speeds up to 300 Mbps
- Wave-2 802.11ac dual-band Wi-Fi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Gigabit Ethernet with speeds up to 1000 Mbps
- Teltonika Remote Management System compatible
- RutOS - easy to use, secure and feature-rich operating system
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, DHCP, DNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, JSON-RPC, NTP |
| Encryption Algorithm | TLS, SSL 3.0 |
| Authentication Method | Secure Shell (SSH), X.509 certificates |
| Features | Firewall protection, NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, firmware upgradable, 2T2R MIMO technology, IPv4 support, SMS remote control, MU-MIMO technology, Web Filtering, automated failover |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Built-in Devices | Led panel, GPS |
| Status Indicators | Port status, power, signal strength, WAN, SIM status, Wi-Fi, mobile network type |
| Communications | Communications |
| Type | Wireless cellular modem |
| Mobile Communication Protocol | WCDMA, HSUPA, LTE, DC-HSDPA |
| Max Transfer Rate | 300 Mbps |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 3 x SMA ¦ Antenna: 3 x RP-SMA ¦ USB: 1 x 4 pin USB Type A |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 6 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 18 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | GPS aerial, 2 x WiFi aerials, 2 x LTE aerials, Bluetooth aerial |
| Cables Included | 1 x network cable - 1.5 m |
| Software / System Requirements | Software / System Requirements |
| OS Provided | RutOS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 465 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - RUTX11000000
More Details
Product Code
07:246473
EAN Code
4779027312378
Manufacturer
Teltonika
