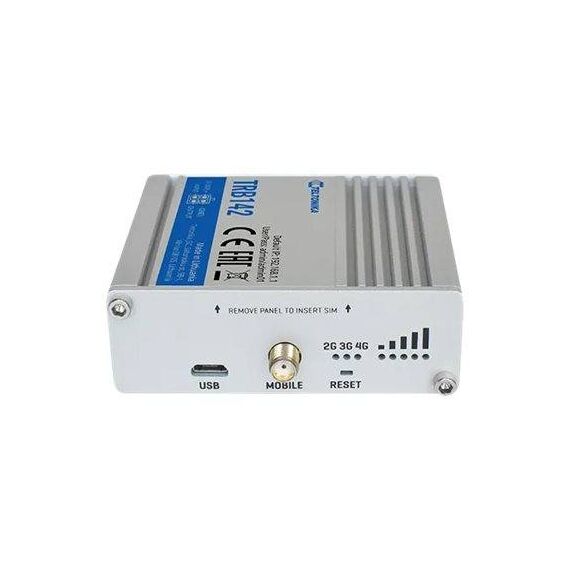

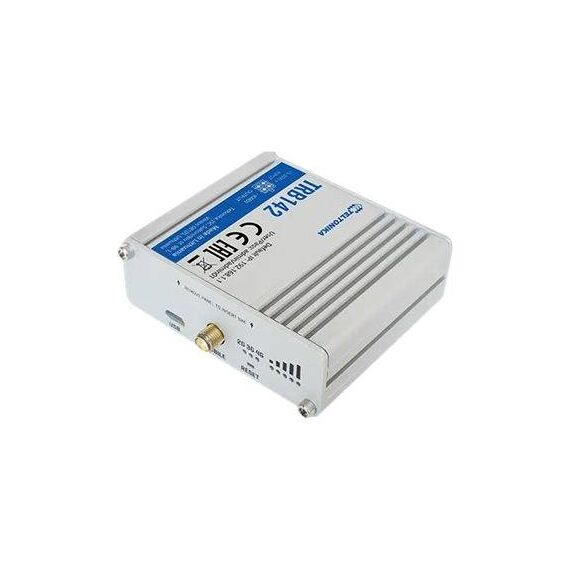

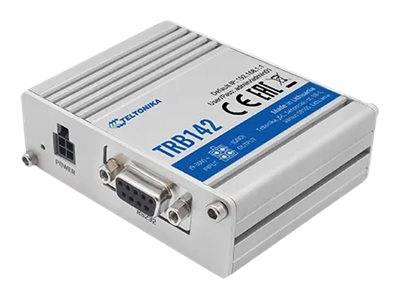

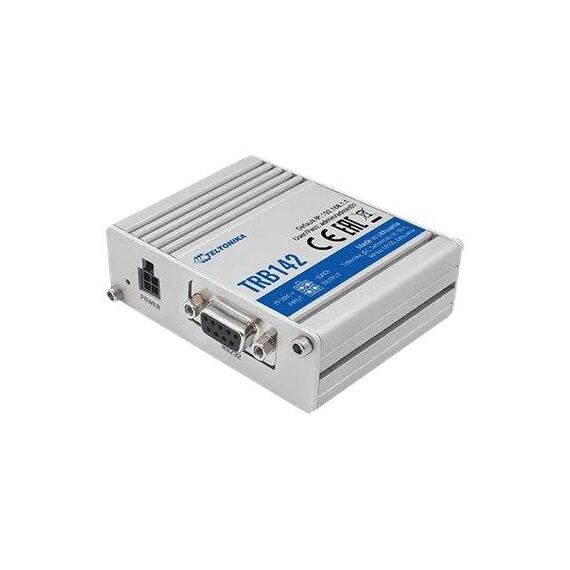

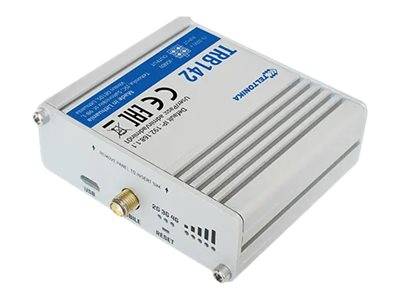

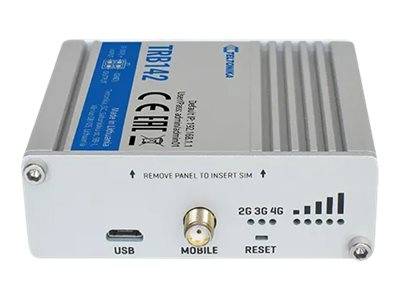

Teltonika TRB142 / Gateway / RS-232, Modbus / LTE B1/B20/B28/B3/B7/B8 | TRB142003000
Please sign in so that we can notify you about a reply
Special Features
- RS232 is an industrial standard for serial communication
- LTE Cat 1 for M2M/IoT communications
- Compact size, easy integration
- Wide range of power supply voltages
- Teltonika Remote Management System compatible
- RutOS - easy to use, secure and feature rich Operating System
Product Specification
| Device Type | Gateway |
| Width | 6 cm |
| Depth | 7 cm |
| Height | 1.8 cm |
| Weight | 135 g |
| Localisation | Europe |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Max Supported Qty | 1 |
| RAM | 128 MB |
| Flash Memory | 512 MB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | RS-232, Modbus |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routing Protocol | Static IP routing, GRE |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, JSON-RPC, Modbus, MQTT |
| Capacity | VPN tunnels: 5 |
| Status Indicators | Power, signal, data |
| Features | Flow control, firewall protection, NAT support, VPN support, MAC address filtering, firmware upgradable, IPSec NAT-Traversal (NAT-T), port forwarding, reset button, DIN rail mountable, GRE tunneling, Firmware Over-the-Air (FOTA), SMS remote control, system log, bridge mode, OpenVPN client, OpenVPN server, aluminium housing |
| Encryption Algorithm | DES, Triple DES, RC2, IKE, TLS, SSL 3.0, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC |
| Authentication Method | X.509 certificates |
| Aerial | Aerial |
| Antenna | External detachable |
| Antenna Qty | 1 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Communications | Communications |
| Mobile Broadband Access | Yes |
| Mobile Communication Protocol | GSM, GPRS, UMTS, EDGE, HSPA+, FDD LTE |
| Mobile Band | LTE B1/B20/B28/B3/B7/B8 |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Interfaces | 1 x USB - micro-USB ¦ 1 x aerial - SMA ¦ 1 x RS-232 - DB-9 ¦ 2 x digital input/output - terminal block |
| Miscellaneous | Miscellaneous |
| Included Accessories | LTE aerial, hex key |
| Cables Included | 1 x micro-USB cable - 80 cm |
| Compliant Standards | RoHS, WEEE, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, EN 61000-4.4:2012, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 489-52 V1.1.0, EN 301 489-19 V2.1.0, ETSI EN 301 489-1 V2.2.0, EN 300 511 V12.5.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2, EN 50385:2017, EN 62232:2017 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | RutOS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TRB142003000
More Details
Product Code
07:246462
EAN Code
4779027312385
Manufacturer
Teltonika
