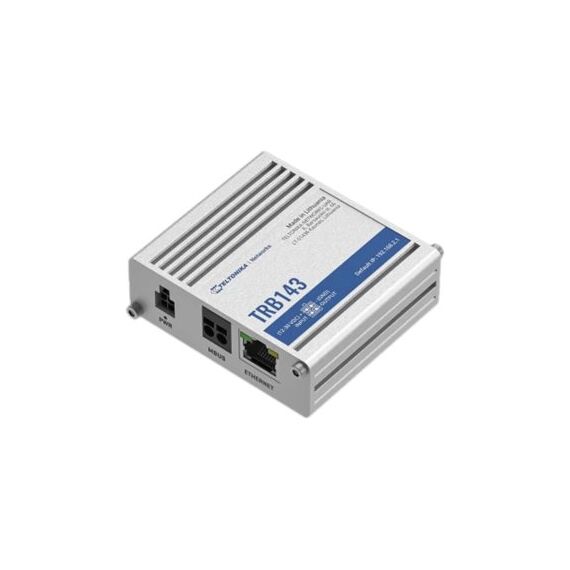

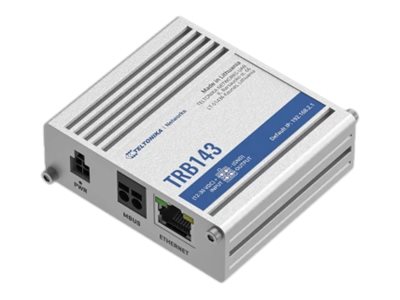

Teltonika TRB143 - Gateway - 1GbE, M-Bus (Meter-Bus) - LTE - 3G, 4G, 2G | TRB143000000
Please sign in so that we can notify you about a reply
Special Fetures
- M-Bus interface - supporting up to 250 slave devices
- Connectivity - 4G/LTE (Cat 4), 3G, 2G
- Durability - rugged aluminum housing
- Compact - simple integration
Product Specification
| Device Type | Gateway |
| Width | 7.45 cm |
| Depth | 7.3 cm |
| Height | 2.5 cm |
| Weight | 145 g |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM 1.3 GHz |
| Max Supported Qty | 1 |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 512 MB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, M-Bus (Meter-Bus) |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, SMTP, FTP, DHCP, DNS, L2TPv3, DDNS, HTTP, HTTPs, IPv4, IPv6, Telnet, WireGuard |
| Routing Protocol | VRRP, static IP routing, GRE |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, SSH-2, TR-069, JSON-RPC, Modbus, DHCP, MQTT, SMNP, SMPP |
| Status Indicators | Power, signal strength, connection type status |
| Features | Firewall protection, NAT support, load balancing, VLAN support, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), MAC address filtering, DDos attack prevention, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Dynamic Multipoint VPN (DMVPN), DHCP relay, Firmware Over-the-Air (FOTA), SMS remote control, Pre-Shared Key (PSK), DMZ support, black list, white list, bridge mode, Point-to-Point Protocol (PPP), OpenVPN client, OpenVPN server, Teltonika Remote Management System (RMS), aluminium housing, Received Signal Strength Indication (RSSI) support, SSHFS support, band management, auto APN, digital certificates, command-line interface (CLI) management, multiple PDN, SSTP client instance support, Unstructured Supplementary Service Data (USSD) support, DNP3 outstation, Smart Queue Management (SQM) |
| Encryption Algorithm | DES, Triple DES, TLS, SSL 3.0, MODBUS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1 |
| Authentication Method | X.509 certificates |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11e, IEEE 802.3at, IEEE 802.3az, UPnP, IEEE 802.3bt |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Aerial | |
| Antenna | External detachable |
| Antenna Qty | 1 |
| Communications | |
| Mobile Broadband Access | Yes |
| Generation | 3G, 4G, 2G |
| Mobile Communication Protocol | GSM, WCDMA, LTE |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Communications Technology | LTE Cat 4 |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Micro SIM card |
| Interfaces | 1 x digital input ¦ 1 x digital output ¦ 1 x aerial - SMA ¦ 1 x network - RJ-45 |
| Miscellaneous | |
| Included Accessories | LTE aerial, hex key |
| Cables Included | 1 x network cable |
| Compliant Standards | CB, RoHS, WEEE, REACH, IP30, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, UKCA |
| Power | |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
