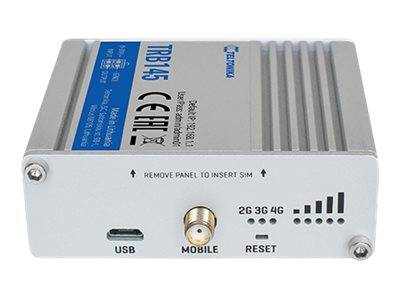

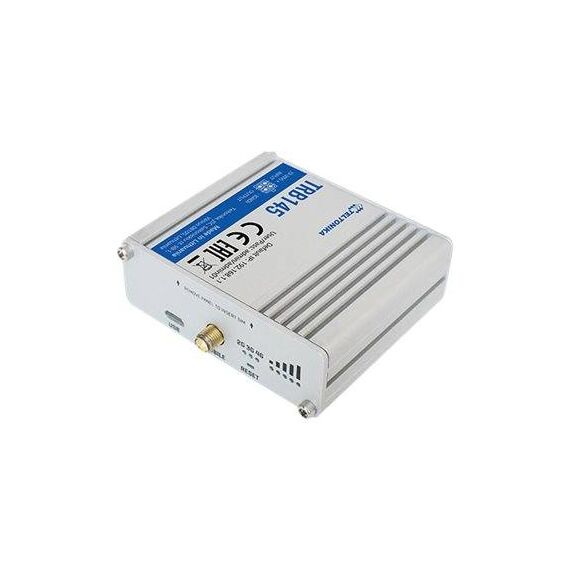

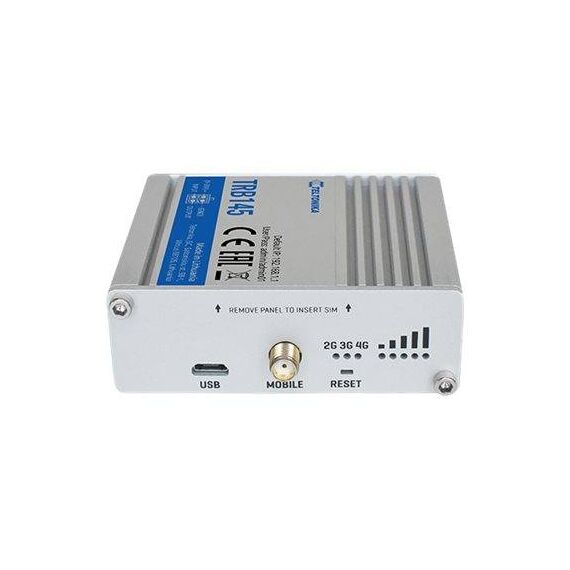

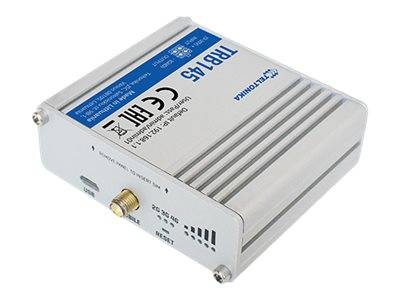

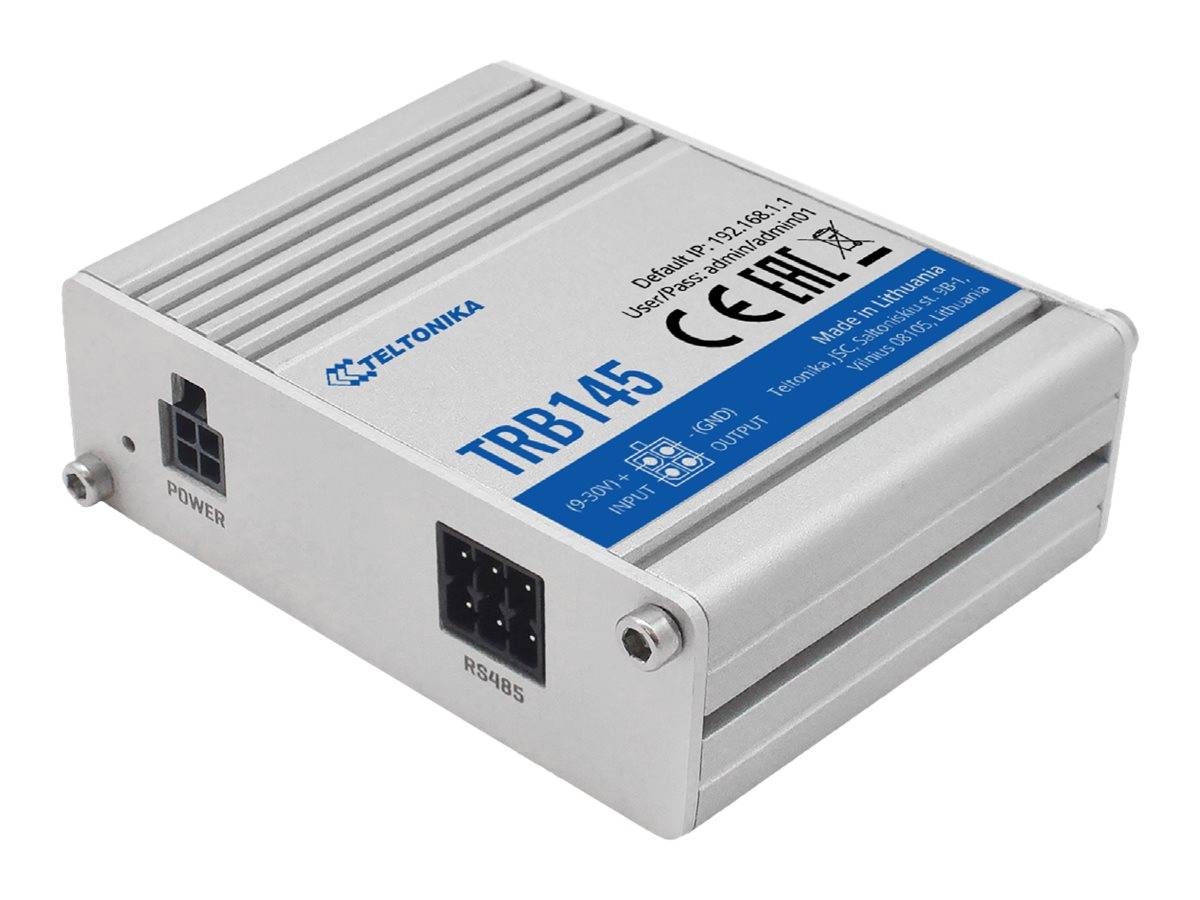

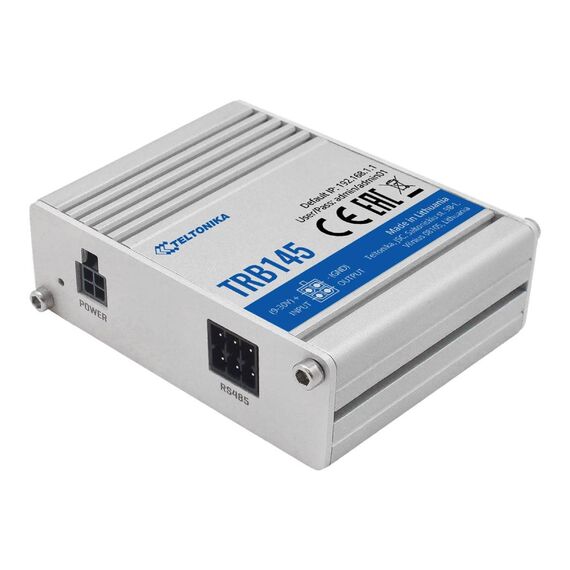

Teltonika TRB145 / Gateway / DC power | TRB145003000
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Gateway |
| Width | 7 cm |
| Depth | 1.8 cm |
| Height | 6 cm |
| Weight | 130 g |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Max Supported Qty | 1 |
| RAM | 128 MB |
| Flash Memory | 512 MB |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT |
| Capacity | VPN tunnels: 5 |
| Status Indicators | Power, status, connection status |
| Features | Firewall protection, NAT support, interrupt status port (ISP), firmware upgradable, port forwarding, GRE tunneling, static routing, Teltonika Remote Management System (RMS) |
| Encryption Algorithm | DES, Triple DES, RC2, CAST5, IKE, SSL, TLS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2 |
| Communications | Communications |
| Mobile Broadband Access | Yes |
| Mobile Communication Protocol | LTE |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |

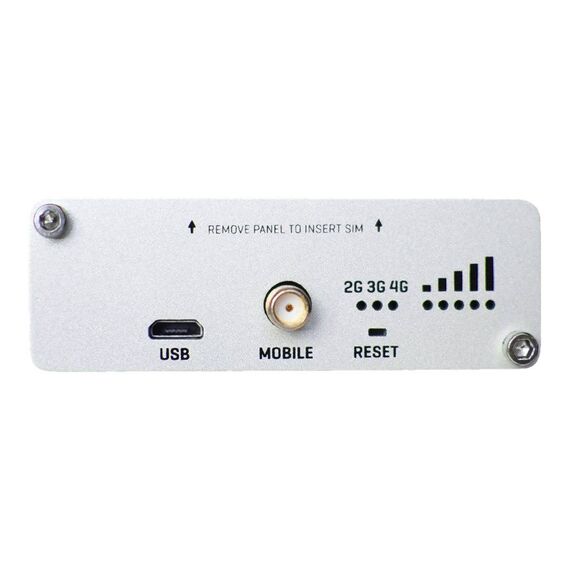

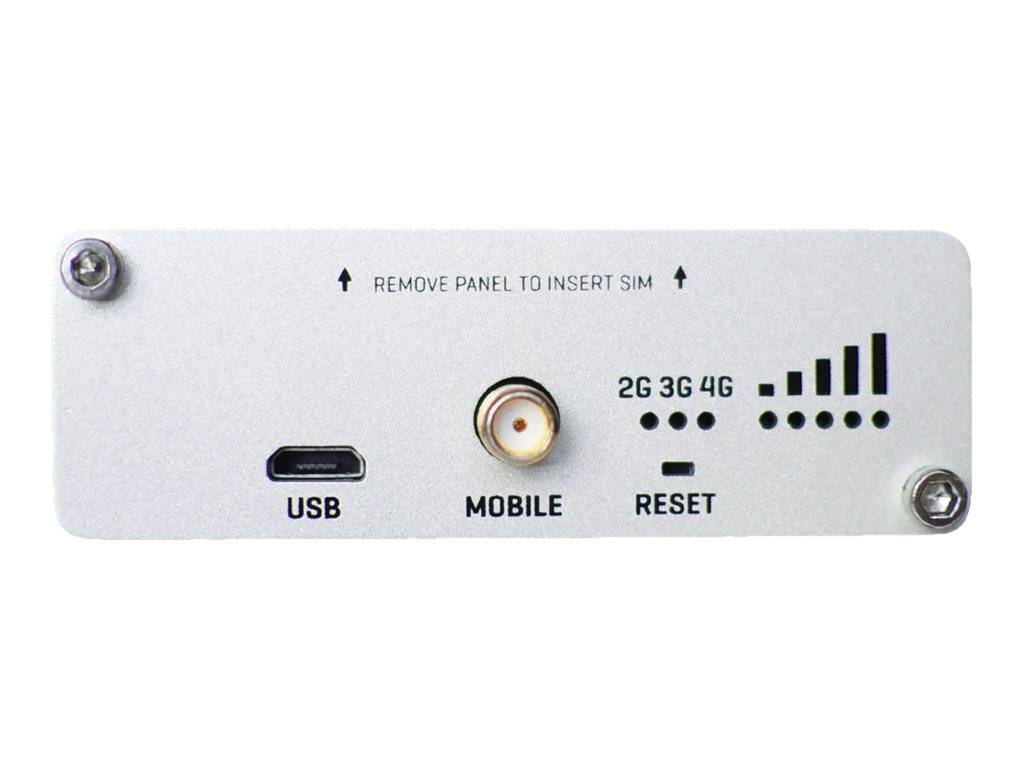

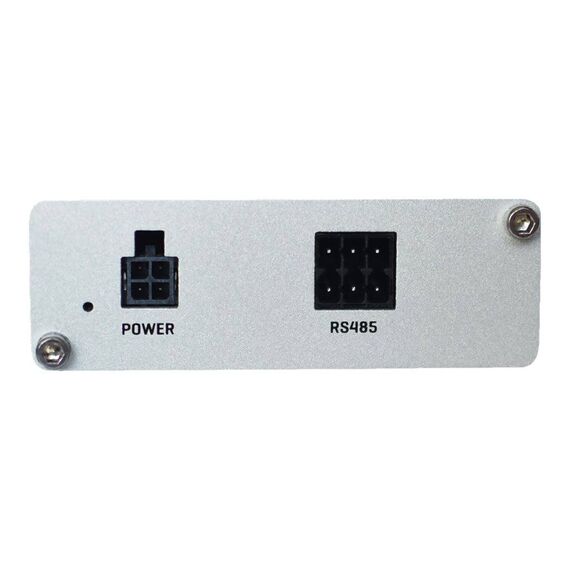

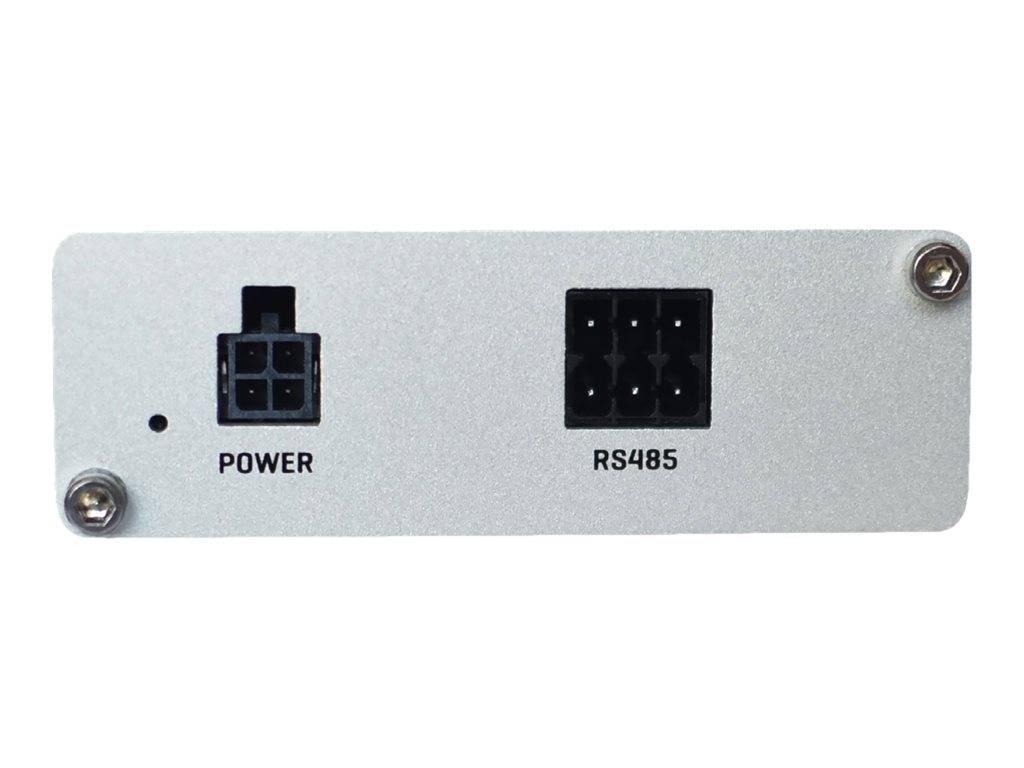

| Interfaces | 1 x RS-485 ¦ 2 x digital input/output ¦ 1 x USB ¦ 1 x aerial - SMA |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 489-52 V1.1.0, EN 301 489-19 V2.1.0, EN 61000-4-4:2012, EN 300-511 V12.5.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2, EN 50385:2017, EN 62232:2017 |
| Power | Power |
| Voltage Required | DC 9 - 30 V |
| Power Consumption Operational | 5 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | RutOS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TRB145003000
More Details
Product Code
07:246463
EAN Code
4779027312415
Manufacturer
Teltonika
