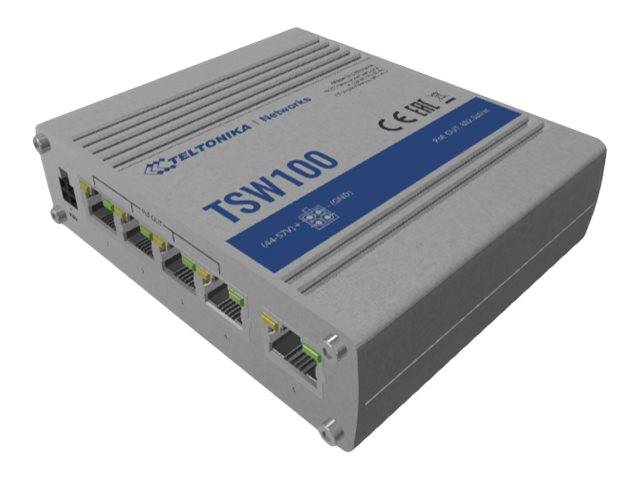

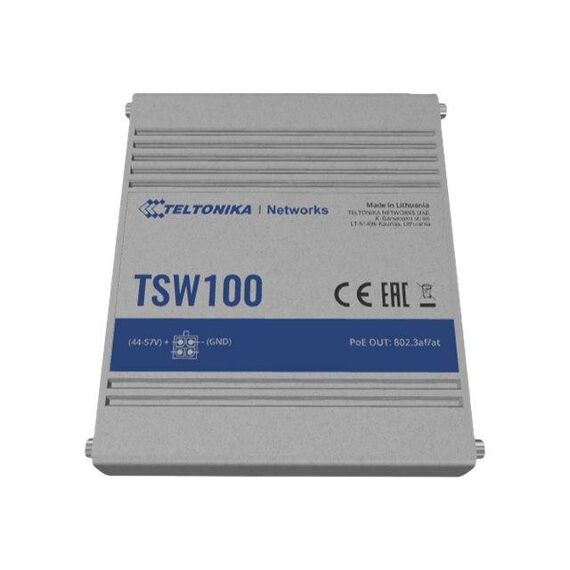

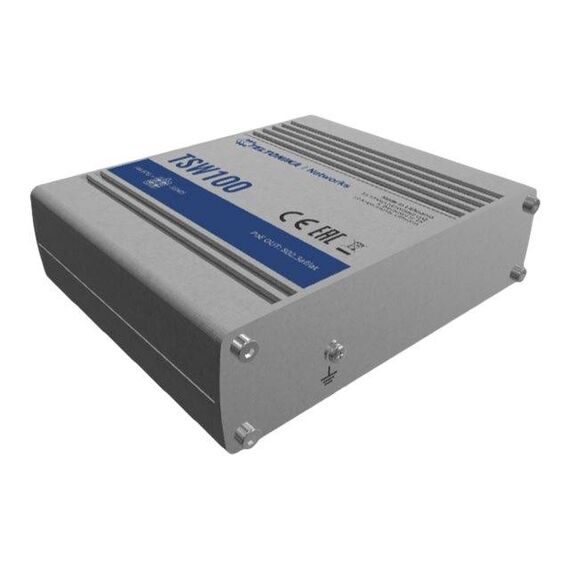

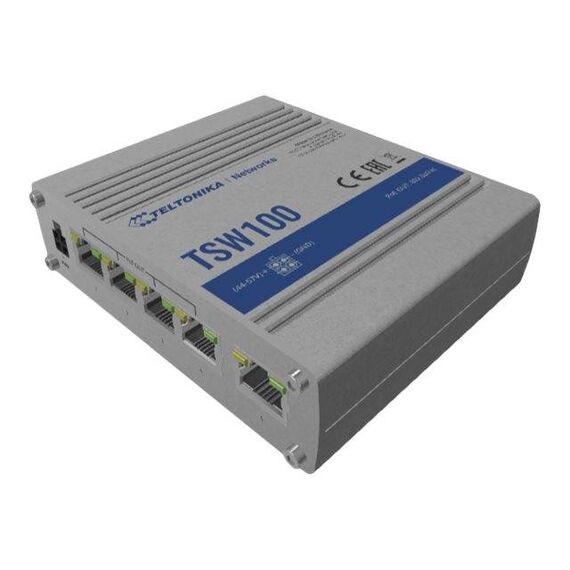

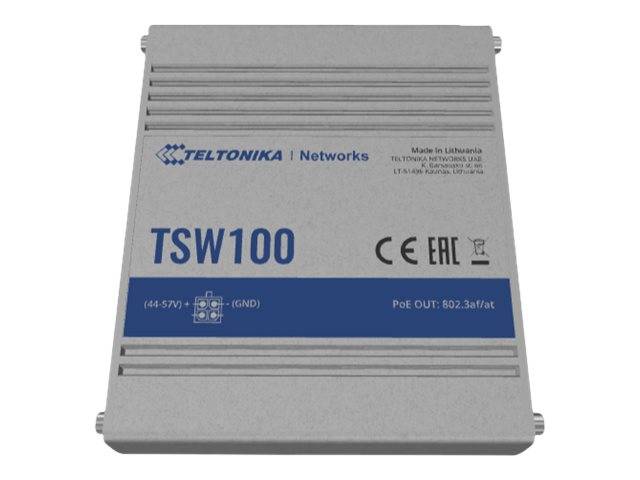

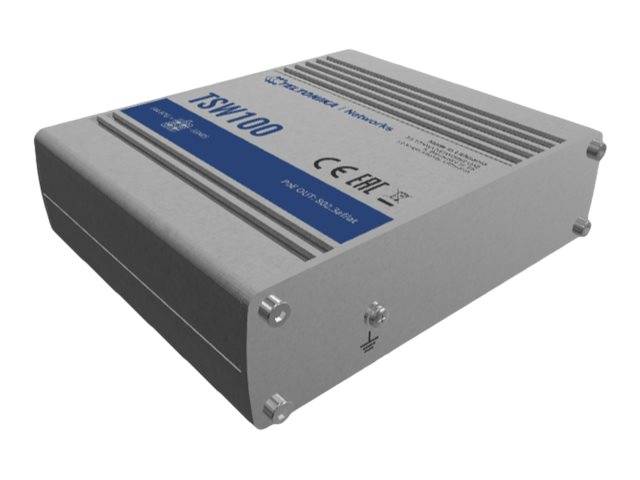

Teltonika TSW100 / Switch / unmanaged / 5 x 10/100/1000 (1 PoE) / desktop / PoE (120 W) / DC power | TSW100000000
Please sign in so that we can notify you about a reply
Special Features
- Equipped with five Gigabit Ethernet ports
- Enables centralization of the power supply
- Economical high-bandwidth solution
- Ideal for professional applications
- Rugged aluminum housing
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (1 PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 120 W |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Capacity | Packet buffer size: 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), rugged, aluminium housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, status |
| Expansion / Connectivity | Expansion / Connectivity |

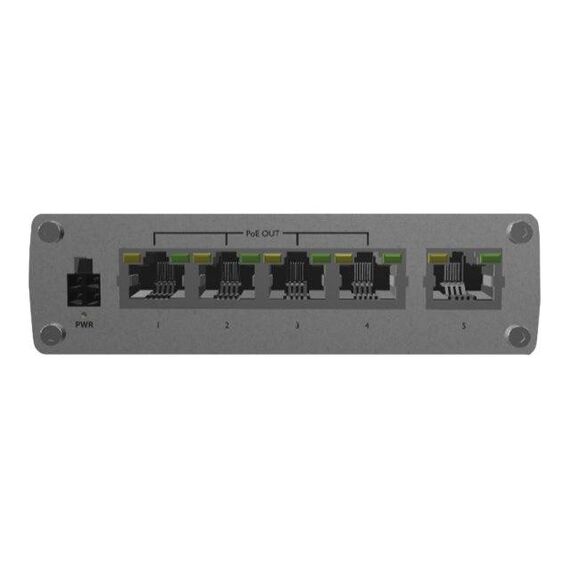

| Interfaces | 4 x 1000Base-T RJ-45 ¦ 1 x 1000Base-T RJ-45 PoE |
| Power | Power |
| Voltage Required | DC 7 - 58 V |
| Power Consumption Operational | 129 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.2 cm |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 340 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TSW100000000
General
5-Port
More Details
Product Code
07:128170
EAN Code
4779027312828
Manufacturer
Teltonika
