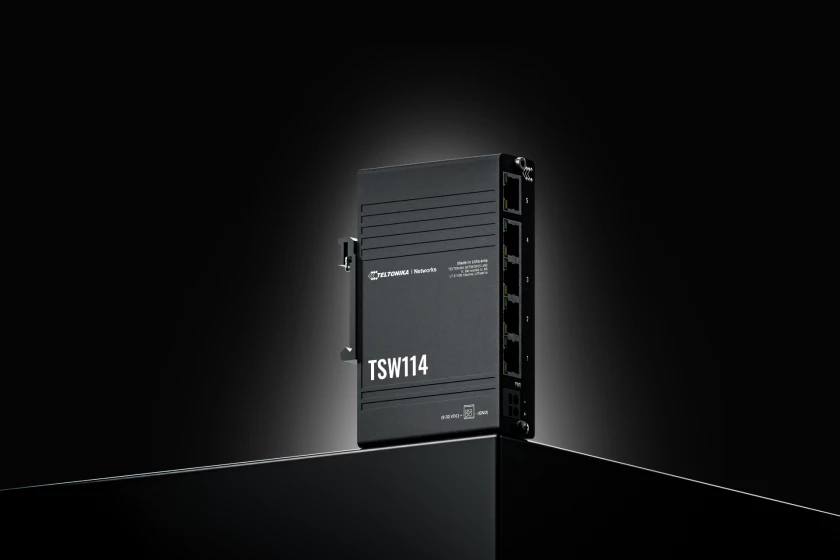

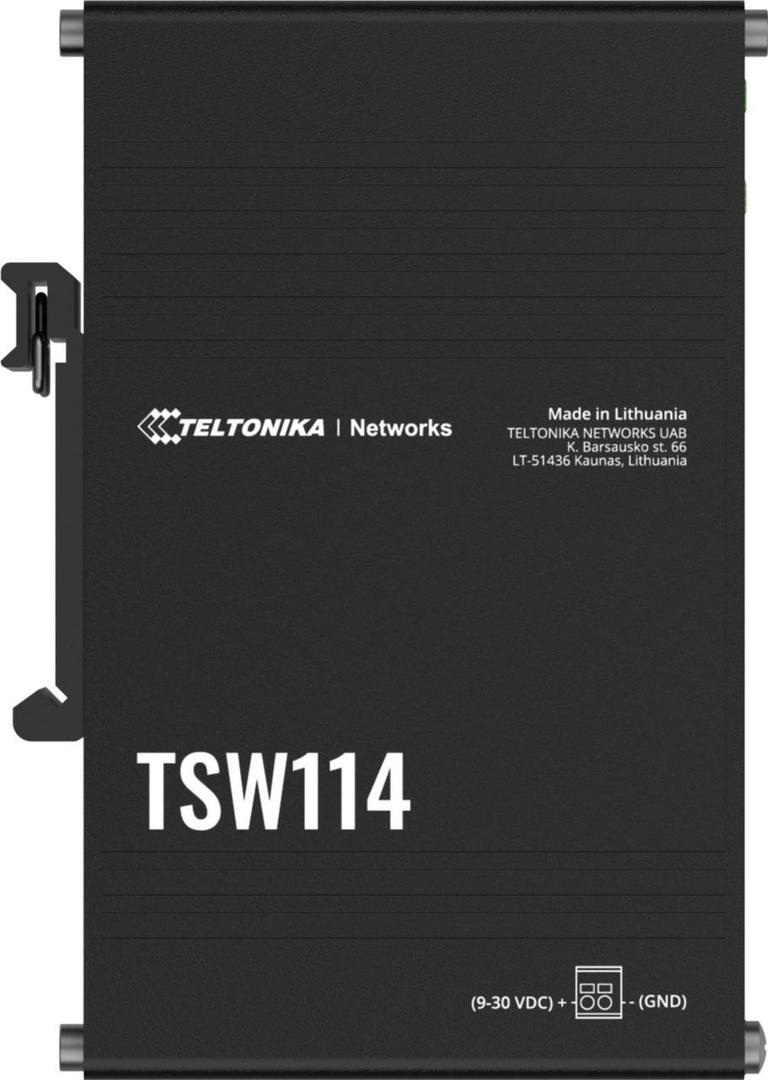

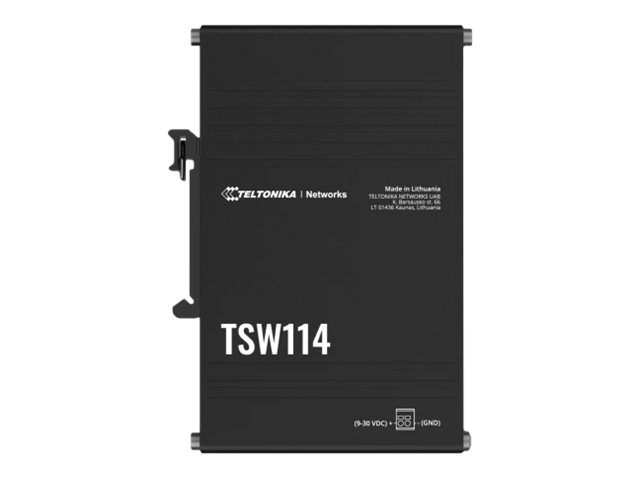

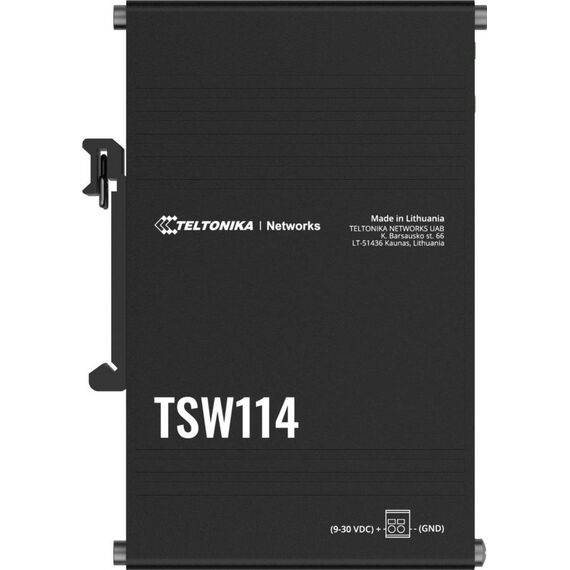

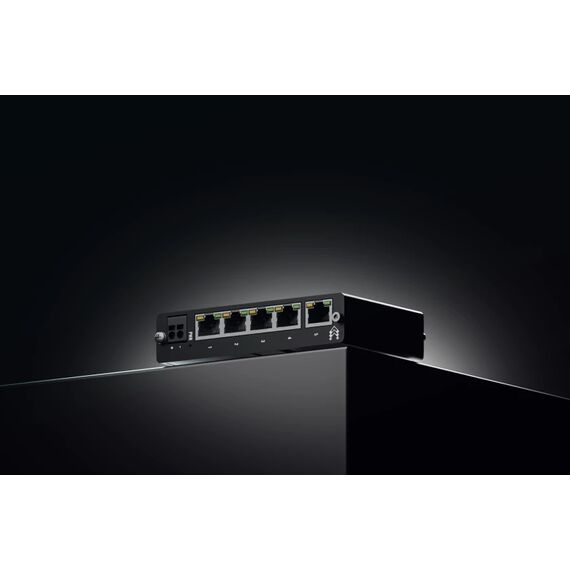

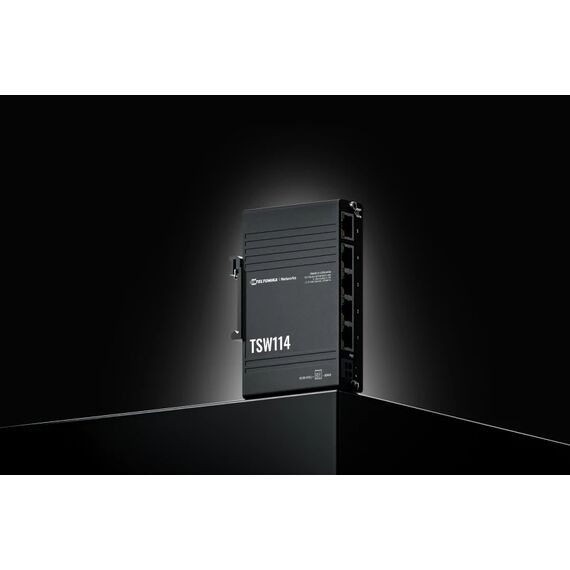

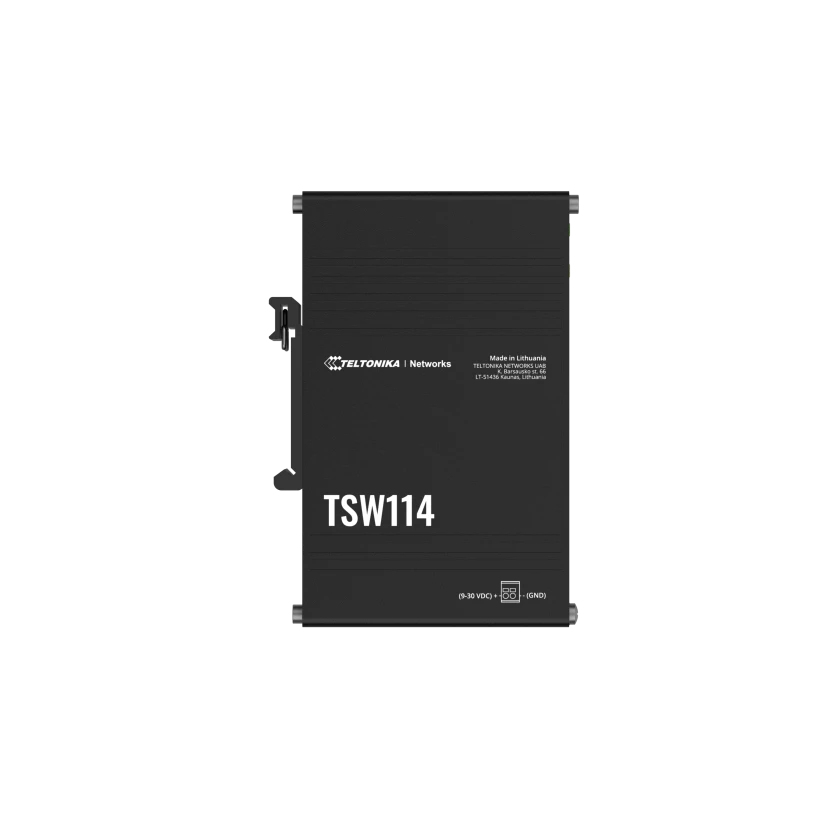

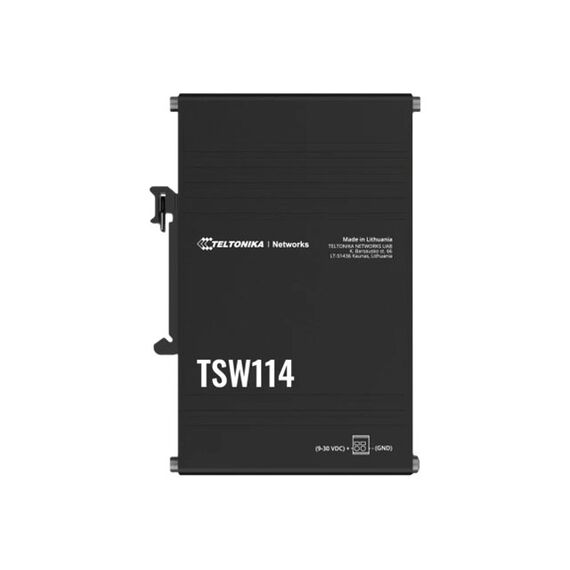

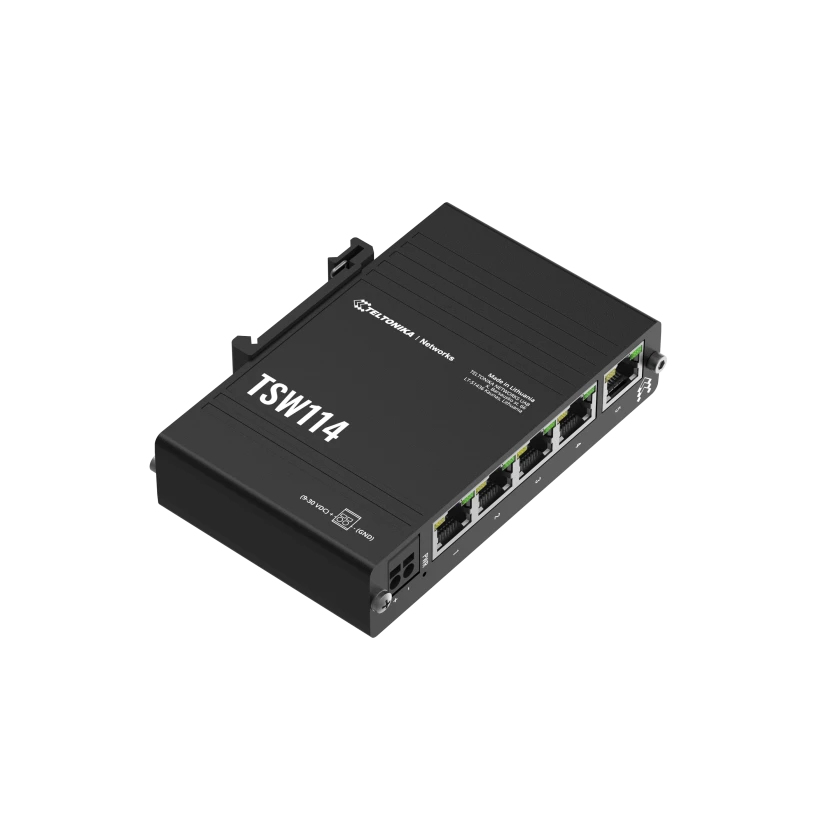

Teltonika TSW114 - Switch - unmanaged - 5 x 10/100/1000 - DIN rail mountable, wall-mountable - Passive PoE | TSW114000000
Please sign in so that we can notify you about a reply
Special Fetures

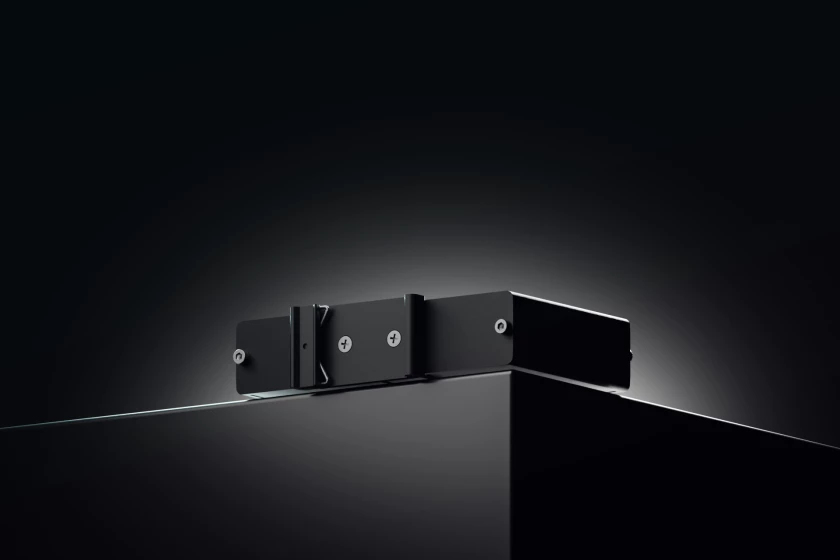

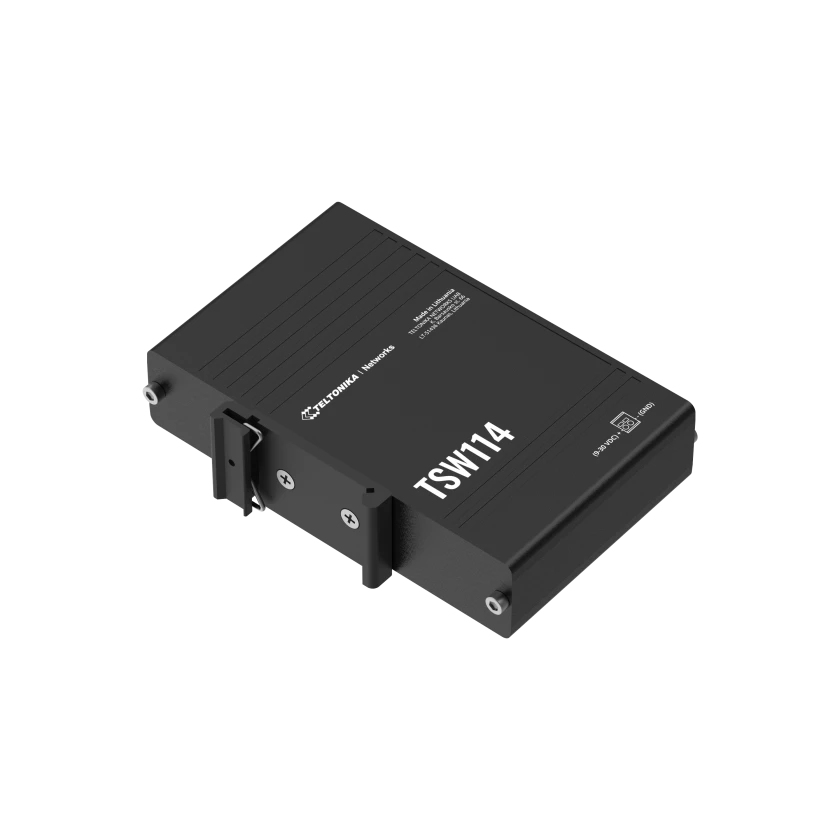

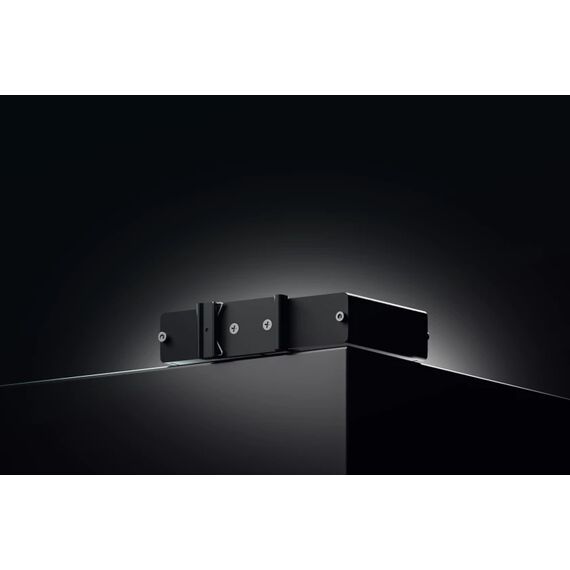

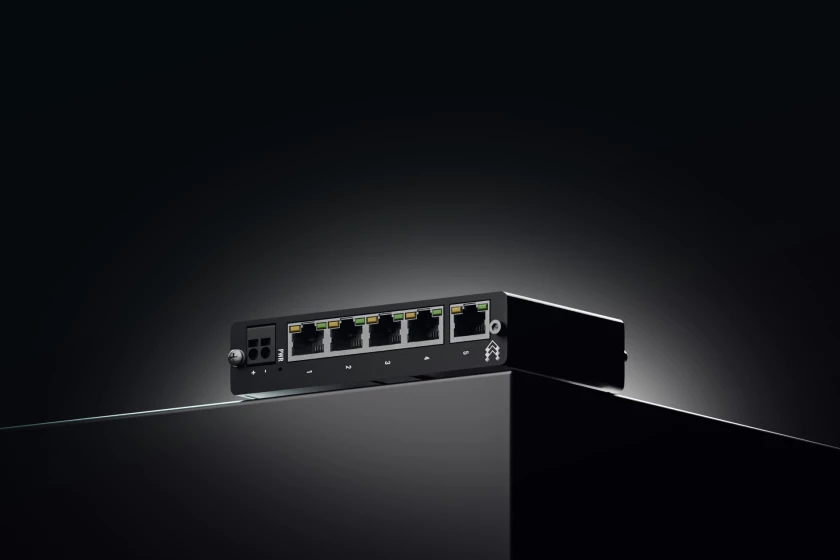

- Easy mounting - integrated DIN rail bracket and front-facing ports
- Gigabit Ethernet - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
- Compact and durable - rugged anodized aluminum housing that fits in your pocket
- Plug-and-Play - no additional configuration needed
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Power Over Ethernet (PoE) | Passive PoE |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Capacity | Packet buffer size: 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), aluminium housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Status Indicators | Power, LAN |
| Expansion / Connectivity | |

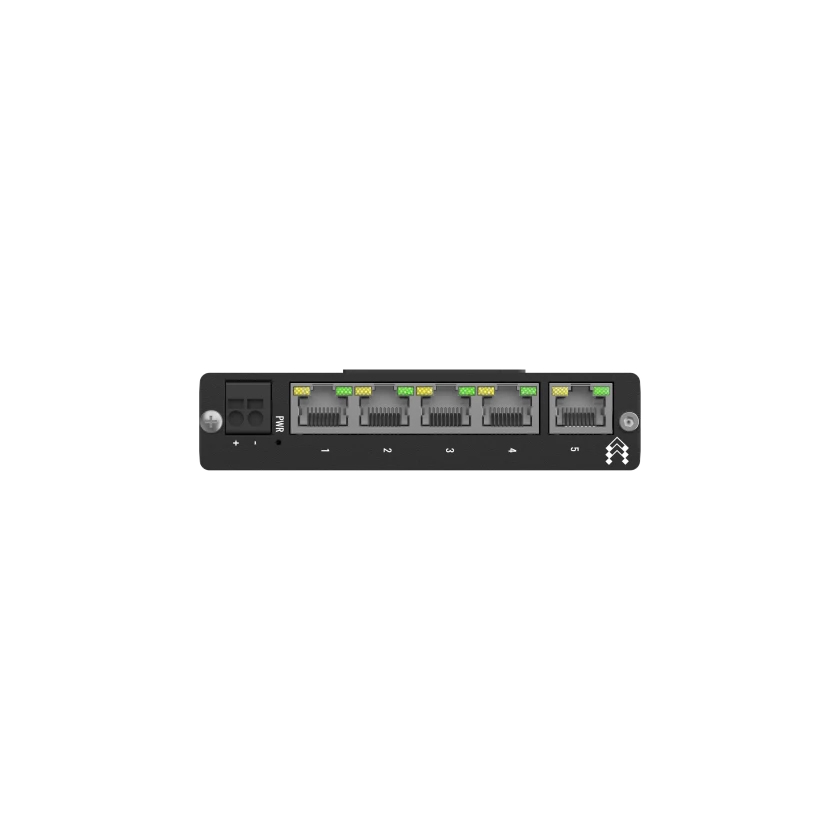

| Interfaces | 5 x RJ-45 |
| Power | |
| Voltage Required | DC 9 - 30 V |
| Power Consumption Operational | 2.3 Watt |
| Miscellaneous | |
| Compliant Standards | IP30 |
| Dimensions & Weight | |
| Width | 11.31 cm |
| Depth | 8.05 cm |
| Height | 2.74 cm |
| Weight | 174 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.3 cm |
| Shipping Depth | 14.8 cm |
| Shipping Height | 7.1 cm |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TSW114000000
General
5-Port
More Details
Product Code
07:135395
EAN Code
4779051840298
Manufacturer
Teltonika
