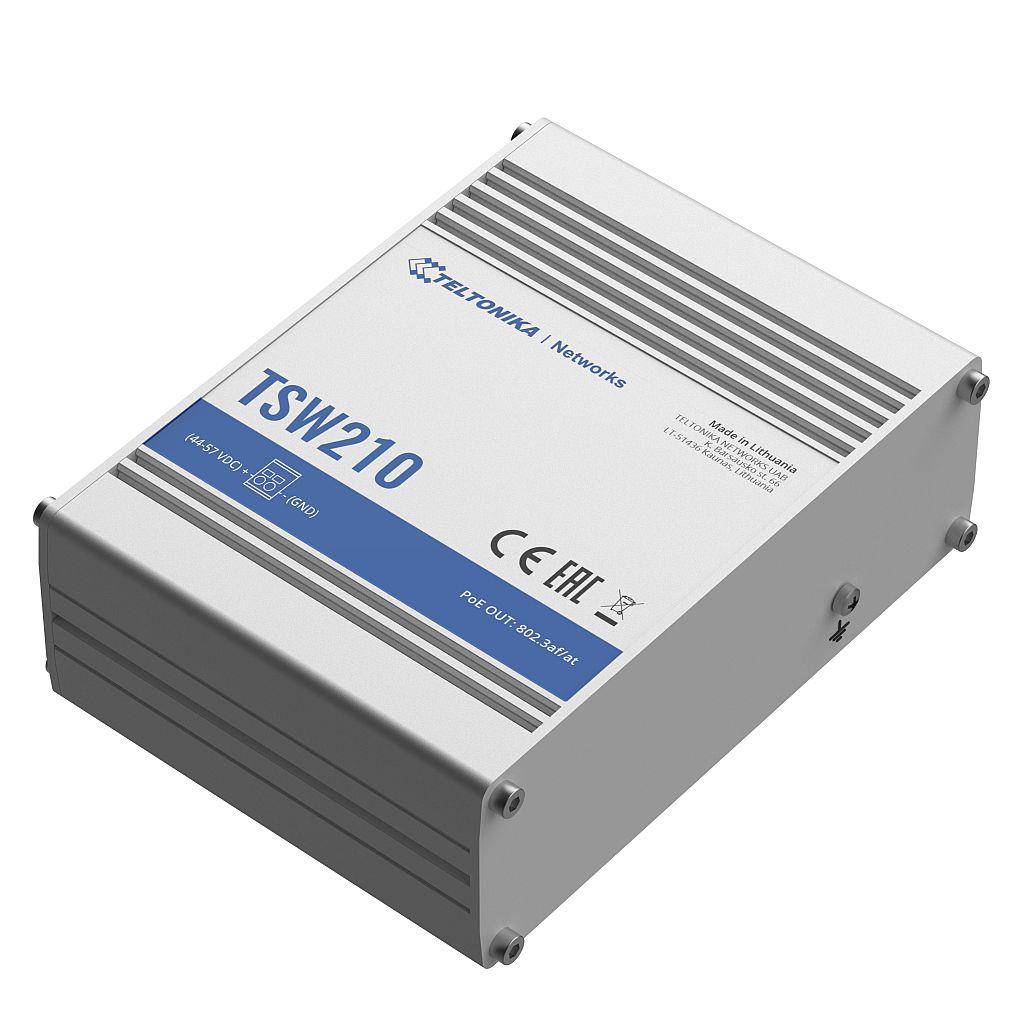

Teltonika TSW210 / Switch / unmanaged / 8 x 10/100/1000 + 2 x SFP / DIN rail mountable, surface-mountable | TSW210000000
Please sign in so that we can notify you about a reply
Special Features
- Ethernet - 8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
- Plug-and-Play - no additional configuration needed
- Mounting - DIN rail and surface mounting options
- SFP - 2 x SFP ports for long-range fiber-optic communication
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x SFP |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Capacity | Packet buffer size: 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), aluminium housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Status Indicators | Power, LAN, SFP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x LAN SFP |
| Power | Power |
| Voltage Required | DC 7 - 57 V |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.2 cm |
| Depth | 9.51 cm |
| Height | 4.42 cm |
| Weight | 456 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TSW210000010
General
8-Port
More Details
Product Code
07:128176
EAN Code
4779051840243
Manufacturer
Teltonika
