Tenda SG105 / Switch / 5 x 10/100/1000 / desktop, wall-mountable | SG105
Description

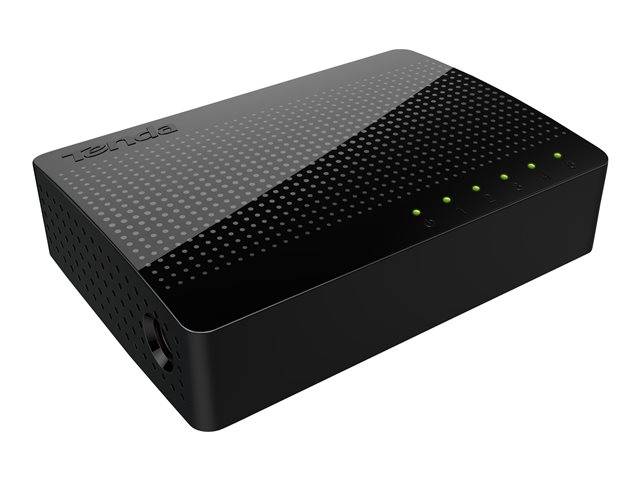

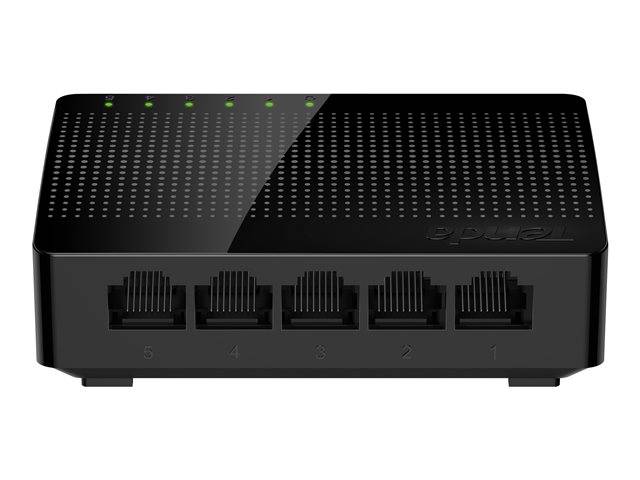

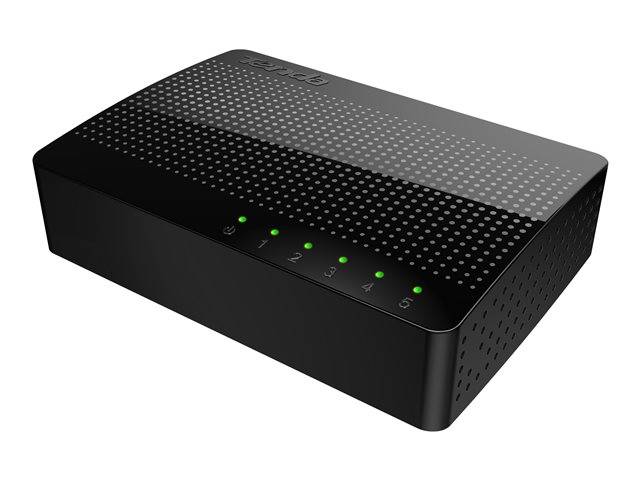

The SG105 is a 5-port Gigabit desktop SOHO switch. It provides 5 auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and video surveillance.
Tenda SG105 / Switch | SG105
Special Features
- Stylish and exquisite design
- No configuration required
Product features
- Stylish and exquisite design
The SG105 is nice and small and won't take up much desk or floor space. You can put the SG105 anywhere as you want and move flexibly. It will fit equally well in any desktop decor. - No configuration required
Wired network is available after plug Ethernet cable in no time effortlessly. No matter you are a tech-savvy enthusiast or a first-time user, the SG105 is super easy and intuitive to setup without time-consuming operations.
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Forwarding rate (10Mbps): 14880 packets per second ¦ Forwarding rate (100Mbps): 148800 packets per second ¦ Forwarding rate: 1488000 packets per second ¦ Switching capacity: 10 Gbps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 15KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 2.5 Watt |
| Compliant Standards | FCC, RoHS |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| Width | 9.6 cm |
| Depth | 6.6 cm |
| Height | 2.3 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Tenda - SG105
General
5-Port
More Details
Product Code
05:SG105
EAN Code
6932849431162
Manufacturer
Tenda
