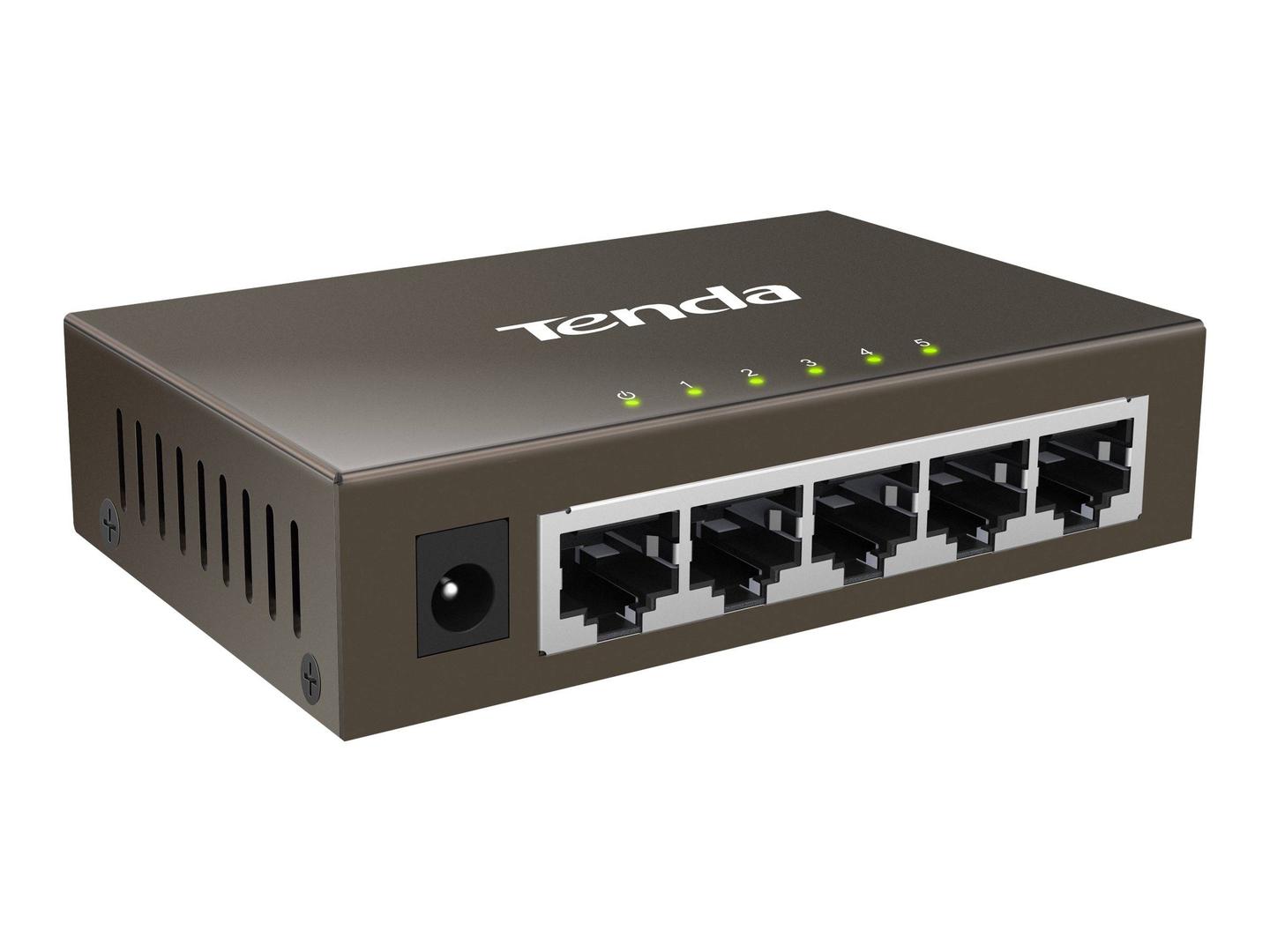

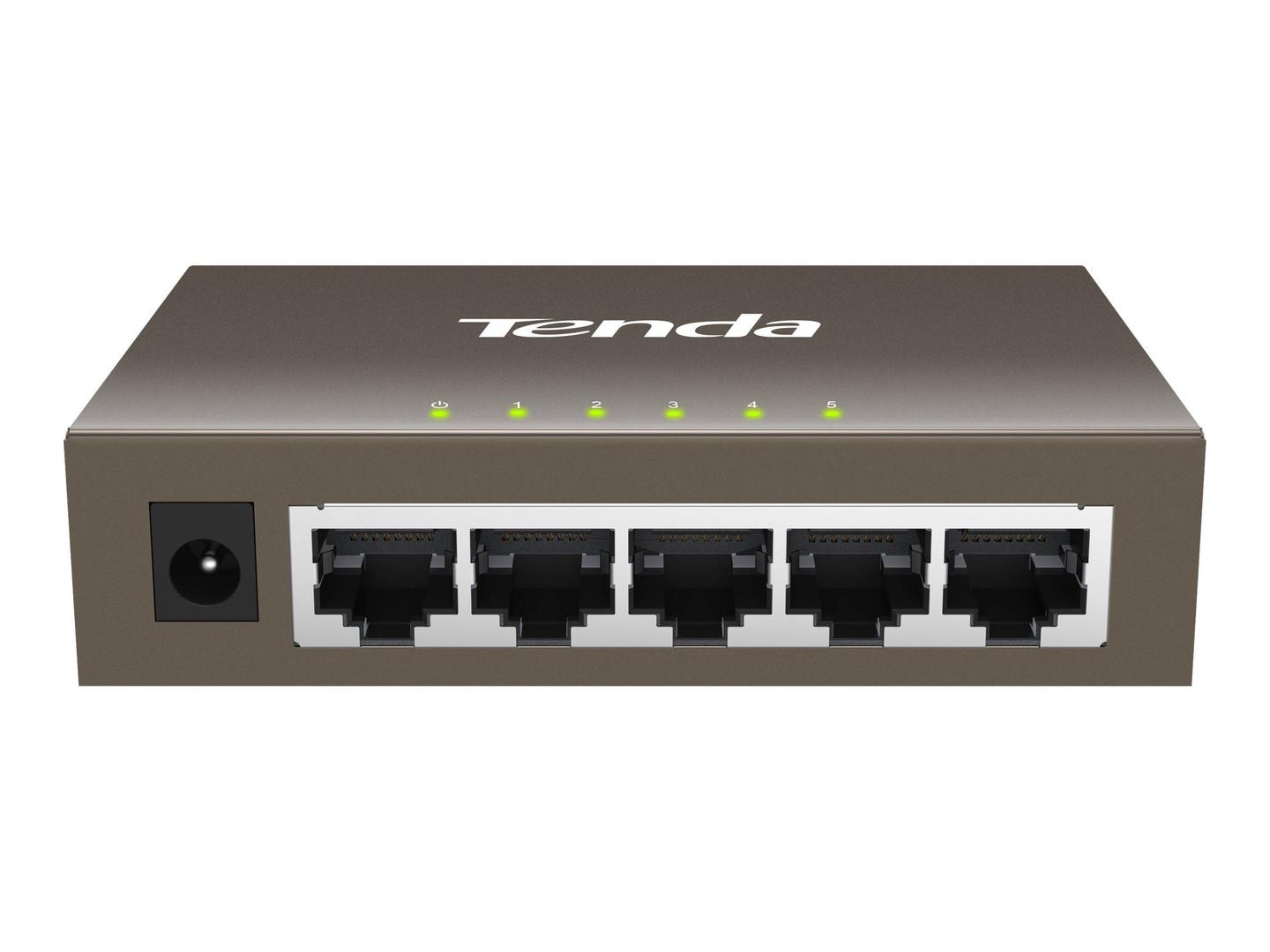

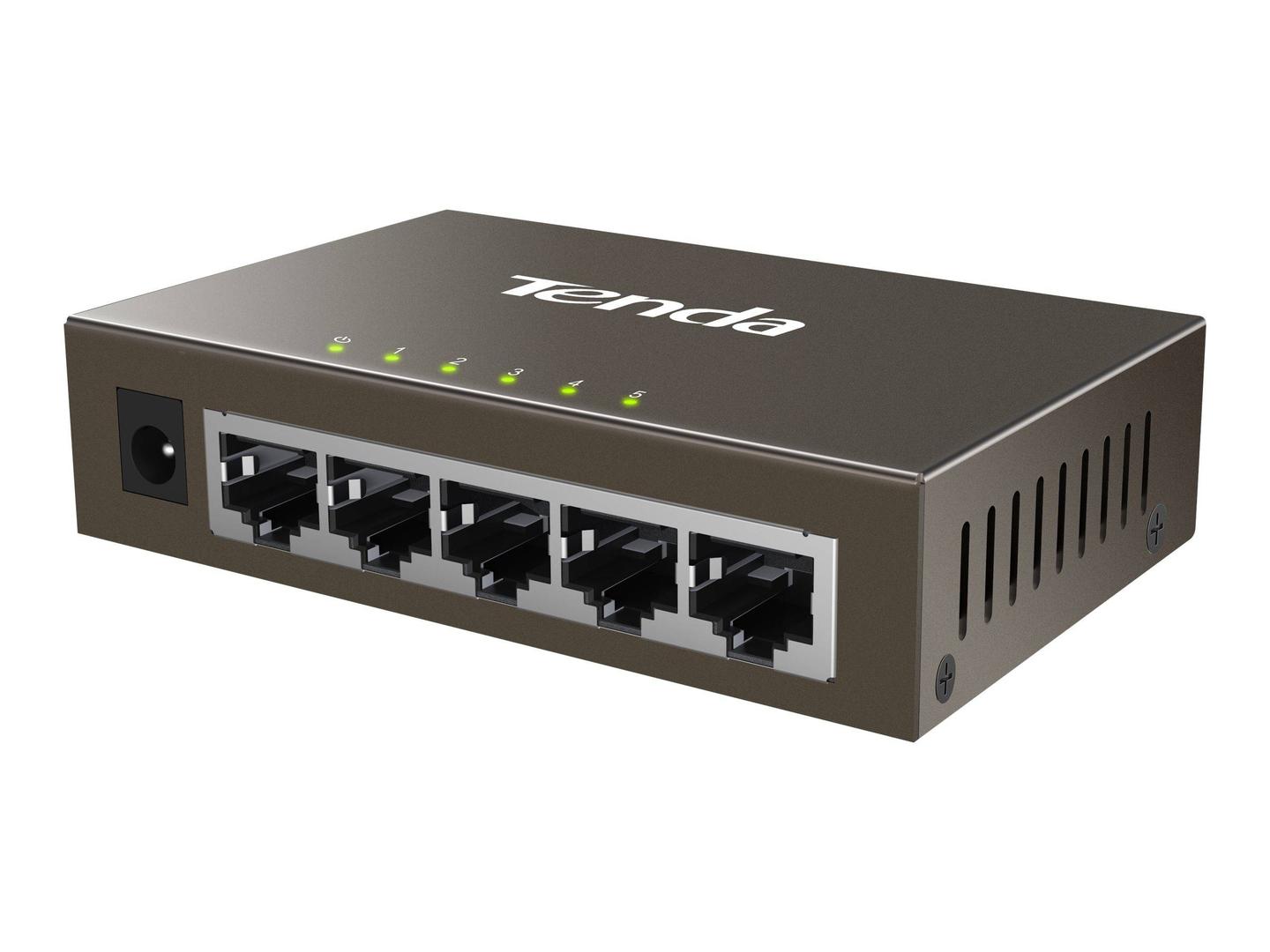

Tenda TEG1005D / Switch / unmanaged / 5 x 10/100/1000 / desktop | TEG1005D
Product Features
- Lightning protection for each port
Integrated with a professional lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability. - Extraordinary heat dissipation
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance. - Stay connected for 7x24 hours
5 10/100/1000Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24 hours. - User-friendly design
RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
Special Features
- Lightning protection for each port
- Extraordinary heat dissipation
- Stay connected for 7x24 hours
- User-friendly design
Product Specification
Device Type | Switch - 5 ports - unmanaged |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 5 x 10/100/1000 |
Performance | Switching capacity: 10 Gbps |
MAC Address Table Size | 2K entries |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, surge protection, wall mountable, fanless, loop prevention, metal housing |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Status Indicators | Power, link/activity |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 5 x 1000Base-T RJ-45 |
Power | Power |
Power Device | External power adapter |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 2.5 Watt |
Miscellaneous | Miscellaneous |
Compliant Standards | Plug and Play, FCC, RoHS |
Software / System Requirements | Software / System Requirements |
OS Required | Apple MacOS, Linux, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits) |
Dimensions & Weight | Dimensions & Weight |
Width | 10 cm |
Depth | 6.4 cm |
Height | 2.5 cm |
Weight | 170 g |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 10.2 cm |
Shipping Depth | 8.1 cm |
Shipping Height | 8.4 cm |
Shipping Weight | 270 g |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
