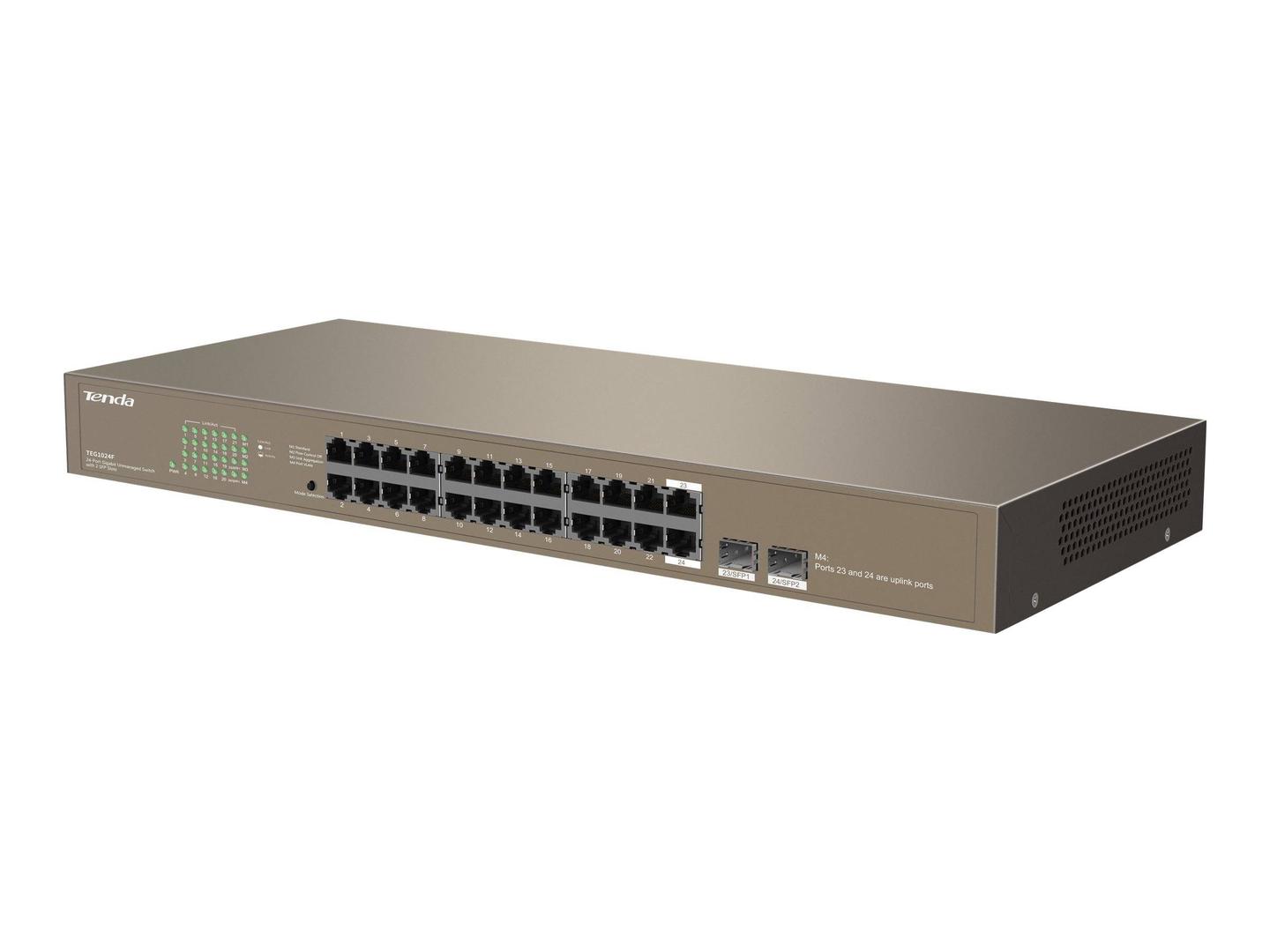

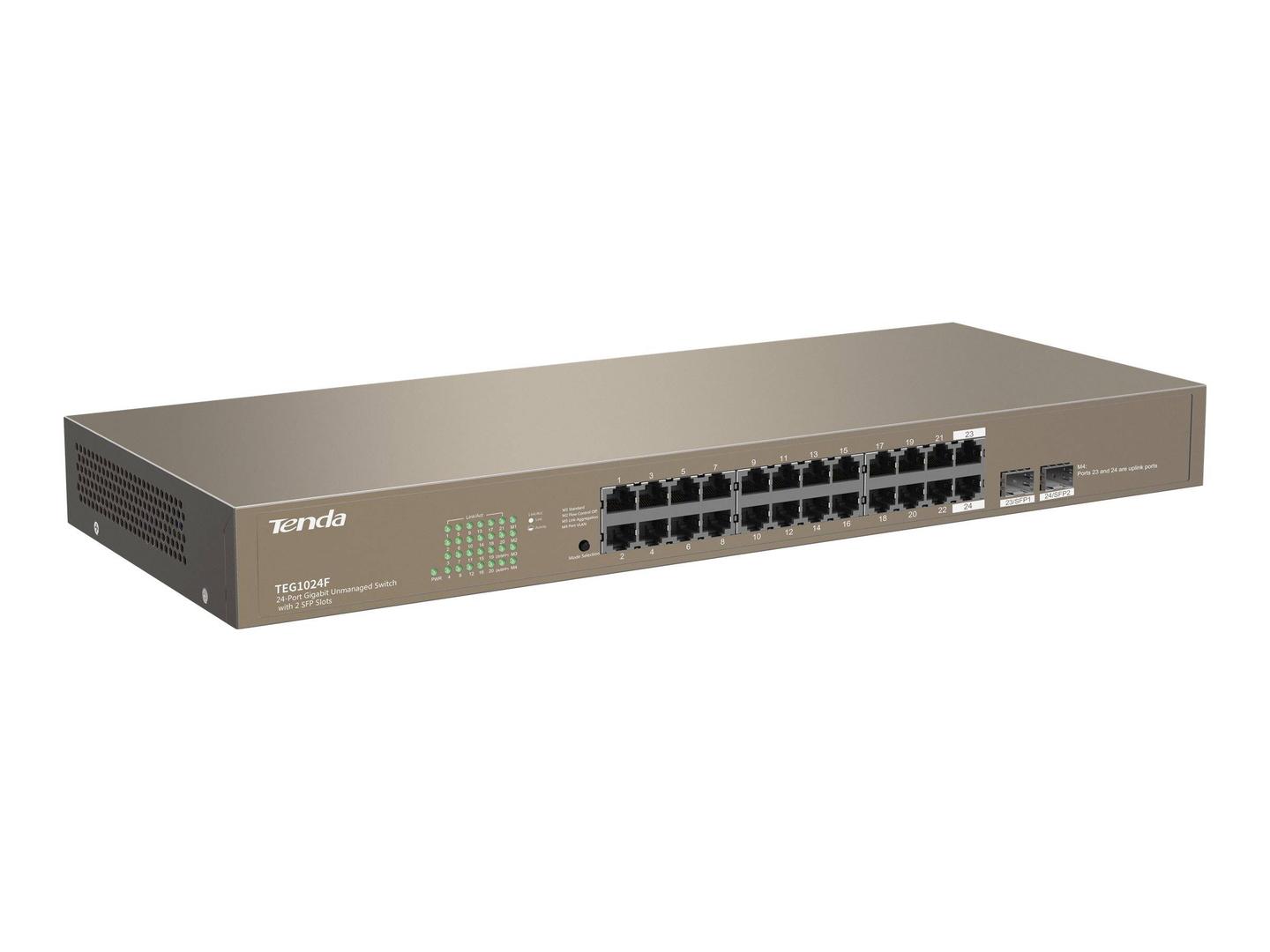

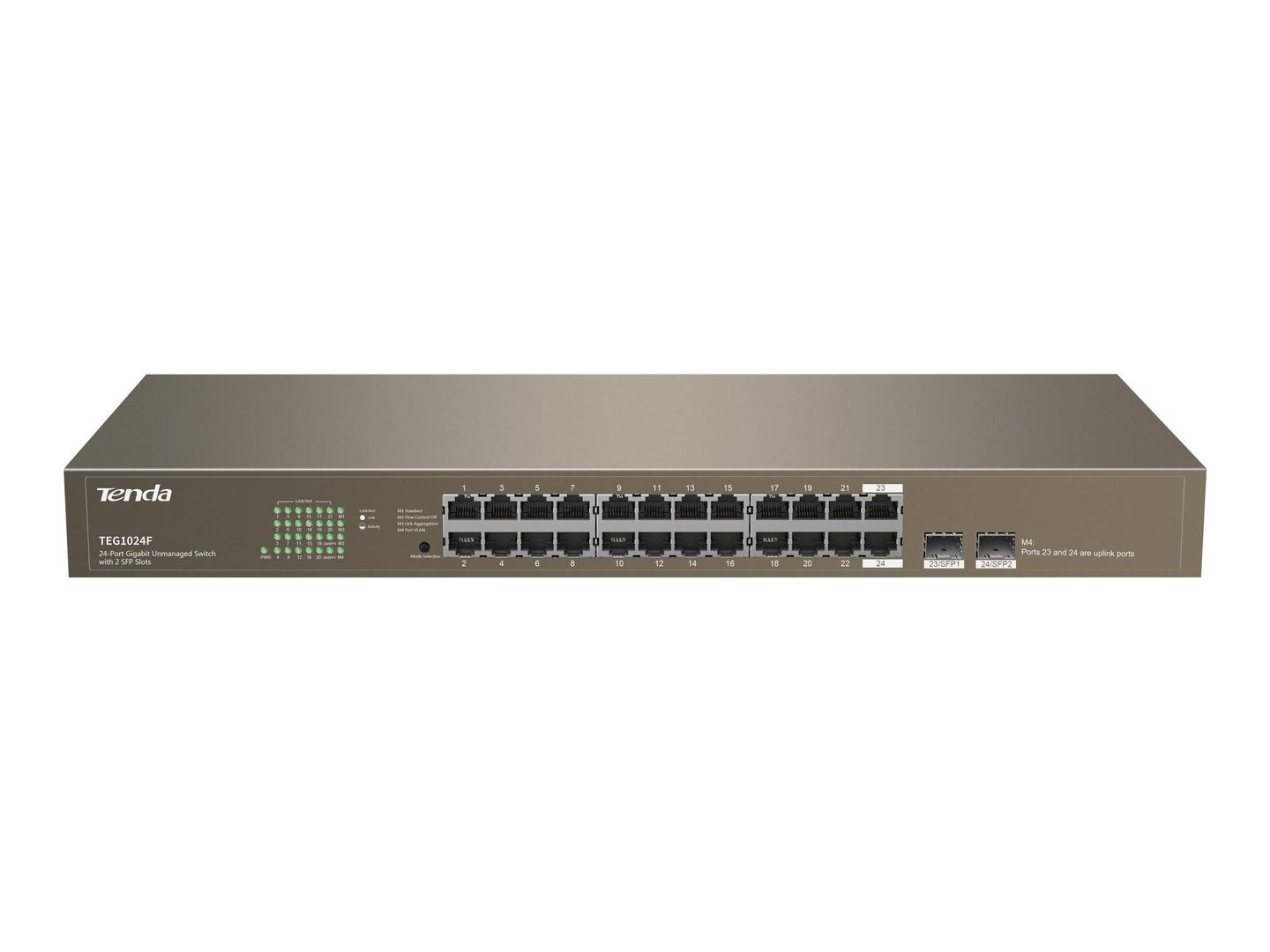

Tenda TEG1024F / Switch / unmanaged / 24 x 10/100/1000 + 2 x combo Gigabit SFP / desktop, rack-mountable | TEG1024F
TEG1024F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Gigabit SFP slots up to 2000 Mbps full-wire speed
TEG1024F provides 24 10/100/1000 Mbps auto-negotiation RJ45 ports, 2 gigabit SFP slots and offers a data rate in full duplex of as high as 2000 Mbps. Working with Tenda SFP modules TEG311SM, the switch supports a maximum transmission distance of as high as 20 km. In addition, a large capacity cache is equipped in the switch and all ports support wire-speed forwarding, ensuring fast transmission of large files, smooth playback of videos and stable connection for 7 24 hours. - Excellent lightning protection
With professional lightning protection circuit, all ports and power supply module feature 6 kV lightning protection, greatly protecting the switch from being damaged by thunder storm. - 4 working modes
Four modes are supported on this switch: Standard, Flow Control Off, Link Aggregation and Port VLAN modes, making it adaptable to multiple scenarios such as surveillance, wireless networking, and network clone in batches.
Special Features
- Gigabit SFP slots up to 2000 Mbps full-wire speed
- Excellent lightning protection
- 4 working modes
- Fanless design
- Steel case with vents on three sides
- Desktop & 19-inchrack-mountable
- Plug & play
Product Specification
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
| Performance | Forwarding performance: 1488000 pps ¦ Switching capacity: 48 Gbps |
| MAC Address Table Size | 8K entries |
| Features | Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward, Link Aggregation, port-based VLAN, 6KV lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 13 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 17.8 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Tenda - TEG1024F
General
24-Port
More Details
Product Code
04:337220
EAN Code
6932849431377
Manufacturer
Tenda
