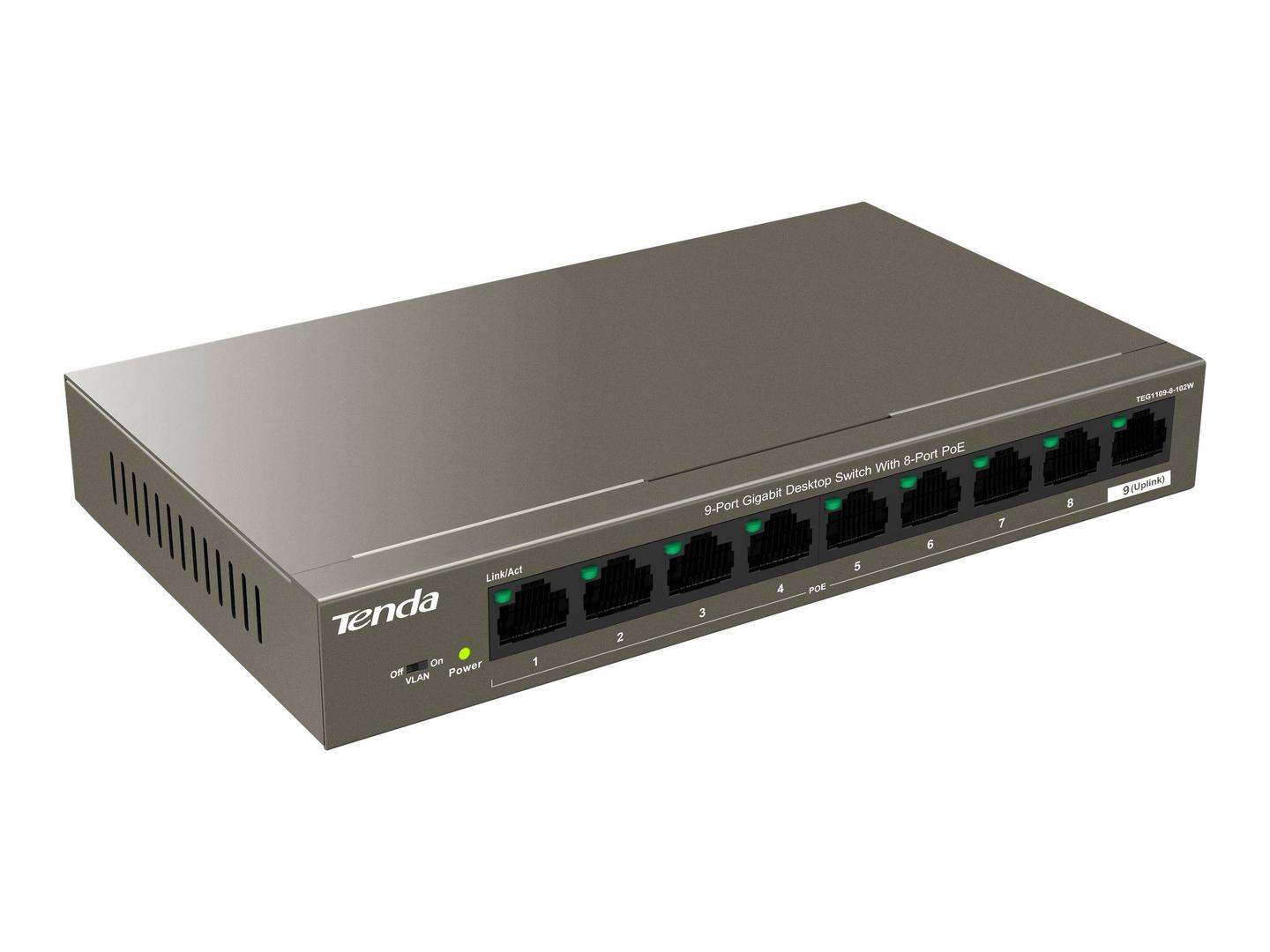

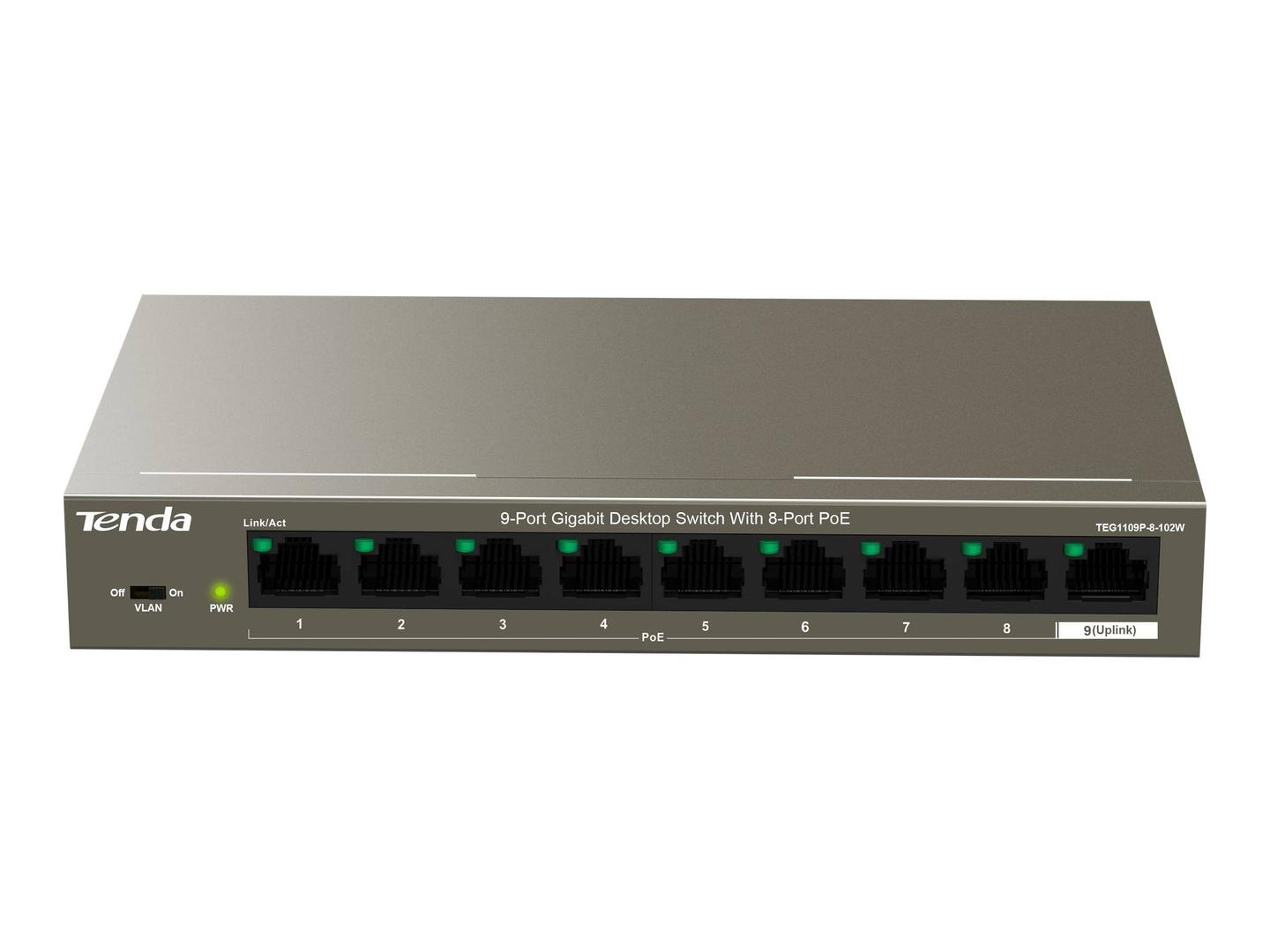

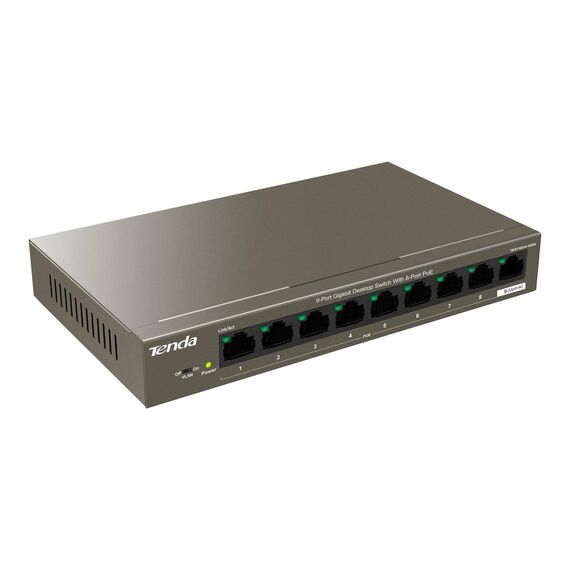

Tenda TEG1109P-8-102W / Switch / unmanaged / 8 x 10/100/1000 (PoE) + 1 x 10/100/1000 (uplink) / desktop / PoE+ (92 W) | TEG1109P-8-102W
TEG1109P-8-102W
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Excellent lightning protection
The switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable. - Outstanding PoE power supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device. - Integrated with smart power management chip makes the switch get rid of overload
It includes chips with smart power management function and integrated professional chip control algorithm, which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the overrun of the equipment and prolong the service life of the equipment.
Special Features
- Excellent lightning protection
- Outstanding PoE power supply
- Integrated with smart power management chip makes the switch get rid of overload
Product Specification
| Device Type | Switch - 9 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 1 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 92 W |
| Performance | Switching capacity: 18 Gbps ¦ Throughput: 13.4 Mpps |
| MAC Address Table Size | 16K entries |
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), store and forward, MAC address filtering, half duplex mode, full duplex mode, wall mountable, MAC address aging, 6KV lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 30 W ¦ 1 x 1000Base-T RJ-45 uplink |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 102 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 50,000 hours |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.75 cm |
| Depth | 10.4 cm |
| Height | 2.6 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Tenda - TEG1109P-8-102W
General
8-Port
More Details
Product Code
04:337111
EAN Code
6932849431506
Manufacturer
Tenda
