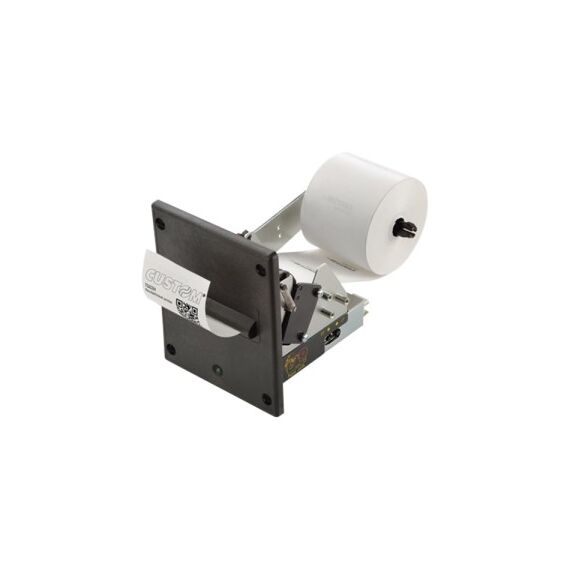

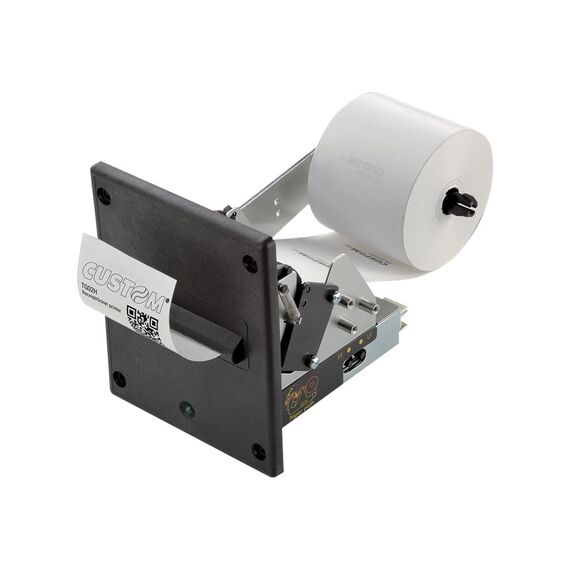

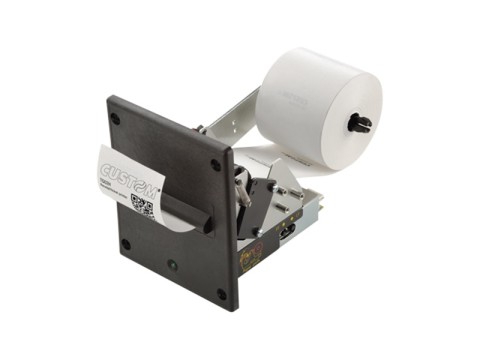

Custom TG02H - Receipt printer - direct thermal - Roll (5.7 cm) - 203 dpi - up to 80 mm/sec - USB, RS232 - cutter | 915HZ010300300
915HZ010300300
Product Code4R50055
ManufacturerCustom
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Best quality print quality (200 DPI)
- Paper width: 57mm
- Printing > 80 mm/sec
- Up to 70mm paper roll diameter
- RS232 + USB interfaces (serial TTL with welding )
- Highly reliable tear off system
- Sensors: head temperature, paper presence, near paper end, anti-jamming
Product Specification
| Printer Type | Receipt printer - direct thermal - monochrome |
| Printer | |
| Print Speed | Up to 80 mm/sec - max speed |
| Built-in Devices | Jam sensor |
| Connectivity Technology | Wired |
| Interface | USB, RS232 |
| Max Resolution (B&W) | 203 dpi |
| Columns | 42, 32, 24 |
| Styles & Effects | Bold, normal, italic, underline, rotated text, negative, enlarged text |
| Features | Paper low sensor, jam detection |
| Cutter | Yes |
| Barcodes | QR code |
| RAM | |
| RAM Installed (Max) | 512 KB |
| Flash Memory | |
| Flash Memory | 4 MB |
| Media Handling | |
| Media Type | Thermal paper |
| Max Media Size | Roll (5.7 cm) |
| Max Media Size (Custom) | 57 mm |
| Media Sizes | Roll (5.7 cm) |
| Max Printing Width | 48 mm |
| Media Weight | 55 g/m² - 60 g/m² |
| Roll Maximum Outer Diameter | 70 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (5.7 cm) |
| Expansion / Connectivity | |
| Connections | USB ¦ RS-232 |
| Miscellaneous | |
| Included Accessories | Roll holder |
| MTBF | 420,000 hour(s) |
| Features | Built-in presence sensor |
| Software / System Requirements | |
| Software Included | Custom PowerTool, Custom PrinterSet |
| OS Required | Linux, Android, Apple iOS, Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Dimensions & Weight | |
| Weight | 330 g |
