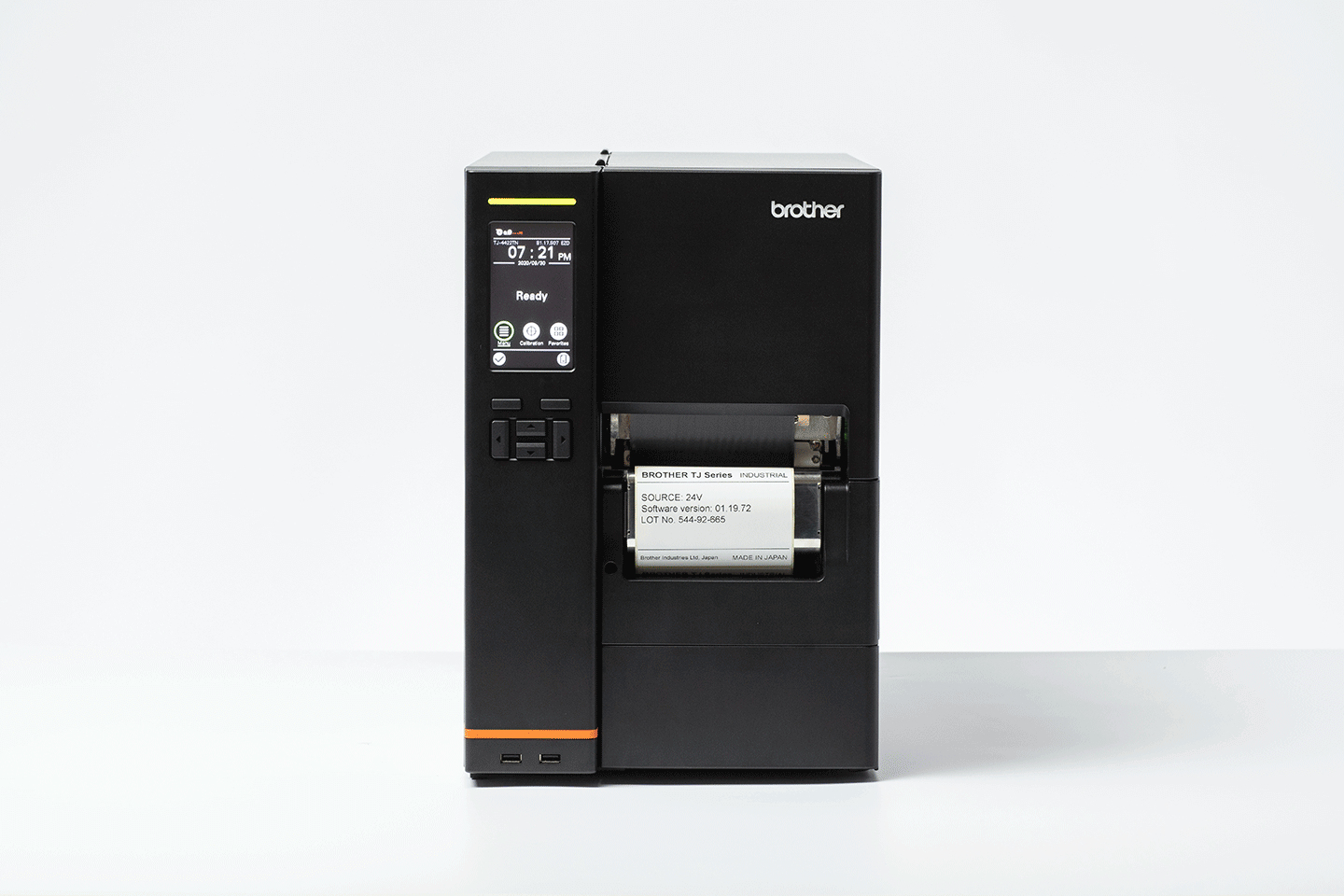

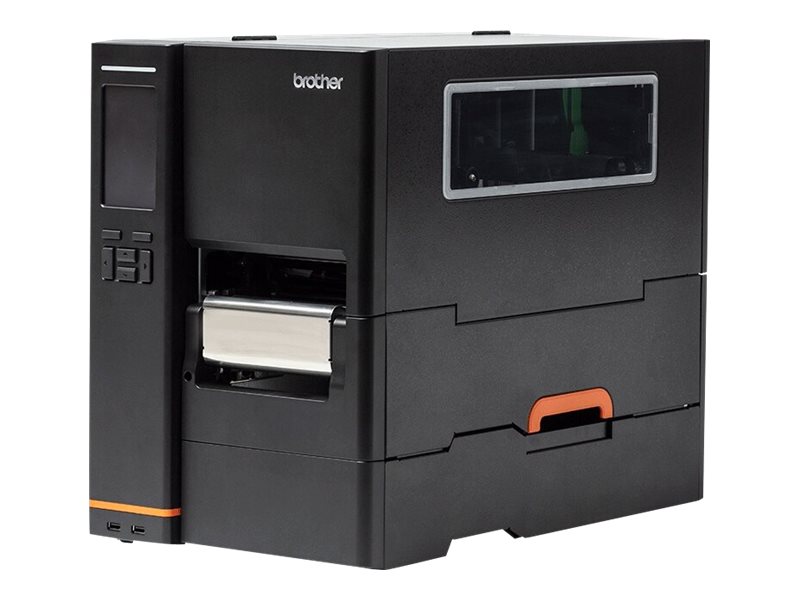

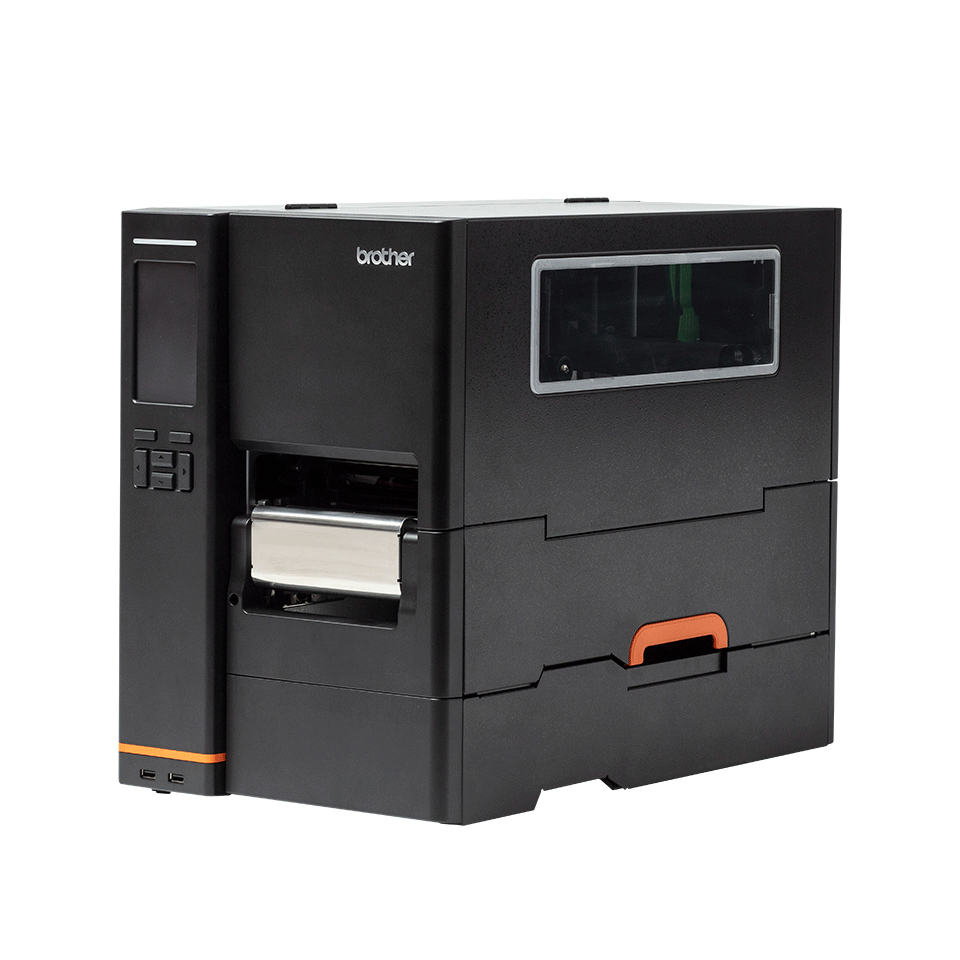

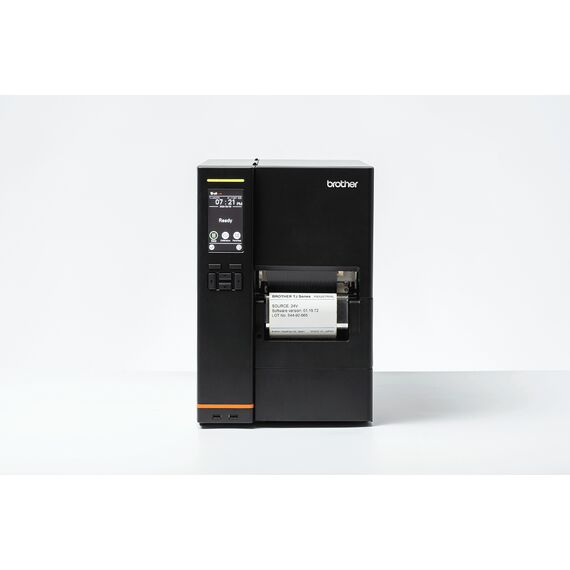

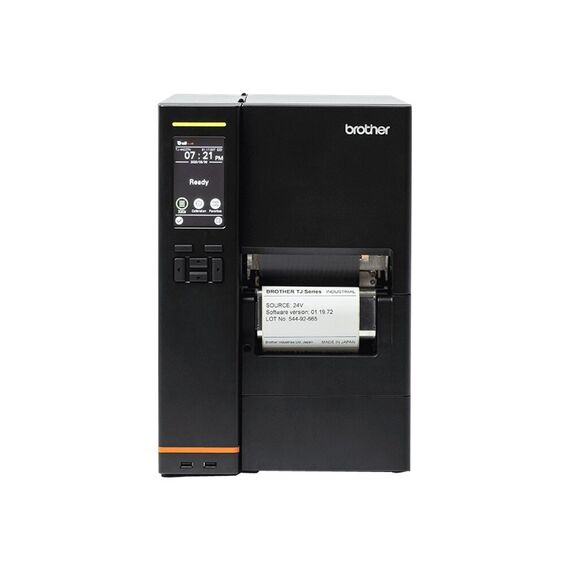

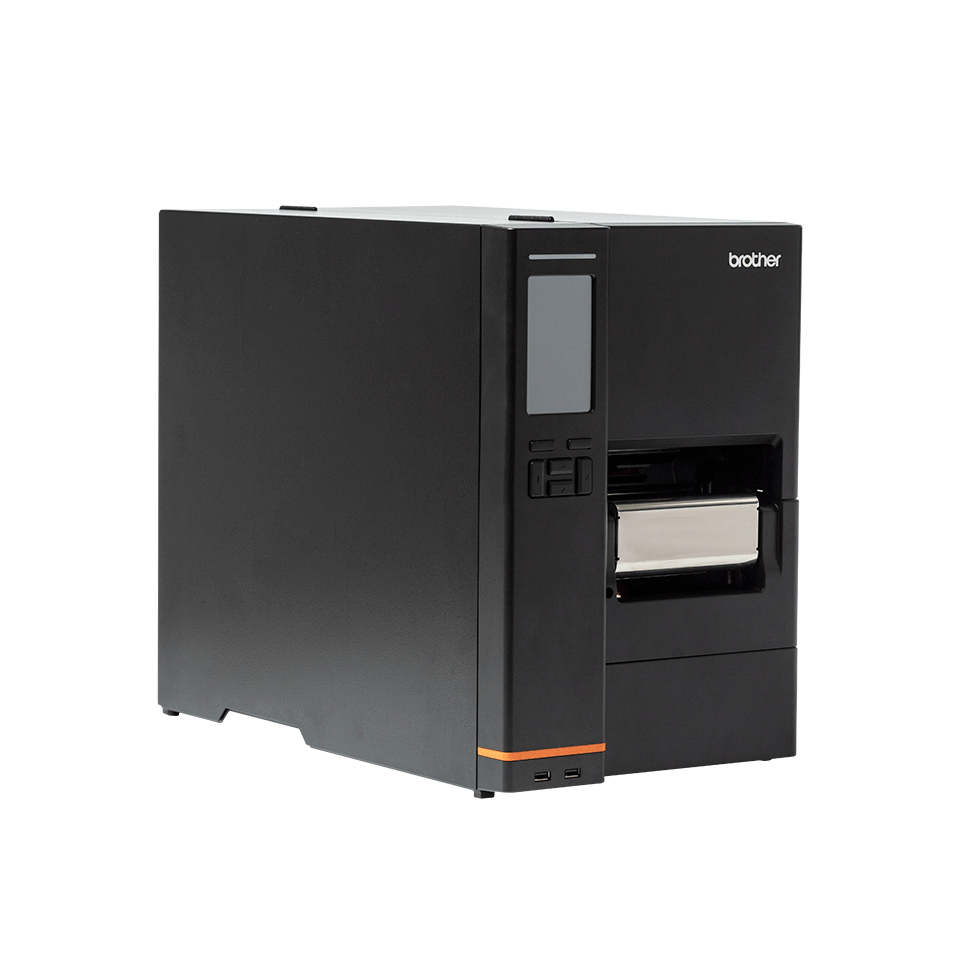

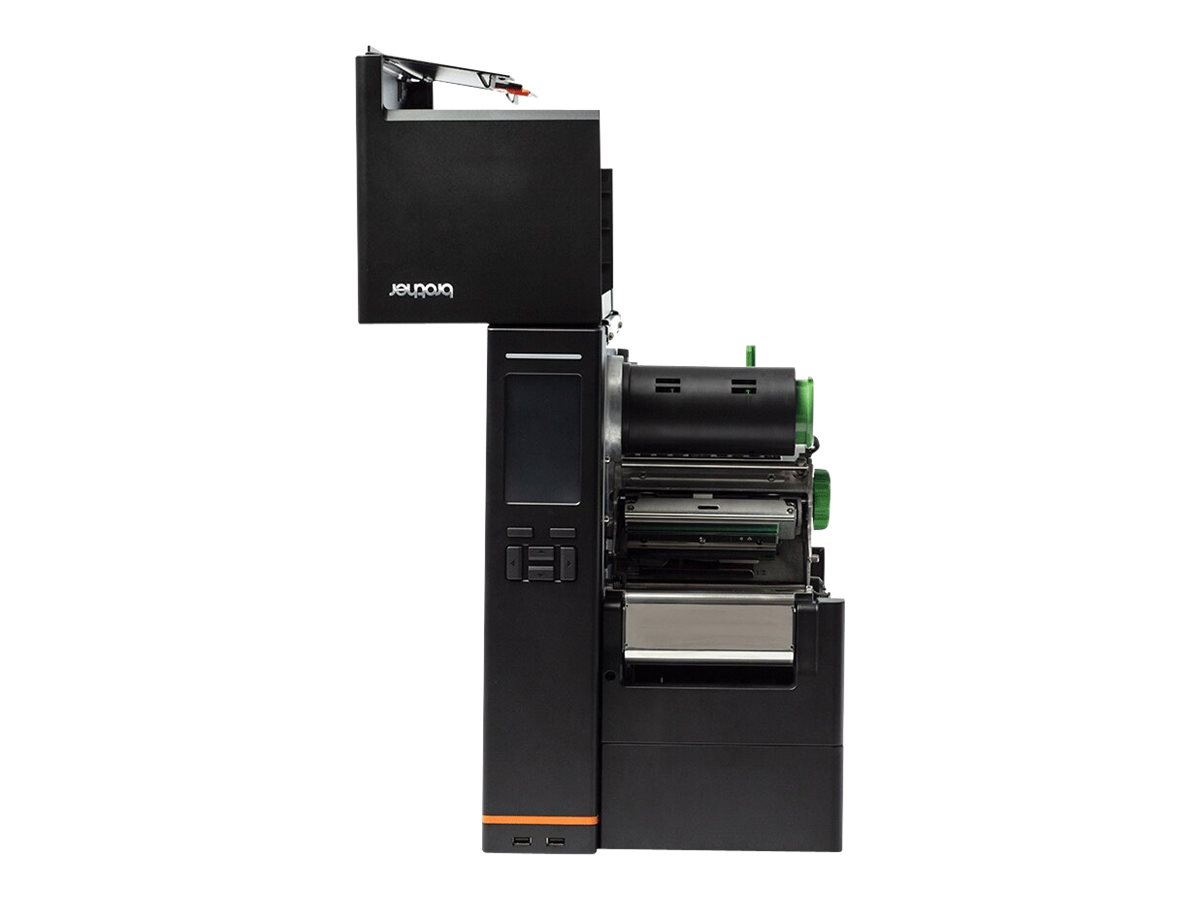

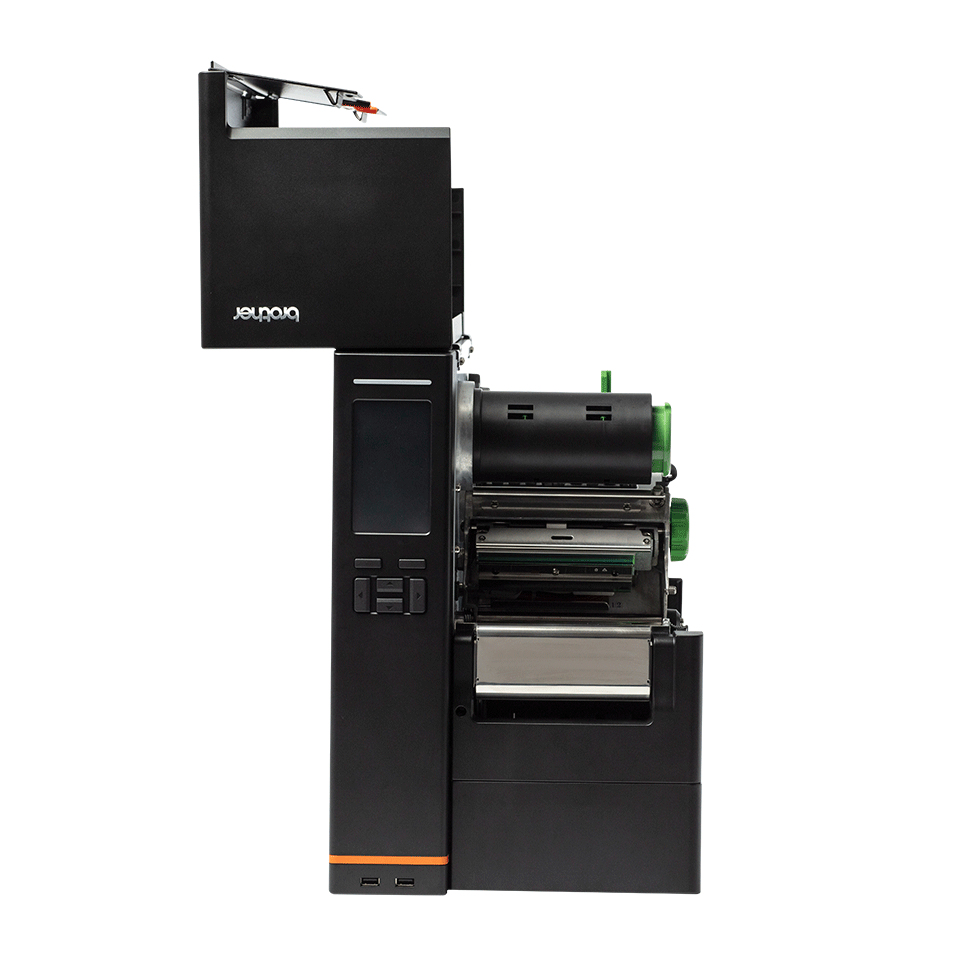

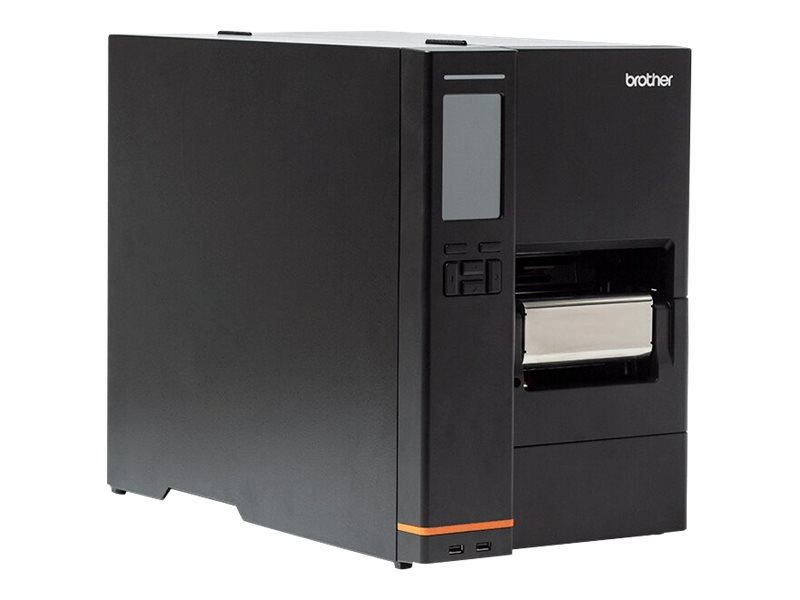

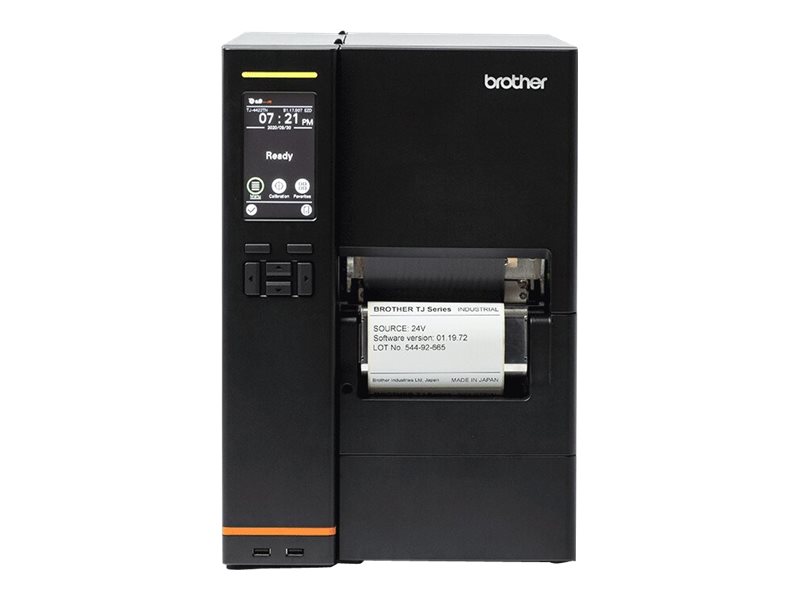

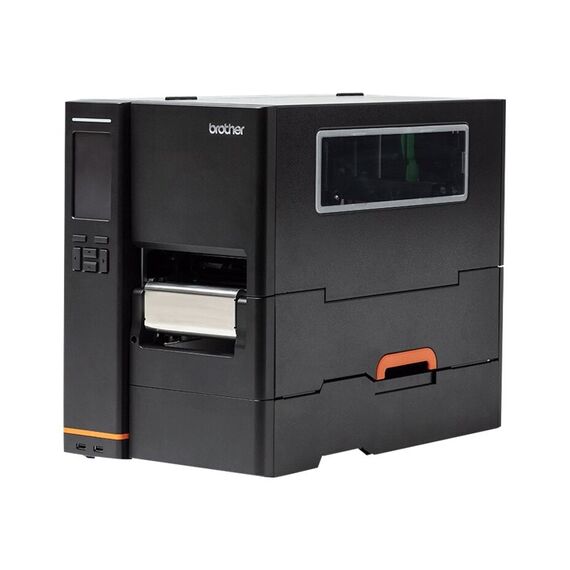

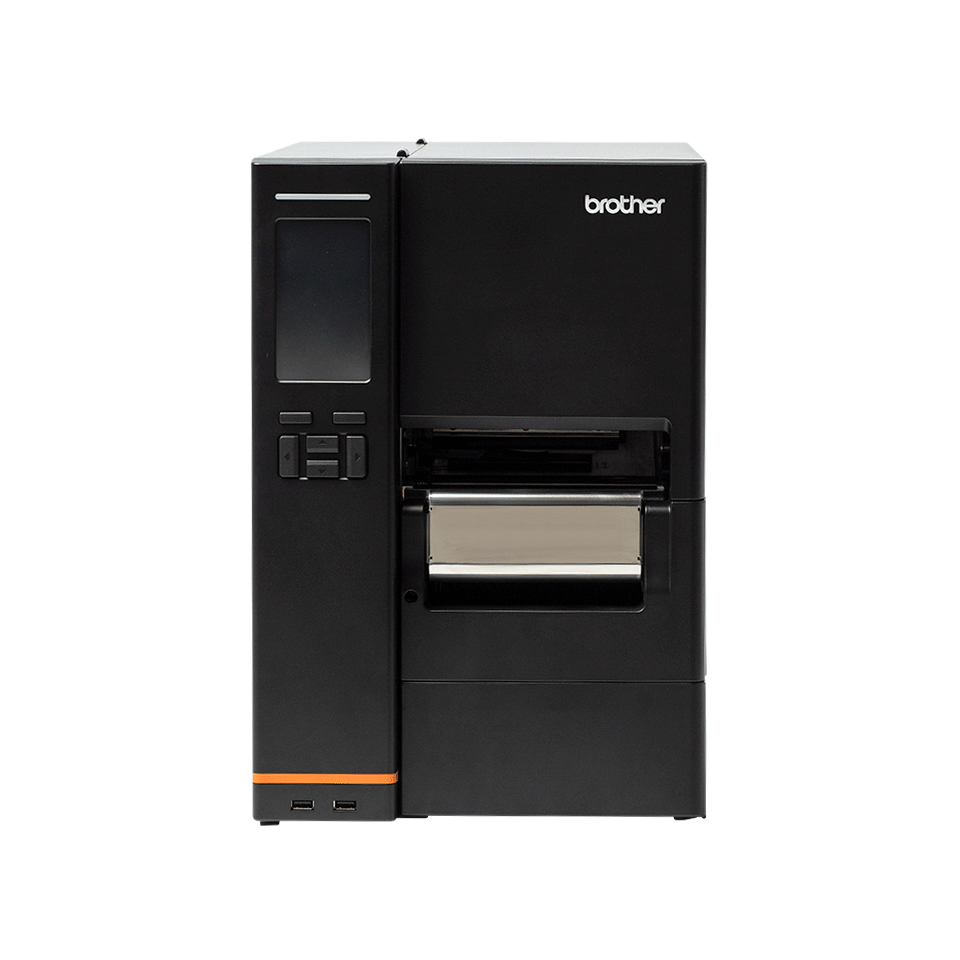

Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm/sec - USB 2.0, LAN, serial, USB host | TJ4522TNZ1
Please sign in so that we can notify you about a reply
Special Fetures
- Various printer command languages supported, including ZPL2 emulation
- Rapid print speeds up to 14 ips (356 mm/sec)
- Automatic internal rewinder
- In-built durability for tough production environments
- Flexible connectivity options with USB, USB Host, Serial, and Ethernet
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 305 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL II, EPL2, DPL, FBPL-EZD |
| Features | Label detection sensor |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, TLC39, China Post, Plessey, EAN-14, ITF-14, EAN-128, EAN-8, EAN-13, MSI |
| RAM | |
| RAM Installed (Max) | 256 MB |
| Flash Memory | |
| Flash Memory | 512 MB |
| Media Handling | |
| Media Type | Continuous labels |
| Max Media Size | Roll (11.4 cm) |
| Max Media Size (Custom) | 114 mm |
| Media Sizes | Roll (11.4 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 11430 mm |
| Networking | |
| Networking | Print server |
| Expansion / Connectivity | |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 ¦ 1 x LAN - RJ-45 ¦ 1 x USB host |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Software / System Requirements | |
| Software Included | Software Development Kit (SDK), Bartender UltraLite (free download) |
| OS Required | Linux, Microsoft Windows 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Android 5.0 or later, Microsoft Windows Server 2016, Apple iOS 9 or later, Microsoft Windows Server 2019, Apple MacOS X 10.11.x or later |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 27.6 cm |
| Depth | 50.2 cm |
| Height | 41.2 cm |
| Weight | 18.93 kg |
Features - Brother - TJ4522TNZ1
More Details
Product Code
CA64847
EAN Code
4977766804660
Manufacturer
Brother
