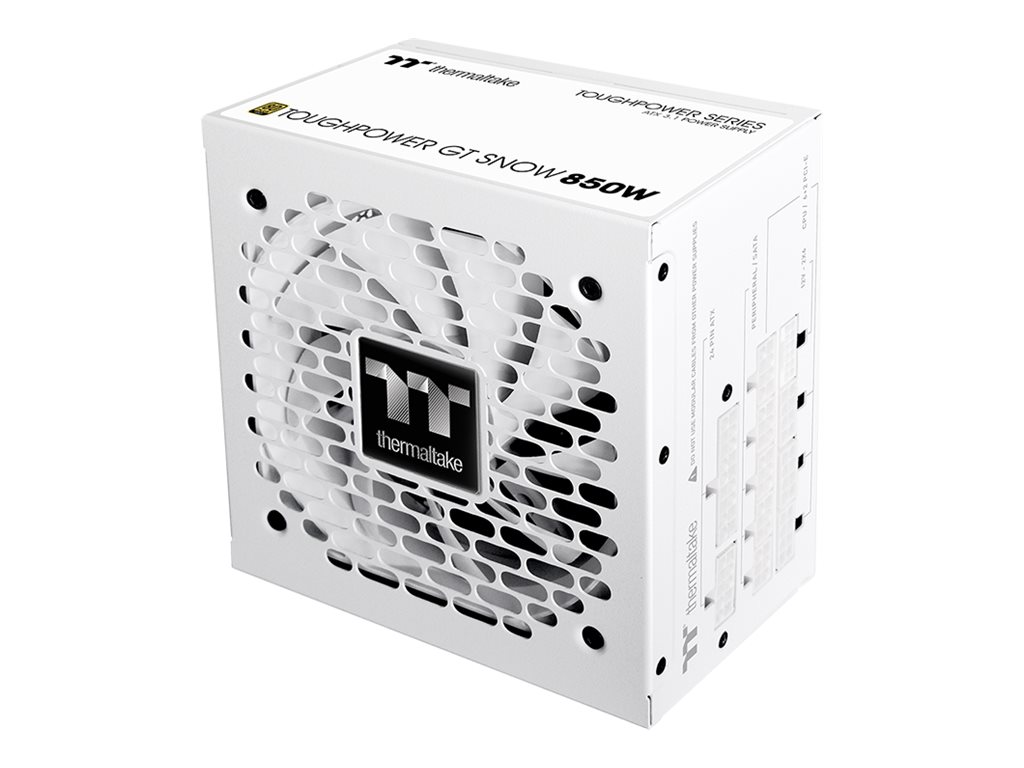

Thermaltake ToughPower GT Snow 850W - Power supply (internal) - ATX12V 3.1/ EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - snow | PS-TPT-0850FNFAGE-W
Please sign in so that we can notify you about a reply
Product Features
- Efficient operation
With an efficiency rating of 90%, this power supply minimizes energy waste and lowers electricity bills while maintaining stable power output. - Robust protection mechanisms
Equipped with overheat, overcurrent, and short-circuit protection, the ToughPower GT Snow ensures that your components are safeguarded during operation. - Flexible modular cables
The power supply comes with a variety of detachable cables, including 2x 8-pin PCI Express, 24-pin ATX, and Serial ATA power cables, facilitating an easy installation process. - Quiet cooling performance
The 120 mm fan offers efficient cooling and operates silently, thanks to the Zero RPM mode that prevents unnecessary noise during low load conditions. - Compatible design
The ToughPower GT Snow adheres to ATX12V 3.1 and EPS12V standards, ensuring compatibility with a wide range of systems and components.
Special Fetures
- Fully modular design allows for customized cable management
- 80 PLUS Gold certification ensures high efficiency and reduced energy costs
- 120 mm hydraulic bearing fan with Zero RPM mode for quiet operation
- Comprehensive safety features protect against power fluctuations
- Supports various connector types for versatile compatibility
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Colour | Snow |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX <br /> 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 4 x 2 x 8 pin PCI Express power with detachable 2 pin section <br /> 6 x 15 pin Serial ATA power <br /> 4 x 4 PIN internal power <br /> 1 x 12VHPWR |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A <br /> +5V - 20 A <br /> +12V - 70.8 A <br /> -12V - 0.3 A <br /> +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cables Included | AC power cable <br /> Power 24 pin ATX with detachable 4 pin section modular cable 55 cm <br /> 2 x power 8 pin +12V with detachable 4 pin section modular cable 70 cm <br /> 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm <br /> 16-pin 12VHPWR power modular cable 60 cm <br /> 2 x 15 pin Serial ATA power modular cable 75 cm <br /> 4 pin power modular cable 85 cm |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Fully modular, over voltage protection, undervoltage correction, over current protection, overpower protection, overheat protection, short-circuit protection, hydraulic bearing cooling fan, Zero RPM fan mode, DC-DC technology, LLC resonant converter technology |
| Compliant Standards | UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S Mark |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Thermaltake - PS-TPT-0850FNFAGE-W
More Details
Product Code
04:521856
EAN Code
4711475648203
Manufacturer
Thermaltake
