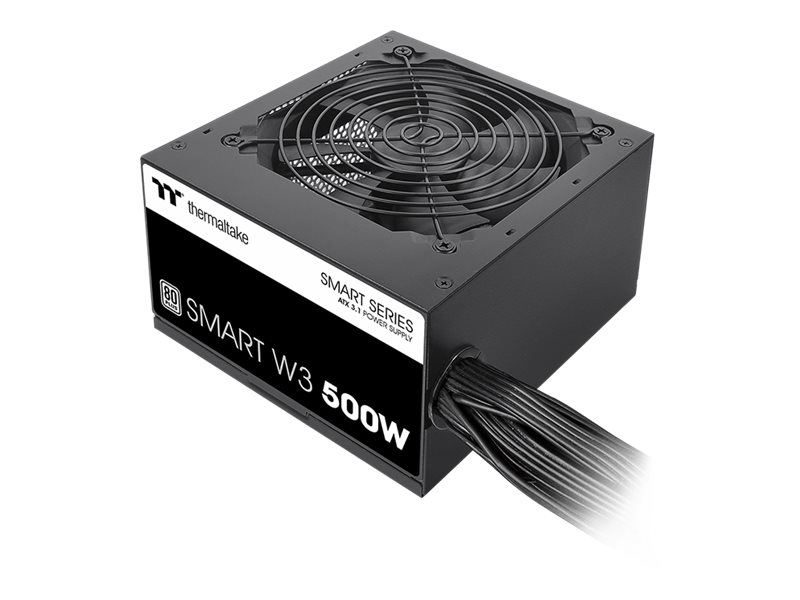

Thermaltake SMART W3 500W - Power supply (internal) - ATX12V 3.1/ EPS12V - 80 PLUS - AC 100-240 V - 500 Watt - active PFC - black | PS-SPW-0500NNFAWE-1
Please sign in so that we can notify you about a reply
Product Features
- Efficient cooling
The Thermaltake SMART W3 500W features a 120 mm fluid dynamic bearing cooling fan, ensuring efficient heat dissipation and maintaining optimal performance even under high loads. - Reliable power
With an 80 PLUS certification, this power supply offers energy efficiency, reducing electricity usage and operational costs. Its robust design includes overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage correction protections, ensuring a reliable power source for your PC. - Modular design
The modular cable management system allows for a clean and organized build, improving airflow and aesthetics inside the PC case. This flexibility makes it easier to install and manage cables, enhancing the overall building experience. - Wide compatibility
Designed to support a variety of PC and server builds, the Thermaltake SMART W3 500W is compatible with ATX12V 3.1/ EPS12V specifications and includes multiple connectors to ensure compatibility with a wide range of components. - Stable performance
Featuring a single 12V rail and active Power Factor Correction (PFC), it delivers stable and consistent power to all components, supporting Intel C6/C7 sleep states for energy efficiency.
Special Fetures
- 120 mm fluid dynamic bearing cooling fan for efficient heat dissipation
- 80 PLUS certified for energy efficiency
- Modular cable management for a clean build
- Supports ATX12V 3.1/ EPS12V specifications for wide compatibility
- Comprehensive protection features for reliable power
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 16 A ¦ +5V - 16 A ¦ +12V - 41.67 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| 80 PLUS Certification | 80 PLUS |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, DC-DC technology, fluid dynamic bearing cooling fan, undervoltage correction, Intel C6/C7 Sleep State compatible |
| Compliant Standards | CB, FCC, ICES, cTUVus |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
