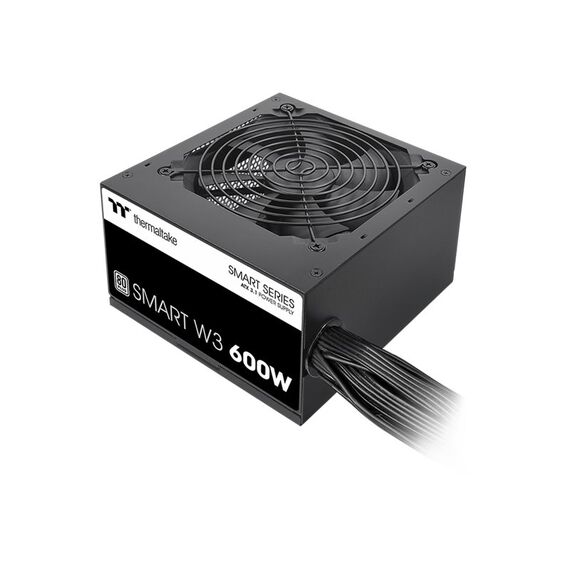

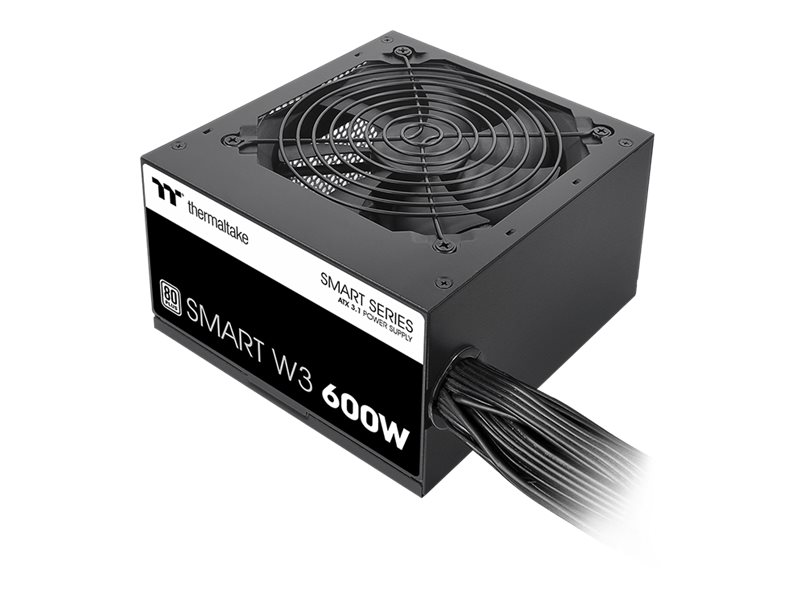

Thermaltake SMART W3 600W - Power supply (internal) - ATX12V 3.1/ EPS12V - 80 PLUS - AC 100-240 V - 600 Watt - active PFC - black | PS-SPW-0600NNFAWE-1
Please sign in so that we can notify you about a reply
Product Features
- Efficient cooling
Equipped with a 120 mm fan featuring fluid dynamic bearing technology, this power supply ensures optimal cooling and quieter operation, enhancing the longevity of your system components. - Reliable power delivery
With a single 12V rail design and DC-DC technology, the Thermaltake SMART W3 600W provides stable and reliable power to all your PC components, supporting even demanding setups. - Comprehensive protection
Featuring overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage correction, this power supply offers robust protection for your system, ensuring peace of mind during its operation. - Modular cable management
The modular cable management system allows you to use only the cables you need, helping to reduce clutter and improve airflow within your PC case. - High compatibility
Compliant with ATX12V 3.1/ EPS12V specifications and featuring a variety of connectors, including power 24 pin ATX with detachable 4 pin section and 8 pin PCI Express power with detachable 2 pin section, this power supply is compatible with a wide range of PC/Server configurations.
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 16 A ¦ +5V - 16 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| 80 PLUS Certification | 80 PLUS |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, DC-DC technology, fluid dynamic bearing cooling fan, undervoltage correction, Intel C6/C7 Sleep State compatible |
| Compliant Standards | CB, FCC, ICES, cTUVus |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Thermaltake - PS-SPW-0600NNFAWE-1
More Details
Product Code
04:486416
EAN Code
4711475645394
Manufacturer
Thermaltake
