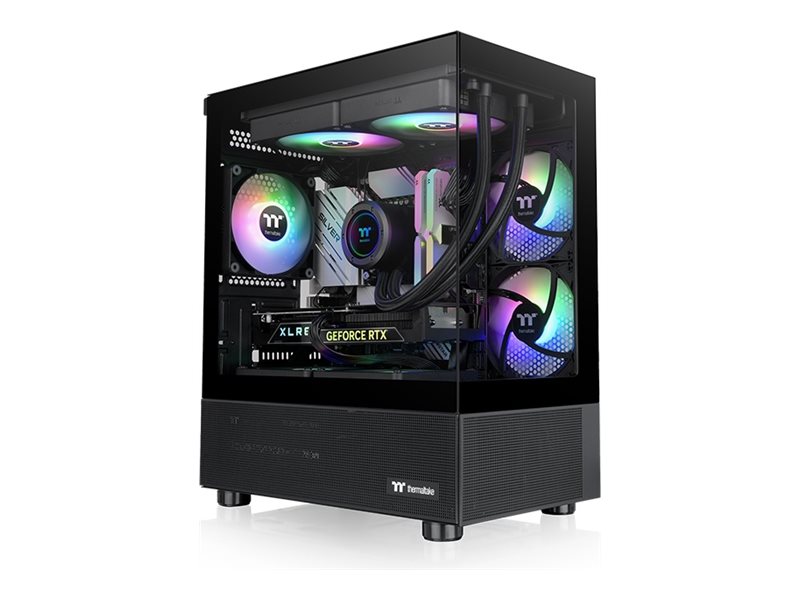

Thermaltake View 170 TG ARGB - Micro case - micro ATX - windowed side panel (tempered glass) - no power supply (PS/2) - black - USB/Audio | CA-1Z4-00M1WN-00
Product Features
- Elegant design
The Thermaltake View 170 TG ARGB features a tempered-glass front panel and a windowed side panel made of tempered glass, offering a sleek look that showcases the internal components and lighting. - Advanced cooling
Equipped with ARGB fans and support for up to 2 x 120/140 mm fans or a 120/140/240/280 mm radiator on the top, plus additional fan mounts on the right side and PSU shroud, this micro case ensures optimal cooling for high-performance setups. - Versatile compatibility
This chassis supports micro ATX and Mini-ITX motherboards, offering flexibility for various system builds. It's also compatible with major RGB lighting synchronization technologies, including ASUS Aura Sync RGB, MSI RGB Mystic Light Sync, and more, allowing for a customized lighting experience. - Efficient organization
With a PSU cover and bottom dust filter, the Thermaltake View 170 TG ARGB keeps the interior neat and dust-free. The case also features a top panel dust filter for additional protection against dust. - Ample expansion
The case provides several expansion options with 3 internal bays for 2.5" or 3.5" drives, and 4 expansion slots, accommodating a wide range of storage and expansion needs.
Special Fetures
- Tempered-glass front and side panels for a sophisticated look
- ARGB fans with support for major RGB synchronization technologies
- Supports micro ATX and Mini-ITX motherboards for versatile build options
- PSU cover and dust filters for a clean setup
- Ample expansion with internal bays and expansion slots
Product Specification
Form Factor | Micro case |
Windowed Side Panel | Yes |
Windowed Side Panel Material | Tempered glass |
Max Mainboard Size | Micro ATX |
Supported Motherboards | microATX, Mini-ITX |
Internal Bays Qty | 3 |
Product Material | SPCC |
Colour | Black |
Cooling System | Rear: 120 x 120 x 25 mm fan x 1 / exhaust / 1000 rpm / 22.3 dBA / 1 x 120 mm fan or 1 x 120 mm radiator supported ¦ Top: fan mount / 2 x 120/140 mm fan or 120/140/240/280mm radiator supported ¦ Right side: 120 x 120 x 25 mm fan x 2 / intake / 22.3 dBA / 2 x 120 mm fan supported ¦ PSU shroud: fan mount / 2 x 120 mm fan supported |
CPU Cooler Max Height | 160 mm |
Video Card Max Length | 340 mm |
Power Supply Max Length | 180 mm |
System Cabinet Features | Top panel dust filter, bottom dust filter, tempered glass front panel, ARGB fans, Gigabyte RGB Fusion 2.0 Ready, PSU cover, compatible with MSI RGB Mystic Light Sync, compatible with ASUS Aura Sync RGB illumination, compatible with ASRock Polychrome SYNC |
Expansion / Connectivity | |
Expansion Bays | 1 (total) / 1 (free) x internal - 3.5" ¦ 2 (total) / 2 (free) x internal - 2.5" |
Expansion Slots | 4 |
Interfaces | 2 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
Miscellaneous | |
Included Accessories | 5 zip ties |
Compliant Standards | FCC, RoHS, WEEE, UKCA |
Power | |
Power Device | No power supply |
Specification Compliance | PS/2 |
Max Supported Qty | 1 |
Dimensions & Weight | |
Width | 21.2 cm |
Depth | 37.75 cm |
Height | 43.8 cm |
Weight | 6.35 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
