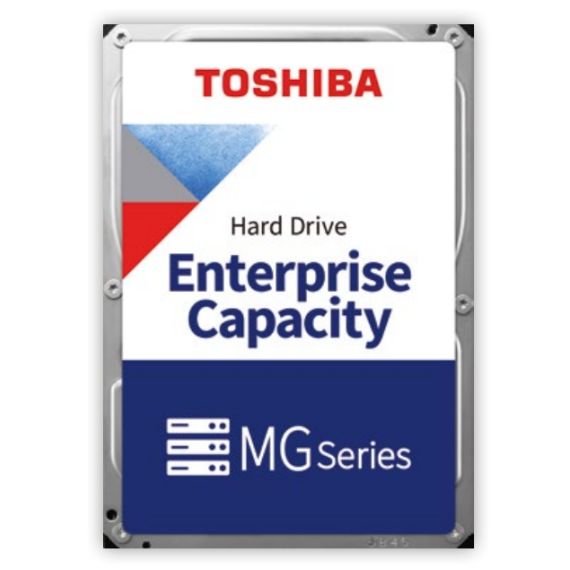

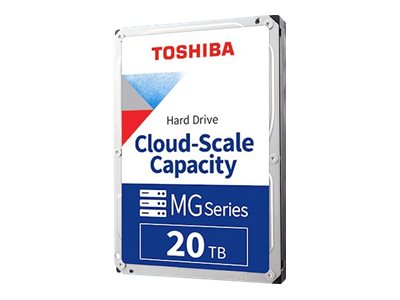

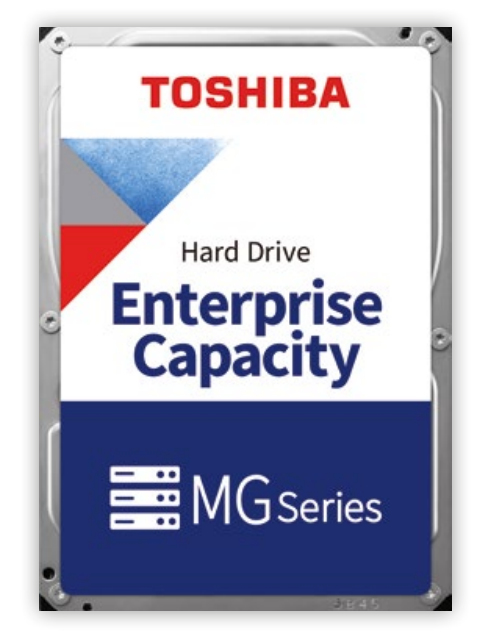

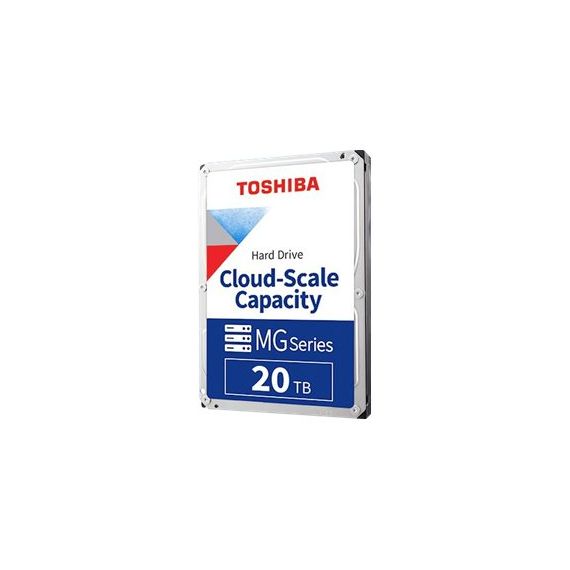

Toshiba MG10 Series MG10SCA20TE - Hard drive - Enterprise - 20 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB | MG10SCA20TE
MG10SCA20TE
Product CodeCG71399
EAN Code4260557512500
ManufacturerToshiba
Form FactorInternal, 3.5"
Μέγεθος20TB
InterfaceSAS
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Massive capacity
Up to 20 TB of Conventional Magnetic Recording (CMR) capacity. Available in SATA models with 512e Advanced Format Sector technology. - Enterprise grade reliability
Includes Toshiba Persistent Write Cache technology for data-loss protection in sudden power-loss events. - Industry leading mechanical design
10-disk design for superior storage density. - Toshiba Precision Laser Welding technology
Seals helium inside the 10-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile. - Lower Total Cost of Ownership (TCO)
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.
Special Fetures
- Up to 20TB capacity
- Conventional Magnetic Recording (CMR) for broad compatibility
- Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) technology
- Industry-leading 10-disk helium-sealed design for superior storage density
- Industry standard 3.5-inch 26.1 mm height Form Factor
- 7200rpm performance
- SATA 6.0Gbit/s interfacess
- Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
- Power efficiency improvements vs. prior MG Series generations
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 20 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Buffer Size | 512 MB |
| Features | Persistent Write Cache technology, Helium Sealed-Drive Design, Flux Control Microwave Assisted Magnetic Recording (FC-MAMR), workload up to 550 TB per year, Conventional magnetic recording (CMR), advanced format 512e, 24x7 continuous operation |
| Weight | 720 g |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 268 MBps |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 9.3 Watt (active (typical)) <br /> 4.38 Watt (idle) <br /> 8.11 Watt (random read/write) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 50 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Sound Emission | 32 dB |
