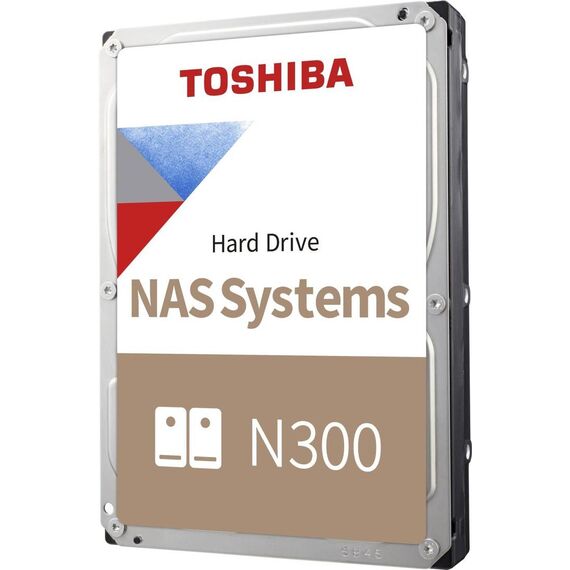

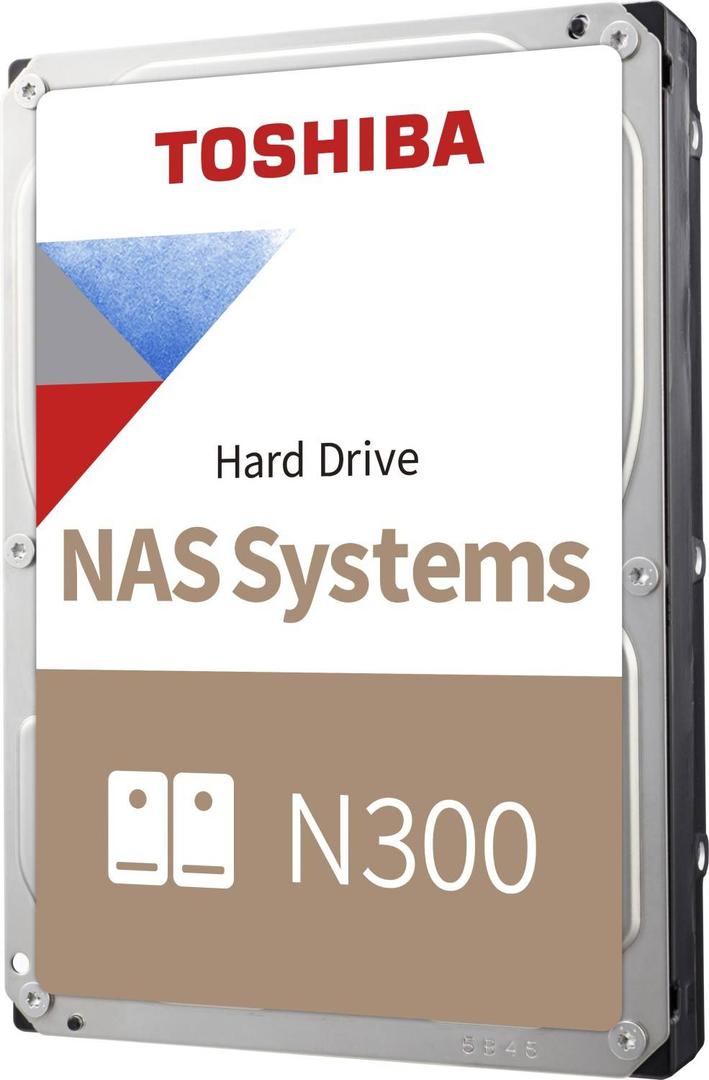

Toshiba N300 NAS / Hard drive / 18 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB | HDWG51JUZSVA
Product Features
- Designed for NAS
Through its contact with NAS manufacturers, Toshiba recognizes the need for high-reliability disks in support of modern data storage and retrieval demands including streaming, backup and archiving. The drive, which can support multi-RAID systems with up to 8 hard disk drives, allows large volumes of data to be reliably stored and accessed by multiple clients 24 hours a day, 365 days a year. - Integrated RV sensors
Regular hard disk drives without RV sensors can affect the performance of a multi-bay NAS System by generating 'knock-on' vibration. N300 drives ensure high reliability by minimizing vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay NAS configuration systems. - Reliable always-on operation
NAS systems in small businesses or creative environments often need to be accessed by several users, at different locations, simultaneously. Therefore today's NAS drives must deliver high data transfer rates and simultaneous upload and download 24 hours a day, 7 days a week. - High durability and heat prevention
Use of high-endurance components is one of the reasons that the N300 series offers better durability than other conventional hard disk drives. At the same time, automatic adjustment of seek speed to reduce heat during high-temperature operation further improves endurance in demanding situations. - High speed for multi-drive environment
High performance and fast read speed is made possible under high data access loads from multiple users. This makes the drive suitable for small businesses and creative professionals looking for solutions to handle high data volumes using multi-RAID NAS environments. - Optimized cache allocation
Toshiba's Dynamic Cache Technology, a self-contained cache algorithm with on-board buffer management, optimizes how the cache is allocated during read/write to provide the high-level performance demanded by real-time domains. - Reduced noise and energy costs
The N300 NAS Hard Drives use a helium-sealed design, achieving low power consumption while increasing storage density. Toshiba Group's laser welding technology ensures that the helium remains securely sealed inside the drive enclosure. With the environment in mind, the helium-filled N300 models minimize acoustic output to just 20 dB (typical) in idle mode. The devices are ideal for large scale server systems allowing for rich scalability of up to 8 drives.
Special Features
- 3.5" SATA hard drive
- 24/7 operation
- Supports 1-to-8 bay NAS
- High reliability and enhanced real-time performance
- Toshiba Dynamic Cache Technology
- Toshiba Stable Platter Technology
- High-endurance design
- Error recovery control
- Temperature control
Product Specification
Device Type | Hard drive - internal |
Capacity | 18 TB |
Form Factor | 3.5" |
Interface | SATA 6Gb/s |
Buffer Size | 512 MB |
Features | RV Sensor, shock sensor, Native Command Queuing (NCQ), Halogen Free, Advanced Format technology, 24x7 continuous operation, Error Recovery Control, Toshiba Dynamic Cache Technology, Toshiba Stable Platter Technology |
Width | 101.85 mm |
Depth | 147 mm |
Height | 26.1 mm |
Weight | 720 g |
Performance | Performance |
Drive Transfer Rate | 600 MBps (external) |
Internal Data Rate | 281 MBps |
Average Latency | 4.17 ms |
Spindle Speed | 7200 rpm |
Reliability | Reliability |
MTBF | 1,200,000 hours |
24x7 Operation | Yes |
Non-Recoverable Errors | 1 per 10^14 |
Expansion & Connectivity | Expansion & Connectivity |
Interfaces | 1 x SATA 6 Gb/s |
Compatible Bay | 3.5" |
Power | Power |
Power Consumption | 4.14 Watt (active idle) |
Miscellaneous | Miscellaneous |
Compliant Standards | RoHS |
Package Type | Bulk |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 13.6 cm |
Shipping Depth | 6 cm |
Shipping Height | 18.9 cm |
Shipping Weight | 915 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 65 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Shock Tolerance (operating) | 70 g @ 2 ms |
Shock Tolerance (non-operating) | 250 g @ 2 ms |
Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
