TP-LINK TL-MR3420 3G/4G 300Mbps Wireless N Router / Wireless router / 4-port switch / 802.11b/g/n / 2.4 GHz | TL-MR3420
TP-LINK TL-MR3420 3G/4G 300Mbps Wireless N Router / Wireless router / 4-port switch / 802.11b/g/n / 2.4 GHz | TL-MR3420
Description Share the freedom of 3G/4G! The TL-MR3420 3G/4G wireless N router allows users to share a 3G/4G mobile broadband connection with family and friends via wired or wireless connections. By connecting a 3G/4G USB modem to the routers, a Wi-Fi hotspot is instantly established, via which multiple devices can access the Internet and share data and applications wirelessly. TP-LINK TL-MR3420 3G/4G 300Mbps Wireless N Router / Wireless router / 4-port switch | TL-MR3420Special Features
Product features
|
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency Band | 2.4 GHz |
Data Transfer Rate | 300 Mbps |
Network / Transport Protocol | PPTP, L2TP, PPPoE |
Routing Protocol | Static IP routing |
Remote Management Protocol | HTTP |
Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
Features | NAT support, auto-negotiation, auto-uplink (auto MDI/MDI-X), packet filtering, MAC address filtering, Wireless Distribution System (WDS) support, URL filtering, parental control, IP address filtering, firmware upgradable, Wi-Fi Protected Setup (WPS), bandwidth control, Stateful Packet Inspection Firewall (SPIF), 3G/4G USB Dongle Support, application filtering, Denial of Service (DoS) |
Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, FCC, RoHS |
Built-in Devices | Led panel |

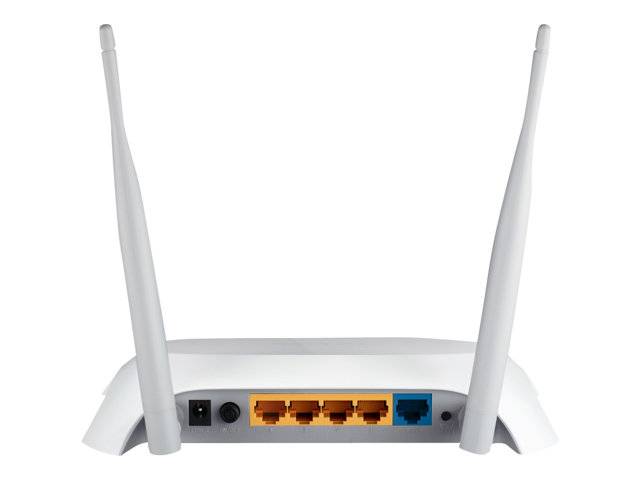

Interfaces | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Antenna: 3 x R-SMA ¦ USB 2.0: 1 x 4 pin USB Type A |
Aerial | External integrated |
Antenna Qty | 2 |
Directivity | Omni-directional |
Gain Level | 5 dBi |
Power Device | External power adapter |
Cables Included | 1 x network cable |
Software Included | Drivers & Utilities |
OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Vista / XP / 7 |
Width | 20.4 cm |
Depth | 13.8 cm |
Height | 4.4 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
