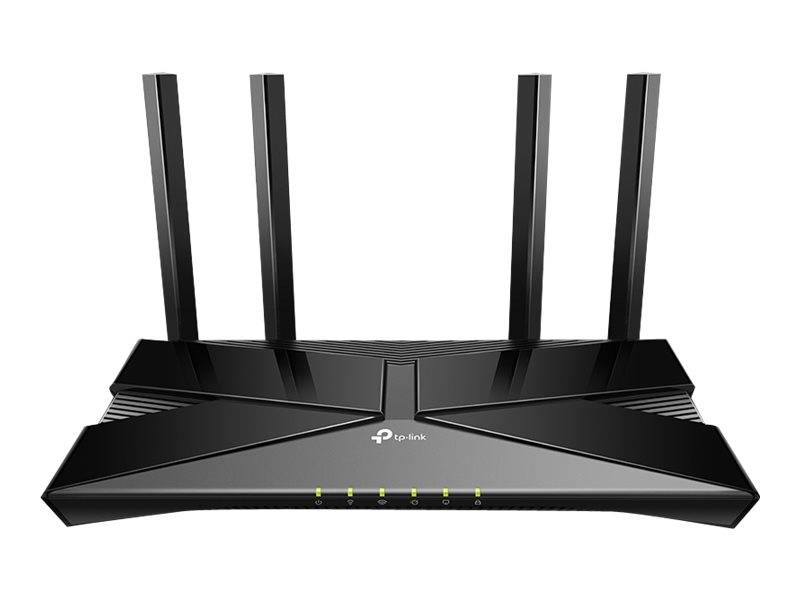

TP-Link Archer AX23 V1 / Wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | ARCHER AX23
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.8 Gbps |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Streams: 4 |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DDNS |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
| Wi-Fi Rating | AX1800 |
| Features | URL filtering, parental control, Quality of Service (QoS), Access Point+, Wi-Fi Protected Setup (WPS), reset button, port triggering, MU-MIMO technology, beamforming technology, dual band, Smart Connect, router mode, Airtime Fairness, DMZ support, OpenVPN server, IPTV support, WPS button, OneMesh support, auto firmware update, Guest Network |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS |
| Line Properties | Line Properties |
| Line Coding Format | OFDMA |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Aerial | Aerial |
| Aerial | External |
| Antenna Qty | 4 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 26.02 cm |
| Depth | 13.5 cm |
| Height | 4.16 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - Archer AX23(EU)
More Details
Product Code
04:403895
EAN Code
4897098687048
Manufacturer
TP-LINK
