TP-Link Archer AX73 / V1 / wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | ARCHER AX73
Please sign in so that we can notify you about a reply
Product Features
- Wi-Fi 6 upgrades everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. - Warp speed for smooth 8K streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster? Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging. - Extensive Wi-Fi coverage with advanced technology
Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-power FEM, 6x antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. - Connect 200+ devices
Easily handle dozens of devices streaming and gaming at the same time - OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices. - Designed to be cool

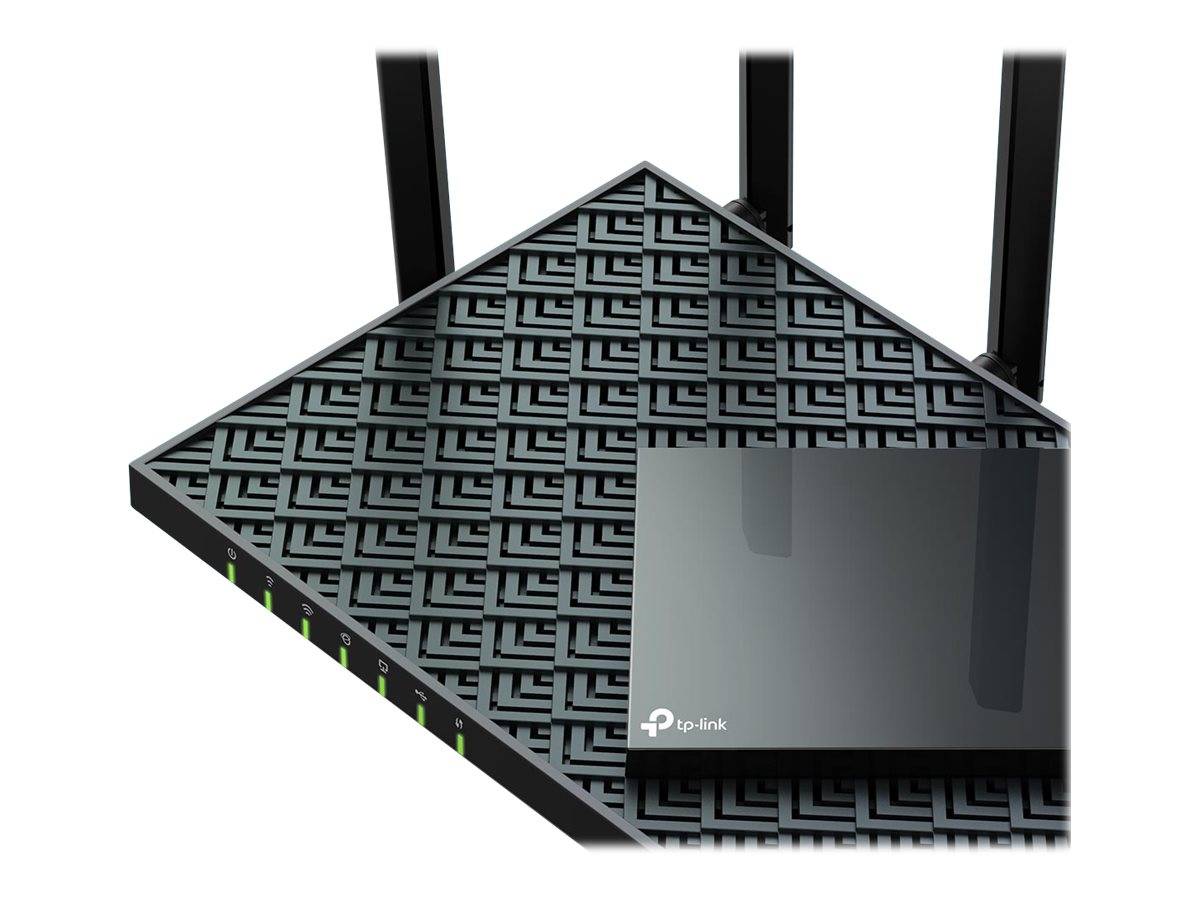

The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm2 (25 in2) of its top surface for improved heat dissipation, unleashing the whole machine's full power.
Special Features
- Gigabit Wi-Fi for 8K streaming - 5400 Mbps Wi-Fi for faster browsing, streamings, and downloading, all at the same time
- Fully featured Wi-Fi 6 - equips with the top structure of 4T4R and HT160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection
- Connect 200+ devices - supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
- Extensive coverage - 6x antennas and Beamforming ensure broad coverage
- HomeShield - TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection
- More vents, less heat - improved vents area unleash the full power of the whole machine

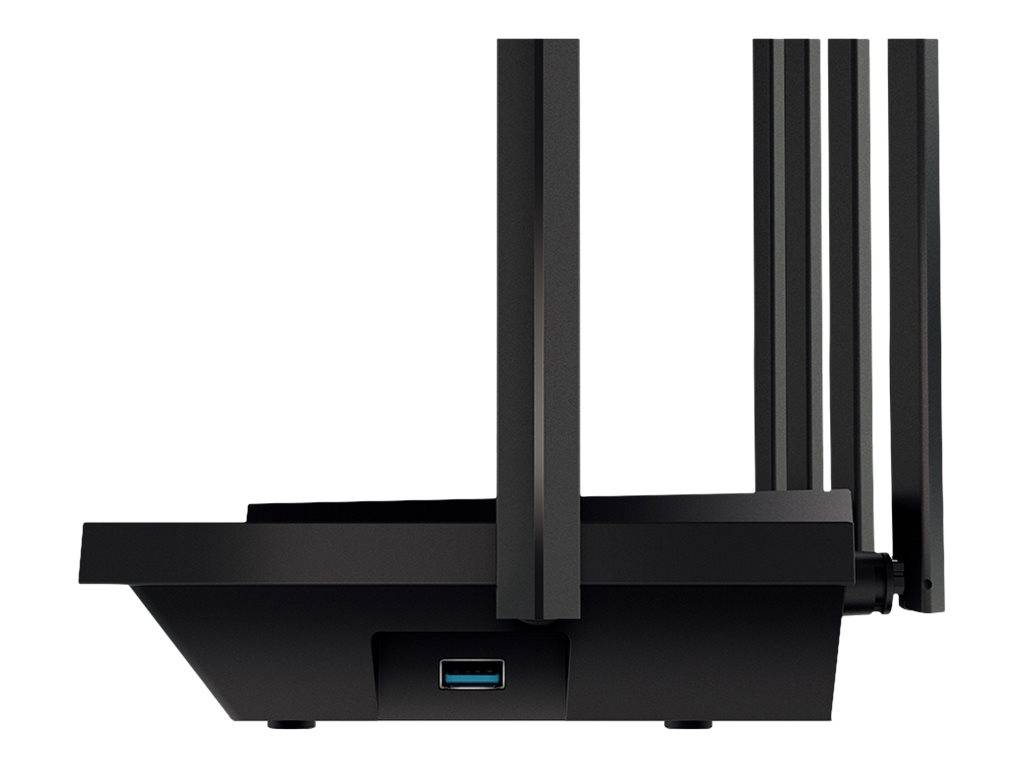

- USB sharing - 1x USB 3.0 port enables easy media sharing and private cloud building
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, FTP, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol | IGMP, static IP routing |
| Encryption Algorithm | WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
| Wi-Fi Rating | AX5400 |
| Features | NAT support, IGMP snooping, Stateful Packet Inspection (SPI), DFS support, URL filtering, parental control, Access Point operational mode, firmware upgradable, Access Control List (ACL) support, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), FTP server, static IP mode, port forwarding, reset button, Apple Time Machine compatible, port triggering, dynamic IP mode, IP-MAC binding, DHCP client, IGMP proxy, beamforming technology, dual band, router mode, Airtime Fairness, 4x4 MU-MIMO technology, DMZ support, PPTP server, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, IPTV support, WPS button |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS |
| Processor | 1.5 GHz |
| Line Properties | Line Properties |
| Line Coding Format | OFDMA |
| Expansion / Connectivity | Expansion / Connectivity |

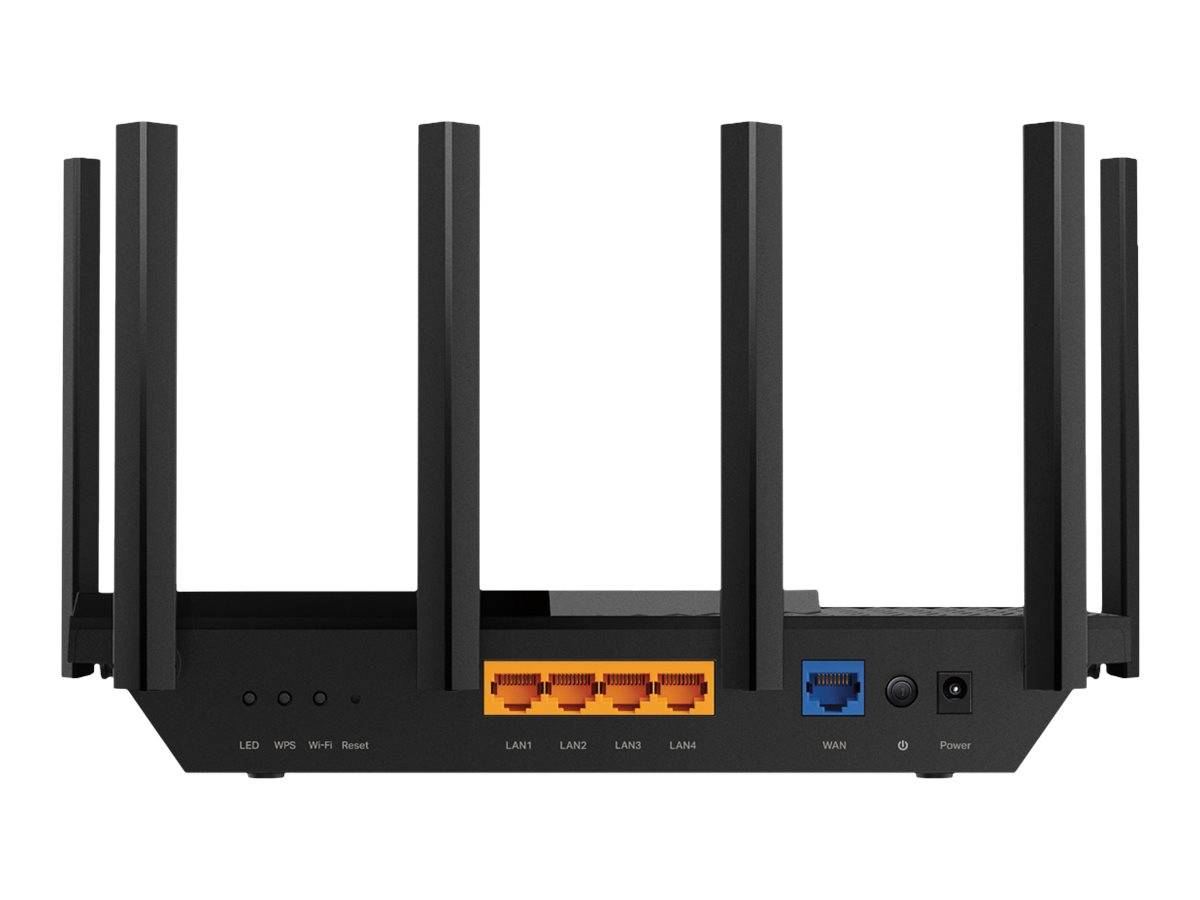

| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x |
| Aerial | Aerial |
| Aerial | External integrated |
| Antenna Qty | 6 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 27.25 cm |
| Depth | 14.72 cm |
| Height | 4.92 cm |
| Weight | 1.49 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - ARCHER AX73
More Details
Product Code
CA79646
EAN Code
6935364010263
Manufacturer
TP-LINK
